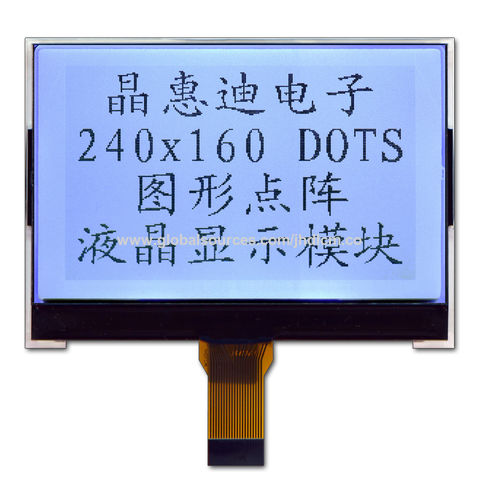

A 3.9″ monochrome, 240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures.

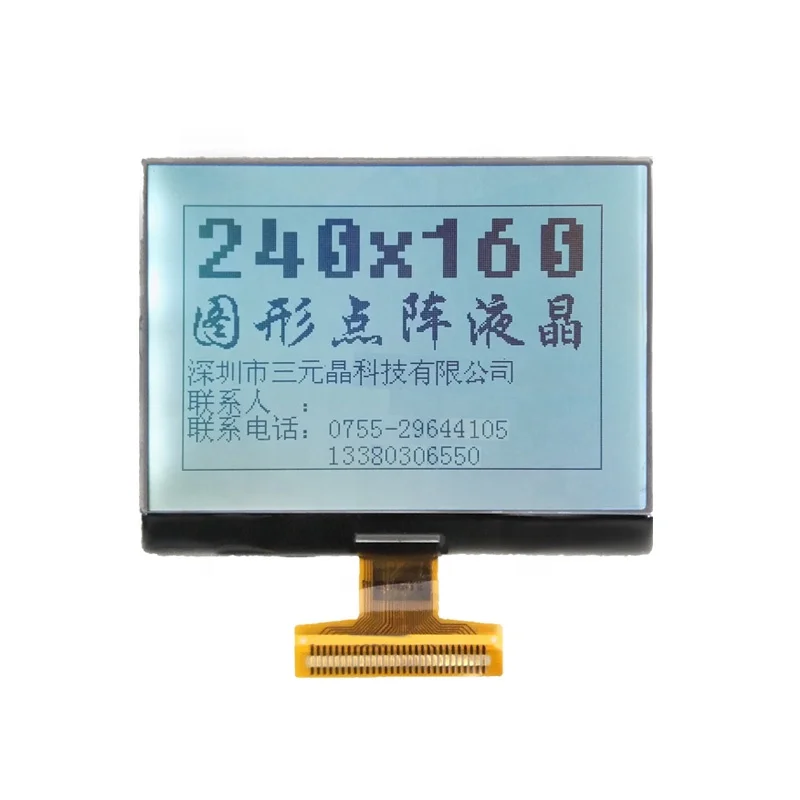

A 2.5″ monochrome,240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures .

Our products ranged from TN, HTN, STN, FSTN with various types of assembly such as COB, COG, TCP and custom made modules, TFT Display Module, Backlight LED, Touch Screen Panel. Our products widely used in the fields of video and audio system, game players, telephones, electronic meters, security system many kinds of terminal equipment and so on. We also follow ISO 9001 certified guidelines and comply with the RoHS directive.

Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

With per-pixel control available, almost any monochrome image can be drawn on the display. With the many possibilities this level of control offers, Graphic LCDs can be found in products ranging from handheld gaming devices to industrial consoles. Like character LCDs, graphic LCDs are available in TN, STN, and FSTN options with positive and negative images. The polarizers come in Reflective, Transmissive, and Transflective types and are available in a wide range of colors.

Parallel and Serial interface options make operation no more difficult than interfacing with an 8-bit microcontroller. These displays come with user controlled contrast meaning they can be used in a wide range of settings and the display can be adjusted to ensure optimal optical performance. Many displays also have temperature compensation circuitry to maintain contrast as the ambient temperature changes. All of this makes graphic LCDs a versatile and rugged means of adding graphics to a design.

Our 64240C is a COG LCD that uses two chips of the Sitronix ST7565P in master/ slave mode. This display module has been used in audio and medical equipment, alike. The most popular combinations for this module use our white or RGB backlight. This LCD has a FPC interface.

ST7565P is a single-chip dot-matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal Display Data RAM and this chip generates LCD driving signals independent of the microprocessor. Each data bits (65x132) of the internal Display Data RAM is 1-to-1 correspondence with each pixels (65x132) on the LCD panel, therefore, ST7565P enables displays with a high degree of freedom.

Monochrome Graphic LCDs include TN, STN, FSTN, FFSTN technologies with polarizer in positive mode or negative mode options. COG (Chip on Glass) Constraction. Graphic LCD modules include different options of polarizer in reflective, transmissive or transflective types. LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB. Available sizes from 1.2’’ to 5.2’’ (128x32~256x128 pixels). Main features:
