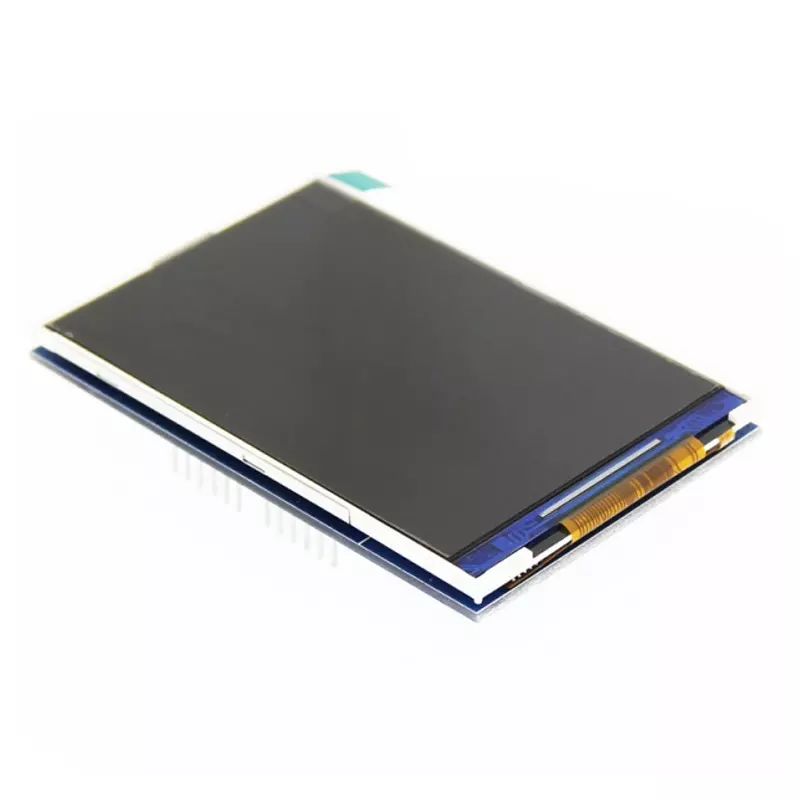

3.5 Inch TFT LCD Datasheet: Complete Technical Specifications and Application Guide

The 3.5 inch TFT LCD datasheet provides essential technical specifications for engineers and designers integrating this compact display module into embedded systems, industrial controls, and consumer electronics. This document covers critical parameters including resolution of 320x480 pixels, interface options such as SPI or RGB, driver IC like ILI9488 or ST7796, operating voltage, backlight characteristics, and mechanical dimensions. Understanding the datasheet ensures proper circuit design, optimal performance, and reliable operation in various applications.

1、3.5 inch TFT LCD pinout

The 3.5 inch TFT LCD pinout is a critical aspect of the datasheet that defines the electrical connections between the display module and the host microcontroller or system board. Typically, the pinout includes power supply pins such as VCC (3.3V or 5V), ground (GND), and backlight power (LED_A and LED_K). Signal pins vary depending on the interface type, but common pins include chip select (CS), data/command (DC), serial clock (SCK), serial data input (SDI), serial data output (SDO), and reset (RST). For RGB interface variants, additional pins like HSYNC, VSYNC, DOTCLK, and data lines (D0 to D17) are present. The datasheet provides a detailed pin assignment table with pin numbers, names, functions, and electrical characteristics such as input/output voltage levels and current ratings. Understanding the pinout is essential for designing the PCB layout, avoiding signal interference, and ensuring proper communication between the display and the controller. Engineers must also pay attention to pin compatibility with standard breakout boards or FPC connectors, as incorrect wiring can lead to display malfunction or permanent damage. The pinout diagram often includes a top view or bottom view of the module, clearly labeling each pin with its function and recommended connection. Additionally, some datasheets provide alternative pin configurations for different interface modes, such as 4-wire SPI, 3-wire SPI, or 16-bit parallel. By carefully studying the pinout section, designers can reduce development time, minimize errors, and achieve reliable display performance in their specific applications.

2、3.5 inch TFT LCD resolution

The 3.5 inch TFT LCD resolution is typically 320x480 pixels, providing a pixel density of approximately 165 PPI (pixels per inch) for sharp and clear image rendering. This resolution is well-suited for displaying text, icons, graphics, and basic user interfaces in embedded systems. The aspect ratio of 2:3 (320:480) makes it ideal for portrait-oriented applications such as handheld devices, medical monitors, and industrial panels. The datasheet specifies the active area dimensions, which are usually around 48.96mm x 73.44mm, along with the pixel pitch of approximately 0.153mm x 0.153mm. Understanding the resolution helps developers allocate sufficient frame buffer memory in the microcontroller and configure the display driver correctly. Higher resolution supports more detailed content but requires greater processing power and memory bandwidth. The 320x480 resolution balances visual quality and system resource usage, making it a popular choice for cost-sensitive projects. The datasheet also includes information on color depth, typically 16-bit (65K colors) or 18-bit (262K colors), which affects the number of colors that can be displayed simultaneously. Some modules support 24-bit color via RGB interface for even smoother gradients. Designers must verify that their microcontroller's graphics capabilities and memory size can handle the selected resolution and color depth. Additionally, the resolution impacts the touch panel calibration if a touch overlay is used. By consulting the resolution specifications in the datasheet, engineers can ensure that their application's visual requirements are met without overburdening the system.

3、3.5 inch TFT LCD interface

The 3.5 inch TFT LCD interface defines how the display communicates with the host processor, and the datasheet typically supports multiple interface options to accommodate different system architectures. Common interfaces include Serial Peripheral Interface (SPI), which uses 4-wire or 3-wire configurations for simple and low-pin-count connections. SPI is ideal for microcontrollers with limited GPIO pins and is widely used in Arduino, STM32, ESP32, and Raspberry Pi projects. Another popular interface is the RGB parallel interface, which uses 16-bit or 18-bit data buses along with control signals like HSYNC, VSYNC, and DOTCLK. RGB interface offers higher data transfer rates, enabling smooth video playback and fast screen updates, but requires more pins and a dedicated display controller. Some modules also support MCU 8-bit or 16-bit parallel interfaces for compatibility with older microcontrollers. The datasheet provides timing diagrams, voltage levels, and initialization sequences for each interface type, ensuring correct configuration. For SPI, the maximum clock frequency is usually specified, such as 20MHz or 40MHz, which affects refresh rate and responsiveness. The interface section also includes recommendations for pull-up resistors, decoupling capacitors, and level shifting if the host operates at a different voltage than the display. Engineers must choose the interface based on their project's performance requirements, pin availability, and complexity. Understanding the interface specifications from the datasheet is crucial for writing the display driver code, setting up the correct communication protocol, and achieving reliable data transmission without errors or glitches.

4、3.5 inch TFT LCD driver IC

The 3.5 inch TFT LCD driver IC is the heart of the display module, responsible for controlling pixel data, timing signals, and power management. Common driver ICs found in 3.5 inch modules include ILI9488, ST7796, HX8357, and NT35510, each with unique features and command sets. The datasheet dedicates a significant section to the driver IC, including its register map, command list, and initialization sequence. The ILI9488, for example, supports 16.7M colors, 320x480 resolution, and multiple interface modes such as SPI, 8-bit, 16-bit, and RGB. It also includes built-in gamma correction, sleep mode, and display inversion for improved image quality. The driver IC handles tasks like row and column addressing, pixel writing, and display refresh timing. Understanding the driver IC specifications helps developers optimize the display initialization code, reduce power consumption, and enable advanced features like partial update or scrolling. The datasheet provides electrical characteristics such as operating voltage (2.5V to 3.3V for logic, 2.8V for analog), current consumption in active and sleep modes, and temperature range. Some driver ICs also include a built-in touch controller for resistive touch panels, simplifying system design. By studying the driver IC section, engineers can select the appropriate module for their application, write efficient driver code, and troubleshoot display issues related to incorrect initialization or timing. The driver IC datasheet is often available separately for deeper technical reference, but the module datasheet summarizes the key parameters needed for integration.

5、3.5 inch TFT LCD backlight

The 3.5 inch TFT LCD backlight is a crucial component that illuminates the display from behind, ensuring clear visibility in various lighting conditions. The backlight typically uses white LED chips arranged in series or parallel configurations, driven by a constant current source. The datasheet specifies the backlight voltage (usually 3.0V to 3.3V per LED), forward current (typically 20mA to 40mA per LED), and total power consumption. For a 3.5 inch module, the backlight often consists of 6 to 10 LEDs, requiring an external current-limiting resistor or a dedicated LED driver IC. Brightness is measured in candelas per square meter (cd/m²), with typical values ranging from 250 to 500 cd/m² depending on the LED quality and diffuser design. The datasheet also provides information on the backlight lifespan, usually 20,000 to 50,000 hours, and operating temperature range. Some modules include PWM (Pulse Width Modulation) control for adjusting brightness, which can be implemented via a MOSFET or a dedicated backlight driver. Proper backlight design is essential for achieving uniform illumination, preventing hot spots, and extending LED life. Engineers must ensure that the backlight power supply matches the module's requirements and that adequate heat dissipation is provided to avoid thermal damage. The datasheet may also include notes on connecting multiple modules or using external backlight inverters for larger displays. By following the backlight specifications, designers can create energy-efficient and visually appealing products suitable for indoor or outdoor use.

6、3.5 inch TFT LCD dimensions

The 3.5 inch TFT LCD dimensions are precisely defined in the datasheet to facilitate mechanical integration into enclosures, panels, or handheld devices. The module size typically measures approximately 56.0mm x 85.0mm x 3.0mm (width x height x thickness), with the active display area being 48.96mm x 73.44mm. The bezel width around the active area is usually 3.0mm to 4.0mm on each side, providing space for mounting holes or adhesive tape. The datasheet includes a detailed mechanical drawing showing the outline, hole positions, connector location, and tolerance values (typically ±0.2mm). The FPC (Flexible Printed Circuit) connector is often located at the bottom or side of the module, with a pitch of 0.5mm or 1.0mm and a specified number of pins. Understanding the dimensions is critical for designing the PCB footprint, aligning the display with the touch panel or cover glass, and ensuring proper fit within the product housing. The datasheet also provides the weight of the module, usually around 20g to 30g, which is important for portable designs. Some modules include mounting holes with diameters of 2.0mm or 2.5mm for screw attachment, while others rely on adhesive bonding. Engineers must also consider the viewing angle, typically 12 o'clock or 6 o'clock, which affects the optimal orientation for user visibility. By carefully reviewing the dimensions section, designers can avoid mechanical interference, ensure proper assembly, and achieve a professional finish in their final product.

In summary, the 3.5 inch TFT LCD datasheet covers six highly relevant aspects: pinout, resolution, interface, driver IC, backlight, and dimensions. These core specifications enable engineers to select the right module, design the circuit and mechanical layout, and program the display driver correctly. Understanding the pinout ensures proper wiring, while the resolution and interface guide the choice of microcontroller and communication protocol. The driver IC details allow for efficient initialization and advanced features, and the backlight specifications help achieve optimal brightness and power efficiency. Finally, the dimensions ensure seamless physical integration. By mastering these six key areas from the datasheet, developers can accelerate product development, reduce errors, and create reliable and visually appealing display solutions for a wide range of applications, from industrial control panels to consumer electronics.

This article has provided a comprehensive overview of the 3.5 inch TFT LCD datasheet, covering the essential specifications that engineers and designers need to successfully integrate this display module into their projects. From the pinout and resolution to the interface, driver IC, backlight, and dimensions, each parameter plays a vital role in ensuring proper functionality, performance, and reliability. By carefully studying the datasheet and applying the information presented here, developers can avoid common pitfalls, optimize their designs, and achieve high-quality visual output. Whether you are building a handheld device, a medical monitor, or an industrial controller, the 3.5 inch TFT LCD offers a versatile and cost-effective solution. Always refer to the official datasheet from the manufacturer for the most accurate and up-to-date specifications, and feel free to explore additional resources for advanced topics such as touch integration, firmware optimization, and display testing. Thank you for reading, and we wish you success in your next display project.
