8.6 TFT Display Procurement Guide for Industrial IoT Applications: High-Brightness Solutions for Global Markets

Manufacturers in Southeast Asia and the Middle East are deploying smart kiosks and industrial HMI panels that must operate reliably under direct sunlight and fluctuating temperatures. The standard 7-inch displays often fail to deliver sufficient brightness or mechanical durability for these demanding environments. Our 8.6 TFT module provides a robust solution with 1000-nit luminance and an extended operating temperature range from -20°C to +70°C, ensuring clear visibility and long-term performance.

How to Choose the Right 8.6 TFT Display for Your Project

Selecting an industrial display involves more than just screen size. You need to evaluate optical performance, interface compatibility, and mechanical integration. Below we compare our 8.6 TFT module against conventional 7-inch panels commonly used in consumer-grade equipment.

Technical Specification Comparison: 8.6 TFT vs. Standard 7-Inch Display

Parameter 8.6 TFT Industrial Module Standard 7-Inch Display
Active Area Diagonal 8.6 inches (21.8 cm) 7.0 inches (17.8 cm)
Brightness (Typical) 1000 cd/m² 350 cd/m²
Contrast Ratio 1000:1 800:1
Viewing Angle (U/D/L/R) 85°/85°/85°/85° 70°/70°/70°/70°
Operating Temperature -20°C to +70°C 0°C to +50°C
Interface LVDS / RGB 24-bit RGB 18-bit
Touch Panel Option PCAP with anti-glare coating Resistive (optional)
MTBF 50,000 hours 30,000 hours

Our 8.6 TFT Production Workflow: From Glass to Finished Module

We follow a strict ISO 9001:2015 certified manufacturing process. Each stage is monitored to ensure consistent quality and on-time delivery for your global supply chain.

8.6 TFT display manufacturing process diagram showing cell assembly, driver IC bonding, backlight integration, optical bonding, and final testing stages

Quality Control System: Certifications and Testing Protocols

Every 8.6 TFT module undergoes rigorous testing before shipment. Our quality management system is validated by third-party audits.

  • ISO 9001:2015 – Quality management for production and service
  • IATF 16949 – Automotive-grade reliability standards (available on request)
  • DNV-GL – Marine and offshore application compliance
  • BV (Bureau Veritas) – Product safety and environmental testing

Our in-house test sequence includes: 72-hour burn-in at 60°C, 10-cycle thermal shock (-20°C to +70°C), vibration test per IEC 60068-2-6, and ESD immunity per IEC 61000-4-2.

Global Logistics and Customization Services

We support OEM and ODM projects with flexible terms designed for international buyers.

  • Minimum Order Quantity (MOQ): 100 units for standard configurations; 500 units for custom optical bonding or touch integration
  • Lead Time: 15-20 working days for standard orders; 25-30 days for custom designs
  • Shipping: FOB Shenzhen, CIF major ports (Rotterdam, Dubai, Singapore, Los Angeles)
  • Tariff Support: We provide HS code classification (8524.91) and country-of-origin certificates to simplify customs clearance
  • Payment Options: T/T (30% deposit, 70% before shipment), L/C at sight, or PayPal for sample orders

Real-World Feedback: What Our Customers Say

"We integrated the 8.6 TFT into our outdoor EV charging stations for the German market. The high brightness and wide temperature range eliminated previous screen failures during summer heatwaves." — Ing. Klaus Weber, Senior Hardware Engineer, ChargeTech GmbH (Germany)

"Our smart farming terminals in Thailand required a display that could handle 95% humidity and direct sunlight. The 8.6 TFT with optical bonding has been running for 18 months without a single failure." — Mr. Somchai Rattanapong, Procurement Manager, AgriVision Co., Ltd. (Thailand)

Risk Management: Quality Assurance and Payment Security

We stand behind every module with a 24-month warranty against manufacturing defects. For large-volume contracts, we offer a pre-shipment inspection report from SGS or TÜV Rheinland at cost. Payment via L/C provides bank-level protection for both parties. Our team provides bilingual support in English, Mandarin, and Arabic to bridge communication gaps in different time zones.

Practical Tips for Cross-Border 8.6 TFT Procurement

  • Time Zone Coordination: Our sales office in Shenzhen operates from 8:00 AM to 6:00 PM (CST, UTC+8). For urgent queries, we maintain a 24-hour email response policy.
  • Document Preparation: Request a sample inspection report (SIR) and material safety data sheet (MSDS) before placing bulk orders. These documents expedite customs clearance in the EU and North America.
  • Customs Valuation: Ensure your freight forwarder has the correct HS code and commercial invoice with unit prices declared in USD to avoid delays.

Start Your 8.6 TFT Project Today

Ready to upgrade your industrial display? Follow these steps to move forward:

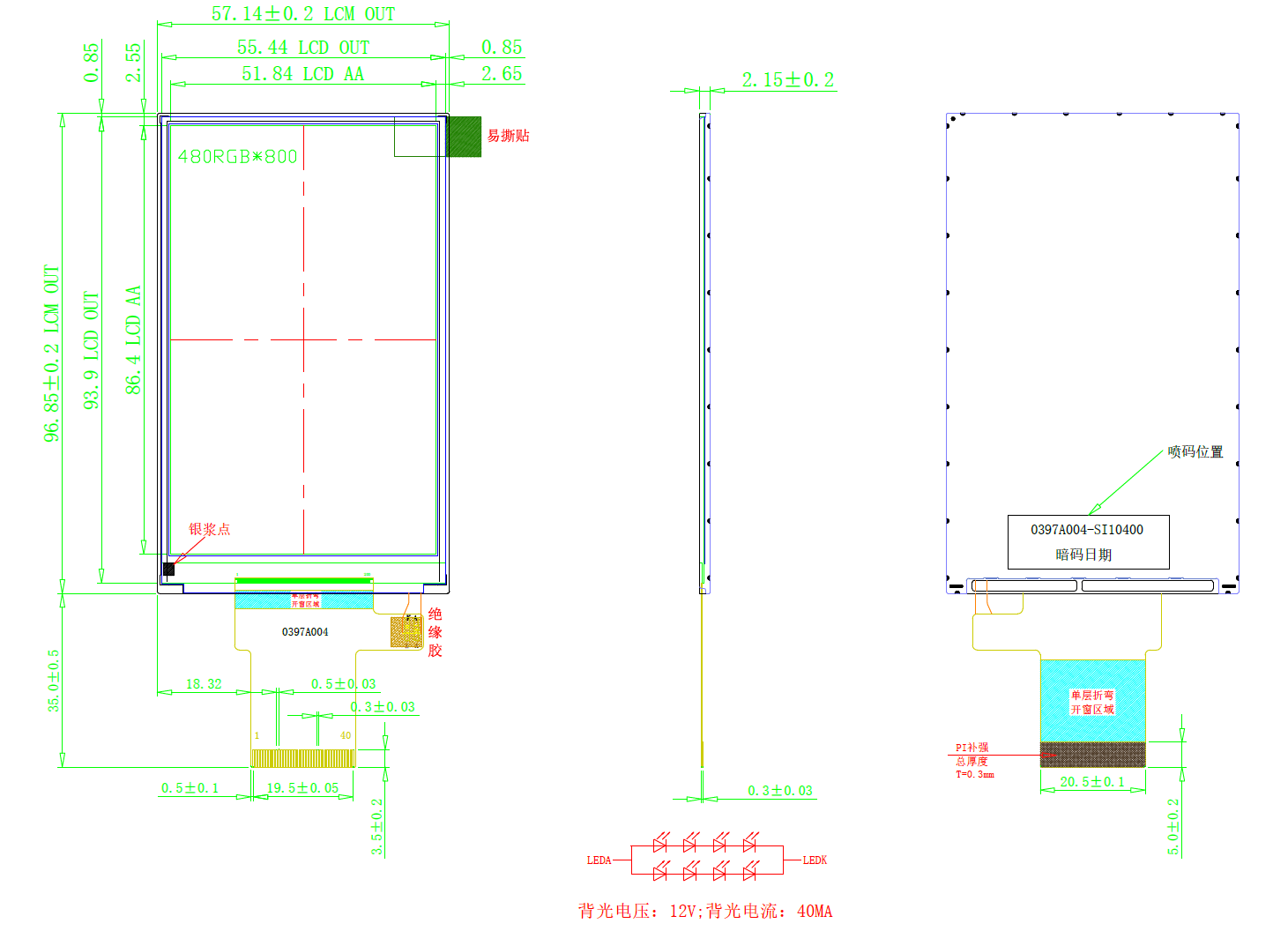

  1. Download the technical datasheet – Includes full electrical characteristics, mechanical drawings, and optical specifications.
  2. Request free samples – We offer up to 3 pcs for evaluation. Shipping costs apply.
  3. Schedule an online consultation – Our application engineers can review your project requirements via video call within 48 hours.

No links are provided here. Our team will process your inquiry after you contact us through the official channels.

Serving 35 countries across Asia, Europe, the Middle East, and the Americas. Annual export volume exceeds 2 million display modules.
