Get rich colors, detailed images, and bright graphics from an LCD with a TFT screen. Our standard Displaytech TFT screens start at 1” through 7” in diagonal size and have a variety of display resolutions to select from. Displaytech TFT displays meet the needs for products within industrial, medical, and consumer applications.

TFT displays are LCD modules with thin-film transistor technology. The TFT display technology offers full color RGB showcasing a range of colors and hues. These liquid crystal display panels are available with touchscreen capabilities, wide viewing angles, and bright luminance for high contrast.

Our TFT displays have LVDS, RGB, SPI, and MCU interfaces. All Displaytech TFT LCD modules include an LED backlight, FPC, driver ICs, and the LCD panel.

We offer resistive and capacitive touch screens for our 2.8” and larger TFT modules. Our TFT panels have a wide operating temperature range to suit a variety of environments. All Displaytech LCDs are RoHS compliant.

We also offer semi-customization to our standard TFT screens. This is a cost-optimized solution to make a standard product better suit your application’s needs compared to selecting a fully custom TFT LCD. Customizations can focus on cover glass, mounting / enclosures, and more - contact us to discuss your semi-custom TFT solution.

Display brilliant colors on the Displaytech 3.5 inch TFT LCD module! This LCD display has 320 x 240 RGB resolution and uses the NewVision NV3035C single chip digital driver. The TFT driver IC supports 16M colors allowing for a range of hues to be displayed and can also support up to 22 different types of input video formats within RGB, CCIR656, and CCIR601 video formats. The 3.5” TFT is available with a touch screen panel in either resistive (single-finger or stylus pressure) or capacitive (five-finger, multi-gesture) touchscreen technology.

LCD display doesn’t operate the same way as CRT displays , which fires electrons at a glass screen, a LCD display has individual pixels arranged in a rectangular grid. Each pixel has RGB(Red, Green, Blue) sub-pixel that can be turned on or off. When all of a pixel’s sub-pixels are turned off, it appears black. When all the sub-pixels are turned on 100%, it appears white. By adjusting the individual levels of red, green, and blue light, millions of color combinations are possible

The pixels of the LCD screen were made by circuitry and electrodes of the backplane. Each sub-pixel contains a TFT (Thin Film Transistor) element.  These structures are formed by depositing various materials (metals and silicon) on to the glass substrate that will become one part of the complete display “stack,” and then making them through photolithography. For more information about TFT LCDs, please refer to “

The etched pixels by photolith process are the Native Resolution. Actually, all the flat panel displays, LCD, OLED, Plasma etc.) have native resolution which are different from CRT monitors

HD TV has 1280×720 = 921,600 pixels; Full HD has 1920x 1080=2,073,600 pixels; 8K TV has 7,680×4,320=33,177,600 pixels. he “K” in 8K stands for Kilo (1000), meaning a TV that has achieved a horizonal resolution of about 8,000 pixels.

Although we can define a LCD display with resolution, a Full HD resolution on screen size of a 15” monitor or a 27” monitor will show different. The screen “fineness” is very important for some application, like medical, or even our cell phone. If the display “fineness” is not enough, the display will look “pixelized” which is unable to show details.

DPI stands for dots per inch and refers to the resolution of a printer. It describes the density of ink dots placed on a sheet of paper (or another photographic medium) by a printer to create a physical print.

PPI stands for number of pixels per inch. It is kind of pixel density. PPI describes the resolution of a digital image, not a print. PPI is used to resize images in preparation for printing

But you see other lower resolution available, that is because video cards are doing the trick. A video card can display a lower LCD screen resolution than the LCD’s built-in native resolution. The video cards can combine the pixels and turn a higher resolution into lower resolution, or just use part of the full screen. But video cards can’t do the magic to exceed the native resolution.

Aspect Ratio:  You might hear 4:3 which is full screen, 16:9 is for widescreen; 21:9 is for ultrawide computer monitors and televisions, as well as cinematic widescreen projectors. Some ultrawide monitors are trying to replace dual monitor.

We have been proud from the higher consumer gratification and wide acceptance due to our persistent pursuit of high quality both on product or service and service for Industrial Tft-Lcd Panel, Lcd Monitor, Medical Tft-Lcd Panel, Face Recognition Tft-Lcd Panel,Touch Displays/Screen. As an experienced group we also accept customized orders. The main goal of our company is to build up a satisfying memory for all customers, and establish a long-term win-win business relationship. The product will supply to all over the world, such as Europe, America, Australia,Russia, Holland,Boston, Qatar.Furthermore, all of our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. If you are interested in any of our products, please don"t hesitate to contact us. We will do our best to meet your needs.

Isa has more than 13 years of LCD production plants, which can provide glass molds, touch screen molds, backlight molds, FPC molds and other new products. Isa promises to refund all the mold opening fees you paid when you order any hardware up to the specified quantity.Yes, part of the payment can be deducted from the mould opening fee.You don"t have to worry about the expensive mold opening fee, which makes our cooperation more stable.

There are three standards for the quality of LCD :1.Consumption standards;2. Industrial standards;3. Automobile standards.Automobile standard is the highest standard, which requires the automobile to have strong impact resistance, high temperature resistance, high reliability and very low scrap rate.ISA selects the best raw materials, USES the most expensive equipment and has strict management according to the standards of cars, so our cost is high.In fact, the higher price of ISA is only reflected on the sample.If the quantity is large or the cooperation time is long, as long as the customer puts forward the price request, the preferential price can be obtained after negotiation

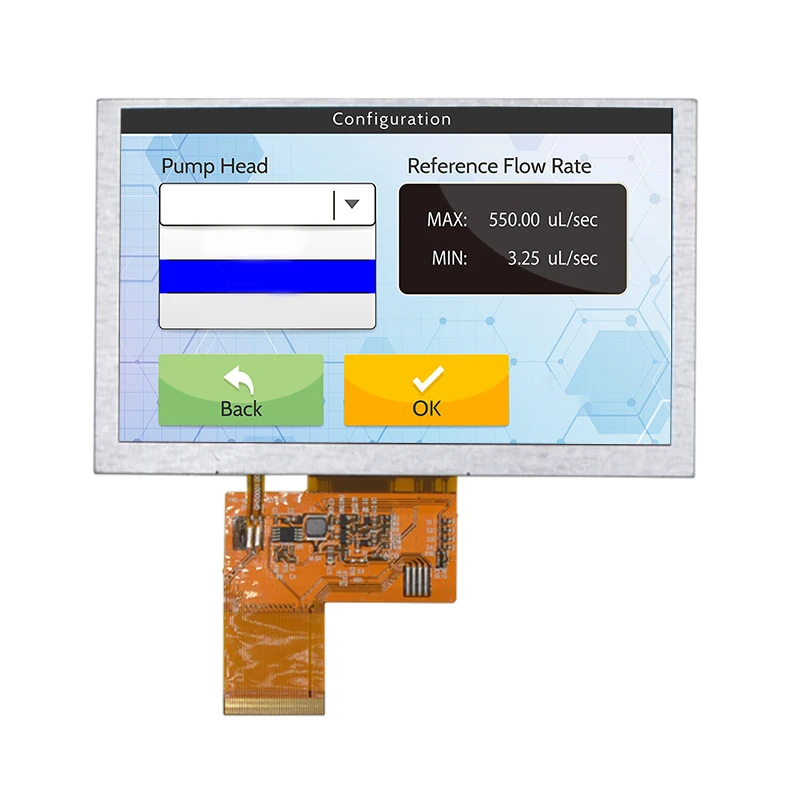

TFT displays are full color LCDs providing bright, vivid colors with the ability to show quick animations, complex graphics, and custom fonts with different touchscreen options. Available in industry standard sizes and resolutions. These displays come as standard, premium MVA, sunlight readable, or IPS display types with a variety of interface options including HDMI, SPI and LVDS. Our line of TFT modules include a custom PCB that support HDMI interface, audio support or HMI solutions with on-board FTDI Embedded Video Engine (EVE2).
