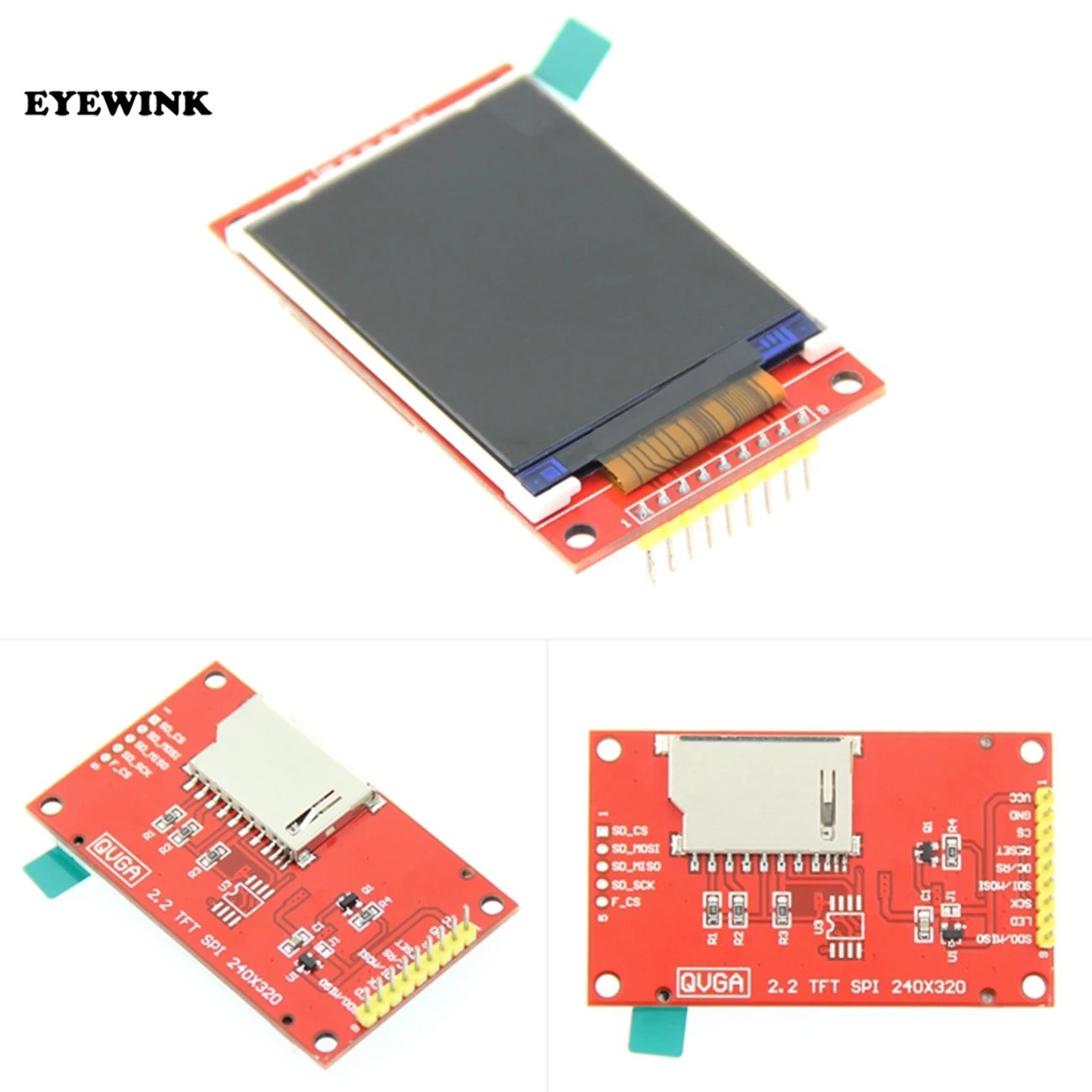

2.2 spi tft lcd teensy 3.6 hookup quotation

Kuman 3.5 inch 320*480 Resolution Touch Screen TFT LCD Display With Protective Case + 3 x Heat sinks+ Touch Pen for Raspberry Pi 3 Model B, Pi 2 Model B & Pi Model B+ SC11

The TFT isn"t "plug & play" with the Raspberry, a patch has to be applied to the kernel to be able to interface via SPI with the ST7735R controller chip on the TFT. Once working, the display will act as a framebuffer device.

-Get Kamal"s source which has the patch for ST7735R controller and the branch for the kernel that is used in 2013-02-09-wheezy-raspbian, which is 3.6.y;

If you are planning on displaying the console on the TFT, then enabling these options in .config will allow you to change the font size and rotate the display later on.

If you build the st7735 driver pair as built-in, add these options to the end of the line in /boot/cmdline.txt. This will display the console on the TFT.

I have tried to build Clock on RTC module, and to make indication in 3.2"LCD. In setup display working correctly, but in loop my dispaly loose connection (white screen).

It seems that LCD loose identification when call a internal function getDateDs1307 or get3231Temp(). However these functions returns to serial correct values, so i suppose that root cause in LCD library....

New Defines: DYNAMIC_BLADE_DIMMING, DYNAMIC_BLADE_LENGTH, DYNAMIC_CLASH_THRESHOLD, SAVE_BLADE_DIMMING, SAVE_CLASH_THRESHOLD, INCLUDE_SSD1306, FILTER_CUTOFF_FREQUENCY, FILTER_ORDER, NO_REPEAT_RANDOM, FEMALE_TALKIE_VOICE, DISABLE_BASIC_PARSER_STYLES and ENABLE_ALL_EDIT_OPTIONS

Make a config file. Usually, this will be tweaked and re-uploaded many times, but the best way to get started is to go to the Proffieboard V2, Proffieboard or TeensySaber V3 page and use the configuration generator. Go to the config/ directory, make a copy of one of the .h files, then rename the copy to "mysaber_config.h" (or whatever you like), then open up the file in an editor (like notepad) and remove all the lines, then cut-n-paste the stuff from the config generator instead and save it.

If you have a problem, you can contact me on The Rebel Armory or the fx-sabers forum, but there is also lots of online informtation about arduinos and teensys, so some googling probably won"t hurt.

The number - When playing a sound, TeensySaber will generally pick one of them randomly. The numbers can either be on the form 1,2,3,4,5,6,7,8,9,10,11, etc. or 01, 02, 03, etc. or 001, 002, 003, etc. The number sequence must be consistent and without any gaps. It"s also possible to omit the number completely. For looping sounds, TeensySaber will randomly pick one of the numbered files each time it starts over, so it"s possible to create a more interesting hum by having "hum.wav", "hum1.waw", "hum2.wav" etc. Note that since we"re using an ancient file system, the length of the name and number must not total more than 8 characters. (So you can only have 11 poweron sounds: poweron.wav, poweron0.wav, poweron1.wav....poweron9.wav)

4.9 - Font search paths, IR, SPI LED, Layers, presets.ini cleanup on programming, lightning block, melt, responsive styles, lots of new styles and effects.

5.9 - MICOM, initial Teensy4 support, RFID, I2S, S/PDIF, WS2811 speedups, FromHumFileStyle, EffectSeqence, CircularSectionF, MarbleF, SliceF, Saw, PullDownButton, SubBladeWIthStride

The 3.5 inch TFT LCD Touch Display Shield for Arduino Uno is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board. RoboticsBD

So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (3.5″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

I"m still waiting for the last few components to arrive before I can build the controller, however one thing I wanted to do first is test my chosen LCD with the Teensy microcontroller. I"ve never used a TFT LCD with Arduino or Teensy before, so I first wanted to make sure that I could get the desired functionality and performance out of the LCD.

The LCD I am using is a 2.4" 320x240 TFT LCD with a ILI9341 controller chip which appears to be based off of an Adafruit design, which can be used with a Teensy-optimised Adafruit_ILI9341 library for better performance.

I decided to use the Teensy-optimised Adafruit_ILI9341 library over the standard Adafruit_ILI9341 library due to the demonstrated increased frame rate and performance of the former. I downloaded the library from the Github page and followed the provided instructions to install it into the Arduino software.

After a quick online search I couldn"t find any decent tutorials on using the LCD"s Arduino library to draw shapes (which is mostly what I want the LCD to do), however after dissecting the example sketches that come with the library it became quite clear how to do it. The best source to find out what functionality is provided is the library"s main header file, which shows all the functions that library provides such as drawRect, fillRect, fillCircle, and many more.

To test the LCD and Arduino library I decided to attempt to create a simple Teensy sketch that draws eight sliders on the LCD that each change their value from a MIDI CC message received over USB-MIDI - something that the final controller software will need to do.

Below is the code I created to do this. See the comments in the code to see how it works. The exact MIDI CC numbers I am using in this test code match the default CCs that the KORG nanoKONTROL MIDI controller sends from it"s sliders (see the below example video). If you would like to upload this to a Teensy yourself, you"ll need to set the "USB Type" to "MIDI" in the tools menu.

Below is an example video of the above code running on a Teensy 3.6, using a KORG nanoKONTROL USB-MIDI controller as the MIDI input device, with MIDI messages being routed from the nanoKONTROL to the Teensy using my MacBook running the MIDI Patchbay software.
