2 4 tft lcd shield arduino quotation

Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This TFT display is 2.4" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional capacitive touch panel and resistive touch panel with controller XPT2046 attached by default.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you"ll have it running in under 10 minutes! Works best with any classic Arduino (UNO/Due/Mega 2560).

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!" - we"ve written a full open source graphics library at the bottom of this page that can draw pixels, lines, rectangles, circles and text. We also have a touch screen library that detects x,y and z (pressure) and example code to demonstrate all of it. The code is written for Arduino but can be easily ported to your favorite microcontroller!

If you"ve had a lot of Arduino DUEs go through your hands (or if you are just unlucky), chances are you’ve come across at least one that does not start-up properly.The symptom is simple: you power up the Arduino but it doesn’t appear to “boot”. Your code simply doesn"t start running.You might have noticed that resetting the board (by pressing the reset button) causes the board to start-up normally.The fix is simple,here is the solution.

This module is designed to plug directly into Arduino UNO R3 (or its clone) boards. It is compatible with CH340 and Atmega16u2 version boards, as well as Mega 2560. This LCD shield may also work with other boards, but the compatibility can"t be guaranteed.

The shield is fully assembled, tested, and ready to go. No wiring, no soldering! Simply plug it in and load up the library - you"ll have it running in under 10 minutes!

In this Arduino touch screen tutorial we will learn how to use TFT LCD Touch Screen with Arduino. You can watch the following video or read the written tutorial below.

The next example is controlling an RGB LED using these three RGB sliders. For example if we start to slide the blue slider, the LED will light up in blue and increase the light as we would go to the maximum value. So the sliders can move from 0 to 255 and with their combination we can set any color to the RGB LED,  but just keep in mind that the LED cannot represent the colors that much accurate.

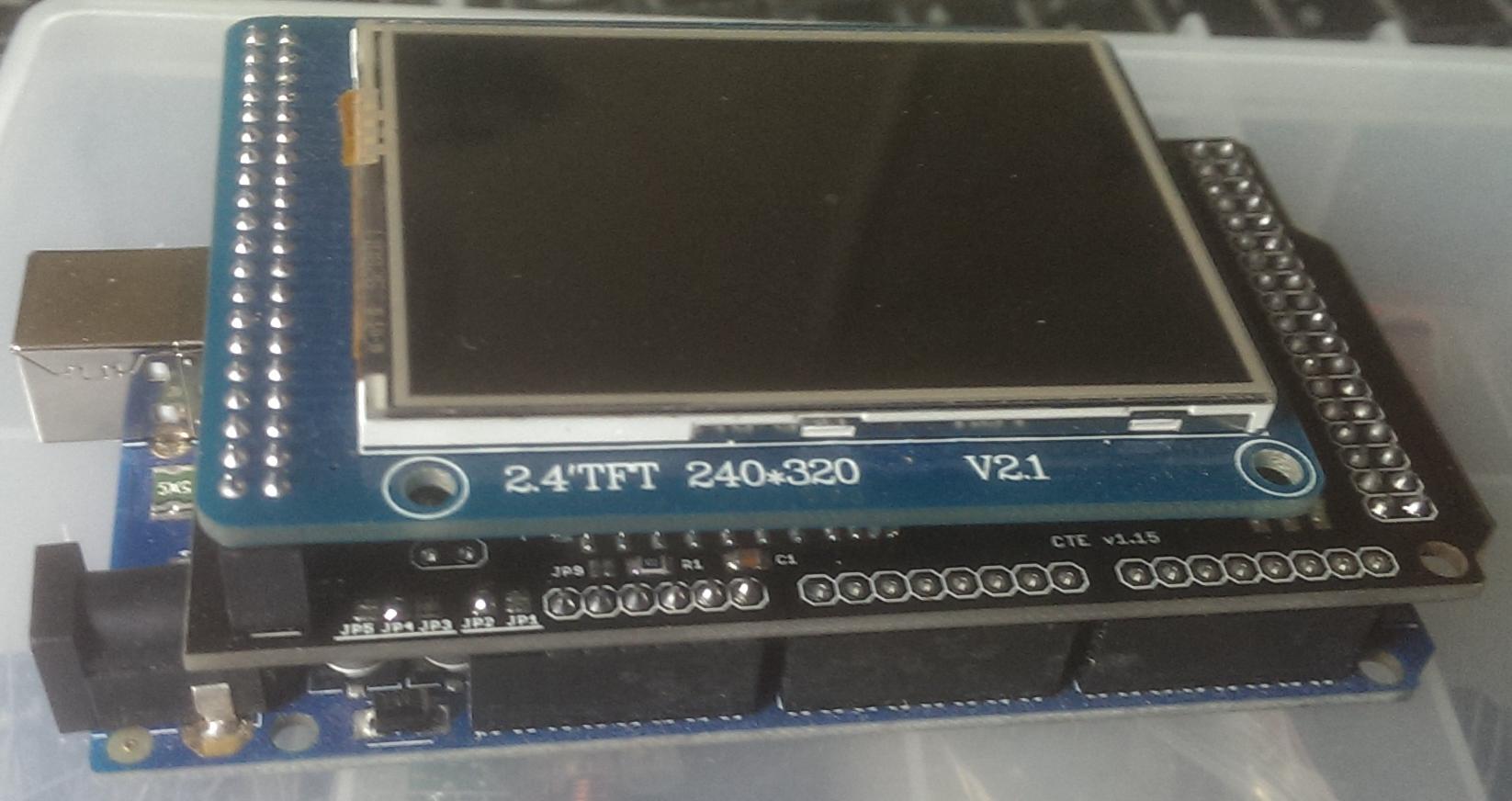

As an example I am using a 3.2” TFT Touch Screen in a combination with a TFT LCD Arduino Mega Shield. We need a shield because the TFT Touch screen works at 3.3V and the Arduino Mega outputs are 5 V. For the first example I have the HC-SR04 ultrasonic sensor, then for the second example an RGB LED with three resistors and a push button for the game example. Also I had to make a custom made pin header like this, by soldering pin headers and bend on of them so I could insert them in between the Arduino Board and the TFT Shield.

Here’s the circuit schematic. We will use the GND pin, the digital pins from 8 to 13, as well as the pin number 14. As the 5V pins are already used by the TFT Screen I will use the pin number 13 as VCC, by setting it right away high in the setup section of code.

I will use the UTFT and URTouch libraries made by Henning Karlsen. Here I would like to say thanks to him for the incredible work he has done. The libraries enable really easy use of the TFT Screens, and they work with many different TFT screens sizes, shields and controllers. You can download these libraries from his website, RinkyDinkElectronics.com and also find a lot of demo examples and detailed documentation of how to use them.

After we include the libraries we need to create UTFT and URTouch objects. The parameters of these objects depends on the model of the TFT Screen and Shield and these details can be also found in the documentation of the libraries.

So now I will explain how we can make the home screen of the program. With the setBackColor() function we need to set the background color of the text, black one in our case. Then we need to set the color to white, set the big font and using the print() function, we will print the string “Arduino TFT Tutorial” at the center of the screen and 10 pixels  down the Y – Axis of the screen. Next we will set the color to red and draw the red line below the text. After that we need to set the color back to white, and print the two other strings, “by HowToMechatronics.com” using the small font and “Select Example” using the big font.

Ok next is the RGB LED Control example. If we press the second button, the drawLedControl() custom function will be called only once for drawing the graphic of that example and the setLedColor() custom function will be repeatedly called. In this function we use the touch screen to set the values of the 3 sliders from 0 to 255. With the if statements we confine the area of each slider and get the X value of the slider. So the values of the X coordinate of each slider are from 38 to 310 pixels and we need to map these values into values from 0 to 255 which will be used as a PWM signal for lighting up the LED. If you need more details how the RGB LED works you can check my particular tutorialfor that. The rest of the code in this custom function is for drawing the sliders. Back in the loop section we only have the back button which also turns off the LED when pressed.

In order the code to work and compile you will have to include an addition “.c” file in the same directory with the Arduino sketch. This file is for the third game example and it’s a bitmap of the bird. For more details how this part of the code work  you can check my particular tutorial. Here you can download that file:

In this tutorial, you will learn how to use and set up 2.4″ Touch LCD Shield for Arduino. First, you’ll see some general information about this shield. And after learning how to set the shield up, you’ll see 3 practical projects.

The role of screens in electronic projects is very important. Screens can be of very simple types such as 7 Segment or character LCDs or more advanced models like OLEDs and TFT LCDs.

One of the most important features of this LCD is including a touch panel. If you are about to use the LCD, you need to know the coordinates of the point you touch. To do so, you should upload the following code on your Arduino board and open the serial monitor. Then touch your desired location and write the coordinates displayed on the serial monitor. You can use this coordination in any other project./*TFT LCD - TFT Touch CoordinateBased on Librery Examplemodified on 21 Feb 2019by Saeed Hosseinihttps://electropeak.com/learn/*/#include #include "TouchScreen.h"#define YP A2#define XM A3#define YM 8#define XP 9// For better pressure precision, we need to know the resistance// between X+ and X- Use any multimeter to read it// For the one we"re using, its 300 ohms across the X plateTouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);void setup(void) {Serial.begin(9600);}void loop(void) {TSPoint p = ts.getPoint();if (p.z > ts.pressureThreshhold) {Serial.print("X = "); Serial.print(p.x);Serial.print("\tY = "); Serial.print(p.y);Serial.print("\tPressure = "); Serial.println(p.z);}delay(100);}

Displaying Text and Shapes on Arduino 2.4 LCD/*TFT LCD - TFT Simple drivingmodified on 21 Feb 2019by Saeed Hosseinihttps://electropeak.com/learn/*/#include #include #define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define LCD_RESET A4#define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFF#define ORANGE 0xFD20#define GREENYELLOW 0xAFE5#define NAVY 0x000F#define DARKGREEN 0x03E0#define DARKCYAN 0x03EF#define MAROON 0x7800#define PURPLE 0x780F#define OLIVE 0x7BE0#define LIGHTGREY 0xC618#define DARKGREY 0x7BEFAdafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);void setup() {Serial.begin(9600);Serial.println(F("TFT LCD test"));#ifdef USE_ADAFRUIT_SHIELD_PINOUTSerial.println(F("Using Adafruit 2.4\" TFT Arduino Shield Pinout"));#elseSerial.println(F("Using Adafruit 2.4\" TFT Breakout Board Pinout"));#endifSerial.print("TFT size is ");Serial.print(tft.width());Serial.print("x");Serial.println(tft.height());tft.reset();uint16_t identifier = tft.readID();if (identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if (identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if (identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if (identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if (identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);Serial.println(F("Benchmark Time (microseconds)"));Serial.print(F("Screen fill "));Serial.println(FillScreen());delay(500);tft.setTextColor(YELLOW);tft.setCursor(70, 180);tft.setTextSize(1);tft.println("Electropeak");delay(200);tft.fillScreen(PURPLE);tft.setCursor(50, 170);tft.setTextSize(2);tft.println("Electropeak");delay(200);tft.fillScreen(PURPLE);tft.setCursor(20, 160);tft.setTextSize(3);tft.println("Electropeak");delay(500);tft.fillScreen(PURPLE);for (int rotation = 0; rotation < 4; rotation++) { tft.setRotation(rotation); tft.setCursor(0, 0); tft.setTextSize(3); tft.println("Electropeak"); delay(700); } delay(500); Serial.print(F("Rectangles (filled) ")); Serial.println(testFilledRects(YELLOW, MAGENTA)); delay(500); } void loop() { } unsigned long FillScreen() { unsigned long start = micros(); tft.fillScreen(RED); delay(500); tft.fillScreen(GREEN); delay(500); tft.fillScreen(BLUE); delay(500); tft.fillScreen(WHITE); delay(500); tft.fillScreen(MAGENTA); delay(500); tft.fillScreen(PURPLE); delay(500); return micros() - start; } unsigned long testFilledRects(uint16_t color1, uint16_t color2) { unsigned long start, t = 0; int n, i, i2, cx = tft.width() / 2 - 1, cy = tft.height() / 2 - 1; tft.fillScreen(BLACK); n = min(tft.width(), tft.height()); for (i = n; i > 0; i -= 6) {i2 = i / 2;start = micros();tft.fillRect(cx - i2, cy - i2, i, i, color1);t += micros() - start;// Outlines are not included in timing resultstft.drawRect(cx - i2, cy - i2, i, i, color2);}return t;}

Displaying BMP pictures/*This code is TFTLCD Library Example*/#include #include #include #include #define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define SD_CS 10Adafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, A4);void setup(){Serial.begin(9600);tft.reset();uint16_t identifier = tft.readID();if (identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if (identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if (identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if (identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if (identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);Serial.print(F("Initializing SD card..."));if (!SD.begin(SD_CS)) {Serial.println(F("failed!"));return;}Serial.println(F("OK!"));bmpDraw("pic1.bmp", 0, 0);delay(1000);bmpDraw("pic2.bmp", 0, 0);delay(1000);bmpDraw("pic3.bmp", 0, 0);delay(1000);}void loop(){}#define BUFFPIXEL 20void bmpDraw(char *filename, int x, int y) {File bmpFile;int bmpWidth, bmpHeight; // W+H in pixelsuint8_t bmpDepth; // Bit depth (currently must be 24)uint32_t bmpImageoffset; // Start of image data in fileuint32_t rowSize; // Not always = bmpWidth; may have paddinguint8_t sdbuffer[3 * BUFFPIXEL]; // pixel in buffer (R+G+B per pixel)uint16_t lcdbuffer[BUFFPIXEL]; // pixel out buffer (16-bit per pixel)uint8_t buffidx = sizeof(sdbuffer); // Current position in sdbufferboolean goodBmp = false; // Set to true on valid header parseboolean flip = true; // BMP is stored bottom-to-topint w, h, row, col;uint8_t r, g, b;uint32_t pos = 0, startTime = millis();uint8_t lcdidx = 0;boolean first = true;if ((x >= tft.width()) || (y >= tft.height())) return;Serial.println();Serial.print(F("Loading image ""));Serial.print(filename);Serial.println("\"");// Open requested file on SD cardif ((bmpFile = SD.open(filename)) == NULL) {Serial.println(F("File not found"));return;}// Parse BMP headerif (read16(bmpFile) == 0x4D42) { // BMP signatureSerial.println(F("File size: ")); Serial.println(read32(bmpFile));(void)read32(bmpFile); // Read & ignore creator bytesbmpImageoffset = read32(bmpFile); // Start of image dataSerial.print(F("Image Offset: ")); Serial.println(bmpImageoffset, DEC);// Read DIB headerSerial.print(F("Header size: ")); Serial.println(read32(bmpFile));bmpWidth = read32(bmpFile);bmpHeight = read32(bmpFile);if (read16(bmpFile) == 1) { // # planes -- must be "1"bmpDepth = read16(bmpFile); // bits per pixelSerial.print(F("Bit Depth: ")); Serial.println(bmpDepth);if ((bmpDepth == 24) && (read32(bmpFile) == 0)) { // 0 = uncompressedgoodBmp = true; // Supported BMP format -- proceed!Serial.print(F("Image size: "));Serial.print(bmpWidth);Serial.print("x");Serial.println(bmpHeight);// BMP rows are padded (if needed) to 4-byte boundaryrowSize = (bmpWidth * 3 + 3) & ~3;// If bmpHeight is negative, image is in top-down order.// This is not canon but has been observed in the wild.if (bmpHeight < 0) { bmpHeight = -bmpHeight; flip = false; } // Crop area to be loaded w = bmpWidth; h = bmpHeight; if ((x + w - 1) >= tft.width()) w = tft.width() - x;if ((y + h - 1) >= tft.height()) h = tft.height() - y;// Set TFT address window to clipped image boundstft.setAddrWindow(x, y, x + w - 1, y + h - 1);for (row = 0; row < h; row++) { // For each scanline...// Seek to start of scan line. It might seem labor-// intensive to be doing this on every line, but this// method covers a lot of gritty details like cropping// and scanline padding. Also, the seek only takes// place if the file position actually needs to change// (avoids a lot of cluster math in SD library).if (flip) // Bitmap is stored bottom-to-top order (normal BMP)pos = bmpImageoffset + (bmpHeight - 1 - row) * rowSize;else // Bitmap is stored top-to-bottompos = bmpImageoffset + row * rowSize;if (bmpFile.position() != pos) { // Need seek?bmpFile.seek(pos);buffidx = sizeof(sdbuffer); // Force buffer reload}for (col = 0; col < w; col++) { // For each column... // Time to read more pixel data? if (buffidx >= sizeof(sdbuffer)) { // Indeed// Push LCD buffer to the display firstif (lcdidx > 0) {tft.pushColors(lcdbuffer, lcdidx, first);lcdidx = 0;first = false;}bmpFile.read(sdbuffer, sizeof(sdbuffer));buffidx = 0; // Set index to beginning}// Convert pixel from BMP to TFT formatb = sdbuffer[buffidx++];g = sdbuffer[buffidx++];r = sdbuffer[buffidx++];lcdbuffer[lcdidx++] = tft.color565(r, g, b);} // end pixel} // end scanline// Write any remaining data to LCDif (lcdidx > 0) {tft.pushColors(lcdbuffer, lcdidx, first);}Serial.print(F("Loaded in "));Serial.print(millis() - startTime);Serial.println(" ms");} // end goodBmp}}bmpFile.close();if (!goodBmp) Serial.println(F("BMP format not recognized."));}// These read 16- and 32-bit types from the SD card file.// BMP data is stored little-endian, Arduino is little-endian too.// May need to reverse subscript order if porting elsewhere.uint16_t read16(File f) {uint16_t result;((uint8_t *)&result)[0] = f.read(); // LSB((uint8_t *)&result)[1] = f.read(); // MSBreturn result;}uint32_t read32(File f) {uint32_t result;((uint8_t *)&result)[0] = f.read(); // LSB((uint8_t *)&result)[1] = f.read();((uint8_t *)&result)[2] = f.read();((uint8_t *)&result)[3] = f.read(); // MSBreturn result;}

To display pictures on this LCD you should save the picture in 24bit BMP colored format and size of 240*320. Then move them to SD card and put the SD card in the LCD shield. we use the following function to display pictures. This function has 3 arguments; the first one stands for the pictures name, and the second and third arguments are for length and width coordinates of the top left corner of the picture.bmpdraw(“filename.bmp”,x,y);

Create A Paint App w/ Arduino 2.4 Touchscreen/*This code is TFTLCD Library Example*/#include #include #include #if defined(__SAM3X8E__)#undef __FlashStringHelper::F(string_literal)#define F(string_literal) string_literal#endif#define YP A3#define XM A2#define YM 9#define XP 8#define TS_MINX 150#define TS_MINY 120#define TS_MAXX 920#define TS_MAXY 940TouchScreen ts = TouchScreen(XP, YP, XM, YM, 300);#define LCD_CS A3#define LCD_CD A2#define LCD_WR A1#define LCD_RD A0#define LCD_RESET A4#define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFFAdafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);#define BOXSIZE 40#define PENRADIUS 3int oldcolor, currentcolor;void setup(void) {Serial.begin(9600);Serial.println(F("Paint!"));tft.reset();uint16_t identifier = tft.readID();if(identifier == 0x9325) {Serial.println(F("Found ILI9325 LCD driver"));} else if(identifier == 0x9328) {Serial.println(F("Found ILI9328 LCD driver"));} else if(identifier == 0x7575) {Serial.println(F("Found HX8347G LCD driver"));} else if(identifier == 0x9341) {Serial.println(F("Found ILI9341 LCD driver"));} else if(identifier == 0x8357) {Serial.println(F("Found HX8357D LCD driver"));} else {Serial.print(F("Unknown LCD driver chip: "));Serial.println(identifier, HEX);Serial.println(F("If using the Adafruit 2.4\" TFT Arduino shield, the line:"));Serial.println(F(" #define USE_ADAFRUIT_SHIELD_PINOUT"));Serial.println(F("should appear in the library header (Adafruit_TFT.h)."));Serial.println(F("If using the breakout board, it should NOT be #defined!"));Serial.println(F("Also if using the breakout, double-check that all wiring"));Serial.println(F("matches the tutorial."));return;}tft.begin(identifier);tft.fillScreen(BLACK);tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED);tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW);tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN);tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN);tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE);tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA);tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);currentcolor = RED;pinMode(13, OUTPUT);}#define MINPRESSURE 10#define MAXPRESSURE 1000void loop(){digitalWrite(13, HIGH);TSPoint p = ts.getPoint();digitalWrite(13, LOW);pinMode(XM, OUTPUT);pinMode(YP, OUTPUT);if (p.z > MINPRESSURE && p.z < MAXPRESSURE) {if (p.y < (TS_MINY-5)) {Serial.println("erase");tft.fillRect(0, BOXSIZE, tft.width(), tft.height()-BOXSIZE, BLACK);}p.x = map(p.x, TS_MINX, TS_MAXX, tft.width(), 0);p.y = map(p.y, TS_MINY, TS_MAXY, tft.height(), 0);if (p.y < BOXSIZE) {oldcolor = currentcolor;if (p.x < BOXSIZE) {currentcolor = RED;tft.drawRect(0, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*2) {currentcolor = YELLOW;tft.drawRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*3) {currentcolor = GREEN;tft.drawRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*4) {currentcolor = CYAN;tft.drawRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*5) {currentcolor = BLUE;tft.drawRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, WHITE);} else if (p.x < BOXSIZE*6) { currentcolor = MAGENTA; tft.drawRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, WHITE); } if (oldcolor != currentcolor) { if (oldcolor == RED) tft.fillRect(0, 0, BOXSIZE, BOXSIZE, RED); if (oldcolor == YELLOW) tft.fillRect(BOXSIZE, 0, BOXSIZE, BOXSIZE, YELLOW); if (oldcolor == GREEN) tft.fillRect(BOXSIZE*2, 0, BOXSIZE, BOXSIZE, GREEN); if (oldcolor == CYAN) tft.fillRect(BOXSIZE*3, 0, BOXSIZE, BOXSIZE, CYAN); if (oldcolor == BLUE) tft.fillRect(BOXSIZE*4, 0, BOXSIZE, BOXSIZE, BLUE); if (oldcolor == MAGENTA) tft.fillRect(BOXSIZE*5, 0, BOXSIZE, BOXSIZE, MAGENTA); } } if (((p.y-PENRADIUS) > BOXSIZE) && ((p.y+PENRADIUS) < tft.height())) {tft.fillCircle(p.x, p.y, PENRADIUS, currentcolor);}}}

Final NotesIf you want to display pictures without using an SD card, you can convert it to code and then display it. You can display even several photos sequentially without delay to create an animation. (Check this)But be aware that in this case, Arduino UNO may not be suitable (because of low processor speed). We recommend using the Arduino Mega or Arduino DUE.

There are many tutorials on Arduino shields for 2.4 inch TFT LCD displays. In this road test I apply different tutorials to check the performance and issues of this specific shield: AZ-Delivery 2.4 inch TFT LCD display with resistive 4-wire touchscreen and an integrated SD card reader.AZ-Delivery 2.4 inch TFT LCD display.

TFT LCD is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology. That improves image quality, better contrast and addressability.

Depends on the needs of your project. Arduino UNO processor frequency is low. With the Arduino UNO full-color TFT LCDs are suitable to display simple data and commands. The TFT controller used cannot switch internal display RAM, so you can"t use the double buffer technique for animations but still you can only re-draw small sections of screen.

Given the limitations of the Arduino UNO the bigger the display the worse the performance. The size of this display is adequate to meet that compromise between number of pixels, display area and capabilities of the Arduino UNO.

This module consumes most of the resources available in Arduino UNO. This is not a limitation of the module itself. In return, using a parallel interface allows you to quickly update the image. If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

The module arrived well packed and in perfect condition. The board comes in a sealed antistatic bag, with protective foams to prevent the terminals from bending, and all this wrapped with a bubble bag and inside an individual cardboard box. The label on the antistatic bag indicates the controller is an ILI9341.

The PCB silkscreen indicates the main function of each pin, the labels are easy to read, although it does not show labels for the touch screen pins:Pin 9 - Touch X+ / LCD_D1

The SD card reader is very well located between the USB connector and the power connector, it does not touch either of them as it happens in other lcd tft shield modules and it is easily accessible to insert and remove the SD cards.

You can directly use the shield with any arduino uno. In this case we are using an Arduino UNO that exposes all the pins both on the header and on the board. In such a way that you do not need another shield to access the pins not used by the screen

ShieldCompatible with Arduino. 5V compatible, can be used with 3.3V or 5V logic. On-board 3.3 V (300mA LDO controller). The design is very well thought out and fits Arduino UNO perfectly.

2x74LVC245A Octal Bus Transceiver With 3-State outputs. This octal bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The LVC245A is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses effectively are isolated. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment. This chip solves the problem of how to interface 3.3V logic devices to a 5.0V logic chip such as the Arduino. Most 3.3V devices do not like being run with 5V signals and can be damaged or flaky. The 74LVC245 is designed so that even when it runs at 1.8V, it still happily accepts 5V signals in one pin and converts it to a lower logic level on the opposite pin. It has 8 pipes it can convert but it won"t work with bi-directional/pull-up based devices such as I2C or 1-Wire. It does work great for SPI, Serial, Parallel bus, and other logic interfaces.

If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

The ILI9341 which can control each pixel with a small number of pins. The shield connects ILI9341"s data pins 0-7 to Arduino digital pins 2-8 (allowing parallel communication, not SPI). ILI"s RESET goes to pin to Arduino analog pin A4.CS (chip select) to A3. RS (CD command/data) to A2. WR and RD to A1 and A0.

Includes a resistive 4-wire touchscreen (touchpad). The touch screen is attached on the surface of the display. Touch screen needs two analog inputs and two digital outputs. It connects through 4 wires, which share arduino pins 8, 9, A2, A3 with the ILI9341 driver. So you can"t write to LCD display and read the touch screen in the same time. I. Driver chip is XPT2046.

The resistive touch screen does not appear to appreciably affect the optical characteristics. Works properly, It takes a little pressure with the stylus for it to respond like in old mobile phones. You notice how it sinks into the screen when you press with the stylus. The stylus that comes with the module makes it easy to use if your interface design uses small controls. Some touch screen libraries offer better accuracy by specifying the resistance of the touch screen in the X direction. Resistance can be easily measured with a multimeter by connecting the test leads to the LCD_D1 - X + and LCD_DS X- terminals. Touch is sensitive to pressure.

The 2.4 inch TFT LCD touch screen module suitable for Arduino, provides a large touchscreen display shield with a built in microSD socket offering a high resolution colourful display to your Arduino.

We"re a bootstrapped Embedded & IoT Startup Store (Online & Retail) operational since 2013. We also offer Consulting, Training and Internet of Things (IoT) Product Development Services through our Research & Development Lab based out of Hyderabad, India (this also doubles up as a local Hackerspace/Makerspace helping Makers drive their inner Potential). We occasionally also organize IoT Workshops and Guest Lectures.

Let"s get started with this creative Arduino project, where you"ll learn about the TFT LCD touch screen and how to use it to create your own colourful calculator. For a basic understanding of touch screen & LCD, a cheap TFT 2.4" Arduino shield is used to create this project. For creating a similar project, one should follow the steps and edit the code for better understanding.

The shield connects ILI9341"s data pins 0-7 to Arduino"s digital pins 2-8 (allowing parallel communication, not SPI. ILI9341"s RESET goes to Arduino analog pin A4. CS (chip select) to A3. RS (CD command/data) to A2. WR and RD to A1 and A0.

ILI9341 is integrated inside the display. It drives the display and has nothing to do with the touchscreen (Although the shield connects some pins of ILI9341 together with pins of the touchscreen).

first, you have to send a command to ILI9341 and then write or read data/parameters. CS pin has to be LOW during the communication, WR rising from LOW to HIGH tells ILI9341 to read byte on data pins.ILI9341 interprets input byte as a command (if RS=0) or as data/parameter (RS=1).

To read a byte from ILI9341 after sending a read command (e.g. 09h - Read Display Status) set RD from HIGH to LOW, so ILI9341 outputs data until RD returns HIGH.

Now, open Arduino IDE and select Sketch -> Include Library -> Add .ZIP library. A browser window will open navigate to the ZIP file and click “OK”. You should notice “Library added to your Libraries” on the bottom-left corner of Arduino, if successful.

You can also find an SD card slot at the bottom of the module shown above, which can be used to load an SD card with BMP image files, and these images can be displayed on our TFT LCD screen using the Arduino Program.

The 2.4” TFT LCD screen is a perfect Arduino Shield. You can directly push the LCD screen on top of the Arduino Uno and it will perfectly match with the pins and slid in through. However, as matters of safety cover the programming terminal of your Arduino UNO with some insulator, just in case if the terminal comes in contact with your TFT LCD screen.

This TFT display is big (2.8" diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load up our library - you"ll have it running in under 10 minutes! Works best with any classic Arduino UNO. Solder three jumpers and you can use it at full speed on a Leonardo or Mega as well.

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. This shield needs fewer pins than our v1 shield, so you can connect more sensors, buttons and LEDs: 5 SPI pins for the display, another pin for the SPI touchscreen controller and another pin for uSD card if you want to read images off of it.

The display uses digital pins 13-9. Touchscreen controller requires digital pin 8. microSD pin requires digital #4. That means you can use digital pins 2, 3, 5, 6, 7 and analog 0-5. Pin 4 is available if not using the microSD

NHD-4.3CTP-SHIELD-L | Arduino Shield with TFT Display | FTDI FT801 Embedded Video Engine | On-board Audio Power Amplifier | 4.3" Standard LCD | Capacitive Touchscreen

Engineered in Elgin IL USA, we designed this Arduino shield with our 4.3" capacitive touch standard TFT display for effortless touch development. This shield is ready to mate with classic Arduino boards such as Uno, Mega and Leonardo by connecting directly to the back of the shield. This greatly reduces software and hardware development time and simplifies the design process. No extra controller boards or messy cables required, providing a much easier and simpler experience developing with a touchscreen TFT. This shield features a 480x272 resolution display, capacitive touchscreen, and FT801 embedded video engine by FTDI which may be used to develop and demonstrate the functionality of the FT801 IC and our 4.3" touch TFT displays. It also includes PWM to control the dimming of the backlight and generates audio output with an on-board power amplifier. A microSD card slot built-in allows additional storage space for more complex code. This will eliminate any memory constraints of the Arduino board.

This 4inch Touch LCD Shield for Arduino is resistive touch screen TFT LCD, 4inch with a 480x320 resolution. The screen has a standard Arduino interface and is compatible with development boards such as: Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO, ect.

The 4" screen has an onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control. The PWM backlight control allows you to adjust the backlight to a comfortable level, and the micro SD slot provides an easy way to store photos for displaying. Controlled via SPI, only a few Arduino pins are used and comes with STM32 and Arduino examples allowing for more convenient porting.

The 2.4 inch TFT LCD Touch Display Shield for Arduino Uno is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you ‘ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board

So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

The Display comes with 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.  As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
