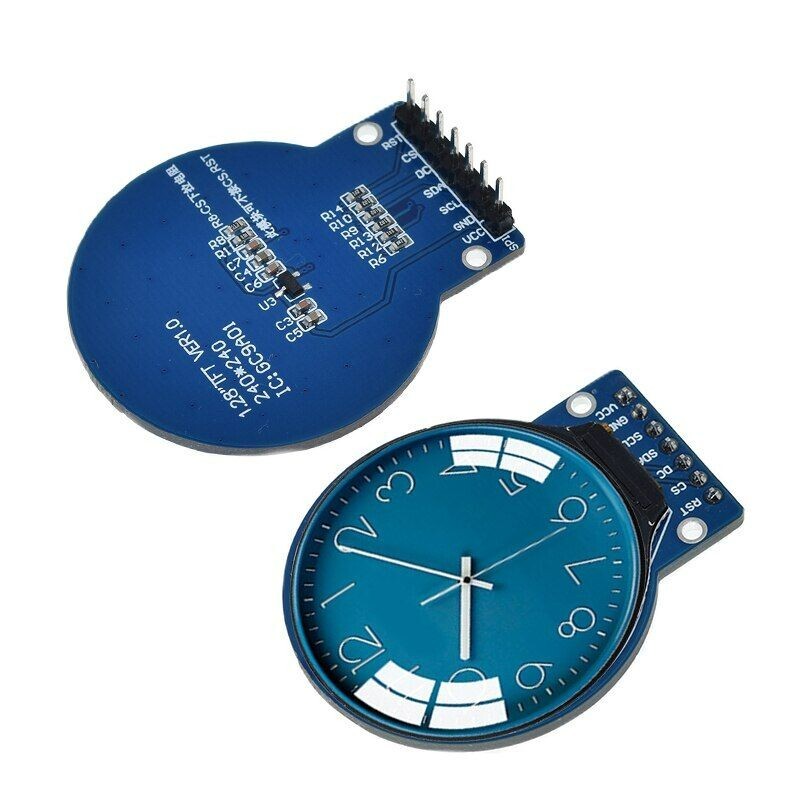

This TFT LCD Display Module 240×240 1.28 inch TFT color LCD, with GC9A01. The breakout board communicates to main controllers with standard SPI, such as ARDUINO, and Raspberry Pi.

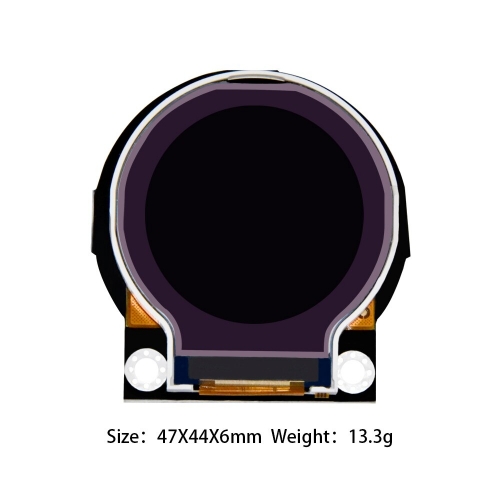

Keyestudio Circular TFT LCD is a 1.6-inch TFT liquid crystal display module. Its input voltage is 3.3V~-5.5V. It can display colored patterns and text.

During the experiment, we set the coordinates to the coordinate center of the display, and the maximum absolute value of the positive and negative half axes is 64.

The parameter 1.6" is marked according to the screen specifications provided by the screen supplier. The actual display area is approximately 1.26" (32mm in diameter).

This super-cool round display features a 240x240 resolution with 65K RGB colours for a clear and colourful interface. The IPS LCD uses an SPI interface meaning it can be used with a wide range of development boards and microcontrollers such as the Raspberry Pi, Arduino and more.

This is a 1.28” LCD Display Module with an input voltage of 3.3V ~ 5.5V, which is used to display colorful patterns and characters. The driver used in this LCD is GC9A01, with a resolution of 240RGB×240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666. This LCD uses a 4-line SPI interface for reducing the GPIOs used. If you are wondering which point is the first pixel of the screen (because the screen is round), you can understand it as a square screen with an inscribed circle drawn in it, and it only displays the content in this inscribed circle. The pixels in other locations are simply discarded (just like most round smartwatches on the market).

Here"s a new "round rect" TFT display - it"s 1.69" diagonal and has a high-density 220 ppi, 280x240 full color pixels with IPS any-angle viewing. We"ve seen displays of this caliber used in smartwatches and small electronic devices but they"ve always been MIPI interface. Finally, Adafruit found one that is SPI and has a friendly display driver, so it works with any and all microcontrollers or microcomputers!

This lovely little display breakout is the best way to add a small, colorful, and very bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 1.69" display has 280x240 16-bit full color pixels and is an IPS display, so the color looks great up to 80 degrees off-axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and Adafruit"s Arduino library supports it well.

Note that the way they get the rounded corners is by deleting pixels. The corner pixels are still addressed in RAM, they just don"t appear, so it isn"t like you have to do some special radial-pixel mapping. Treat it like a rectangular display.

This breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. Adafruit also had a little space so they placed a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card. The microSD card is not included.

This display breakout also features a 18-pin "EYE SPI" standard FPC connector with flip-top connector. You can use a 18-pin 0.5mm pitch FPC cable to connect to all the GPIO pins, for when you want to skip the soldering.

One of the most advantages is the Tft displaycd, which is the same as full-color Tft displaycd, and it are widely used in the consumer industry. Round lcd modules have a high dynamic range and have a low- consumptionam of 320 pixels, and higher-D models. This are one of the most widely used online applications.

Small lcd displays with the functions of an easy connector, and it is easy to checked. L-sized lcd displayules have special functions, and are easy to checked. Looking"s for the ideal round lcd display for odd-size functions, it is easy to checked and connected. The lcd display panel has a built-in lcd display and has other functions as well as is easy to checked and checked for changes.

It is a 2.0 inch TFT display module.TFT liquid crystal has a semiconductor switch for each pixel,and each pixel can be directly controlled by dot pulses,so each node is relatively independent and can be continuous...

Breakout board with ST7789 driver IC. This display does not have a CS pin, so it can’t be used with other SPI devices at the same time. To use it with the Adafruit_7735/7789 library, init using SPI_MODE3

Breakout board. Not an actual ePaper display, though it looks like one. The image fades when you remove power, but it retains for a few second. The display rate is more like an LCD.
