I de-soldered and removed the backpack from the LCD board and carefully cut the trace between the two pins of the jumper with a razor blade. That restored the function of the jumper and allows dimming of the backlight with a PWM pin from a microcontroller, etc.

If I can come up with some thin sharp tool that fits between the backpack and the LCD, I should be able to cut that annoying trace without having to desolder the backpack.

The surface mount transistor adjacent to the jumper is the driver for the LED backlight. Might be a Disconnecting the base and PWM it might be an option too.

{"id":1734089769018,"title":"IIC\/I2C\/TWI\/SPI Serial Interface Board Module Port for Arduino UNO R3 LCD1602 2004 Display","handle":"5pcs-iic-i2c-twi-spi-serial-interface-board-module-port-for-arduino-uno-r3-lcd1602-2004-display","description":"\u003cdiv\u003e\u003cstrong\u003eFeature:\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul class=\"a-unordered-list a-vertical a-spacing-none\"\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eThe backlight and contrast is adjusted by potentiometer.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eI2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eCompatible for 1602 LCD 2004 LCD\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eSupply voltage: 5V\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eIt is fantastic for Arduino based project.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan class=\"a-list-item\"\u003e\u003cb\u003eSpecification:\u003c\/b\u003e\u003cbr\u003e\u003cspan\u003eThis is another great IIC\/I2C\/TWI\/SPI Serial Interface.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003eAs the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003eIf you already has I2C devices in your project, this LCD module actually cost no more resources at all. \u003c\/span\u003e\u003cbr\u003e\u003cbr\u003e\u003cbr\u003e\u003cb\u003eIncluded:\u003c\/b\u003e\u003cbr\u003e\u003cspan\u003e1PCS*IIC I2C Adapter Serial Interface Board Module\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e","published_at":"2018-07-19T17:19:31+08:00","created_at":"2018-07-19T17:26:33+08:00","vendor":"diymore","type":"Interface Module","tags":["Arduino","Display","Shield","UNO R3"],"price":399,"price_min":399,"price_max":799,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":32645185273927,"title":"1pcs","option1":"1pcs","option2":null,"option3":null,"sku":"010001","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"IIC\/I2C\/TWI\/SPI Serial Interface Board Module Port for Arduino UNO R3 LCD1602 2004 Display - 1pcs","public_title":"1pcs","options":["1pcs"],"price":399,"weight":5,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":32645185306695,"title":"5pcs","option1":"5pcs","option2":null,"option3":null,"sku":"0100015","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"IIC\/I2C\/TWI\/SPI Serial Interface Board Module Port for Arduino UNO R3 LCD1602 2004 Display - 5pcs","public_title":"5pcs","options":["5pcs"],"price":799,"weight":5,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_1_373.jpg?v=1588645179","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_2_938.jpg?v=1588645179","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_3_893.jpg?v=1588645179","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_4_653.jpg?v=1588645179"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_1_373.jpg?v=1588645179","options":["Size"],"media":[{"alt":"Iic\/i2C\/twi\/spi Serial Interface Board Module Port For Arduino Uno R3 Lcd1602 2004 Display","id":6678393356359,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_1_373.jpg?v=1588645179"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_1_373.jpg?v=1588645179","width":1000},{"alt":"Iic\/i2C\/twi\/spi Serial Interface Board Module Port For Arduino Uno R3 Lcd1602 2004 Display","id":6678393487431,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_2_938.jpg?v=1588645179"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_2_938.jpg?v=1588645179","width":1000},{"alt":"Iic\/i2C\/twi\/spi Serial Interface Board Module Port For Arduino Uno R3 Lcd1602 2004 Display","id":6678393618503,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_3_893.jpg?v=1588645179"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_3_893.jpg?v=1588645179","width":1000},{"alt":"Iic\/i2C\/twi\/spi Serial Interface Board Module Port For Arduino Uno R3 Lcd1602 2004 Display","id":6678393782343,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_4_653.jpg?v=1588645179"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/010001_4_653.jpg?v=1588645179","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\u003cstrong\u003eFeature:\u003c\/strong\u003e\u003c\/div\u003e\n\u003cul class=\"a-unordered-list a-vertical a-spacing-none\"\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eThe backlight and contrast is adjusted by potentiometer.\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eI2C Address: 0X20~0X27 (the original address is 0X20,you can change it yourself)\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eCompatible for 1602 LCD 2004 LCD\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eSupply voltage: 5V\u003c\/span\u003e\u003c\/li\u003e\n\u003cli\u003e\u003cspan class=\"a-list-item\"\u003eIt is fantastic for Arduino based project.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cspan class=\"a-list-item\"\u003e\u003cb\u003eSpecification:\u003c\/b\u003e\u003cbr\u003e\u003cspan\u003eThis is another great IIC\/I2C\/TWI\/SPI Serial Interface.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003eAs the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003eIf you already has I2C devices in your project, this LCD module actually cost no more resources at all. \u003c\/span\u003e\u003cbr\u003e\u003cbr\u003e\u003cbr\u003e\u003cb\u003eIncluded:\u003c\/b\u003e\u003cbr\u003e\u003cspan\u003e1PCS*IIC I2C Adapter Serial Interface Board Module\u003c\/span\u003e\u003c\/span\u003e\u003c\/p\u003e"}

{"id":1629858988090,"title":"IIC I2C TWI SPI Serial Interface Expanded Board Module Port for Arduino UNO R3 1602 LCD 2004 LCD 12864 LCD Display","handle":"diymore-iic-i2c-twi-spi-serial-interface-expanded-board-module-port-for-arduino-uno-r3-1602-lcd-2004-lcd-12864-lcd-display","description":"\u003cstrong\u003eFeature：\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eUsing MCP23017 chip, which is compatible with 1602 LCD 2004 LCD 12864 LCD.\u003cbr\u003eI2C Address: Can be set according to your requirements, please see the left schematic.\u003cbr\u003eThe backlight and contrast is adjusted by potentiometer.\u003cbr\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003cbr\u003eSupply Voltage: 5V.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eThis is a new design, using MCP23017 chip, which is compatible with 1602 and 12864 LCD screens. \u003cbr\u003eThrough this module switching, using I2C communication, only two MCU I\/Os are needed to realize the LCD drive display. The potentiometer on the module can achieve contrast adjustment. \u003cbr\u003eYou can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. \u003cbr\u003eWe provide the wiring diagram and arduino sample code.It is fantastic for Arduino based project.\u003cbr\u003eWe have the manufacture factory, making productions and selling by ourselves.\u003cbr\u003eSo we can control the quality of our productions by ourselves for you.\u003cbr\u003eWe"d like to receive your suggestions and thoughts on our products.\u003cbr\u003eIf you have any questions, please feel free to contact us.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e1 x IIC I2C TWI SPI Serial Interface Expanded Board Module","published_at":"2018-07-05T18:21:14+08:00","created_at":"2018-07-05T18:40:30+08:00","vendor":"diymore","type":"Interface Module","tags":["Arduino","Display","New Products","UNO R3"],"price":1999,"price_min":1999,"price_max":1999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":14876930048058,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012618","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"IIC I2C TWI SPI Serial Interface Expanded Board Module Port for Arduino UNO R3 1602 LCD 2004 LCD 12864 LCD Display","public_title":null,"options":["Default Title"],"price":1999,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","options":["Title"],"media":[{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678255534151,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678255894599,"position":2,"preview_image":{"aspect_ratio":1.546,"height":647,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543"},"aspect_ratio":1.546,"height":647,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678256353351,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678256713799,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257008711,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257074247,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257270855,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cstrong\u003eFeature：\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eUsing MCP23017 chip, which is compatible with 1602 LCD 2004 LCD 12864 LCD.\u003cbr\u003eI2C Address: Can be set according to your requirements, please see the left schematic.\u003cbr\u003eThe backlight and contrast is adjusted by potentiometer.\u003cbr\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003cbr\u003eSupply Voltage: 5V.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eThis is a new design, using MCP23017 chip, which is compatible with 1602 and 12864 LCD screens. \u003cbr\u003eThrough this module switching, using I2C communication, only two MCU I\/Os are needed to realize the LCD drive display. The potentiometer on the module can achieve contrast adjustment. \u003cbr\u003eYou can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. \u003cbr\u003eWe provide the wiring diagram and arduino sample code.It is fantastic for Arduino based project.\u003cbr\u003eWe have the manufacture factory, making productions and selling by ourselves.\u003cbr\u003eSo we can control the quality of our productions by ourselves for you.\u003cbr\u003eWe"d like to receive your suggestions and thoughts on our products.\u003cbr\u003eIf you have any questions, please feel free to contact us.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e1 x IIC I2C TWI SPI Serial Interface Expanded Board Module"}

IIC/I2C/TWI/SPI Serial Interfacefor Arduino 1602LCD. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

All orders are processedwithin 24 hoursafter they are placed. Usually, we are able to ship orders the next day. Weekend orders are shipped on the following Monday. You will receive a shipping confirmation email from our system when the shipping information has been uploaded.

Austria, Belgium, Czechia, Denmark, Finland, France, Germany, Greece, Hungary, Italy, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United Kingdom, etc.

Easy Peasy! Log into your account through the online store, check out the fulfilment status against your recent order. If the order has been fulfilled, click onto the order information & you can find your tracking information here.

Such as the products you buy on our site - can"t simply be shipped freely from country to country. When goods are imported into a different country or customs territory, there is a charge called Customs Duty that must apply. This is charged by the local customs authority where the goods are being imported into.

If Customs Duty is payable to your territory, you"ll be responsible for paying it to the authorities, so SunFounder isn"t involved in this process. Whether Customs Duty is payable, and by how much, depends on a whole lot of different things. For example, many countries have a "low value threshold" below which they do not charge any Customs Duty.

If you do have to pay Customs Duty though, the amount payable is usually calculated based on the value of the goods and the type of goods being imported.

If, for whatever reason, you refuse the customs fee and the parcel is returned back to us. If you"re still unsure on whether you"ll be subject to customs fees, we recommend contacting your local customs office for more info before placing your order!

This is another great IIC/I2C/TWI/SPI Serial Interface. As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.

What happened here is that the OP bought some inexpensive boards that do exactly what they were advertised to do and they do it just as well as the more expensive boards. What he didn"t understand was that due to the design of the pc board he couldn"t easily take advantage of one of the major features if the I2C interface, the ability to control several identical devices with the same two signal wires.

On a mostly unrelated note I see that the SainSmart board is advertised as being for IIC / I2C / TWI. For the uninitiated these are three different ways of expressing essentially the same serial interface technique. Now you could construe this two ways so I offer it just as an observation.

(2) They are trying to help the uninitiated who might not know that they can use the I2C interface even though the manufacturer of their microcontroller called it TWI to avoid a trademark or copyright infringement.

If you’ve ever attempted to connect an LCD display to an Arduino, you’ve probably noticed that it uses a lot of Arduino pins. Even in 4-bit mode, the Arduino requires seven connections – half of the Arduino’s available digital I/O pins.

The solution is to use an I2C LCD display. It only uses two I/O pins that are not even part of the digital I/O pin set and can be shared with other I2C devices.

As the name suggests, these LCDs are ideal for displaying only characters. A 16×2 character LCD, for example, can display 32 ASCII characters across two rows.

If you look closely, you can see tiny rectangles for each character on the screen as well as the pixels that make up a character. Each of these rectangles is a grid of 5×8 pixels.

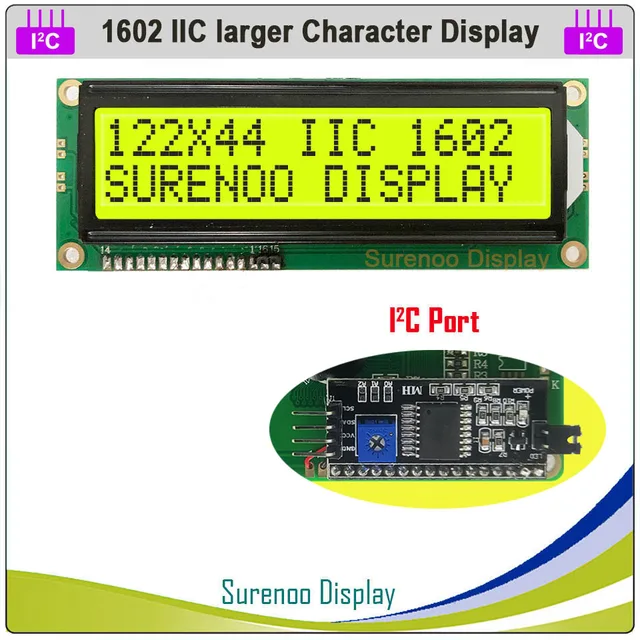

At the heart of the adapter is an 8-bit I/O expander chip – PCF8574. This chip converts the I2C data from an Arduino into the parallel data required for an LCD display.

If you have multiple devices on the same I2C bus, you may need to set a different I2C address for the LCD adapter to avoid conflicting with another I2C device.

For this purpose, the adapter comes with three solder jumpers/pads (A0, A1, and A2). The address is set when a jumper is shorted with a blob of solder.

An important point to note here is that several companies, including Texas Instruments and NXP Semiconductors, manufacture the same PCF8574 chip. And the I2C address of your LCD depends on the chip manufacturer.

According to the Texas Instruments’ datasheet, the three address selection bits (A0, A1, and A2) are located at the end of the 7-bit I2C address register.

According to the NXP Semiconductors’ datasheet, the three address selection bits (A0, A1, and A2) are located at the end of the 7-bit I2C address register. However, the remaining bits in the address register are different.

So the I2C address of your LCD is most likely 0x27 or 0x3F. If you’re not sure what your LCD’s I2C address is, there’s an easy way to figure it out. You’ll learn about that later in this tutorial.

Now we are left with the pins that are used for I2C communication. Note that each Arduino board has different I2C pins that must be connected correctly. On Arduino boards with the R3 layout, the SDA (data line) and SCL (clock line) are on the pin headers close to the AREF pin. They are also referred to as A5 (SCL) and A4 (SDA).

After wiring the LCD, you will need to adjust the contrast of the LCD. On the I2C module, there is a potentiometer that can be rotated with a small screwdriver.

Now, turn on the Arduino. You will see the backlight light up. As you turn the potentiometer knob, the first row of rectangles will appear. If you have made it this far, Congratulations! Your LCD is functioning properly.

Before you can proceed, you must install the LiquidCrystal_I2C library. This library allows you to control I2C displays using functions that are very similar to the LiquidCrystal library.

To install the library, navigate to Sketch > Include Library > Manage Libraries… Wait for the Library Manager to download the library index and update the list of installed libraries.

Filter your search by entering ‘liquidcrystal‘. Look for the LiquidCrystal I2C library by Frank de Brabander. Click on that entry and then choose Install.

As previously stated, the I2C address of your LCD depends on the manufacturer. If your LCD has a PCF8574 chip from Texas Instruments, its I2C address is 0x27; if it has a PCF8574 chip from NXP Semiconductors, its I2C address is 0x3F.

If you’re not sure what your LCD’s I2C address is, you can run a simple I2C scanner sketch that scans your I2C bus and returns the address of each I2C device it finds.

However, before you upload the sketch, you must make a minor change to make it work for you. You must pass the I2C address of your LCD as well as the display dimensions to the LiquidCrystal_I2C constructor. If you’re using a 16×2 character LCD, pass 16 and 2; if you’re using a 20×4 character LCD, pass 20 and 4.

The next step is to create an object of LiquidCrystal_I2C class. The LiquidCrystal_I2C constructor accepts three inputs: I2C address, number of columns, and number of rows of the display.

In the setup, three functions are called. The first function is init(). It initializes the interface to the LCD. The second function is clear(). This function clears the LCD screen and positions the cursor in the upper-left corner. The third function, backlight(), turns on the LCD backlight.

The function setCursor(2, 0) is then called to move the cursor to the third column of the first row. The cursor position specifies where you want the new text to appear on the LCD. It is assumed that the upper left corner is col=0 and row=0.

There are many useful functions you can use with LiquidCrystal_I2C Object. Some of them are listed below:lcd.home() function positions the cursor in the upper-left of the LCD without clearing the display.

lcd.scrollDisplayRight() function scrolls the contents of the display one space to the right. If you want the text to scroll continuously, you have to use this function inside a for loop.

lcd.scrollDisplayLeft() function scrolls the contents of the display one space to the left. Similar to the above function, use this inside a for loop for continuous scrolling.

lcd.display() function turns on the LCD display, after it’s been turned off with noDisplay(). This will restore the text (and cursor) that was on the display.

As previously discussed in this tutorial, a character is made up of a 5×8 pixel matrix; therefore, you must define your custom character within this matrix. You can define a character by using the createChar() function.

The CGROM stores the font that appears on a character LCD. When you instruct a character LCD to display the letter ‘A’, it needs to know which pixels to turn on so that we see an ‘A’. This data is stored in the CGROM.

CGRAM is an additional memory for storing user-defined characters. This RAM is limited to 64 bytes. Therefore, for a 5×8 pixel LCD, only 8 user-defined characters can be stored in CGRAM, whereas for a 5×10 pixel LCD, only 4 can be stored.

Creating custom characters has never been easier! We’ve developed a small application called Custom Character Generator. Can you see the blue grid below? You can click on any pixel to set or clear that pixel. And as you click, the code for the character is generated next to the grid. This code can be used directly in your Arduino sketch.

There’s no limit to what you can create. The only limitation is that the LiquidCrystal_I2C library only supports eight custom characters. But don’t be sad, look at the bright side; at least we have eight characters.

After including the library and creating the LCD object, custom character arrays are defined. The array consists of 8 bytes, with each byte representing a row in a 5×8 matrix.

This sketch contains eight custom-characters. Take, for example, the Heart[8] array. You can see that the bits (0s and 1s) are forming the shape of a heart. 0 turns the pixel off, and 1 turns it on.

In the setup, we use the createChar() function to create a custom character. This function accepts two parameters: a number between 0 and 7 to reserve one of the eight supported custom characters, and the name of the array.

IIC I2C Serial Interface Board Module LCD1602 Address ChangeableArduino 1602/2004 I2C Interface 4-Wire 1602/2004 screenArduino IIC/I2C Interface LCD1602/2004 adapter plate without LCD screenArduino control board IO port is only 20, plus some sensor, SD card Han, relay modules and more, IO port is not enough,The original 1602/2004 screen requires 7 IO port can drive up, we have developed this module can help you save five IO ports, we send arduino libraryProduct parameters:1. Dimensions: 41.5mm (length) * 19mm (W) * 15.3mm (height)2. Weight: 5g3. PCB Color: Black4. Supply Voltage :2.5-6V5. Supports the I2C protocol6. With backlight power control, can be connected via jumper settings are backlight power. Plug the jumper to connect the backlight off, unplug the jumper to disconnect the backlight power7. Contrast can be adjusted by turning the blue potentiometer clockwise increase, counterclockwise weakened. Potentiometer design on the front, enabling customers to freely adjust anytime8. Modules can be cascaded to cascade up to eight. By short-circuiting A0/A1/A2 modify the device address. The default address is 0x27.Note: Please contact us if you need the Schematic and Datasheet.

As The Pin Resources Of Arduino Controller Is Limited, Your Project May Be Not Able To Use Normal Lcd Shield After Connected With A Certain Quantity Of Sensors Or Sd Card

This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one its own address).

I2C is a serial protocol for a two-wire interface to connect low-speed devices like microcontrollers, EEPROMs, A/D and D/A converters, I/O interfaces and other similar peripherals in embedded systems. ... The initial I2C specifications defined a maximum clock frequency of 100 kHz.

The backlight and contrast is adjusted by potentiometer. Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable. Compatible for 1602 LCD. This is another great IIC/I2C/TWI/SPI Serial Interface. With this I2C interface module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
