This tutorial shows how to use the I2C LCD (Liquid Crystal Display) with the ESP32 using Arduino IDE. We’ll show you how to wire the display, install the library and try sample code to write text on the LCD: static text, and scroll long messages. You can also use this guide with the ESP8266.

Additionally, it comes with a built-in potentiometer you can use to adjust the contrast between the background and the characters on the LCD. On a “regular” LCD you need to add a potentiometer to the circuit to adjust the contrast.

Before displaying text on the LCD, you need to find the LCD I2C address. With the LCD properly wired to the ESP32, upload the following I2C Scanner sketch.

After uploading the code, open the Serial Monitor at a baud rate of 115200. Press the ESP32 EN button. The I2C address should be displayed in the Serial Monitor.

Displaying static text on the LCD is very simple. All you have to do is select where you want the characters to be displayed on the screen, and then send the message to the display.

In this simple sketch we show you the most useful and important functions from the LiquidCrystal_I2C library. So, let’s take a quick look at how the code works.

The next two lines set the number of columns and rows of your LCD display. If you’re using a display with another size, you should modify those variables.

Scrolling text on the LCD is specially useful when you want to display messages longer than 16 characters. The library comes with built-in functions that allows you to scroll text. However, many people experience problems with those functions because:

In a 16×2 LCD there are 32 blocks where you can display characters. Each block is made out of 5×8 tiny pixels. You can display custom characters by defining the state of each tiny pixel. For that, you can create a byte variable to hold  the state of each pixel.

In summary, in this tutorial we’ve shown you how to use an I2C LCD display with the ESP32/ESP8266 with Arduino IDE: how to display static text, scrolling text and custom characters. This tutorial also works with the Arduino board, you just need to change the pin assignment to use the Arduino I2C pins.

We hope you’ve found this tutorial useful. If you like ESP32 and you want to learn more, we recommend enrolling in Learn ESP32 with Arduino IDE course.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

If you’ve ever attempted to connect an LCD display to an Arduino, you’ve probably noticed that it uses a lot of Arduino pins. Even in 4-bit mode, the Arduino requires seven connections – half of the Arduino’s available digital I/O pins.

The solution is to use an I2C LCD display. It only uses two I/O pins that are not even part of the digital I/O pin set and can be shared with other I2C devices.

As the name suggests, these LCDs are ideal for displaying only characters. A 16×2 character LCD, for example, can display 32 ASCII characters across two rows.

If you look closely, you can see tiny rectangles for each character on the screen as well as the pixels that make up a character. Each of these rectangles is a grid of 5×8 pixels.

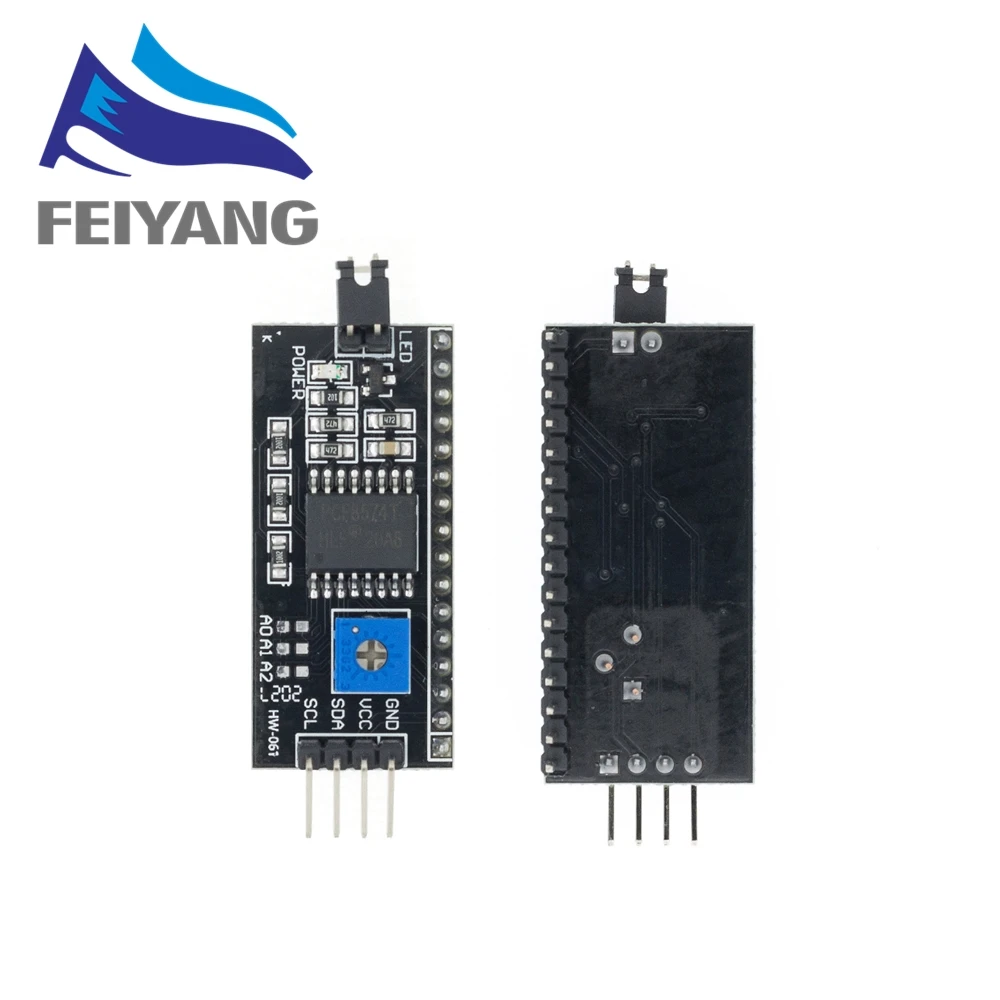

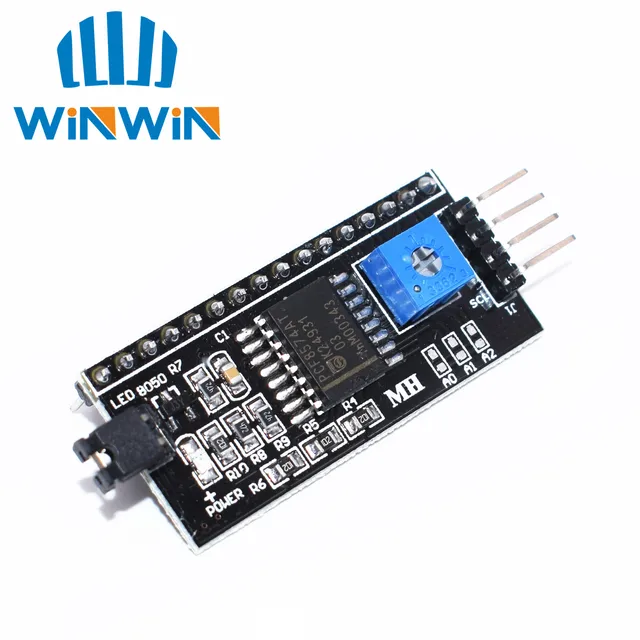

At the heart of the adapter is an 8-bit I/O expander chip – PCF8574. This chip converts the I2C data from an Arduino into the parallel data required for an LCD display.

If you have multiple devices on the same I2C bus, you may need to set a different I2C address for the LCD adapter to avoid conflicting with another I2C device.

For this purpose, the adapter comes with three solder jumpers/pads (A0, A1, and A2). The address is set when a jumper is shorted with a blob of solder.

An important point to note here is that several companies, including Texas Instruments and NXP Semiconductors, manufacture the same PCF8574 chip. And the I2C address of your LCD depends on the chip manufacturer.

According to the Texas Instruments’ datasheet, the three address selection bits (A0, A1, and A2) are located at the end of the 7-bit I2C address register.

According to the NXP Semiconductors’ datasheet, the three address selection bits (A0, A1, and A2) are located at the end of the 7-bit I2C address register. However, the remaining bits in the address register are different.

So the I2C address of your LCD is most likely 0x27 or 0x3F. If you’re not sure what your LCD’s I2C address is, there’s an easy way to figure it out. You’ll learn about that later in this tutorial.

Now we are left with the pins that are used for I2C communication. Note that each Arduino board has different I2C pins that must be connected correctly. On Arduino boards with the R3 layout, the SDA (data line) and SCL (clock line) are on the pin headers close to the AREF pin. They are also referred to as A5 (SCL) and A4 (SDA).

After wiring the LCD, you will need to adjust the contrast of the LCD. On the I2C module, there is a potentiometer that can be rotated with a small screwdriver.

Now, turn on the Arduino. You will see the backlight light up. As you turn the potentiometer knob, the first row of rectangles will appear. If you have made it this far, Congratulations! Your LCD is functioning properly.

Before you can proceed, you must install the LiquidCrystal_I2C library. This library allows you to control I2C displays using functions that are very similar to the LiquidCrystal library.

To install the library, navigate to Sketch > Include Library > Manage Libraries… Wait for the Library Manager to download the library index and update the list of installed libraries.

Filter your search by entering ‘liquidcrystal‘. Look for the LiquidCrystal I2C library by Frank de Brabander. Click on that entry and then choose Install.

As previously stated, the I2C address of your LCD depends on the manufacturer. If your LCD has a PCF8574 chip from Texas Instruments, its I2C address is 0x27; if it has a PCF8574 chip from NXP Semiconductors, its I2C address is 0x3F.

If you’re not sure what your LCD’s I2C address is, you can run a simple I2C scanner sketch that scans your I2C bus and returns the address of each I2C device it finds.

However, before you upload the sketch, you must make a minor change to make it work for you. You must pass the I2C address of your LCD as well as the display dimensions to the LiquidCrystal_I2C constructor. If you’re using a 16×2 character LCD, pass 16 and 2; if you’re using a 20×4 character LCD, pass 20 and 4.

The next step is to create an object of LiquidCrystal_I2C class. The LiquidCrystal_I2C constructor accepts three inputs: I2C address, number of columns, and number of rows of the display.

In the setup, three functions are called. The first function is init(). It initializes the interface to the LCD. The second function is clear(). This function clears the LCD screen and positions the cursor in the upper-left corner. The third function, backlight(), turns on the LCD backlight.

The function setCursor(2, 0) is then called to move the cursor to the third column of the first row. The cursor position specifies where you want the new text to appear on the LCD. It is assumed that the upper left corner is col=0 and row=0.

There are many useful functions you can use with LiquidCrystal_I2C Object. Some of them are listed below:lcd.home() function positions the cursor in the upper-left of the LCD without clearing the display.

lcd.scrollDisplayRight() function scrolls the contents of the display one space to the right. If you want the text to scroll continuously, you have to use this function inside a for loop.

lcd.scrollDisplayLeft() function scrolls the contents of the display one space to the left. Similar to the above function, use this inside a for loop for continuous scrolling.

lcd.display() function turns on the LCD display, after it’s been turned off with noDisplay(). This will restore the text (and cursor) that was on the display.

As previously discussed in this tutorial, a character is made up of a 5×8 pixel matrix; therefore, you must define your custom character within this matrix. You can define a character by using the createChar() function.

The CGROM stores the font that appears on a character LCD. When you instruct a character LCD to display the letter ‘A’, it needs to know which pixels to turn on so that we see an ‘A’. This data is stored in the CGROM.

CGRAM is an additional memory for storing user-defined characters. This RAM is limited to 64 bytes. Therefore, for a 5×8 pixel LCD, only 8 user-defined characters can be stored in CGRAM, whereas for a 5×10 pixel LCD, only 4 can be stored.

Creating custom characters has never been easier! We’ve developed a small application called Custom Character Generator. Can you see the blue grid below? You can click on any pixel to set or clear that pixel. And as you click, the code for the character is generated next to the grid. This code can be used directly in your Arduino sketch.

There’s no limit to what you can create. The only limitation is that the LiquidCrystal_I2C library only supports eight custom characters. But don’t be sad, look at the bright side; at least we have eight characters.

After including the library and creating the LCD object, custom character arrays are defined. The array consists of 8 bytes, with each byte representing a row in a 5×8 matrix.

This sketch contains eight custom-characters. Take, for example, the Heart[8] array. You can see that the bits (0s and 1s) are forming the shape of a heart. 0 turns the pixel off, and 1 turns it on.

In the setup, we use the createChar() function to create a custom character. This function accepts two parameters: a number between 0 and 7 to reserve one of the eight supported custom characters, and the name of the array.

{"id":1629858988090,"title":"IIC I2C TWI SPI Serial Interface Expanded Board Module Port for Arduino UNO R3 1602 LCD 2004 LCD 12864 LCD Display","handle":"diymore-iic-i2c-twi-spi-serial-interface-expanded-board-module-port-for-arduino-uno-r3-1602-lcd-2004-lcd-12864-lcd-display","description":"\u003cstrong\u003eFeature：\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eUsing MCP23017 chip, which is compatible with 1602 LCD 2004 LCD 12864 LCD.\u003cbr\u003eI2C Address: Can be set according to your requirements, please see the left schematic.\u003cbr\u003eThe backlight and contrast is adjusted by potentiometer.\u003cbr\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003cbr\u003eSupply Voltage: 5V.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eThis is a new design, using MCP23017 chip, which is compatible with 1602 and 12864 LCD screens. \u003cbr\u003eThrough this module switching, using I2C communication, only two MCU I\/Os are needed to realize the LCD drive display. The potentiometer on the module can achieve contrast adjustment. \u003cbr\u003eYou can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. \u003cbr\u003eWe provide the wiring diagram and arduino sample code.It is fantastic for Arduino based project.\u003cbr\u003eWe have the manufacture factory, making productions and selling by ourselves.\u003cbr\u003eSo we can control the quality of our productions by ourselves for you.\u003cbr\u003eWe"d like to receive your suggestions and thoughts on our products.\u003cbr\u003eIf you have any questions, please feel free to contact us.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e1 x IIC I2C TWI SPI Serial Interface Expanded Board Module","published_at":"2018-07-05T18:21:14+08:00","created_at":"2018-07-05T18:40:30+08:00","vendor":"diymore","type":"Interface Module","tags":["Arduino","Display","New Products","UNO R3"],"price":1999,"price_min":1999,"price_max":1999,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":14876930048058,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"012618","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"IIC I2C TWI SPI Serial Interface Expanded Board Module Port for Arduino UNO R3 1602 LCD 2004 LCD 12864 LCD Display","public_title":null,"options":["Default Title"],"price":1999,"weight":9,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543","\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","options":["Title"],"media":[{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678255534151,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_1_224.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678255894599,"position":2,"preview_image":{"aspect_ratio":1.546,"height":647,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543"},"aspect_ratio":1.546,"height":647,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/9e2408f5f928b2d429150abf75a6b707_324.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678256353351,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_394.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678256713799,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_67bd2bd9-f303-4443-a050-c6a471ba5fa0_820.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257008711,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_2_655.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257074247,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_5_336.jpg?v=1588642543","width":1000},{"alt":"Iic I2C Twi Spi Serial Interface Expanded Board Module Port For Arduino Uno R3 1602 Lcd 2004 12864","id":6678257270855,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0122\/7558\/0986\/products\/012618_11_910.jpg?v=1588642543","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cstrong\u003eFeature：\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eUsing MCP23017 chip, which is compatible with 1602 LCD 2004 LCD 12864 LCD.\u003cbr\u003eI2C Address: Can be set according to your requirements, please see the left schematic.\u003cbr\u003eThe backlight and contrast is adjusted by potentiometer.\u003cbr\u003eCome with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable.\u003cbr\u003eSupply Voltage: 5V.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eThis is a new design, using MCP23017 chip, which is compatible with 1602 and 12864 LCD screens. \u003cbr\u003eThrough this module switching, using I2C communication, only two MCU I\/Os are needed to realize the LCD drive display. The potentiometer on the module can achieve contrast adjustment. \u003cbr\u003eYou can also unplug the jump cap to turn off the backlight or adjust the brightness through PWM. \u003cbr\u003eWe provide the wiring diagram and arduino sample code.It is fantastic for Arduino based project.\u003cbr\u003eWe have the manufacture factory, making productions and selling by ourselves.\u003cbr\u003eSo we can control the quality of our productions by ourselves for you.\u003cbr\u003eWe"d like to receive your suggestions and thoughts on our products.\u003cbr\u003eIf you have any questions, please feel free to contact us.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003ePackage Included:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e1 x IIC I2C TWI SPI Serial Interface Expanded Board Module"}

This is a I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too. This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one it’s own address).

As we all know, though LCD and some other displays greatly enrich the man-machine interaction, they share a common weakness. When they are connected to a controller, multiple IOs will be occupied of the controller which has no so many outer ports. Also it restricts other functions of the controller. Therefore, LCD1602 with an I2C bus is developed to solve the problem.

I2C bus is a type of serial bus invented by PHLIPS. It is a high performance serial bus which has bus ruling and high or low speed device synchronization function required by multiple-host system. The blue potentiometer on the I2C LCD1602 (see the figure below) is used to adjust the backlight for better display. I²C uses only two bidirectional open-drain lines, Serial Data Line (SDA) and Serial Clock Line (SCL), pulled up with resistors. Typical voltages used are +5 V or +3.3 V although systems with other voltages are permitted.

Step 3:Since in some code, the libraries needed are not included in Arduino, so you need to add them before compiling. Unzip the downloaded file. Copy the folders under the Library folder to the libraries folder in Arduino (if you cannot find the path in Arduino, open Arduino IDE, click File ->Preferences, and you can see the path in the Browse box, as shown in the following diagram). Compile the program.
