The Interlogix Simon XT is a basic all-in-one wireless control panel that serves as the central hub for a home or business alarm system. It includes its own push-button keypad that allows for quick programming and easy operation for home and business owners. With the proper upgrades and add-ons, it can perform most of the features found in a more advanced touchscreen system. Overall, the Simon XT is a solid, no-frills security panel for users who are looking for a basic plug and play setup, with the potential to upgrade to a more advanced system later on. The Simon XT is also sold in two touchscreen models: Simon XTi and Simon XTi-5.

As a panel, the Simon XT will support up to 40 total zones. Two of these zones have the option of being used as wireless zones or hardwired zones for normally closed hardwired security devices. The rest must be used as wireless zones. This is plenty of zones for most households and small businesses. Like most Interlogix alarm panels, the Simon XT interfaces with sensors that communicate at a wireless frequency of 319.5 MHz. This makes the system compatible with all GE/Interlogix and Qolsys wireless sensors that operate on this legacy frequency. The Qolsys encrypted S-line sensors are not compatible.

Out of the box, the Simon XT can only communicate using a POTS (plain old telephone service) connection. The system requires an additional module to utilize cellular communication which is highly recommended. You can choose between the Verizon, AT&T and Telus (Canada Only) cellular networks. By using a cellular radio, the Simon XT can interface with the Alarm.com platform. This service allows users to remotely arm and disarm their system, check the status of their sensors and control Z-Wave devices. Alarm.com also allows users to control the Simon XT using certain smart assistants, including Google Home and Amazon Alexa. Alarm.com is constantly expanding their lineup of cloud integrations with brands like Nest thermostat, Liftmaster MyQ and Lutron Caseta. This makes the Interlogix Simon XT an affordable basic option for users who are looking to integrate their alarm system with the robust Alarm.com interactive service.

The Simon XT can also interface with up to 232 different Z-Wave home automation devices. This will require one of the Alarm.com radios since the automation controller is integrated into the same module. The Z-Wave nodes are limited to controllable devices such as lights, locks or thermostats. The system will not support Z-Wave versions of burglary, life safety or environmental sensors. These devices are considered separate from the 40 main zones on the system. With all that said, adding an Alarm.com cellular communicator to your Simon XT adds a ton of value and really cannot be matched with phone line monitoring service. Cut the cord and get a cellular radio if you are on the fence.

Another helpful feature of the Simon XT is its spoken-voice capabilities. This function enables the Simon XT System to verbally announce the name of any programmed sensor that has been activated. With this feature, users will have an easy time identifying a faulted or troubled sensor. The panel also offers options for chimes and confirmation beeps. Many users program chimes so that they receive an audible alert whenever a door or window has been opened. Meanwhile, the push-confirmation beeps are helpful for many users in making sure that their panel commands are going through properly. A user can enable or disable these system sounds at any time.

The Simon XT will support up to eight programmable access codes. For situations where a greater number of users will need to access the system, we recommend choosing a more robust panel like the IQ2 or GC3. Additionally, new users should be aware that the Simon XT can have a slightly more difficult learning curve than a system with a touchscreen display. But for those who are seeking a very basic wireless system with the potential of doing more, the Interlogix Simon XT is a very capable choice.

Please Note: The former GE Simon XT was simply rebranded as the Interlogix Simon XT. Also, if you end up installing an Alarm.com cellular communicator, it will occupy zone 40 on the Simon XT. A replacement power transformer for this system can be purchased here.

The Simon line of alarm systems originated about 2 decades ago in the late 1990’s. The original Simon was created by a company called ITI. Since then, there have been a series of company buyouts and mergers: from Sentrol to GE Security to UTC to Interlogix. Through it all, the Simon security system has survived and seen many new models. To us, this really speaks to how good the Simon really is. Currently, we carry 2 Simon models: Simon XTand Simon XTi-5.

In many ways the Simon XT and Simon XTi-5 very similar systems. In fact, as we will talk about, when you look at the behind the scenes features or foundation of the alarm system they are nearly identical. However, the two systems still manage to differentiate themselves by having very different user interfaces which we will focus on after looking at the similarities.

The Simon XT and Simon XTi-5 are both fully wireless alarm systems (with small exceptions). The first exception is the wire from the plug in power transformer to the Simon panel, of course. For the most part, this is the only wiring needed for your Simon alarm system. However, the both Simon panels are capable of utilizing up to 2 hardwired zones. And one of those zones can actually be used as an output. For instance, you can connect a relay with a power supply and hardwired siren to have a more powerful sounder than the one that is built into the panel. There are numerous other situations that the output can be used for. And if you are planning on using a telephone landline for communications, that would need to be wired as well. Everything else will be contained within the main control and communicate to other alarm components wirelessly.

Both alarm systems have a maximum capacity of 40 zones. All 40 zones can be wireless. And, as mentioned previously, the alarm panels have up to 2 inputs available for hardwired zones. But those do count towards that maximum of 40 total zones. So if you used 2 hardwired zones you would have 38 zones left that can be used for wireless sensors. 40 zones is plenty for almost any residential application and can be enough for small commercial installations. But if you have a large home with a lot of openings on the ground floor or a large commercial site, 40 zones can be eaten up in no time. For instance a home with 20 windows, 5 doors, 5 motion detectors, and 10 smoke detectors would completely max out the Simon alarm system. But that does not include anything like glass break detectors, temperature sensors, flood/leak detectors, et cetera.

The Simon XT and Simon XTi-5 are compatible with all of Interlogix wireless sensors. They have numerous options for nearly any sensor type that you might want.

Another aspect of the Simon XT and Simon XTi-5 that is exactly the same is the number of user codes. There 11 total user codes, 9 of which are suitable for day to day use on the alarm system: the installer code, master code, duress code, and 8 standard user codes. The installer code is generally only used to make the system altering changes such as changing timer lengths or adding/editing/deleting sensors. The regular user codes are just used to arm and disarm the system. The master code can function just like a standard user code, arming and disarming, but it also allows for surface level changes to the alarm system like editing user codes or changing the time and date. And finally the duress code is a special code that should be given to all system users in case of an emergency (if used). The duress code will seemingly function like any other user code, disarming the system when used for instance. But it will activate a silent alarm that will send an alarm signal to your central station or self-monitoring service.

Another awesome feature that is shared between both the Simon XT and Simon XTi-5 is that both panels are fully compatible withAlarm.com Interactive Services. Alarm.com can add dozens of features to your regular alarm system and they are very flexible in that they have multiple plans so that you only pay for the features that you want. Not only that, but Alarm.com can be used independently for self-monitoring or with a central station for traditional monitoring.

They have 4 main service plans: Wireless Signal Forwarding, Interactive, Interactive Plus Automation, and Interactive Gold. Each service level has the features of the levels before it. Wireless Signal Forwarding is only for sending your alarm panel signals through the cellular communicator to your central station. Interactive gives you remote access to your alarm system. You can arm and disarm, change user codes, setup notifications, and use geo-fencing with your smartphone. Interactive Plus Automation gives you access to using the built-in Z-Wave communicator for home automation purposes. And finally Interactive Gold gives numerous features. There are other automation integrations such as Lutron. You can also get weather on the panel and severe weather alerts. Among other features.

There is only 2 things that need to be done to have access to these features. First you will need to add an Alarm.com cellular communicator, 600-1048-XT-LTE-VZ. This mounts directly inside the Simon panel. And second you will need to sign up for Alarm.com service plan as described above.

There really are not very many differences between the 2 panels. But the differences that are there are fairly significant. It pretty much comes down to the Simon XTi-5 having a touchscreen while the Simon XT has a more traditional keypad with LCD display. This obviously gives some advantages to the Simon XTi-5. It has a more modern look by having the 5 inch touchscreen with an intuitive graphical user interface that makes for a more pleasant user experience.

The other big difference is in programming. Although this also stems from the touchscreen. While the Simon XT is one of the easier systems to program, it just cannot compare to the ease of programming that is seen on all-in-one wireless systems with GUI and the Simon XTi-5 is no exception. The intuitive menus just make everything so much easier. The Simon XTi-5 can almost be programmed from start to finish without any instructions. Almost. But you will still need some minor guidance if you have no experience with Simon alarm systems.

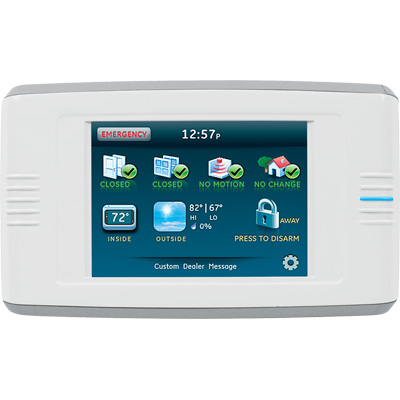

The Simon XT™ Two-Way Talking Touch Screen is a color LCD screen featuring a user-friendly interface that compliments Simon XTi and Simon XT security systems for safety and peace of mind. In addition, optional wireless devices can be added to provide control over other functions including Z-Wave® wireless lighting control devices, Z-Wave wireless thermostats for home HVAC systems, and Z-Wave door lock control.

The GE Interlogix Simon XT Control Panel Keypad is a cost-effective security system that offers up to 40 zones of burglary and fie protection. It has a built-in display touchpad and a status speaker that provides visual and voice messages for feedback.

Are you a Simon XT Panel owner, or are you looking to get one in the not-so-distant future? Well, you’re in luck. Welcome to the Simon XT Panel: Most Frequently Asked Questions blog, where we’re going to answer the most popular FAQs surrounding this panel.

Your LCD display will then show Motions, the panel will say Motions out loud, and the button will light up. You’ll then have an allotted amount of time to exit the premises before the motion sensors are fully armed.

Your Simon XT Panel will then display Doors + Windows & Motions, speak Doors and Windows On, Motions On, and the Doors + Windows and Motions buttons will also light up.

To cancel an accidental alarm before the programmed dialer delay time expires, enter your access code. It’s that simple. The panel will display Alarm Cancel and make a beeping sound.

Whether your Panel lost power or you’re setting it up, setting the correct date and time is super easy.To set the date:Scroll until thedisplay shows Set Date, and then press OK. The display will then show Enter Code.

You can test sensors one at a time to make sure they’re sending strong signals to the panel. Simply:Scroll until the display shows System Test, and then press OK. The display shows Enter Code.

If any of the sensors didn’t test successfully and you want to terminate the test, press Status. The panel displays Sensor Test Fail or Aborted. The display then shows Sensor Test. Press Status once to exit the system test. If a sensor test fails, call your security dealer.

The Simon xT Two-Way Talking Touch Screen is a color LCD screen featuring a user-friendly interface that compliments Simon xTi and Simon xT security systems for safety and peace of mind. In addition, optional wireless devices can be added to provide control over other functions including Z-Wave wireless lighting control devices, Z-Wave wireless thermostats for home HVAC systems, and Z-Wave door lock control. This touch screen is the ideal solution for providing additional points of control throughout the home. Up to four touch screens can be installed in one home for maximum convenience.
