2 4 tft lcd shield mcufriend for sale

We pass ISO900, ISO14001 and TS16949 certificates.Strict quality control Inspection is done in FOG==>LCM==>LCM+ RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC

2)When EOL happens,usually we will get notification from original manufacturer 3-6 months in advance. We prepare another LCD brand solution as replacement for you or recommend you to do last buy if your annual quantity is small or even tool up a new LCD panel if your annual quantity is big.

2)The material we are using are all A grade from formal channels,with strong anti-shock capacity, anti-high-temperature capacity, high reliability and very low rate of reject.

There are many tutorials on Arduino shields for 2.4 inch TFT LCD displays. In this road test I apply different tutorials to check the performance and issues of this specific shield: AZ-Delivery 2.4 inch TFT LCD display with resistive 4-wire touchscreen and an integrated SD card reader.AZ-Delivery 2.4 inch TFT LCD display.

TFT LCD is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology. That improves image quality, better contrast and addressability.

Depends on the needs of your project. Arduino UNO processor frequency is low. With the Arduino UNO full-color TFT LCDs are suitable to display simple data and commands. The TFT controller used cannot switch internal display RAM, so you can"t use the double buffer technique for animations but still you can only re-draw small sections of screen.

This module consumes most of the resources available in Arduino UNO. This is not a limitation of the module itself. In return, using a parallel interface allows you to quickly update the image. If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

The module arrived well packed and in perfect condition. The board comes in a sealed antistatic bag, with protective foams to prevent the terminals from bending, and all this wrapped with a bubble bag and inside an individual cardboard box. The label on the antistatic bag indicates the controller is an ILI9341.

The PCB silkscreen indicates the main function of each pin, the labels are easy to read, although it does not show labels for the touch screen pins:Pin 9 - Touch X+ / LCD_D1

The SD card reader is very well located between the USB connector and the power connector, it does not touch either of them as it happens in other lcd tft shield modules and it is easily accessible to insert and remove the SD cards.

You can directly use the shield with any arduino uno. In this case we are using an Arduino UNO that exposes all the pins both on the header and on the board. In such a way that you do not need another shield to access the pins not used by the screen

ShieldCompatible with Arduino. 5V compatible, can be used with 3.3V or 5V logic. On-board 3.3 V (300mA LDO controller). The design is very well thought out and fits Arduino UNO perfectly.

2x74LVC245A Octal Bus Transceiver With 3-State outputs. This octal bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The LVC245A is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses effectively are isolated. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator in a mixed 3.3-V/5-V system environment. This chip solves the problem of how to interface 3.3V logic devices to a 5.0V logic chip such as the Arduino. Most 3.3V devices do not like being run with 5V signals and can be damaged or flaky. The 74LVC245 is designed so that even when it runs at 1.8V, it still happily accepts 5V signals in one pin and converts it to a lower logic level on the opposite pin. It has 8 pipes it can convert but it won"t work with bi-directional/pull-up based devices such as I2C or 1-Wire. It does work great for SPI, Serial, Parallel bus, and other logic interfaces.

If you want to take advantage of all its functionality (LCD + touch screen + SD card), only pins 0 and 1 (RX and TX, respectively) and pin 19 (A5) remain unused. If the SD card is not used, pins 10, 11, 12 and 13 are additionally available. With a suitable layout, some SPI devices could be connected even if the SD card is used.

The ILI9341 which can control each pixel with a small number of pins. The shield connects ILI9341"s data pins 0-7 to Arduino digital pins 2-8 (allowing parallel communication, not SPI). ILI"s RESET goes to pin to Arduino analog pin A4.CS (chip select) to A3. RS (CD command/data) to A2. WR and RD to A1 and A0.

Includes a resistive 4-wire touchscreen (touchpad). The touch screen is attached on the surface of the display. Touch screen needs two analog inputs and two digital outputs. It connects through 4 wires, which share arduino pins 8, 9, A2, A3 with the ILI9341 driver. So you can"t write to LCD display and read the touch screen in the same time. I. Driver chip is XPT2046.

The resistive touch screen does not appear to appreciably affect the optical characteristics. Works properly, It takes a little pressure with the stylus for it to respond like in old mobile phones. You notice how it sinks into the screen when you press with the stylus. The stylus that comes with the module makes it easy to use if your interface design uses small controls. Some touch screen libraries offer better accuracy by specifying the resistance of the touch screen in the X direction. Resistance can be easily measured with a multimeter by connecting the test leads to the LCD_D1 - X + and LCD_DS X- terminals. Touch is sensitive to pressure.

A while ago I bought this 2.4"" Inch TFT LCD Touch Display Shield for Arduino UNO, but only recently I came up with a project where I could make use of this piece of hardware.

Then, instead of calling the method tft.clor565, a call to the newly created function fixed_color565 made sure that images got displayed correctly from now on..

Only US$8.99, buy best 2.4 inch tft lcd shield ili9341 hx8347 240*320 touch board 65k rgb color display module with touch pen for uno geekcreit for arduino - products that work with official arduino boards sale online store at wholesale price.

With this information and the information about the touchscreen I tried several ID hardcoded to get the screen to work. Most of the HX8357 id provides output, but ID ILI9341 240x320 ID=0x9341 seems to provide best results.

I have one of these TFT LCD shields, but mine is a ILI9335. It has taken me nearly 2 weeks to find a working Library and code for my 9335 driver and I am now setting about creating sketches based around my working Library.

Unfortunately most sellers of these shields (excluding good reputable companies) do not adivise of which Driver is onboard the shield and it becomes difficult to locate a working Library for the driver of the purchased shield.

I bought four MCU Friend 3.5″ TFT shields.  And, unfortunately, they have spiraled me into a deep, dark place trying to figure out how to use them.  The the documentation consists of a sticker on the antistatic bag, a picture of the shield with a list of 5 different possible LCD drivers, a pinout, and a block of code that supposedly represents the startup code.  The unfortunate part is that none of these have been exactly right – they all have errors.  This article is a description of the journey to figuring out how to use them.

Here is a picture of the bag. (the QR code is a number “181024202132” which I thought might be a phone number but isn’t.  It also doesn’t match anything in google, so i’m not sure what it is.

It also has a picture which says the LCD has one of several different controllers (and after digging in I know for a fact that two of mine were made by Raydium and are not on the list)

And finally a table of pins.  Which is interesting as it lists 37 pins when the shield has no where near that number.  And it shows the shield as  16-bit interface which it isnt … and it shows some LEDs which aren’t there either.

I bought 4 different shields.  One came broken.  The other three are all different.  When you look at the boards there are two visibly different configurations

The first thing I did was try to use the MCUFRIEND_kbv library to see if the screens worked.  The first board identified as ID=0x9403 and did not work.  Apparently, the tool just spits out the ID if it doesn’t know it, which it did not.

One of the boards identified as ID=0x6814 worked perfectly, and one had a blue cast to all of the screens.  The crazy part is the two boards that identified as ID=0x6814 had different PCBs.  According to the comments in the MCUFRIEND_kbv.cpp ID=0x6814 is an RM68140 and ID=9403 is unknown.

Next, I started down the path of trying to figure out what the controllers were by using register reads.  David Prentice (the guy who wrote/maintains the MCU Friend_kbv Arduino library) has an absolute ton of responses on the Arduino forum trying to help people figure out what their shield is.  He asks them to post the register report from his example program LCD_ID_readnew which is included as an example in the library.

When you look at these LCD controllers they all have some variant of “Read ID” which responds with 1-6 bytes.  The basic idea of this program is to look at what bytes are returned to try to identify the controller.  Here is an example of what I got when I ran the LCD_ID_readnew program on my shields:

The key thing to see in this output is the register 0x04 which says 54,80,66 which identifies this as a Raydium RM68140 LCD controller.  Here is a snapshot from the data sheet.

Unfortunately, the next thing to notice is that Register 0xBF has reg(0x00BF) FF FF 68 14 00 FF.  The unfortunate part is that this register is not documented in the data sheet beyond this one reference:

Presumably the “68 14” corresponds to a Raydium 68140, but who knows?  When I posted this on the Arduino forum, David Prentice responded (David does yeoman’s labor helping people and should be Thanked for all of his pro-bono work and putting up with a bunch of really bad questions)

After digging some more, I decided that it is super ugly out there, as you find that there are a significant number of LCD controllers that are clones, copies, pirated etc… and that they all present themselves differently.  And, in hindsight I think that this is the reason that my ILI9341 from the previous article doesnt quite work correctly.

The next thing that I did was try out the startup code that MCUFriend_kbv generates.  I used the same technique from PSoC 6 + Segger EmWin + MCUFriend 2.4″ Part 1 and spit out the startup bytes.  Here they are:

At this point I have spent a frightening amount of time figuring out how these screens work.  Although it has been a good learning experience, I have generally decided that using unknown displays from China with LCD drivers of questionable origin is not worth the pain of trying to sort out the interface.  Beyond that:

Actually a cheap color display has lot of advantages over any other type displays. Monochrome graphic LCD display actually costs same. Other options of cheap display is Nokia 5110 Display (which is often reported by many users as buggy), standard 1602A LCD Display (which is an all purpose standard basic LCD display). Here is Getting Started Guide For Arduino TFT Touch Screen Shield Manufactured by MCUFRIEND. This is possibly the cheapest 2.4″ color display for Arduino. It costs around $8 to $10. MCUFriend is a China company and has an useless website. However, all over the web, there is huge support for this cheap display. The display works as intended. I purchased it from physical shop. It is a 2.4″ diagonal LCD TFT display, has white-LED backlight, resistive touchscreen, 240×320 resolution, has SPFD 5408 controller with built in video RAM buffer, has 8 bit digital interface and 4 control lines, it uses digital pins 5-13 and analog 0-3. there is a micro SD card reader.

For Arduino UNO, you are actually having digital pins 2, 3, analog 4, analog 5 unoccupied by the shield. If you do not use the SD card slot then digital pin 12 is also available. 3 digital pins and 2 analog pins should be good for most of the basic projects but for multiple sensors, the actual need will be towards Arduino Mega instead of Arduino UNO. This shield does work with Arduino Mega but sometime oddly behave (may be there is some other problem with my piece). I lack idea whether the micro SD card slot actually works.

Obviously as it is a shield, it is challenging to use the unoccupied pins. The easy trick is use to pass a single stranded wire. I read somewhere that it is possible to control the backlight by connecting a digital pin and transistor.

This module is designed to plug directly into Arduino UNO R3 (or its clone) boards. It is compatible with CH340 and Atmega16u2 version boards, as well as Mega 2560. This LCD shield may also work with other boards, but the compatibility can"t be guaranteed.

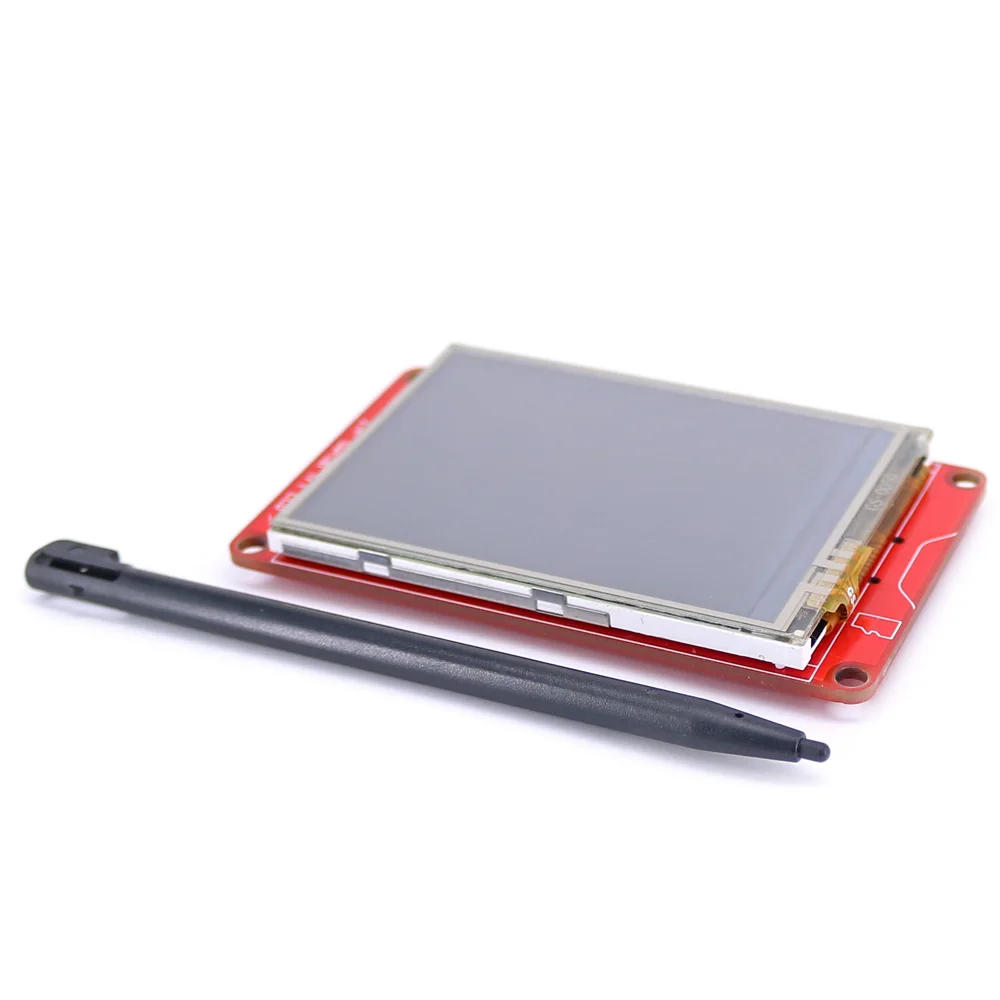

This is the 2.4 inch touch screen for Arduino UNO and MEGA. It use 8-bit parallel bus, faster than serial SPI refresh , support 16-bit RGB 65K color display, display rich colors , easy to expand the experiment with SD card slot.

Hi community, I"m trying to read the touch screen values of 2.4" TFT display with no success. The display visual tests are running successfully. I have written a small script based on "diagnose_touchpins" example, because I use Wemos Lolin32 board and the pins are different. Here is the code:

Hello, I have a few 2.4" touch screens used to be connected to verious Adruino boards. A little search I found taht they could be used on Pi as well. The trouble is I don"t know which pin on the display goes to which Pi"s GPIO. Whould be nice to have a diagram or chart to indicate that. does anyone knows a goo linke for that? Thanks.

It appears you have an Arduino "shield" version of the display. Arduinos use 5V logic and Raspberry Pis use 3.3V logic. As far as I know, you can"t mix them without level translators. It"s also an 8-bit parallel interface. An RPi could potentially control it, but it"s easier to work with 4-wire SPI displays like this one:

bitbank wrote:It appears you have an Arduino "shield" version of the display. Arduinos use 5V logic and Raspberry Pis use 3.3V logic. As far as I know, you can"t mix them without level translators. It"s also an 8-bit parallel interface. An RPi could potentially control it, but it"s easier to work with 4-wire SPI displays like this one:

A 2.4” TFT LCD module consists of a bright backlight (4 white LEDs) and a colourful 240X320 pixels display. It also features individual RGB pixel control giving a much better resolution than the black and white displays. A resistive touch screen comes pre-installed with the module as a bonus and hence you can easily detect your finger presses anywhere on the screen.

The TFT comes with an auto-reset circuit which gets active on every breakout. However, a user can reset the module using this pin also, in case setup is not resetting clean.

The TFT comes with an auto-reset circuit which gets active on every breakout. However, a user can reset the module using this pin also, in case setup is not resetting clean.

Resistive Touch Pins – Y+, X+, Y-, and X- are the 4 resistive touch pins which require analog pins to read and determine touch pins. Their overlay is fixed at the top of the module which makes them electrically separate from the TFT. They can be used is 8-bit as well as SPI mode.

The 2.4” TFT LCD module supports many modes. However, two of them are very popular among users – “SPI mode” and “8-bit mode”. The display contains pins on both sides required for a mode and a user can switch easily between them by simply rewiring the display. It should be noted that only one mode can be used at a time.

The 74LVX245 chip is responsible for interfacing the display with MCU/MPU; it provides fast level shifting so that the user can work on both the logic levels. All the pins are 3.5V logic level compatible. However, if there is an output, the level goes at 3.3V.

A 2.4” TFT module has a very flexible usage. It is compatible with all your DIY projects where you want to add a bright, colourful, and touchscreen enabled display.

PIO_Set(PIOC, (((d) & 0x01)<<(22-0)) | (((d) & 0x02)<<(21-1))| (((d) & 0x04)<<(29-2))| (((d) & 0x10)<<(26-4))| (((d) & 0x40)<<(24-6))| (((d) & 0x80)<<(23-7))); \

PIO_Clear(PIOC, (((~d) & 0x01)<<(22-0)) | (((~d) & 0x02)<<(21-1))| (((~d) & 0x04)<<(29-2))| (((~d) & 0x10)<<(26-4))| (((~d) & 0x40)<<(24-6))| (((~d) & 0x80)<<(23-7))); \
