Important： Due to the website layout and format limit, this specification & Datasheet of 1.3 inch square LCD module is for reference only. For complete SPEC&DATASHEET of the PDF format, please contact us.

The customer should check and accept the products ofVISLCDwithin one month after the reception. This standard for Quality Assurance should affirm the quality of LCD products to supply to the purchaser. The entire process is controlled according to QS9000.

1) Inspection Before delivering, the supplier should take the following tests, and affirm the quality of the LCD product. 2) Electro-Optical Characteristics According to the individual specification to test the product. 3) Test of Appearance Characteristics: According to the individual specification to test the product. 4)Test of Reliability Characteristics According to the definition of reliability on the specification for the test product. 5) Delivery Test Before delivering, the supplier should take the delivery test. 6)Sampling Method: GB/T2828.1-2003, Level II 7) The defects classify of AQL as following Major defect: AQL=0.65 Minor defect: AQL=1.5

01 Electrical Testing 1.1 Missing vertical, horizontal segment, segment contrast defect. 1.2 Missing character, dot or icon. 1.3 Display malfunction. 1.4 No function or no display. 1.5 Current consumption exceeds product specifications. 1.6 LCD viewing angle defect. 1.7 Contrast defect 0.65

05 Backlight elements 5.1 Illumination source flickers when lit. 5.2 Spots or scratches that appear when lit must be judged using LCD spots, lines, and contamination standards. 5.3 Backlight doesn’t light or color is wrong 0.65 1.5 0.65

LCD is composed of glass and polarizer. Pay attention to the following items when handling. Please keep the temperature within the specified range for use and storage. Polarization degradation, bubble generation or polarizer peel-off may occur with high temperatures and high humidity.

Response time is greatly delayed at a temperature below the operating temperature range. However, this does not mean the LCD will be out of the order. It will recover when it returns to the specified temperature range.

When storing LCDs as spares for some years, the following precaution is necessary. Store them in a sealed polyethylene bag. If properly sealed, there is no need for desiccant.

9.6 SAFETY It is recommended to crush damaged or unnecessary LCDs into pieces and wash them off with solvents such as acetone and ethanol, which should later be burned.

Unless agreed between VISLCD and customer, VISLCD will replace or repair any of its LCD modules which are found to be functionally defective when inspected in accordance with VISLCD LCD modules acceptance standards (copies available upon request) for a period of one year from date of shipments. Cosmetic/visual defects must be returned to VISLCD within 90 days of shipment. Confirmation of such date shall be based on freight documents. The warranty liability of VISLCD to repair and/or replacement on the terms set forth above. VISLCD will not be responsible for any subsequent or consequential events.

A wide variety of 1.3 tft lcd display options are available to you, You can also choose from datasheet, 1.3 tft lcd display,as well as from tft, ips, and standard 1.3 tft lcd display,

A wide variety of 1.3 inch round lcd options are available to you, You can also choose from datasheet, 1.3 inch round lcd,as well as from tft, ips, and standard 1.3 inch round lcd,

We want to use ER-TFT013-1 as auxiliary, internal display on our modules (suppose that you know that my company already use EastRising displays in our product), and we want to use serial interface.

The TFT display provides a semiconductor switch for each pixel and each pixel is directly controlled by pulse. Therefore, each node is relatively independent and can be continuously controlled, which not only improves the response speed of the display, but also can be accurately controlled. The color level is displayed to make the TFT LCD color more realistic, the brightness is good, the contrast is high, the layering is strong and the color is bright.

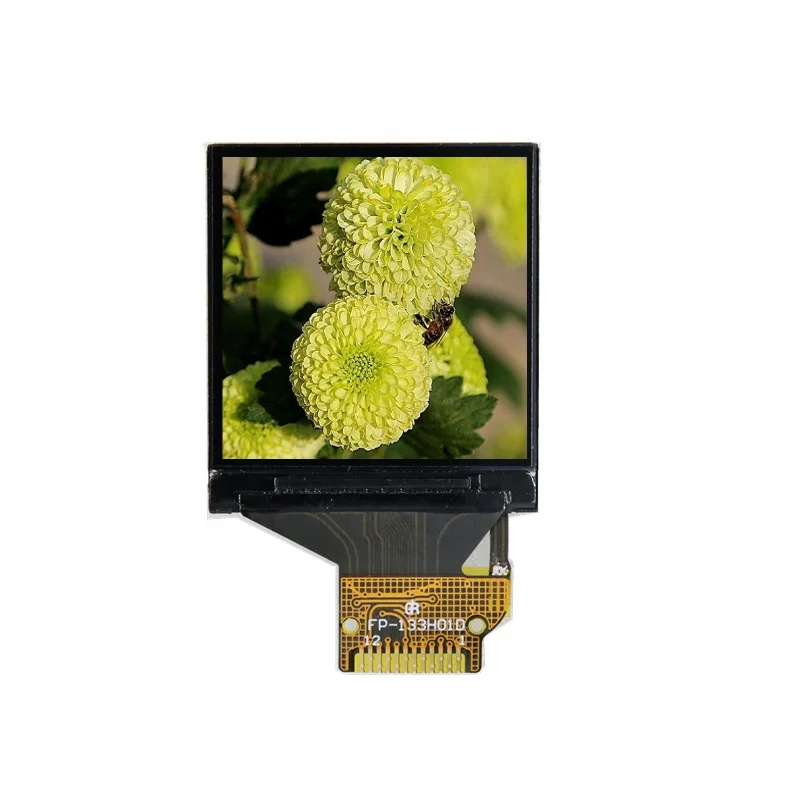

RV013Z1P-300-26 is a small size square 1.3 inch LCD display panel, the interface and brightness acceptable for customized, It is a transmissive type display operating in the normal white. This TFT-LCD has a 1.3 inch diagonally measured active area with QVGA resolutions (240 horizontal by 240 vertical pixel array).

A1: We are a high-tech manufacturer, which provide one-stop LCD solution, in the technology side, We pursue the continuous update and development of LCD technology, and have obtained a number of technology patent-certificates.

A5: Our stocks are mainly raw materials or semi-finished(LCD module), usually after payment, we will send it within 3 days, if you need custom and buy large quantity, the delivery time about 4-7 weeks after you confirm the sample.
