The DT022BTFT uses the same connections as the DT022CTFT, with the exception of the backlight (which has connections shown in the Displaytech datasheet).

The provided display driver example code is designed to work with Microchip, however it is generic enough to work with other micro-controllers. The code includes display reset sequence, initialization and example PutPixel() function. Keep the default values for all registers in the ILI9341, unless changed by the example code provided.

Note that the WR pin becomes the D/CX signal in serial mode. CS is used to initiate a data transfer by pulling it low. At the end of the data transfer, pull the CS pin high to complete the transaction. The timing diagram indicates that you can pull the CS pin high in between the command byte and data bytes within a transfer, but it is unlikely needed if the display is the only device on the SPI bus. To keep things simple, we suggest to leave it low during the entire transaction.

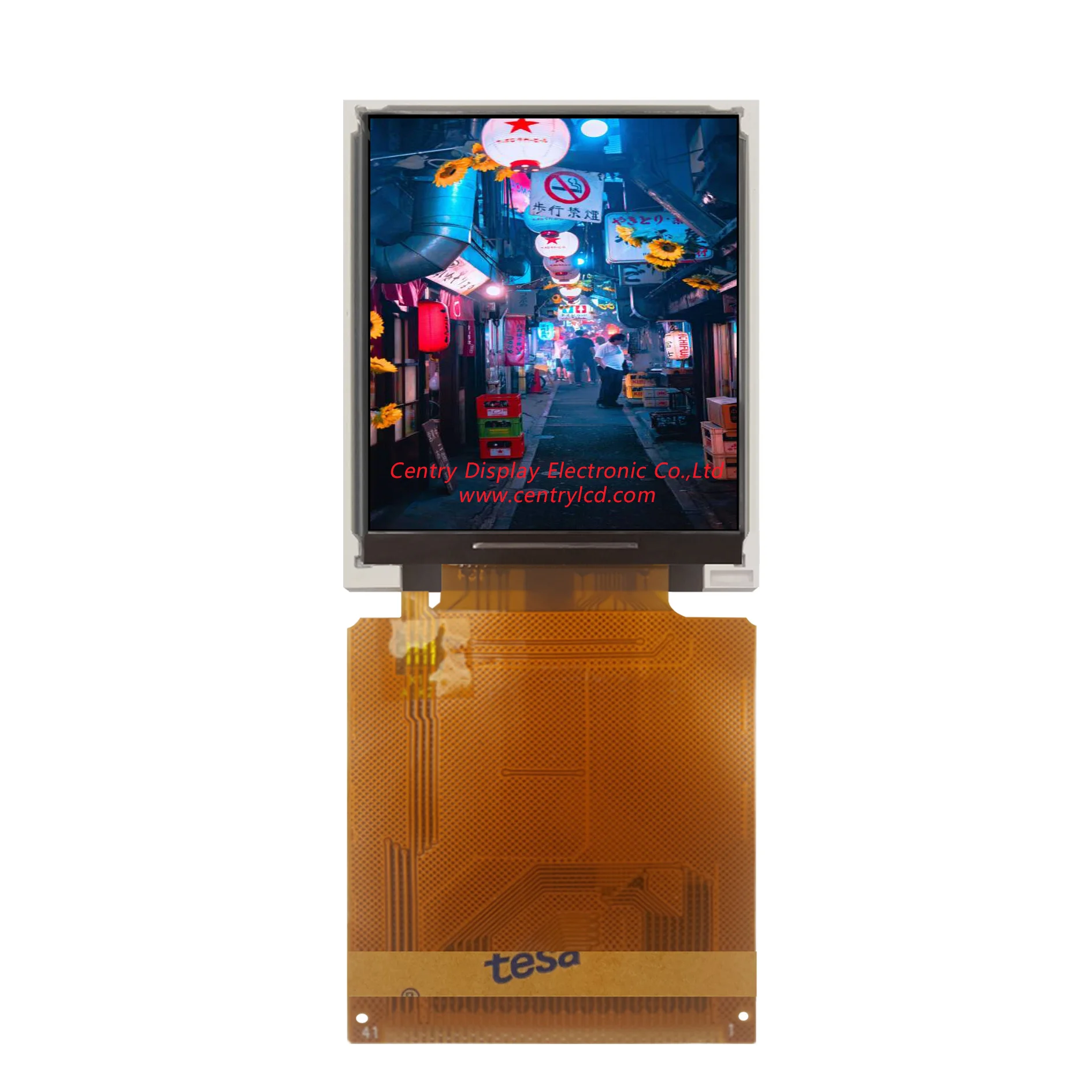

A full color 240xRGBx320 pixel TFT display module with 2.2" diagonal active area. Very small text and images look sharp on this graphic display, with its dense pixel pitch of 0.141 x 0.141 millimeters. The TFT"s 6:00 o" clock viewing direction works well for devices that must be easy to read above eye level without fading, such as signal analyzers or other benchtop laboratory equipment.

With a built-in Sitronix ST7789V or compatible display controller, the logic voltage range of 2.5v to 3.3v allows direct connection to 3.3v processors.

Buy with confidence. Our Logistics department is experienced at sending products anywhere in the world where permitted. This TFT display module has a limited 1-year warranty and free technical support.

Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This TFT display is 2.2" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional Capacitive Touch Panel Controller FT6236 and resistive touch panel with controller XPT2046 attached by default.

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

ER-TFT022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller,optional capacitive touch panel with controller FT6236U and resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

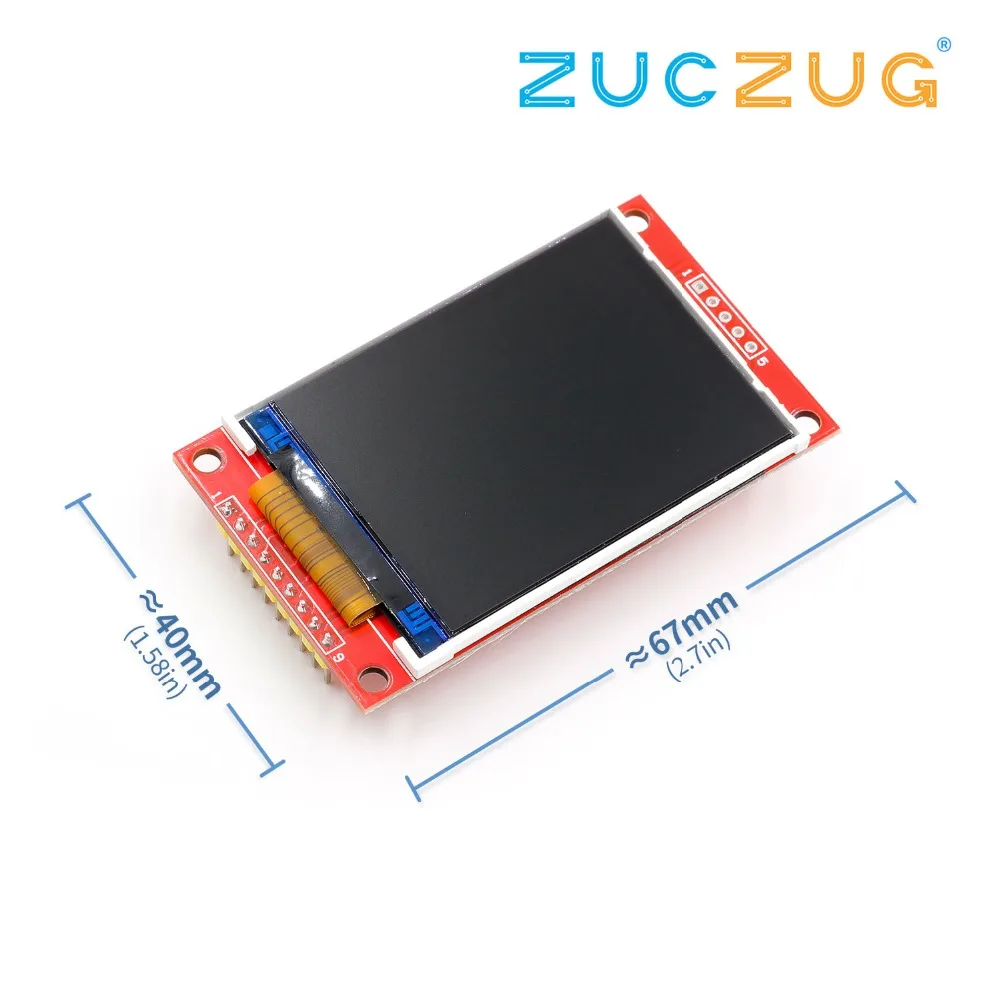

Specifications:Resolution: 240x320Driver IC: ILI9341Input Voltage: 5V/3.3VSize 2.2 inch, It has PCB backplane with power IC, SD card socketLED Numbers 4 LEDs, Driver IC: ILI9341, Color Depth 262K/65KModule Size:67mm(length)*40mm(width)*4mm(thickness), Active Area: 47.5mm(Length)x36.5mm(Width)How to use it?1. use 5v to led pin, 3.3v to vcc and 1k / 1.5k resistor voltage dividers to get it to work. 1k resistor in series from Arduino to tft logic pin, 1.5k from tft pin to ground.2.#define TFT_DC 9#define TFT_CS 10#define TFT_MOSI 11#define TFT_CLK 13#define TFT_RST 12#define TFT_MISO 83.// Use hardware SPI (on Uno, #13, #12, #11) and the above for CS/DC//ILI9341 tft = ILI9341(TFT_CS, TFT_DC);4.// If using the breakout, change pins as desiredILI9341 tft = ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RST, TFT_MISO).Serial monitor output:1-- ILI9341 Test!Display Power Mode: 0x94MADCTL Mode: 0x48Pixel Format:0x5ImageFormat: 0x80Self Diagnostic: 0xC0Benchmark Time (microseconds)2-- Screen fill 18159720Text 921664Lines 8537648Horiz/Vert Lines 1485756Rectangles (outline) 946520Rectangles (filled) 37689232Circles (filled) 5325780Circles (outline) 3725412Triangles (outline) 1944508Triangles (filled) 12525852Rounded rects (outline) 1782700Rounded rects (filled) 40989648

This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.
