Furuno’s MU190T Multi Touch Marine Monitor is 19” of hi visibility display that is comfortable in a Glass Bridge installation or on the fly bridge. When Furuno set out to create the best “Pinch to Zoom” monitors on the water, they ended with their Multi Touch Marine Monitors, of which the MU190T is the middle size but packs a very large punch.

The MU190T is a full 19” 1280 X 1024 monitor that works perfectly with the Furuno TZ Touch Black Box system to give you a high tech all glass bridge. The marine environment provides one of the most challenging settings for electronics and the Hi Brite Multi Touch MU190T Monitor from Furuno not only meets this challenge but exceeds it. The MU190T provides a 300% brighter screen than most off-the-shelf multi touch monitors 250 cd compared to 800-1000 cd for the MU190T. The PCtouch (Projected Capacitive) that is part of the MU190T provides the ultimate in responsive sensitivity which is required to make full use of the NavNet TZTouch black box system.

Like the others in the line of Multi Touch Monitors from Furuno, powering your monitors should not be a struggle, which is why these monitors allow you to connect either AC or DC power. If you wish you can connect to both at the same time. This will be sourced first to DC and if that power is lost the AC power will automatically start without interruption. The MU190T is rugged enough to withstand condensation, salt water exposure, sunlight reflection, night vision, and overheating, to mention just a few of factors that a marine display must face and function in.

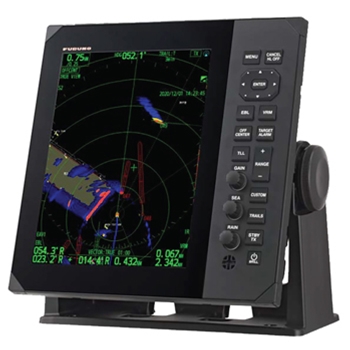

The Furuno FR12 Radar Display is a superior radar solution boasting a 12.1” XGA Radar Display for recreational boaters giving them confidence every time their boat enters the water. Commercial users aren’t left out of the picture as they will gain boat and barge icons for towing applications and Parallel Index Lines for advanced radar navigation as they move along. The Furuno FR12 offers a broader target area of 184mm so it meets USCG Category I or II carriage requirements for towing vessels under 300GT.

An included HDMI output allows boaters to connect the FR12 to a larger LCD or TV monitor for dual viewing expansion perfect for any vessel. Identify surrounding risks and navigate safely with the new Risk Visualizer that provides boaters with information on potential collision areas and movement of all surrounding vessels, keeping you and your crew safe. Receive an easy and quick overview of what’s going on around your ship with color-coded alerts according to the threat of the collision allowing you to acknowledge the danger level and plan your vessels next move. Safety at sea is key and Furuno kept that in mind with this new feature!

Fast Target Tracking and Target Analyzers work flawlessly together to instantaneously show a vector that indicates the speed and heading of a target while automatically being tracked from the beginning for better target trajectory and display of the velocity vector. Target Analyzing identifies dangerous targets that are likely to collide with your vessel using different colors according to the degree of danger to your vessel. Understanding threats at an advanced glance gives an added peace of mind.

Utilize the Echo Average feature that brings attention to irregular echoes such as reflections from the seas surface and precipitation and stabilizes echoes obtained from fishing gear and other nearby vessels. The Echo Average, even in poor weather conditions like high waves, dense fog, or precipitation, will also provide you with clearer attenuations. Compatible with a wide variety of radar domes from Furuno’s powerful antenna line-up (dome or open array sold separately), the Furuno FR12 can be configured in a variety of ways ensuring you have the best radar to meet all of your needs!

A liquid crystal display (LCD) is an electro-optical amplitude modulator realized as a thin, flat display device made up of any number of color or monochrome pixels arrayed in front of a light source or reflector. It is often utilized in battery- powered electronic devices because it uses very small amounts of...

A Marine LCD Display (LCD) is a Marine Display dedicated to displaying data relevant to the function of marine electronics on the vessel. Examples of Marine LCD Displays include RADAR, Chartplotters, Remote Displays, and FishFinders.

Like most marine plotters the MFD12 has an AR coating to assist with sunlight view ability. This surface should NEVER be cleaned with Windex ™ or other cleaners that damage the surface. When you get salt spray and other contaminates on the screen it should be washed clean with clear water and wiped dry with a microfiber cloth like the one included with the unit. If salt etches in the screen or the AR coating is damaged from other cleaners or contaminates, the only way to fix it, is to replace the LCD, which can be an expensive option. If you feel you need something better than water and microfiber cloth; then I would suggest products made specifically for marine displays like Electro-wipes. (www.bajaproducts.com) I am sure there are other suitable products that are alcohol and ammonia free, but this one is used only as an example, and not specifically endorsed by Furuno. The glass is bonded directly to the LCD, so you normally won’t see issues behind the glass. Please take care when cleaning and caring for your screen.

Furuno HD Colour Displays The FURUNO MU190HD & MU150HD is a multi-purpose marine LCD that features the unmatched quality and reliability that you have learned to depend on. The MU190HD / MU150HD employs an extremely bright (1,000 cd/m2 ) color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the MU190HD monitor is perfect for any tropical sunlight or low light conditions. Furthermore, the LCDs and the glass are bonded together ensure fog free operation on open fly-bridge installations.

The MU-190HD features SXGA (1280 x 1024) screen resolution and a wide range of interface options available that include: 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The unit can also display images from security cameras, DVD player, computers, or other peripheral video devices.

The MU150HD features XGA (1024 x 768) screen resolution, with a built-in scaler to accept resolution up to SXGA (1280 x 1024). It’s wide range of interface options include: 1 RGB analog, 2 DVI (Digital Video Interface) and 3 NTSC/PAL video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The unit can also display images from security cameras, DVD player, computers, or other peripheral devices. Features

Two of the major players in the marine radar and multifunction navigation display system market have just introduced advanced technology digital radars. Furuno’s Ultra High Definition (UHD) radar and Raymarine’s High Definition (HD) radar provide significant improvements in all aspects of performance. The manufacturers’ claims that these (choose a superlative) Ultra High Definition or High Definition radars provide the navigator with a clearer, more precisely defined image of the surrounding waters are confirmed by what you will see on the display screens. Both radars digitize the analog radar energy received by their antennas and use advanced Digital Signal Processing (DSP) technology to extract the desired navigation information while automatically suppressing noise and interference.

These new digital high-definition radars are components of their manufacturers latest integrated multifunction navigation, NavNet 3D from Furuno and the G-Series Navigation System from Raymarine. Radar images can be displayed individually, in a split screen mode that provides the full functionality of having two complete radars on board, or overlaid on the navigation chart. The introduction of both of these comprehensive navigation systems marks a significant advance in the state of the art for this class of equipment.

The radar images on both the Furuno and Raymarine multifunction displays were clearly superior to their previous offerings. Both very small and quite massive targets were very sharply defined. The screens were remarkably free of sea clutter and other normally encountered intermittent interference. Both radars can be operated in a simultaneous dual-range mode, providing the functional advantage of two separate radars.

Other manufacturers, including Garmin, JRC and Northstar, have offered yacht radars that process the received signal digitally, however they have not yet achieved the level of performance or struck the spark of excitement that the combination of features incorporated in these new (and somewhat more costly) Furuno and Raymarine units are likely to create, especially when the advanced simultaneous dual-range features of these systems are viewed on their new NavNet 3D and G-Series chart plotter displays.

The Furuno and Raymarine high-definition radars provide a new and very useful dual-range capability, without the performance compromise inherent in previous systems that used a single pulse length and pulse repetition rate for both ranges. These new radars can “look twice,” alternately transmitting radar energy at the pulse length and PRF required to produce the optimum radar image at each of the selected ranges. The navigator is presented with two independently controlled screen images, which are optimized for each range. Each screen image is managed separately, with automatic optimization of the display or with full manual adjustment of each control. The result is the full-functional equivalent of having two separate radars.

The move toward incorporating the entire radar transmitter, receiver and data processing circuitry within the radar antenna assembly (pioneered by Si-Tex and more recently used by Garmin and Northstar) continues in the new Furuno UHD and Raymarine HD radars. The benefit of incorporating the entire radar in the antenna is obvious during installation. The rather large diameter multi-conductor cable previously required to connect the antenna system to the remainder of the radar signal processing circuitry is eliminated and replaced by a two-wire power cable and a digital signal bus Ethernet cable (although Raymarine avoids the term Ethernet when describing their communication bus, essentially an Ethernet bus with a different IP structure). All of the control commands to the radar antenna system and the processed radar information flow to and from the wheelhouse equipment via the digital bus. Furuno has equipped its radar antenna assemblies with a pair of NMEA 2000 connectors. GPS receivers, weather sensors and other devices installed on or near the radar mast and which employ the NMEA 2000 data communication protocol, may be plugged into the antenna. Then the vessel’s data network automatically connects them to the system, eliminating the need for additional cabling.

The screen image of a marine radar is updated in step with the rotation of the antenna, with most operating at a constant 24 rpm. Radars used on high-speed craft or on rivers where more frequent image updates on shorter ranges can be essential for safety may operate at a higher speed, usually 48 rpm. The new Furuno ultrahigh- definition radar automatically adjusts antenna rotation speeds to 24, 36 and 48 rpm depending on the range.

In addition to their high definition data presentations the new Furuno and Raymarine radars offer expanded ARPA (Automatic Radar Plotting Aid) capability. The Furuno can track 30 targets, the Raymarine a maximum of 25. Both systems can plot AIS (Automatic Information System) data on the radar screen, greatly simplifying the identification of targets, the surveillance and tracking of their movement relative to your own vessel, significantly enhancing radar’s primary purpose, collision avoidance.

If you’re looking for Furuno’s fastest, brightest, and most intuitive to use Multifunction Chartplotter, look no further. Furuno’s Navnet TZ Touch with a 14.1” 1280 x 800 crystal clear display has blown away the technology of traditional plotters packing endless features and unsurpassed speed into one unit. Simply add a Furuno GP330B GPS antenna and your TZ will be ready to operate.

Furuno has created the world’s first MFD/ MTD (Multi-Touch Display) providing you with a pinch-to-zoom feature with TimeZero technology giving you virtually no redraw time redefining the meaning of stress-free operation. The TZ’s have a fog-free structural design preventing you from ever having to worry about water condensation between the LCD and front cover. Furuno’s NavNet TZ also provides mapping choices of pre-loaded NOAA raster and Vector charts or purchase optional C-Map charts unlock codes for desired areas for additional mapping detail.

Simply add the Furuno DFF1 Sounder Module for 600w or 1KW of fishfinding power. For the more serious fisherman you may want to go with the DFF3 which has capabilities for 1KW to 3KW of output power for reaching deeper depths. The TZT is also compatible with the DFF1-UHD TrueEcho Chirp Sonar right out the box.

Increase your situational awareness with Furuno Radar and AIS. Both systems can be overlaid onto the chartplotter to give you a much better view of what is around your boat as well as show you if you are on a collision course with another vessel. AIS is connected via NMEA 2000 and sends information about other AIS equipped vessels in your area. Information like vessel name, call sign, position, course, speed over ground, and other useful information. Furuno Digital Radar is offered in either a radar dome or open array. Open array radars are recommended for long range vessels as well as fisherman looking for birds offshore. Radar domes are the perfect answer for anyone looking for more close range information like boats, buoys and land. The PSU012 is required when adding any radar to the Furuno NavNet TZ Touch.

FLIR’s popular M‐Series line of thermal night vision cameras can not be controlled for a Furuno TZTouch 9 or TZTouch 12, easily access and controll functions right from the touch screen on the MFD. Change camera settings, optimize the video, and even pan and tilt the camera directly from your favorite TZTouch MFD. By incorporating “Pinch to Zoom” and “Tap to Point” technology, Furuno’s NavnetTZTouch software adds even more functionality to the camera.

The Furuno TZ Touch 14 can be interfaced many different ways. It has networking abilities through NMEA 2K, Furuno CAN Bus, USB, and LAN (RJ45)/Ethernet. 2 video inputs allow you to keep an eye on your crew or engine room with any NTSC or PAL camera. The TZ also has 1 video output port so that you can turn your salon tv into a 2nd viewing display. If that was not enough the Furuno TZ Touch is also compatible with the FLIR M-Series Thermal Cameras. Not only can you view that info on the screen but you can also control it from the TZ Touch Display. Also, if you have a Fusion MS700 Series Radio on your boat connected to NMEA 2000, the Furuno TZT can control the stereo using Fusion Link which allows you to control volume, audion source and more

Furuno went above and beyond to make sure the TZ Touch not only performed at a high level but also has a stylish look. The Furuno NAVnet TZ Touch 14 is surely a must have for any serious boater or fisherman and is guaranteed to leave you wondering how you’ve ever gone without it.

All items sold at Max Marine Electronics come as you see in the pictures provided, with ONLY the parts and accessories shown in the pictures, PLEASE do not assume any additional items will be included in your shipment. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE PICTURES WE PROVIDE, IT WILL NOT BE INCLUDED. Please read all descriptions thoroughly, as there are times a display is used ONLY to show the item being sold is functional, and working properly these displays ARE NOT included and this will be stated in our descriptions. If you have ANY questions please always feel free to send an eBay message or call Max Marine Electronics Inc, Pompano Beach, Florida for help, assistance, or more detailed information. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.

All items sold at Max Marine Electronics come as you see in the pictures provided, with ONLY the parts and accessories shown in the pictures, PLEASE do not assume any additional items will be included in your shipment. IF YOU DO NOT SEE SOMETHING YOU EXPECT TO BE INCLUDED IN THE PICTURES WE PROVIDE, IT WILL NOT BE INCLUDED. Please read all descriptions thoroughly, as there are times a display is used ONLY to show the item being sold is functional, and working properly these displays ARE NOT included and this will be stated in our descriptions. If you have ANY questions please always feel free to send an eBay message or call Max Marine Electronics Inc, Pompano Beach, Florida for help, assistance, or more detailed information. We always want to be transparent with our customers and fully disclose any information regarding the products we sell.

Turn off the power at the switchboard if the equipment becomes abnormally warm or is emitting odd noises. Contact a FURUNO dealer or agent for advice.

The TFT LCD is constructed using the latest LCD techniques, and displays 99.99% of its pixels. The remaining 0.01% of the pixels may drop out or blink, however this is not an indication of malfunction.

3.3 How to Adjust the Display Brilliance............................................................................ 22 3.4 How to Select the Source for Main Picture ................................................................. 23 3.5 How to Select the Source for the PIP Window............................................................ 23 3.6 SYSTEM Menu ........................................................................................................... 24

FURUNO Electric Company thanks you for purchasing the MU-150HD 15 Marine Display. We are confident you will discover why the FURUNO name has become synonymous with quality and re- liability.

Since 1948, FURUNO Electric Company has enjoyed an enviable reputation for quality and reli- ability throughout the world. This dedication to excellence is furthered by our extensive global net- work of agents and dealers.

Selectable screen from RGB (1 line), Digital (2 lines) or Composite (3 lines). Main or remote display for radars, video sounders, sonars, plotter. For the connectable equip-

Note 3: When inputting SXGA, a circle may be displayed as an ellipse because the aspect ratio differs. See "DISP MODE*" on page 17. Also, it may be difficult to read small characters.

1.3 Flush Mounting, Fixed at Front If you do not have the enough space to fix the display unit from the rear, you can fix it from the front with the optional flush mount kit OP26-36 (code no.: 001-497-450) or OP26-4 (code no.: 001- 080-850).

3. Attach the flush mounting panel (15) to the display unit from the rear with the washer head screws (M410, 8 places, torque: 1.2 Nm). Do not confuse the top and bottom of the panel and check that screw holes on the panel and unit match.

3. Attach the F-Mount Hood Gasket 15 to the top brim, the Hood Gasket Bottom 15 to the bottom brim, and then attach the F-Mount Hood Gasket Side 15 to the right and left sides of the display unit from the rear side as shown the figure below.

2.1 RGB/DVI Setting You can adjust the screen from the [RGB], [DVI-D1] and [DVI-D2] ports separately. Turn on ex- ternal equipment and adjust the display unit as follows.

*: When inputting SXGA, a circle may be displayed as an ellipse because the aspect ratio differs. In this case, select [NORMAL] from the [DISP MODE] menu item on the [RGB], [DVI1], or [DVI2] menus. The right and left on the screen are left blank, but this is normal.

DISP MODE* Selects the displaying method. [FULL]: Shows the input signal on entire screen. [NORMAL]: Shows the input signal with original aspect ratio.

2.2 Video Composite Signal Setting You can adjust the VIDEO1, 2 or 3 signal from the VIDEO1, VIDEO2 and VIDEO3 ports separate- ly. The VIDEO1, 2 or 3 signal is displayed in the PIP window also.

1. While you hold the PIP key, turn on the display unit. Press and hold the PIP key for more than five seconds. Note: When the slide switch is ON, turn on the connected external equipment while pressing the PIP key to turn on the display unit.

2. Press the or key to select a signal. You can also select the signal by pressing the DISP key continuously. [RGB]: The signal from the RGB port is displayed. [DVI1], [DVI2]: The signal from the selected DVI port is displayed. [VIDEO1] - [VIDEO3]: The external video from the selected VIDEO port is displayed.

3.5 How to Select the Source for the PIP Window Select the source for the PIP (picture-in-picture) window as follows. The PIP window is available on the RGB, DVI1 or DVI2 display.

1. When the RGB, DVI1 or DVI2 display appears, press the PIP key. The PIP selection window appears. The signal names are shown as you customized at paragraph 2.3.2 on the window. This window disappears if there is no operation for five sec- onds.

2. Press the or key to select the VIDEO port required. [VIDEO1] (2 or 3) can also be selected by pressing the PIP key continuously. When you select the [VIDEO1], [VIDEO2] or [VIDEO3], the PIP window is displayed. To close the PIP window, select [OFF].

When FAR-21x7 series is connected to the [DVI-D1] or [DVI-D2] port, you can adjust the brilliance of the display unit from the FAR-21x7 series connected.

4. Press the or key to set the desired input item. [OFF]: You can not adjust the brilliance from the external equipment. [DVI1]: When the DVI1 is displayed, the brilliance signal from DVI-D1 port controls this dis-

plays brilliance. The /BRILL key is available for the screen other than the DVI1. [DVI2]: When the DVI2 is displayed, the brilliance signal input from DVI-D2 port controls this

Remove dust and dirt from the display unit with a dry, soft cloth. Do not use chemical cleaners to clean any part of the display unit. They can remove paint and markings.

This warranty is valid for products manufactured by Furuno Electric Co. (hereafter FURUNO) and installed on a pleasure boat. Any web based purchases that are imported into other countries by anyone other than a FURUNO certified dealer may not comply with local standards. FURUNO strongly recommends against importing these products from international websites as the imported product may not work correctly and may interfere with other electronic devices. The imported product may also be in breach of the local laws and mandated technical requirements. Products imported into other countries as described previously shall not be eligible for local warranty service. For products purchased outside of your country please contact the national distributor of Furuno products in the country where purchased. This warranty is in addition to the customers statutory legal rights.

FURUNO guarantees that each new FURUNO product is the result of quality materials and workmanship. The warranty is valid for a period of 2 years (24 months) from the date of the invoice, or the date of commissioning of the product by the installing certified dealer.

2. FURUNO Standard Warranty The FURUNO standard warranty covers spare parts and labour costs associated with a warranty claim, provided that the product is returned to a FURUNO national distributor by prepaid carrier. The FURUNO standard warranty includes: Repair at a FURUNO national distributor All spare parts for the repair Cost for economical shipment to customer

If the product was installed/commissioned and registered by a certified FURUNO dealer, the customer has the right to the onboard warranty. The FURUNO onboard warranty includes

4. Warranty Registration For the Standard Warranty - presentation of product with serial number (8 digits serial number, 1234-5678) is sufficient. Otherwise, the invoice with serial number, name and stamp of the dealer and date of purchase is shown. For the Onboard Warranty your FURUNO certified dealer will take care of all registrations.

5. Warranty Claims For the Standard Warranty - simply send the defective product together with the invoice to a FURUNO national distributor. For the Onboard Warranty contact a FURUNO national distributor or a certified dealer. Give the products serial number and describe the problem as accurately as possible.
