Tonight’s project is fitting immo 3 sport faces onto an immo 2 cluster with some “knockoff” R32 needles and blue LEDs. Immo 2 and 3 have EPC and immo light icons in different spots and the center warning lights are slightly different. Here in North America we never got a sport version of immo 2 faces but Europe did so those would be direct swap. But in this case I just moved the LEDs to their respective immo 3 locations (not the cleanest method but one I’ve been doing for yea…

The settings you specify here are stored in the "local storage" of your device. The settings will be remembered for the next time you visit our online shop. You can change these settings at any time (fingerprint icon in the bottom left corner).

It all started in the summer of 2020, when I bought an Audi TT 2002. Unlike my previous cars, it didn’t have a digital speedometer in the instrument cluster’s little LCD-display (Driver Information System DIS in Audi). Due to the lack of digital speedometer, I decided to implement it myself. To cut a long story short, I thought I could take advantage of existing GitHub-project[1]and wrote the code for that setup first. Though I soon realized the setup used in the existing project was different to mine, so I had to start it all over.

Audi TT"s DIS-display shows the radio station or the CD-track in the upmost third of the display. My plan was to replace the radio info with digital speedometer. From the previously mentionedprojectI found out that the radio sends information to the instrument cluster via three one-way data wires. When I pulled my radio out, I found out that my radio didn"t use these three wires, but CAN bus instead.

Before I tapped into CAN bus with Arduino, my plan was to acquire the vehicle speed signal from the radio"s GALA-wire (Graduated Audio Level Adjustment). GALA increases radio volume automatically according to vehicle speed. Since my car has CAN bus, there is no need for GALA-wire and the instrument cluster sends vehicle speed data on the bus every 200 ms. I"m used these CAN-messages in my digital speedometer solution.

After doing a little research on the CAN bus (especially in VW-group cars), I found out that the bus used in my car was a so called Fault Tolerant CAN bus[4]. For me it meant that I couldn"t use off-the-shelf CAN-shields for Arduino.

I designed the circuit board in Autodesk Eagle. I didn"t pay too much attention to the circuit board design specifics, because I knew that manufacturing and shipping of the board would take its own time. I ordered the printed circuit board fromItead.cc.

I found Audi CAN bus message identifier list onCanhack.de[7] and I found the IDs for the first and second text line of the DIS. I also discovered the ID for vehicle speed information ontxboard.de[8].

0x635radio illumination (length: 3 bytes; from left to right: radio display backlight, radio buttons backlight, (?); (dimmest 0x0 - brightest 0x64)

I"ve had to replace the instrument cluster in my 2001 Audi TT Quattro because of a parasitic battery drain. My original cluster is in good shape otherwise; I had the LCD replaced last year and I replaced the stepper motors directly afterward. If not for the parasitic draw, it was perfect.

This is the replacement cluster. It"s for a 2000 model but made in April of 2004. Either a replacement cluster that some poor owner paid for, or a recall replacement cluster. Either way, its 16 years old and not 21.

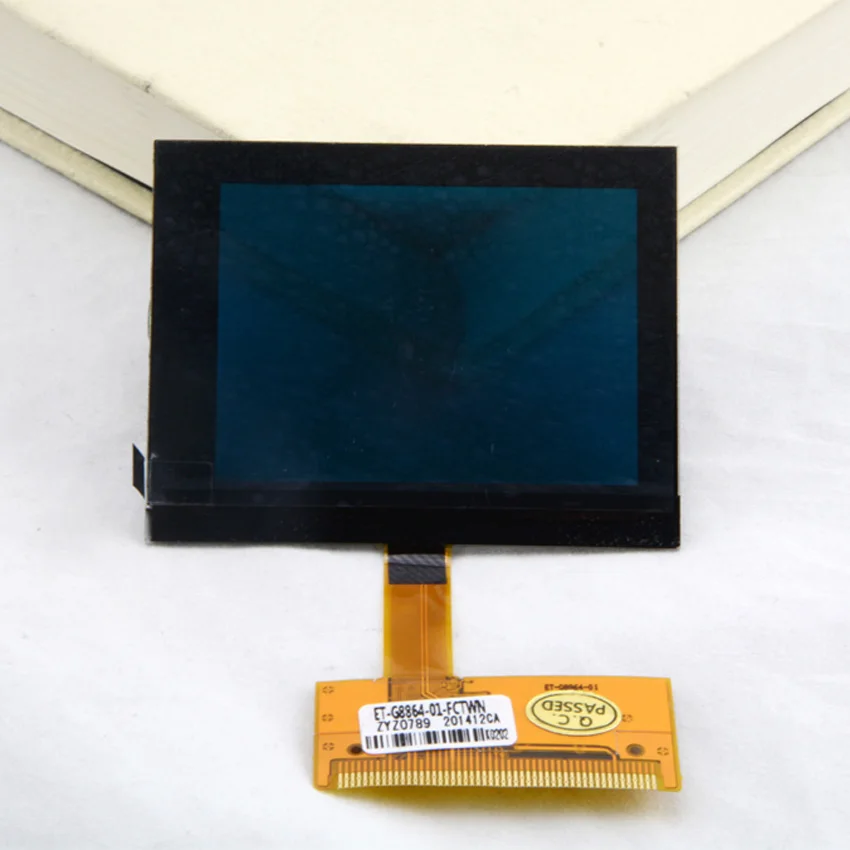

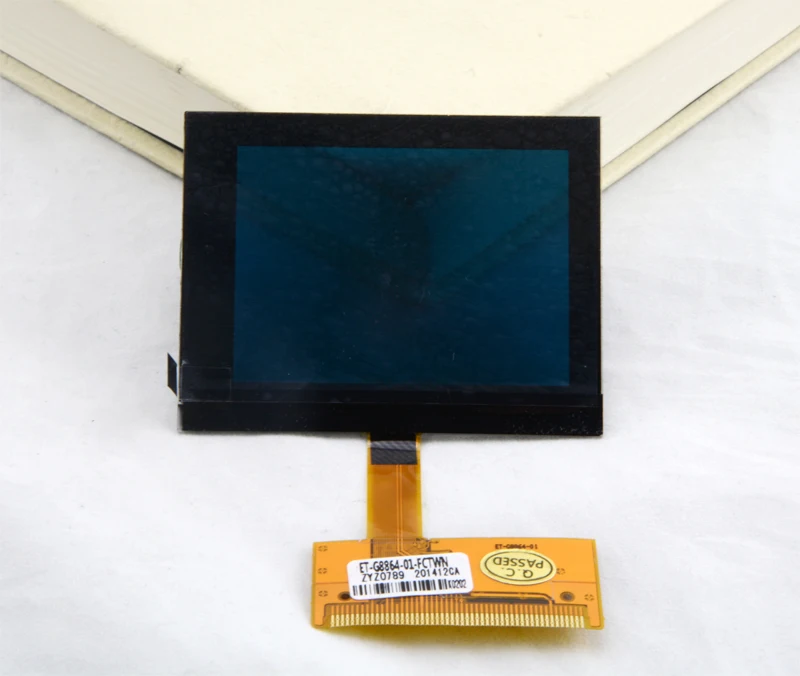

I am sending it out to have the LCD screen replaced but before I do that, I"ve decided to replace the stepper motors and swap over the mounts from my original cluster.

If a Google search brought you here, you probably know why you need to replace these. But if you didn"t, here"s why: The fuel gauge and temperature gauge in the instrument cluster are electrically driven using stepper motors. When those motors begin to fail, you"ll end up with a gauge that sticks at the top or bottom of its swing, one that is erratic, or one that moves inconsistently. Often, replacing the stepper motor resolves the issue. Fortunately, replacing those stepper motors is straightforward and easy to do.

Replacement stepper motor (2) - I bought these from Tanin Auto Electronix. They are P/N TAEAUDI500-035 and were about $30 each. You"ll need two if you want to replace both the fuel gauge and the temperature gauge (you should do both if you do one).

A scan tool capable of putting the dashboard module into diagnostic mode. I"m using an Autel MaxiDAS. There are alternative methods I"ll discuss later, which will let you install needles without a scan tool but it is a trial and error process.

The stepper motors are attached to the circuit board. To get at them, we need to disassemble the cluster. For that, all you"ll need are a T10 Torx bit and a plastic smudger.

Use the T10 bit to remove the eight (8) Torx screws holding the white plastic back to the black plastic bezel. The bottom two Torx screws secure the spring for the vinyl steering wheel cover (thing). When removing those, keep an eye on the screws. They can shoot across the room when the spring compresses.

Each stepper motor is clipped to a pair of bosses which extend up from the circuit board. These bosses are white plastic and can be brittle. I"ve found that the easiest way to remove the motor is to use a pair of needle nose pliers and snap the little clips off where they attach to the circuit board. This will allow them to be lifted upward without risk of damage to the mounting bosses.

Once the little clips are broken, slip the smudger under the edge of the motor and pry upward. They should pop upward and come free of the board. Note that each contains a 3-pin connector which extends down into the circuit board. When lifted, that connector will come free as well.

Repeat this process until the needles point to the half-way point when the test is run. When you"re happy with the position of the needles, push them in place with the silver center portion sitting about a mm above the gauge face.

Reinstall the cluster in the car and keep an eye on the fuel and temperature gauges for a few days and make sure they are functioning correctly and pointing at the correct positions. If so, call this one done. If not, you"ll have to pull the cluster back out and go through the needle setting process again.
