8.4 lcd touch screen free sample

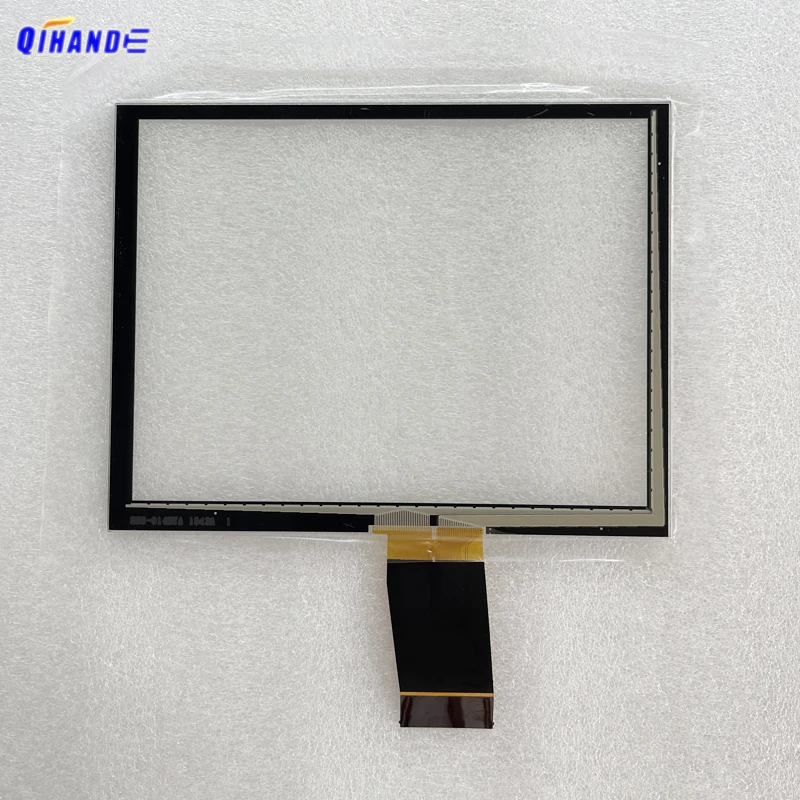

Supply your customers with the best wholesale 8.4 inch touch screen from Alibaba.com, one of the world"s largest B2B marketplaces. Our options include touch screen monitors for pc, portable touch screen monitors and more so they can start tapping and pinching their screens right away.

When choosing the best touch screen monitor for their needs, customers will look at a variety of factors. Firstly, there are large touch screens available but the maximum that is comfortable for use with hands is a 32 inch touchscreen monitor. Any bigger than that and customers will not be able to reach the four corners. These 8.4 inch touch screen are best used for visual artists to draw on and video editors.

You can also look at portable monitor touchscreens which run from the laptops battery and are small 8.4 inch touch screen. They can also be used for projects involving single board computers. Additionally, we also have a lot of options for smart tv touch screens which are great to incorporate into home entertainment systems and allow users to surf the net, send messages on more right from their living room.

Look through Alibaba.com listings for touch screen panels and find the perfect one for your customers. Start ordering today from our suppliers and ask them for more information if needed.

PLEASE NOTE THAT WE HAND TEST EACH SCREEN ONE BY ONE IN HOUSE RIGHT BEFORE IT SHIPS TO VERIFY QUALITY AND FUNCTIONALITY SO PLEASE BUY WITH CONFIDENCE.

PLEASE NOTE THAT WE HAND TEST EACH SCREEN ONE BY ONE IN HOUSE RIGHT BEFORE IT SHIPS TO VERIFY QUALITY AND FUNCTIONALITY SO PLEASE BUY WITH CONFIDENCE.

If using a High Brightness Display, you can choose the AD Board which have light sensor function that can adjust panel"s brightness automatically.RTP touch supports light gloves and stylus touch (need to adjust the firmware),

The VMOB-8.4S is an optically-bonded 8.4 outdoor lcd display, which is a daylight viewable monitor. We design it for use as an outdoor screen in indirect sunlight. It is recommended for indoors where high ambient light decreased the view-ability of standard LCD monitors. The VMOB-8.4S features a 4:3 aspect ratio. Additionally, this 8.4″ outdoor lcd display features an extremely wide operating temperature range. It has rear VESA mount holes, and our 3 year warranty.

Some monitors have a sheet of glass over the LCD panel. This protects the panel from accidental or intentional damage. However, the glass also produces unwanted glare and reflections. Internal reflections in the air gap between the glass and the LCD panel diminish image quality even further. In order to combat this, monitors are optically bonded.

Optical bonding is the process of laminating protective glass or a touch screen panel to the LCD panel. An optical-grade resin is inserted between the glass and LCD. This completely fills the air gap. It will not only eliminate the internal reflections, but increase the contrast ratio. This makes the screen much more viewable in bright light conditions. Optical bonding will also eliminate internal moisture and condensation. Moreover, it will make the monitor more rugged and durable. Lastly, an Anti-Reflective coating is applied to the outside of the glass. Consequently, this will drastically reduce glare and surface reflections.

We design these daylight viewable monitors to operate in nearly any environmental conditions.  Whether in frigid conditions or blazing heat, these daylight monitors will survive and thrive. To clarify, some of these monitors will operate in temperatures down to -22°F (-30°C).  They will also withstand brutal heat.  Moreover, operating  temperatures go up to +140°F (+60°C).  Additionally, the rugged steel enclosure will assure years of reliable imaging performance.  Specifically, typicalMTBFfor these monitors is 50,000 hours. These daylight readable lcd displays are also available with an optional waterproof enclosure.

Our 8.4″ outdoor lcd display are deployed in a wide range of demanding industries. For example,military,law enforcement,  aviation andentertainmentbenefit. You will also find them in the inspection, marine,  oil & gas, industrial andtransportation industries. TRU-Vumonitors are backed by our full 3-Year Warranty.  This ensures you of many years of reliable service.

We specifically design all TRU-Vu industrial LCD monitors  for use in demanding applications. Every TRU-Vu monitor utilizes industrial-grade components .  We provide high-end LCD panels not found in retail/consumer-grade monitors. This ensures superior image quality, improved performance and greater durability. Lastly, our 3-Year Warranty guarantees you of reliable worry-free operation. We also have the service to back it up.

We offer over 200 LCD monitors and touch screens on our site. Selecting the ideal equipment or daylight screen solution may be a bit overwhelming.To help narrow-down the choices, check out ourAdvanced Search Tool.See our full line-up of industrial-grade Sunlight Readable and Daylight Readable options and models. This highlights all of our high brightness monitors. Additionally, you’ll find the sunlight readable touch screens in all the sizes and configurations available.  See our full line of  24VDC displays, or shop by the size of  7 to 12″ industrial monitors. View all  monitors that feature a 4:3 aspect ratio.

Finally, our team members are ready to help! We can determine the exact solution that will meet your specific needs . Certainly, TRU-Vu will help provide crystal-clear images for your operating requirements . Call(847) 259-2344today to speak with one of our specialists. Above all, we will listen.  It’s one of the things we do best.  Our professional advisors will ensure the monitor or touch screen you receive will be and do everything you had hoped it would!

The SeaPAC-1420-8.4R combines Sealevel’s Relio R1420 embedded computer with a bright 8.4” TFT LCD and resistive touchscreen to create a powerful, ultra-reliable flat-panel computer system. Powered by a 1.6GHz Intel Atom® N450 CPU, the system includes 2GB of RAM and offers a variety of standard I/O including dual Gigabit Ethernet, six USB 2.0 ports, four serial ports, 8-bit GPIO, and audio output. The HMI system is perfect for a variety of operator interface, data acquisition, and process control applications.

SeaPAC systems can operate from optional CompactFlash. An optional 2.5″ SATA solid-state disk (SSD) can be integrated and preloaded with Microsoft Windows or Linux operating systems. Designed to operate over a wide 0°C to 50°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. The SeaPAC-1420-8.4R is powered from an included 100-240VAC to 12VDC external power supply.

Designed for panel mount installation, the front bezel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. The durable resistive touchscreen provides excellent accuracy and works with a stylus or gloved hand.

The modular design allows for maximum up-time with easy field maintenance and upgrades of the Relio computer and I/O without removing the LCD assembly from the panel.

NEW!Direct control by these HMIs is enabled by adding discrete or analog I/O expansion modules. The 5.7” model accepts up to two modules, while the 8.4”, 10.4” and 12.1” models accept up to four modules. Programming to sense inputs and drive outputs is accomplished withiSn the HMI software, providing a space saving all-in-one automation solution.

The faster processor means that these touchscreens have quick operation and response times, as well as exceptional performance. Not to mention, start-up is 3 seconds from power on, so you can start working without delay.

Support multiple protocols—connects up to four PLC protocols simultaneously. Using one HMI to communicate with different brands (or manufacturers) of PLCs in a system saves time and money. The touchscreen acts as a communication gateway between multiple devices allowing data to easily pass between devices.

This state-of-the art OI Touchscreen features powerful multimedia capabilities including an SD card slot to store movie files, a built-in two video interface (2 Video In) to connect two different video cameras , audio interface (Audio Out) to connect speakers and media player to play recorded files or movie files. Applicable to 8.4” to 15” OI Touchscreen only.

FTP communication allows users to configure the HMI screen as a FTP Client or Server for transfer of programs and logged data between a Client and Server, providing a convenient and effective way to remotely communicate with the HMI.

Dynamic PLC and HMI values can be incorporated into email to show status conditions. Files, such as Alarm Log, Data Log, Operation Log and Screenshot, can be attached in the email. Up to 255 email templates can be configured to multiple recipients.

WindOI NV4 version 1.4.0 or later has a new Web Page Editor, making it simple to create professional and dynamic web pages to monitor and control an IDEC touchscreen, with no HTML programming required.

Connect a single OI Touchscreen to multiple PLCs for centralized control. One touchscreen can monitor and control each system with PLCs in several different locations.

Create an OI Touchscreen network where multiple HMIs in different locations connect to the same PLC for convenient monitoring and control. One OI Touchscreen can serve as a master, while up to 15 additional touchscreens can be slaves in the O/I Link, with a total maximum distance of 200 meters.

Conveniently download a PLC program from a PC using your OI Touchscreen. Only one cable is needed to program both units. The Pass-through function applies to IDEC (MicroSmart and OpenNet controllers) and Mitsubishi (MELSEC-FX, and Q) PLCs.

Simply set the OI Touchscreen communication protocol to the one required by your serial devices. This function uses transmit and receive instructions to build your Barcode Reader own protocol.

WindO/I-NV4 software WindO/I-NV4 software is the simplest programming tool for all IDEC OI Touchscreens Series from 4.3” to 15” except the HG1F 4.6”. The WindOI-NV4 software has the same look and feel as the WindOI NV2 with all the great features, such as support of multiple protocols, FTP and Email functions. It is used to create projects that can display information from a PLC, process status, or can be used to input data with virtual switches or keypads to make changes to a process. The objects are extremely easy to configure with the help of step-by-step navigation. It lets you quickly create colorful graphical screens in no time using drop-down menus and intuitive drag and drop functionality for the objects. A workspace is available to help you organize and manage projects, objects and screens.

Built-in Serial and Networking Protocols, this will allow IDEC Touchscreens to locally or remotely communicate with IDEC or other major brand PLC manufacturers. IDEC Touchscreen’s communications capabilities expand well beyond IDEC brand PLCs. Over 100 major PLC protocols are supported: Allen Bradley, ABB, Mitsubishi, Omron, Automation Direct (Koyo), Keyence, GE, Modicon, Siemens, Sharp, and many more.Automation Direct (Koyo), Keyence, GE, Modicon, Siemens, Sharp, and many more.

These LCD models meet a growing demand for a more rugged and robust LCD than typically available through other industry suppliers. All elements, including a toughened optically-bonded touch screen have been packaged in an ultra-compact rugged design. READ MORE

AbraxSys’ new solution tor applications that require resistive touch sensors, but also demand two-touch capability. Recently-developed two-touch resisitive touchscreen controller works with our standard 5-wire resistive sensors and Hardened Armored Touch Resistive Sensors. READ MORE

AbraxSys announced this month the release of a brand new marine grade LCD product family. These newly released models meet a growing demand for higher performance displays than typically available through other industry suppliers. READ MORE

AbraxSys announced today huge advancements to its already very rugged 15” LCDs. These newly released improved 15" models meet a growing demand for higher performance displays than typically available through other industry suppliers. READ MORE

AbraxSys announces the migration to improved performance of its entire touch screen panel computer line. This series of very robust panel computers are designed to operate in harsh areas where dust, water intrusion, high operational and/or storage temperatures, and rough use are commonplace. READ MORE

AbraxSys announced recently the release of a new series of 18.5” rugged panel mountable touchscreen computers. These computer models meet a growing demand for higher performance panel PCs than typically available through other industry suppliers. READ MORE

AbraxSys recently the release of a new series of 13.3” rugged LCD monitors. These 13.3” industrial models meet a growing demand for higher performance displays than typically available through other display industry manufacturers. READ MORE

AbraxSys announced recently the release of a new series of 18.5” rugged LCD monitors. These 18.5” models meet a growing demand for higher performance displays than typically available through other industry suppliers. READ MORE

AbraxSys announced the release of a new series of LCD models with very wide operational temperatures for both indoor and outdoor usage. AbraxSys industrial, marine and military grade products have been engineered to withstand long operating hours with thermal characteristics considerations built into the overall design for proper heat dissipation. READ MORE

AbraxSys" newly released next generation Multi-Touch and Standard Touch projected capacitive touch screen monitors deliver industry leading performance and a rugged touch interface for your harsh-duty touch screen applications. READ MORE

AbraxSys released a new series of 19” rugged LCD monitors designed to meet growing demand for higher performance LCD monitors than typically offered by other industrial and commercial suppliers. READ MORE

Harsh applications that are designed for extreme conditions such as high or low temperatures, thermal shock and/or vibration, high humidity, or startups in low temperature. AbraxSys new 17" and 24" rugged harsh-duty LCDs are built to thrive in extremely demanding environments.READ MORE

How many volts can the SLCD43 reset line take? We want to hold the reset line at 5 volts high, and set it low to reset, but weren’t sure if the board could handle it.2022-04-08T11:01:41-07:00

One option is to define a macro the application can use when needed. A macro can turn the display off with the “v off” command. First, define a particular hotspot over the entire screen, then assign this hotspot to another macro. When the user touches any location on the touch screen, the assigned macro is run. The ‘wake-up’ macro could remove the hotspot and turn the display back on with the “v on” command. A screen touch can notify the application with either a standard “x” notification from the SLCD or a custom message from the ‘wake-up’ macro. See the example macros in the file PowerSaveExampleMacros.txt.

The firmware in our SLCD5/SLCD5+ display modules does not support SDHC cards (those over 2 GB capacity). This is because the low-level SD card protocol changed, so even if you partition the SDHC card and create a FAT16 file system, the underlying protocol is incompatible. You will need to use a standard SD card with a capacity of 2 GB or less.

You have several options for higher resolution, and these are all powered by our SLCD5 controller. These options are very similar in resolution (dots per inch (dpi) or pixel pitch).

Under “Touchscreen Display Modules” choose the product you are using. Under the “Downloads” tab, select Portrait Firmware to download the .UPG file. Use the BMPload program to change the firmware.

All SLCD controllers have a reset circuit triggered when the voltage supplied to the board drops below a particular threshold. Sometimes called brown-out protection, this trigger ensures the controller’s processor does not incorrectly execute and possibly change its internal programming when it loses power. This reset happens when the input voltage to the controller sags (dips down below 10% of nominal).

I did a screen capture of an image and displayed it on the SLCD6 or SLCD43 (in high color mode) and see color banding that was not in the original. What do I do to get rid of this?2022-04-08T10:49:07-07:00

The SLCD controller family has an “auto-switch” feature to change the active serial port. You need to connect to an alternate serial port, perform the auto switch, and disable the power-on macro.

If you use older versions than SCLD5 BMPload Version 2.1.4 or SLCDx BMPload Version 1.8.2, you may experience Vista OS-related problems (error messages, corrupt device downloads, etc.). Download a newer version at BMPload.

We don’t have a GUI builder tool for SLCD products. Still, we recommend using standard bit-mapped image development and manipulation tools to create images and then our Screen Layout Utilities for graphic placement. The standard tools include programs such as Adobe Illustrator and Photoshop or the free program called GIMP (GNU Image Manipulation Program).

Once you have your bitmap images defined, you can use our free Screen Layout Utilities (a plug-in for GIMP) to design your screen layout and generate a macro that will display on your LCD. We have tutorials for using GIMP to create bitmaps and using the Screen Layout Utilities within GIMP, and both tutorials are online in our video library.

Our SLCD display modules do not support any wireless interface directly. “Bridge” chips are available that operate as Serial RS-232 to (Bluetooth, WiFi, IR, etc.) adapters. If you are willing to design your own adapter board, our display modules may meet your needs, and it’s a matter of your intended application and the size/cost/performance constraints you are facing. Alternatively, our newer G2 modules do support WiFi interfaces.

I am looking for a complete 4.3-inch touch Panel PC that runs WinCE 5.0. I need RS-485 and wireless. Your LCD looks great but it needs a PC controller. Do you have any recommendations?2022-04-08T10:38:14-07:00

SLCD43 does not support WinCE 5.0 running on this display controller. Our SLCD43 does support RS-485 via an external RS-232 to RS-485 converter. This type of adapter automatically enables the RS-485 transmitter when the RS-232 transmit data is active. It supports either half-duplex or full-duplex RS-485. Our SLCD43 can be controlled by a PC or a microprocessor using a physical serial connection to support CMOS/TTL logic levels. We also can load macros so applications can reside on the device with minimal external control (via commands). Find your unit under the “Touchscreen Display Modules” and then look in the “Documents” tab to download our software and hardware manuals for further information.

When I opened the .ZIP file I found an .ELF file, but expected the firmware to be in a .BIN format. Do I need special loader for SLCD5 products?2019-10-24T14:40:28-07:00

The SLCD5  (7″, 8.4″, and 10.4″) firmware loads bitmaps and macros from serial data on Flash into RAM before it displays anything on the screen. This way, the screen does not come up blank. However, this loading can take time, especially if there are a lot of bitmaps. There are two ways to speed things up:

If the splash screen is set to bitmap 1 (e.g., command “*SPL 1”), this bitmap is loaded and displayed first before all the others are loaded. This setting can reduce the on-time delay.

A special inverter cable, P/N 23-0121-12, can be used with ERG 8MAD series inverters. This cable enables the inverter as soon as power is turned on, so the screen goes white right away. Then once the controller is initialized and there are bitmaps loaded, the screen will display normally. The downside of this solution is that the inverter always runs at full brightness.

Start BMPload. You will see a box called “Screen Snapshot” with a button called “GetScreen.” Make sure your Port Settings are correct, then click GetScreen. Browse to the desired file location, name the file, then click Save.

Use a terminal emulator, insert an SD card into the display module, then send the command “*getScreenAsBMPFile”. This step will copy the current screen to a file on the SD card.

Use BMPLoad.exe to load the .bin file from your PC and then connect to your SLCD. Click the “Store into SLCD” button. Now your bitmaps and macros are in the SLCD. You can use a terminal program to coax the SLCD into telling you what’s there.

Issue the command “lsmac” and the SLCD will list out all of its macros, and you will have captured them into a file, which you can then edit and use as your new macros.txt file.

Issue the command “lsbmp” and the SLCD will list out details for all your bitmaps, and you will have captured them into another file (bitmap_info.txt), which you’ll want for future reference (most importantly, for the dimensions of each bitmap).

What you’ll need to do from here on out is display a bitmap on the SLCD display and then use the “GetScreen” feature of BMPLoad to capture a bitmap of the display. The resulting bitmap file can then be edited to cut out the background and keep just the desired bitmap data (referring to the bitmap_info.txt file for the index of each bitmap and its corresponding Width and Height. For example:

Click on GetScreen and specify a file to save the screen to (Warning: It will be about 150K and will take a couple of minutes); in this case, I’d suggest naming the file “disp_bm_1.bmp”.

Now that you’ve captured your macros and bitmaps, archive them. Create a new folder and copy the archived files into it, and then you can make changes. You can use BMPload to put your new macros and bitmaps into your SLCD and move ahead when you’re done. Contact that consultant, though, and get the original macros and bitmaps, just in case.

The SLCD controller family uses UTF-8 encoding for non-ASCII characters. To incorporate UTF-8 characters into a macro file, you need to use an editor that supports UTF-8 encoding. Windows Notepad can do this. First, make sure you have a Unicode font installed (Arial Unicode MS comes with Microsoft Office) on your desktop to see the Unicode characters. Then start Notepad and set Format->Font to a Unicode font. Then select File->Save (or Save As…), and at the bottom of the pop-up box, you will see Encoding: ANSII. Click on the drop-down box and select UTF-8. Then save to set the encoding. Then, copy the following into the editor:

The font or encoding is wrong if you don’t see the Russian text. Then, save the file as “testMacro”.txt or similar, download this macro file and a Unicode font (get font files) to the SLCD, select the font and run the macro. You should see the Russian for “Press here” (or “Click”) on the screen. See Fonts for Embedded Touch Screen Development for a comprehensive explanation of working with fonts.

Does your controller board support a SCREEN WIPE option (a command or API that temporarily disables the touch sensitivity and allows the user to clean the screen)?2022-04-08T10:27:47-07:00

There are several ways to do this – all touch can be disabled, but it would be easier for the host to blank the screen, make the entire screen a hotspot (touch-sensitive region) and display a countdown number that gets reset when the unit is touched. When cleaning is finished, the screen will no longer be touched, and the host can resume regular operation.

I’m trying to establish communication with the board SLCD5 connector J7 pin 4 and pin 10 ( RX TX CMOS ). When I connect pins 5 and 6 (RS-232) the communication is normal. What should I do?2020-09-29T11:35:20-07:00

Connector J7 pin 10 may need a pull-up resistor to your host 3.3V supply and avoid a problem of the SLCD5’s 3.3V supply and your host 3.3V supply being different.

The “SET TEXT ALIGNMENT” command can control how the “TEXT DISPLAY” command places text on the screen. The following commands draw a rectangle, set the text alignment to centered horizontally and vertically, and draw a string centered in the box:

There are no provisions for storing application files on the SD card, except for saving screenshots and using the screenshot command for customer product documentation. The SD card is used for system updates since this is much faster than using the RS-232 port. Otherwise, our modules are intended to be human interface devices only.

See the “xset” command in the Software Manual (find the manual for your module from the Touchscreen Display Modules menu, in the Documents tab) for information on adding touch characteristics to a button or hotspot.

When drawing a full-screen bitmap (.BMP) and using hotspots within it for control, the hotspots invoke macros. The macros redraw the screen. The colors being wrong is a side effect of how typical hotspots work. A standard hotspot defined by the “x” command specifies a touch-active area. When the area is touched, the screen is reverse imaged (foreground becomes background and vice versa) to provide visual feedback of the touch. When the button invokes a macro that redraws the screen, the screen is drawn while the button is pushed and the foreground/background colors are reversed. Then when the button is released, the hotspot is reversed even though the underlying image has changed. The solution is to use the “xs” command that does not change the screen when the defined hotspot is touched. The new screen will provide visual feedback, or the macro can do its reverse imaging.

Button text is limited to 19 characters for button numbers less than 118 and 49 characters for button numbers 118 and up (SLCD+ is always limited to 19 characters).

The SLCD board has an 80KB frame buffer which povides for 8-bit per-pixel color at 320 x 240 resolution. A constant color palette is used to support a consistent color image with multiple on-screen bitmaps. The palette maps the 8-bit pixel index to the 12-bit color value sent to the panel.

Chetco Digital uses 5.7″ QVGA touch screen control panels to create the display below. See several other screenshots. Chetco Digital makes an analog to digital instrumentation hub, enabling a touch screen gauge interface, remote switching, engine data logging, and SeaSmart.NET NMEA 2000 compatible wireless networking for marine, automotive, and industrial applications.

Sciton uses an 8.4″ display module in JOULE, which offers an unprecedented array of laser and light wavelengths through its three distinct delivery modes: arm, fiber, and broadband light. As a result, JOULE allows practitioners the maximum versatility to provide the broadest range of aesthetic and surgical procedures available from a single platform.

Bitmaps are RLE compressed for storage. To see the effect of compression on a particular image, download the BMPload program and run it. Ignore the initial error (no SLCD attached) and add a bitmap. Then click on the bitmap name, and the information on the right-hand side will show the compressed size.

To display a changing number, use a monospace font and always write the same number of characters. So, if it is a 4-digit number, and the value is 1, send ”  1″ (three spaces and a 1) and if it is 123, send one space and the three numbers. The monospace font ensures that each number takes the same horizontal space, so they don’t shift left and right as they change. Finally, you may want to add a “wvr” command (find the manual for your display module in the Documents tab for your specific product) to ensure that the number changes while the display is not being refreshed on that part of the screen. Note that wvr does not work in portrait mode due to the way the LCD is built. See also our video tutorial called “Simple Output Formatting to Manage Fixed-Width Fields.”

Reduce host computer data transmitting frequency:Reduce the rate of the data sent from the host computer to the SLCDx display controller to reduce the flicker that occurs when writing data.

Avoid refreshing the entire screen: If you have a large bitmap, try to avoid re-displaying the bitmap since re-writing the bitmap can be relatively slow.

Bitmaps can be compressed in our SLCD based products to save Flash memory space. The disadvantage is that compressed bitmaps display more slowly. To balance performance and Flash display storage, it is best to use the “Enable Bitmap Compression” checkbox in the BMPload application. For bitmaps that are large (for example cover the entire screen), or are re-drawn often, compression can be disabled by using inserting the string “.unc” into the file name, e.g. “01_MyBitmap.unc.bmp”. This tells the BMPload program not to compress this file’s image. Background bitmaps for slider objects and meter objects and sliding graphics (“xio” command) need to be uncompressed as well.

The SLCDx controllers can run either 8-bit color or high-color firmware (the original SLCD is 8-bit only, for high-color, use the SLCD+). In 8-bit color firmware, when a 24-bit “exact” palletized image is displayed, the bitmap routine maps the 24-bit color to the closest available in the fixed SLCD palette. In high-color firmware, the BMPload program converts 24-bit color bitmaps to 16-bit color (RGB565 format) before storing them on the controller board.

I want to place a bitmap over screen content, like a transparent GIF. That is, I’d like a non-rectangular bitmap. How can I do this?2022-04-08T10:06:59-07:00

See the manual section “Working With Bitmaps” for more detail. You can download the manual by locating your module in the Touchscreen Display Module menu and then the Documents tab.

Is there a way to stop the splash screen from automatically executing, as the system appears to run the macro and then the splash screen?2022-04-08T09:56:52-07:00

Similarly, check the “Set Splash Screen” and set Bitmap Number to 0, which will disable the splash screen. The splash screen and power-on macro are typically not set together.

Currently, SLCD products only support BMP file formats. However, many image applications (Microsoft Paint, Adobe Photoshop, etc.) allow conversion from non-BMP to BMP file formats. Watch tutorial videos for more details.

Thanks to one of our customers, there is a way to edit your SLCD macro files and have syntax highlighting. The TextPad shareware editor can do the custom highlighting. Download this ReachMacros.syn file and follow these instructions.  You should now see macro highlighting in TextPad. Please note that Reach Technology is not responsible for supporting this file.

We have not done a full EMC/EMI report since modules are not finished products. Likewise, self CE certification has to be done on a finished product, and our modules are sub-assemblies. We have had many customers pass CE and FCC testing with varying enclosures. We do have an EMC “prescan” of the SLCD43 (currently shipping model, 40 pin 400 nit) with an FCC Class A limit line taken while the display was showing a “checkerboard” pattern, which is the worst case for display EMI. We use a spread spectrum oscillator for the display, which helps spread emissions. See the report.

To provide added ESD protection to the SLCD43 display modules, we use 3M 1170 conductive tape to connect the metal frame of the LCD panel to the digital ground (equals ESD or chassis ground) on the SLCD43 controller board. The controller board has grounded mounting holes that need a solid connection to chassis/Earth/ ESD ground. This approach provides approximately 4KV ESD protection. However, from a regulatory point of view, ESD testing has to be done with the display module in the customer’s enclosure with a system ground. If you are trying for high ESD immunity, the bezel “should” be metal or metalized plastic, although it may be OK with just plain plastic. Our suggestions are:

Use a flexible conductive gasket to ground the metal frame of the LCD panel to the front panel metal. Sold as EMI shields, they also work well for ESD. See example.

Maple Systems touch screens are highly feature-rich regarding speed and connectivity; hence, they’re more complicated to use (and more costly). If you don’t need 3D animations, the ability to play video or music, or Ethernet connectivity, you will find our SLCD solution more than adequate and much simpler to use. If you need some of those features, check out our G2 display modules. Since our SLCD interface to your system is a Command Line Interface implemented over a serial port, any UART microcontroller with enough speed and memory to handle your application will do just fine. If you want to discuss your application requirements and which of our products will best meet your needs, please contact our technical support team.

Use Photoshop or the open-source equivalent GIMP to design a user interface screen on a PC. It can be hard to match the embedded fonts on the SLCD family of controllers with Windows fonts. If you need an exact match, you must do two things:

If you need fonts not shown, please get in touch with the technical support team and specify the Windows font name, the size in points, and the character set (either ISO 8859-1 or a Unicode subset). See the Fonts for Embedded Touch Screen Development for a comprehensive explanation of working with fonts.

We support UTF-8 encoding. Find UTF-8 for a given Unicode. For Unicode, the subset size determines the size of the .SIF font. The complete Unicode set of a font like SimSun at 16 pixels high (not 16-point) is 946KB and has over 20,000 characters. See Fonts for Embedded Touch Screen Development for a comprehensive explanation of working with fonts.

Compressing bitmaps in our SLCD products allows you to save Flash memory space. The disadvantage is that compressed bitmaps display more slowly. To balance performance and Flash display storage, it is best to use the “Enable Bitmap Compression” checkbox in the BMPload application. For bitmaps that are large (i.e., cover the entire screen), or are re-drawn often, disable compression by inserting the string “.unc” into the file name (e.g. “01_MyBitmap.unc.bmp”). This string tells the BMPload program not to compress this image. Background bitmaps for slider objects and meter objects and sliding graphics (“xio” command) need to be uncompressed. Using the strategy above should keep your application visually responsive while conserving Flash memory for future additional bitmaps.

Detection time depends on user-adjustable touch parameters. Factory settings recognize touches in around 20ms. The corresponding serial response sends immediately if no commands are being executed. However, there is no guarantee since the screen could be performing some command when the unit is touched. The evaluation kit unit has a very responsive keyboard demo. However, the ultimate response time depends on how the unit is used.

SLCD controller boards use PicoBlade connectors. They are made by Molex and are miniature (1.25mm pitch) which makes them hard to make by hand. International Component Technology can make these cables for you to use to connect to your microcontroller board.
