you can use the basic structure of this project. We have already made various Arduino projects, Embedded projects, and Arduino tutorials on our website. You can visit them if you are new to the world of electronics and Arduino.

to display the time. You can make an Automatic pet Feeder, Automatic Light, time-based plant watering system, and much more using this. This reduces the manual stress on us.

the module is capable of counting seconds, minutes, hours, days, weeks, months, and years. Arduino uses the I2C communication protocol to send data to the LCD display,

which we are using here to display the time. The display updates every second to tell the most accurate time since the module is much accurate to tell the time.

The module is capable of running for more than 5 years continuously without affecting the count in time. this is possible because of the in-built cell.

the most professional PCB manufacturer for prototyping and low-volume production to work with in the world. With more than a decade in the field, PCBWAY committed to meeting the needs of customers from different industries in terms of quality, delivery, cost-effectiveness, and any other demanding requests. As one of the most experienced PCB manufacturers and SMT Assemblers in China, we pride ourselves to be your best business partners as well as good friends in every aspect of your PCB needs. They strive to make your R&D work easy and hassle-free.

NOTE- You need to install the three libraries LiquidCrystal_I2C.h, Wire.h, and DS1307.hwhich can be downloaded from HERE into your Arduino IDE before uploading the code.

Once the uploading of code is complete, LCD Display will be able to show the Time as per the code uploaded. I hope you found this guide helpful in making the project. If you have any doubts, you can put them in the comment section below.

In this project I have created a digital clock. we can watch the current date and time on the lcd display this project uses DS1307 based RTC module to to maintain the time and date value.

this module is build around DS1307 chip which is a real time clock that means we can get hour, second, minutes, day, date, month and year value fromitthis module require external power source so that it can power the module during power failure so if we remove the power supply of our clock it would not lost its time for this we uses a 3V li-ion battery this module support I2C (two wire interface) to talk to master device Like Arduino in this case once we store the current time value of second hour minute day date month and year into their corresponding registers and and then ds1307 maintains the time and updates the register values to know more about ds1307 you can have a look at he datasheet ds1307 stores the data in BCD(binary coded decimal) format

to display time and date I have used used 16*2 lcd because it is easy to control it by Arduino in comparison to 7 segment display we can interface with lcd by the help of LiquidCrystal library of arduino

these resistors are necessary for I2C interface because I2C devices have open collector configuration these pullup resistors pull the SDA and SCL line high

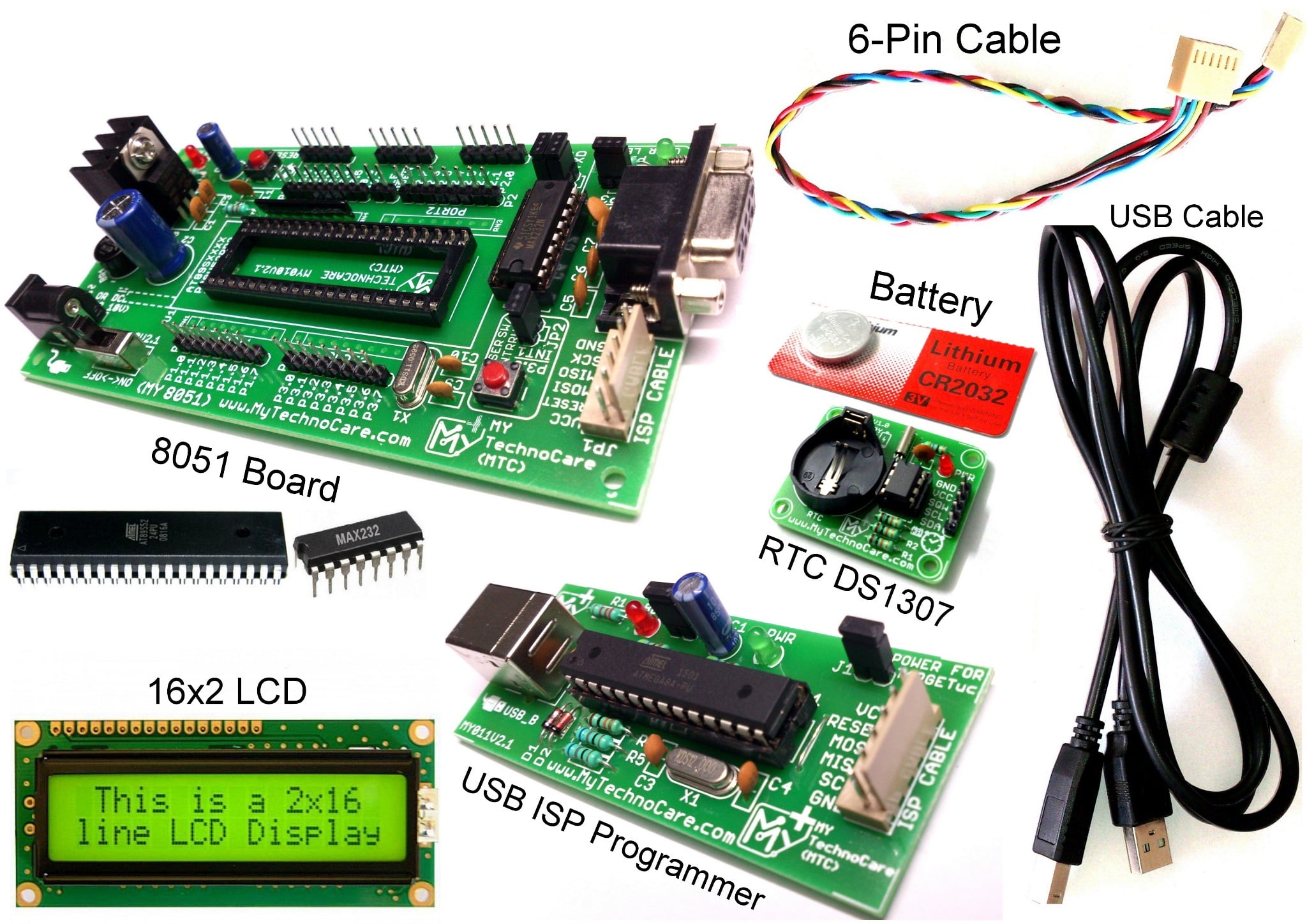

DS1307 with 8051 Development Board buy including USB Programmer, Li(Lithium) 3V Coin Battery,16×2 LCD Display,On-Board MAX232, and AT89S52 Microcontroller IC

DS1307 with 8051 Development Board Buy from India to learn How to interface RTC DS1307 with 8051 Project Kit & display real-time cloak, alarm on 16×2 LCD. Real-Time Clock RTC DS1307 interfacing with 8051 Microcontroller can be executed using I2C or IIC Serial Protocol. it also supports All Digital Microcontroller such as Arduino, 8051, PIC, AVR, PIC, ARM, MSP, COP8, STM.8051 Development Board with LCD Project Kit Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip.USB Programmer can be used for both 8051-AVR IC (2in1).16×2 LCD Display has Yellow Back-light.

If you are learning microcontroller programming and want to make a project based on 8051 microcontrollers then this DS1307 with 8051 development board buy online with LCD and

First of all 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Backlight. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more, it has JHD162A Compatible Pin-out Diagram, so the Command Interface code is freely available. Finally, You will need 7 general I/O pins (If used in 4-bit Mode) to interface to this LCD screen. it also includes an LED backlight. Learn How To Interface 8051 Development Board with LCD 16×2 Display using 8051/AVR USB Programmer for Burn/Flash Hex File into Atmel AT89S52 Microcontroller. The hobbyist can learn the interfacing of DS1307 with 8051 Development Board Buy along with 16×2 LCD.

Features of 16×2 Display LCD:Commonly Used in Student Project, College, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices

This is the DS1307 Real Time Clock (RTC) Module, this small breakout board that uses the most popular DS1307 to keep track of the current year, month, day as well as current time. The module comes fully assembled and includes a small Lithium coin cell battery that will run the RTC for a minimum of 9 years without an external 5V Power supply. The DS1307 RTC is accessed via I2C Protocol. Finally DS1307 with 8051 Development Board Buy online is the easiest way for Electronics engineers to collect necessary components in a time-efficient way.

USB AVR and AT89Sxx ISP (In System programming) Programmer is a low-cost USB-based programmer. Because it is ISP, so there is no need to take out the target microcontroller from the development Board. This programmer will work with a wide variety of Atmel AVR and also AT89Sxxxx microcontroller. This is quite compact, but the design is really elegant. Even more, The USB interface is achieved by using an atmega8 processor, and the rest is done in firmware.USB Programmer is used to loading Hex file, for example, suppose interfacing code Hex file of DS1307 with 8051 Development Board Buy with 16×2 Lcd and ISP Programmer.

Download Link:(All in 1 RAR file) For How to install driver | Circuit Diagram | Connection | Program 8051 AVR Microcontroller | Driver For    All Windows OS 64-bit & 32-bit

In the Arduino Real Time Clock Tutorial, we will learn about Real Time Clock (RTC) and how Arduino and Real Time Clock IC DS1307 are interfaced as a time keeping device. If you recall, we have already implemented an Arduino Alarm Clock using RTC DS1307 in an earlier project.

But that project didn’t cover the basics of Real Time Clock or RTC, the specifications of DS1307 RTC IC and how to interface a Real Time Clock like DS1307 or DS3231 with Arduino.

An RTC or Real Time Clock is a Timekeeping device, usually in the form of an Integrated Circuit (IC). An RTC is battery powered and keeps track of the current time even when there is no power.

Real Time Clock ICs are present in computers, servers, many embedded systems and in fact they are used wherever it is required to keep an accurate time.

Even though Arduino and almost all microcontrollers have built-in timers and timekeepers (millis () in case of Arduino), they are power dependent i.e. they run as long as there is power supply. Once the power is turned off (manually or due to power outage), all the timers are reset to 0.

While timekeeping using internal timers is acceptable for simple projects, we need an alternative in projects like data loggers, clocks, alarms, etc. where the timer runs independently irrespective of the external power or if the Microcontroller (or Arduino) is reprogrammed.

Here comes the use of Real Time Clock ICs. Almost all RTC ICs are low-current devices that run for years on a single lithium cell (usually CR2032). One of the popular and most commonly used RTC ICs is the DS1307 Real Time Clock.

The DS1307 RTC is a low cost, low power real time clock IC that can maintain full clock and calendar i.e. hours, minutes, seconds as well as year, month and day. Some of the well-known features of the popular DS1307 RTC are mentioned below.

DS1307 RTC is available as modules, which consists of all the necessary components like Battery, connectors, pull-up resistors and crystal. One such module is used in this project and is shown below.

The following image shows the pin diagram of the DS1307 RTC IC. In order to reduce the power consumption, the number of pins on the IC has to be reduced. Hence, DS1307 RTC used I2C Communication.

X1 and X2: These are pins for connecting the crystal of frequency 32.768 KHz to enable the internal oscillator. If an external oscillator is connected to X1, then X2 can be left floating.

Now that we have seen a little bit about the Real Time Clock IC DS1307, we will proceed with the interface of Arduino and Real Time Clock. As mentioned earlier, the DS1307 RTC Module uses I2C Communication.

In the Arduino Real Time Clock I2C interface, the Arduino Microcontroller always acts as Master and the DS1307 acts as Slave. The Master in I2C Communication i.e. Arduino in this case, is responsible for clock signal, bus access, start and stop signals.

The following image shows the circuit diagram of the Arduino Real Time Clock DS1307 Interface. This circuit explains just the basic connections with respect to a DS1307 Module (a board that contains the DS1307 IC along with the crystal, Battery and pullup resistors).

In order to understand better about the DS1307 RTC Module, the following image will help you as it contains the circuit of a typical DS1307 Real Time Clock Module.

The design of the Arduino RTC Interface is quite straight forward. Connect the SDA and SCL pins of the DS1307 RTC to the SDA and SCL pins of Arduino i.e. pins A4 and A5.

A simple project where Arduino UNO is interfaced with DS1307 Real Time Clock is implemented here. In this project, we will be programming the DS1307 RTC with current date and time and see whether it actually keeps that data even if the power supply to Arduino is removed.

A special library called “RTClib” is used in the programming and it can be downloaded from this link. Make sure that it is downloaded first and added to the Arduino library database.

In order to upload the data and time into the DS1307 RTC IC, we have used a feature available in the RTClib library, where the Arduino will upload the date and time from the computer while uploading the code.

Upload the below code to set time and date.Uploading this code will load the time and date to RTC from your computer.After uploading the code open serial monitor to see the time and date.

Don"t use latest version of arduino IDE for programming.If you use latest arduino IDE, you cannot set time and date in RTC.You also need to add some libraries if you use latest IDE.I found problem with the latest arduino IDE.I strongly recommend to use arduino 1.6.1 IDE version.If you use this version you no need to add libraries because all the libraries were inbuilt in this version.I have also attached the libraries for latest arduino IDE users.

The RTC module is based on the clock chip DS1307, which supports the I2C protocol. It utilizes a Lithium cell battery (CR1225). The clock/calendar provides seconds, minutes, hours, day, date, month, and year. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap years. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. And it is valid up to 2100. In order to gain a robust performance, you must put a 3-Volt CR1225 lithium cell in the battery-holder. If you use the primary power only, the module may not work normally, because the crystal may not oscillate.

The platforms mentioned above as supported is/are an indication of the module"s software or theoritical compatibility. We only provide software library or code examples for Arduino platform in most cases. It is not possible to provide software library / demo code for all possible MCU platforms. Hence, users have to write their own software library.

In order to gain a robust performance, you must put a 3-Volt CR1225 lithium cell in the battery-holder. If you use the primary power only, the module may not work normally, because the crystal may not oscillate.
