2.4 tft lcd shield touch panel tf reader for arduino quotation

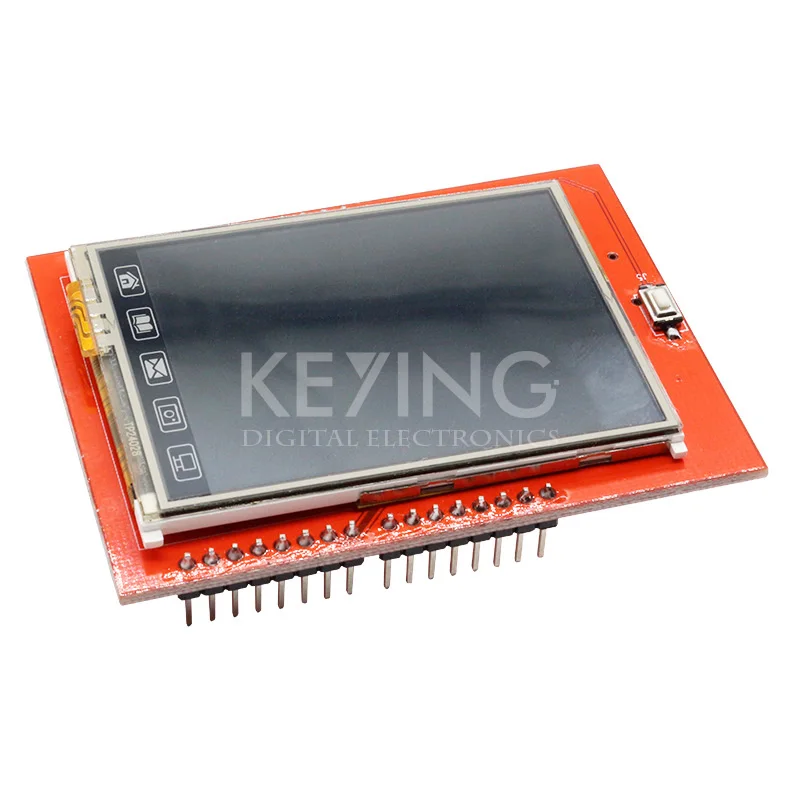

This module is designed to plug directly into Arduino UNO R3 (or its clone) boards. It is compatible with CH340 and Atmega16u2 version boards, as well as Mega 2560. This LCD shield may also work with other boards, but the compatibility can"t be guaranteed.

In this tutorial, you will learn how to use and set up 2.4″ Touch LCD Shield for Arduino. First, you’ll see some general information about this shield. And after learning how to set the shield up, you’ll see 3 practical projects.

The role of screens in electronic projects is very important. Screens can be of very simple types such as 7 Segment or character LCDs or more advanced models like OLEDs and TFT LCDs.

One of the most important features of this LCD is including a touch panel. If you are about to use the LCD, you need to know the coordinates of the point you touch. To do so, you should upload the following code on your Arduino board and open the serial monitor. Then touch your desired location and write the coordinates displayed on the serial monitor. You can use this coordination in any other project.

To display pictures on this LCD you should save the picture in 24bit BMP colored format and size of 240*320. Then move them to SD card and put the SD card in the LCD shield. we use the following function to display pictures. This function has 3 arguments; the first one stands for the pictures name, and the second and third arguments are for length and width coordinates of the top left corner of the picture.

If you want to display pictures without using an SD card, you can convert it to code and then display it. You can display even several photos sequentially without delay to create an animation. (Check this) But be aware that in this case, Arduino UNO may not be suitable (because of low processor speed). We recommend using the Arduino Mega or Arduino DUE.

Features: 2.4 diagonal LCD TFT display Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control Colorful, 18-bit 262,000 different shades 4-wire resistive touchscreen 8 bit digital interface, plus 4 control lines Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2,3 and analog 4 and 5. Pin 12 is available if not using the micro SD 5V compatible, use with 3.3V or 5V logic For Arduino UNO R3 Specifications: Size: 72 x 52 x 12 mm Weight: 33 g Package weight: 43 g Package included: 1 x 2.4 TFT LCD Shield SD Socket Touch Panel Module.

You may return most new, unopened items within 30 days of delivery for a full refund. We"ll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

Arduino library for 8-bit TFT LCDs such as ILI9325, ILI9328, etc - GitHub - adafruit/TFTLCD-Library: Arduino library for 8-bit TFT LCDs such as ILI9325, ILI9328, etc

Adafruit GFX graphics core Arduino library, this is the "core" class that all our other graphics libraries derive from - GitHub - adafruit/Adafruit-GFX-Library: Adafruit GFX graphics core A...
