Orient Display sunlight readable TFT displays can be categorized into high brightness TFT displays, high contrast IPS displays, transflective TFT displays, Blanview TFT displays etc.

The brightness of our standard high brightness TFT displays can be from 700 to 1000 nits. With proper adding brightness enhancement film (BEF) and double brightness enhancement film (DBEF) and adjustment of the LED chips, Orient Display high brightness TFT products can achieve 1,500 to 2,000 nits or even higher luminance. Orient Display have special thermal management design to reduce the heat release and largely extend LED life time and reduce energy consumption.

Our high contrast and wide viewing angle IPS displays can achieve contrast ratio higher than 1000:1 which can make readability under strong sunlight with lower backlight luminance. High brightness IPS displays have been widely accepted by our customers with its superb display quality and it has become one of the best sellers in all our display category.Transflective display is an old monochrome display technology but it has been utilized in our color TFT line for sunlight readable application. Orient Display has 2.4” and 3.5” to choose from.

Blanview TFT displays are the new technology developed by Ortustech in Japan. It can provide around 40% of energy consumption for TFT panels which can use smaller rechargeable or disposable batteries and generate less heat. The price is also lower than traditional transflective TFT displays. Orient Display is partnering with the technology inventor to provide 4.3” and 5.0”.

Orient Display can also provide full customized or part customized solutions for our customers to enhance the viewing experience. Orient Display can provide all the different kinds of surface treatments, such as AR (Anti-reflection); AG (Anti-glare), AF (Anti-finger print or Anti-smudge); AS (Anti-smashing); AM (Anti-microbial) etc. Orient Display can also provide both dry bonding (OCA, Optical Clear Adhesive), or wet bonding (OCR, Optical Clear Resin and OCG, Optical Clear Glue) to get rid of light reflective in air bonding products to make the products much more readable under sunlight and be more robust.

Touch panels have been a much better human machine interface which become widely popular. Orient Display has been investing heavy for capacitive touch screen sensor manufacturing capacity. Now, Orient Display factory is No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.

Based on the above three types of touch panel technology, Orient Display can also add different kinds of features like different material glove touch, water environment touch, salt water environment touch, hover touch, 3D (force) touch, haptic touch etc. Orient Display can also provide from very low cost fixed area button touch, single (one) finger touch, double finger (one finger+ one gesture) touch, 5 finger touch, 10 points touch or even 16 points touch.

Considering the different shapes of the touch surface requirements, Orient Display can produce different shapes of 2D touch panel (rectangle, round, octagon etc.), or 2.5D touch screen (round edge and flat surface) or 3D (totally curved surface) touch panel.

Considering different strength requirements, Orient Display can provide low cost chemical tampered soda-lime glass, Asahi (AGC) Dragontrail glass and Corning high end Gorilla glass. With different thickness requirement, Orient Display can provide the thinnest 0.5mm OGS touch panel, to thickness more than 10mm tempered glass to prevent vandalizing, or different kinds of plastic touch panel to provide glass piece free (fear) or flexible substrates need.

Of course, Orient Display can also offer traditional RTP (Resistive Touch Panel) of 4-wire, 5-wire, 8-wire through our partners, which Orient Display can do integration to resistive touch screen displays.

Engineers are always looking for lower cost, faster, more convenient interfaces to transmit signals and to accept data and commands. The numbers of available interfaces available in the market can be dazzling. Orient Display follows market trends to produce various kind of interfaces for our customers to choose.

Genetic Interfaces: Those are the interfaces which display or touch controller manufacturers provide, including parallel, MCU, SPI(,Serial Peripheral Interface), I2C, RGB (Red Green Blue), MIPI (Mobile Industry Processor Interface), LVDS (Low-Voltage Differential Signaling), eDP ( Embedded DisplayPort) etc. Orient Display has technologies to make the above interface exchangeable.

High Level Interfaces: Orient Display has technologies to make more advanced interfaces which are more convenient to non-display engineers, such as RS232, RS485, USB, VGA, HDMI etc. more information can be found in our serious products. TFT modules, Arduino TFT display, Raspberry Pi TFT display, Control Board.

TFT Displays provide rich colors, detailed images, and bright graphics with their full-color RGB mode. TFT displays are perfect for applications including industrial instruments, coffee machines, automation, GPS navigator, energy control, and medical devices.

This project involves yet another Arduino-compatible display which can be used as an output to display any information in the form of graphics, text or animations. Since this is a 1.3" 240x240 IPS (In-Plane Switching) TFT display module, it does offer a high-resolution colour display with fine graphics, and that is one of the things which I really enjoy about this display. It is also very easy to program, as it runs on the STT789 display, which is helpful to know, as the Adafruit ST7789 library supports this display, and is what we will be using today. The code used below is a fairly complex code at first, which showcases this display"s capabilities and what it can do, in terms of functionality. For the wiring, a 6-pin wiring configuration is used with the SPI interface to the Arduino, which will be shown below. Finally, for this project, here are the components which you will need:1 1.3" 240x240 IPS TFT Display Module

This project is fairly​ straightforward to set up so make sure you start by unplugging any power source feeding into your Arduino to prevent any shorts while wiring. Firstly, take a jumper wire and connect the GND pin on the display to any of your Arduino"s GND pins and follow that up by connecting the VCC pin from the display to the 3v3 pin of your Arduino to supply a +3.3 volt power supply to the module. +5v will have a possibility to damage the display. Now, for the i2c connections, hook up the SCL (Serial Clock) pin of the display to A13 (analog pin 13) on the Arduino and the SDA (Serial Data) pin to A11 (analog pin 11). For the RES (Reset) pin, connect it up to A8 (analog pin 8) as well as the DC (Data/Command) pin to A9 (analog pin 9). The hardware part is finally done!

This code may seem slightly intimidating at first, due to its length and much newer functions, but once it is broken down, it isn"t so hard anymore. In the first three lines, we declare libraries for running this display, the graphics used, and for the interface used, which is the SPI interface. In the next three lines, the RST (Reset) and DC (Data/Command) pins are defined, which are connected to A8 (analog pin 8) and A9 (analog pin 9). In the next line, we initialize the Adafruit ST7789 library for use with this display and we follow that by defining the value of pi as a float variable in that next line. We will be using this float variable later on for graphics and calculations needed. Thevoid setupsection is now here where we first start by begining serial communication with a baud rate of 9600 bauds and printing a test message which is "Hello! ST7789 TFT Test!". In regards to the display, we address that our display module is of 240x240 resolution and we set the rotation of our display in the next line. If your display is flipped, removetft.setRotation(2)​. From there, we print the text "Initialized" as our display is now correctly set up. After that, we count up the seconds from the startup with themillis()function and store it in an unsigned 16-bit integer, namedtime, for use later. We then fill up the TFT screen with a black colour. Since we already started the stopwatch which counts up, we can always reset the stopwatch back to zero by using subtracting thetimefunction with themillis()​.To end off this section, we set a delay for 500 milliseconds before moving on. This section onwards will only be for the animations, graphics and images displayed on the screen, and we start off by filling the screen with a black background and writing some text with a white colour before a 1-second delay. Proceeding that, we execute a print test which basically is already programmed to print out a set of text in different font colours and sizes. We end this test by setting a delay for 4 seconds. From this point, the rest of the code is responsible for printing out the different graphics, which can be composed of shapes, pixels and text. All the different graphics and its individual code are mentioned at the end of the code so I recommend really going through this program to learn all the commands, which can help you build your own demo code, even with your own personal images being displayed. This project is now done!

//Author Danny van den brande.#include "DHT.h"#include // Core graphics library#include // Hardware-specific library#include // BEGIN CLOCK#include //clock module DS1302#include //Need for clock module#define DS1302_SCLK_PIN 21// Arduino pin for the Serial Clock//PIN 21 (SCLK_PIN) = CLK on CLOCK and SCL on arduino#define DS1302_IO_PIN 20// Arduino pin for the Data I/O//PIN 20 (IO_PIN) = DAT on CLOCK and SDA on arduino#define DS1302_CE_PIN 19// Arduino pin for the Chip Enable//PIN 19 (CE_PIN) = RST on CLOCK and TX1 on arduino for this you can define any free Digital pin.#define bcd2bin(h,l) (((h)*10) + (l))#define bin2bcd_h(x) ((x)/10)#define bin2bcd_l(x) ((x)%10)#define DS1302_SECONDS 0x80#define DS1302_MINUTES 0x82#define DS1302_HOURS 0x84#define DS1302_DATE 0x86#define DS1302_MONTH 0x88#define DS1302_DAY 0x8A#define DS1302_YEAR 0x8C#define DS1302_ENABLE 0x8E#define DS1302_TRICKLE 0x90#define DS1302_CLOCK_BURST 0xBE#define DS1302_CLOCK_BURST_WRITE 0xBE#define DS1302_CLOCK_BURST_READ 0xBF#define DS1302_RAMSTART 0xC0#define DS1302_RAMEND 0xFC#define DS1302_RAM_BURST 0xFE#define DS1302_RAM_BURST_WRITE 0xFE#define DS1302_RAM_BURST_READ 0xFF#define DS1302_D0 0#define DS1302_D1 1#define DS1302_D2 2#define DS1302_D3 3#define DS1302_D4 4#define DS1302_D5 5#define DS1302_D6 6#define DS1302_D7 7#define DS1302_READBIT DS1302_D0// READBIT=1: read instruction// Bit for clock (0) or ram (1) area,// called R/C-bit (bit in address)#define DS1302_RC DS1302_D6// Seconds Register#define DS1302_CH DS1302_D7// 1 = Clock Halt, 0 = start// Hour Register#define DS1302_AM_PM DS1302_D5// 0 = AM, 1 = PM#define DS1302_12_24 DS1302_D7// 0 = 24 hour, 1 = 12 hour// Enable Register#define DS1302_WP DS1302_D7// 1 = Write Protect, 0 = enabled#define DS1302_ROUT0 DS1302_D0#define DS1302_ROUT1 DS1302_D1#define DS1302_DS0 DS1302_D2#define DS1302_DS1 DS1302_D2#define DS1302_TCS0 DS1302_D4#define DS1302_TCS1 DS1302_D5#define DS1302_TCS2 DS1302_D6#define DS1302_TCS3 DS1302_D7// Bit for reading (bit in address)#define DS1302_READBIT DS1302_D0// READBIT=1: read instruction#define DHTPIN 16// what pin we"re connected to#define DHTTYPE DHT11// DHT 11#define DS1302_READBIT DS1302_D0// READBIT=1: read instruction#define LCD_CS A3// Chip Select goes to Analog 3#define LCD_CD A2// Command/Data goes to Analog 2#define LCD_WR A1// LCD Write goes to Analog 1#define LCD_RD A0// LCD Read goes to Analog 0#define LCD_RESET A4// Can alternately just connect to Arduino"s reset pin// Assign human-readable names to some common 16-bit color values:#define BLACK 0x0000#define BLUE 0x001F#define RED 0xF800#define GREEN 0x07E0#define CYAN 0x07FF#define MAGENTA 0xF81F#define YELLOW 0xFFE0#define WHITE 0xFFFF// OBJECTS LCD ET DHTAdafruit_TFTLCD tft(LCD_CS, LCD_CD, LCD_WR, LCD_RD, LCD_RESET);DHT dht(DHTPIN, DHTTYPE);float hprev, tprev, hicprev;int moisture = 0;int moisture1 = 0;int moisture2 = 0;int moisture3 = 0;int moisture4 = 0;int moisture5 = 0;int sensorValue1;int sensorValue2;int sensorValue3;int sensorValue4;int sensorValue5;int sensorValue;int relay = 35;int relay1 = 36;int relay2 = 37;int relay3 = 38;int relay4 = 39;int relay5 = 40;// Structure for the first 8 registers.// These 8 bytes can be read at once with// the "clock burst" command.// Note that this structure contains an anonymous union.// It might cause a problem on other compilers.typedef struct ds1302_struct{uint8_t Seconds:4; // low decimal digit 0-9uint8_t Seconds10:3; // high decimal digit 0-5uint8_t CH:1; // CH = Clock Haltuint8_t Minutes:4;uint8_t Minutes10:3;uint8_t reserved1:1;union{struct{uint8_t Hour:4;uint8_t Hour10:2;uint8_t reserved2:1;uint8_t hour_12_24:1; // 0 for 24 hour format} h24;struct{uint8_t Hour:4;uint8_t Hour01:1;uint8_t AM_PM:1; // 0 for AM, 1 for PMuint8_t reserved2:1;uint8_t hour_12_24:1; // 1 for 12 hour format} h12;};uint8_t Date:4; // Day of month, 1 = first dayuint8_t Date10:2;uint8_t reserved3:2;uint8_t Month:4; // Month, 1 = Januaryuint8_t Month10:1;uint8_t reserved4:3;uint8_t Day:3; // Day of week, 1 = first day (any day)uint8_t reserved5:5;uint8_t Year:4; // Year, 0 = year 2000uint8_t Year10:4;uint8_t reserved6:7;uint8_t WP:1; // WP = Write Protect};void setup(){ds1302_struct rtc;Serial.begin(9600);// Serial.println(F("BLUECORE TECH"));pinMode (relay, OUTPUT);pinMode (relay1, OUTPUT);pinMode (relay2, OUTPUT);pinMode (relay3, OUTPUT);pinMode (relay4, OUTPUT);pinMode (relay5, OUTPUT);// digitalWrite (relay, HIGH);#ifdef USE_ADAFRUIT_SHIELD_PINOUT// Serial.println(F("Using Adafruit 2.8\" TFT Arduino Shield Pinout"));#else// Serial.println(F("Using Adafruit 2.8\" TFT Breakout Board Pinout"));#endif// Serial.print("TFT size is "); Serial.print(tft.width()); Serial.print("x"); Serial.println(tft.height());//tft.reset();uint16_t identifier = tft.readID();if(identifier == 0x9325) {// Serial.println(F("Found ILI9325 LCD driver"));} else if(identifier == 0x9327) {// Serial.println(F("Found ILI9327 LCD driver"));} else if(identifier == 0x9328) {// Serial.println(F("Found ILI9328 LCD driver"));} else if(identifier == 0x7575) {// Serial.println(F("Found HX8347G LCD driver"));} else if(identifier == 0x9341) {// Serial.println(F("Found ILI9341 LCD driver"));} else if(identifier == 0x8357) {// Serial.println(F("Found HX8357D LCD driver"));} else if(identifier == 0x0154) {// Serial.println(F("Found S6D0154 LCD driver"));}tft.begin(identifier);iniText();dht.begin();//CLOCK MODULE START// Start by clearing the Write Protect bit// Otherwise the clock data cannot be written// The whole register is written,// but the WP-bit is the only bit in that register.DS1302_write (DS1302_ENABLE, 0);// Disable Trickle Charger.DS1302_write (DS1302_TRICKLE, 0x00);// Remove the next define,// after the right date and time are set.// #define SET_DATE_TIME_JUST_ONCE //= 300)digitalWrite (relay, HIGH); //TURN ON/OFF OFF RELAY 0 for watering pumpelsedigitalWrite (relay, LOW);//SENSOR 1 set your sensor here!}// OPTIONAL SENSORS PLACES FOR VALUES ON SCREEN BEGINif (sensorValue) {tft.setTextSize(2);tft.setCursor(98, 127);tft.setTextColor(GREEN);tft.fillRect(93,117,67,34,BLACK);tft.println (moisture1/1.01);if (sensorValue1 >= 300)digitalWrite (relay1, HIGH); //TURN ON/OFF OFF RELAY 1 for watering pumpelsedigitalWrite (relay1, LOW);//SENSOR 2 set your sensor here!}if (sensorValue) {tft.setTextSize(2);tft.setCursor(98, 164);tft.setTextColor(GREEN);tft.fillRect(93,154,67,34,BLACK);tft.println (moisture2/1.01);if (sensorValue2 >= 300)digitalWrite (relay2, HIGH); //TURN ON/OFF OFF RELAY 2 for watering pumpelsedigitalWrite (relay2, LOW);//SENSOR 3 set your sensor here!} // BEGIN SECTION 2 - right sectionif (sensorValue) {tft.setCursor(10,60);tft.setTextSize(2);//tft.println ("BODEM VOCHT%");tft.setCursor(256, 90);tft.setTextColor(GREEN);tft.fillRect(250,80,67,34,BLACK);tft.println (moisture3/1.01);if (sensorValue3 >= 300)digitalWrite (relay3, HIGH); //TURN ON/OFF OFF RELAY 3 for watering pumpelsedigitalWrite (relay3, LOW);//SENSOR 4 set your sensor here!}if (sensorValue) {tft.setCursor(10,60);tft.setTextSize(2);//tft.println ("BODEM VOCHT%");tft.setCursor(256, 127);tft.setTextColor(GREEN);tft.fillRect(250,117,67,34,BLACK);tft.println (moisture4/1.01);if (sensorValue4 >= 300)digitalWrite (relay4, HIGH); //TURN ON/OFF OFF RELAY 4 for watering pumpelsedigitalWrite (relay4, LOW);//SENSOR 5 set your sensor here!}if (sensorValue) {tft.setCursor(10,60);tft.setTextSize(2);//tft.println ("BODEM VOCHT%");tft.setCursor(256, 164);tft.setTextColor(GREEN);tft.fillRect(250,154,67,34,BLACK);tft.println (moisture5/1.01);if (sensorValue5 >= 300)digitalWrite (relay5, HIGH); //TURN ON/OFF OFF RELAY 5 for watering pumpelsedigitalWrite (relay5, LOW);//SENSOR 6 set your sensor here!}// OPTIONAL SENSORS PLACES ON SCREEN ENDif (hprev != h) {tft.setCursor(10, 25);tft.setTextSize(3);tft.setTextColor(CYAN);tft.fillRect(3,25,103,25,BLACK);tft.print(h);hprev = h;}if (tprev != t) {tft.setCursor(118, 25);tft.setTextSize(3);tft.setTextColor(RED);tft.fillRect(111,25,101,25,BLACK);tft.print(t);tprev = t;}if (hicprev != hic) {tft.setCursor(225, 25);tft.setTextSize(3);tft.setTextColor(YELLOW);tft.fillRect(217,25,100,25,BLACK);tft.print(hic);hicprev = hic;}ds1302_struct rtc;char buffer[80]; // the code uses 70 characters.// Read all clock data at once (burst mode).DS1302_clock_burst_read( (uint8_t *) &rtc);//+++++++++++ BEGIN TEXT CLOCK TEXT+++++++++++tft.setTextSize(2);tft.setTextColor(GREEN);tft.setCursor(13, 220);tft.fillRect(3,215,115,25,BLACK);sprintf( buffer, "%02d:%02d:%02d ", \bcd2bin( rtc.h24.Hour10, rtc.h24.Hour), \bcd2bin( rtc.Minutes10, rtc.Minutes), \bcd2bin( rtc.Seconds10, rtc.Seconds));tft.print(buffer);tft.setTextSize(1);tft.setTextColor(BLACK);tft.setCursor(127, 218);tft.fillRect(122,215,195,25,GREEN);sprintf(buffer, "%d,%d," \"Dag %d van week,%d", \bcd2bin( rtc.Date10, rtc.Date), \bcd2bin( rtc.Month10, rtc.Month), \rtc.Day, \2000 + bcd2bin( rtc.Year10, rtc.Year));tft.println( buffer);tft.setTextSize(1);tft.setTextColor(BLACK);tft.setCursor(127, 230);// tft.fillRect(122,215,194,25,GREEN);sprintf(buffer, "%d,%d," \"Day %d of week,%d", \bcd2bin( rtc.Month10, rtc.Month), \bcd2bin( rtc.Date10, rtc.Date), \rtc.Day, \2000 + bcd2bin( rtc.Year10, rtc.Year));tft.println( buffer);//+++++++++++ EINDE CLOCK +++++++++++if(timeStatus() != timeSet) {tft.setTextSize(1.5);tft.setTextColor(BLACK);tft.setCursor(28, 198);///ERROR TEXT need to be coded correctlytft.fillRect(3,191,157,19,RED);//tft.print(F("CLOCK ERROR: SYNC!"));// return micros() - start;delay(1000);}}unsigned long iniText() {// unsigned long start = micros();tft.fillScreen(BLACK);tft.setRotation(3);tft.setTextSize(1);tft.setTextColor(WHITE);tft.setCursor(15,5);tft.println("Humidity %");tft.setCursor(119,10);tft.println("Temperature oC");tft.setCursor(235,5);tft.println("Heat Index"); //Gevoels temperatuurtft.setCursor(122,2);tft.println ("BlueCore TECH"); //Put your NAME here COMPANY NAMEtft.setCursor(190,198);tft.println ("ArduinoSensors.NL"); //Put your NAME here COMPANY NAME website//TEXT SENSORStft.setCursor(10,90);tft.setTextColor(WHITE);tft.println ("SENSOR:1");tft.setCursor(10,127);tft.println ("SENSOR:2");tft.setCursor(10,164);tft.println ("SENSOR:3");tft.setCursor(170,90);tft.println ("SENSOR:4");tft.setCursor(170,127);tft.println ("SENSOR:5");tft.setCursor(170,164);tft.println ("SENSOR:6");// end TEXT SENSORS//Interface DESIGN BEGINtft.fillRect(0,0,345,1,WHITE); //Top line header whitetft.fillRect(0,19,345,2,WHITE); //Top line header 2 whitetft.fillRect(0,20,345,5,BLACK); //Top line header blacktft.fillRect(106,0,5,50,WHITE); //center vertical line header lefttft.fillRect(212,0,5,50,WHITE); //center vertical line header righttft.fillRect(0,50,345,5,WHITE); //bottom line header.tft.fillRect(160,78,5,135,WHITE);//center vertical linetft.fillRect(317,0,5,240,WHITE);//center vertical line righttft.fillRect(0,0,3,240,WHITE);//center vertical line lefttft.fillRect(0,210,345,5,WHITE);//BOTTOM LINE Footertft.fillRect(118,215,4,25,WHITE);//BOTTOM LINE Footer2 vertical smalltft.fillRect(0,210,345,5,WHITE);//BOTTOM LINE Footertft.fillRect(0,78,345,2,WHITE);//top line center screentft.fillRect(0,115,345,2,WHITE);//line 2 center screentft.fillRect(0,152,345,2,WHITE);//line 3 center screentft.fillRect(0,189,345,2,WHITE);//line 4 center screen//Interface DESIGN END// return micros() - start;}void DS1302_clock_burst_read( uint8_t *p)///BEGIN CLOCK MODULE PART2{int i;_DS1302_start();// Instead of the address,// the CLOCK_BURST_READ command is issued// the I/O-line is released for the data_DS1302_togglewrite( DS1302_CLOCK_BURST_READ, true);for( i=0; i<8; i++){*p++ = _DS1302_toggleread();}_DS1302_stop();}// --------------------------------------------------------// DS1302_clock_burst_write//// This function writes 8 bytes clock data in burst mode// to the DS1302.//// This function may be called as the first function,// also the pinMode is set.//void DS1302_clock_burst_write( uint8_t *p){int i;_DS1302_start();// Instead of the address,// the CLOCK_BURST_WRITE command is issued.// the I/O-line is not released_DS1302_togglewrite( DS1302_CLOCK_BURST_WRITE, false);for( i=0; i<8; i++){// the I/O-line is not released_DS1302_togglewrite( *p++, false);}_DS1302_stop();}// --------------------------------------------------------// DS1302_read//// This function reads a byte from the DS1302// (clock or ram).//// The address could be like "0x80" or "0x81",// the lowest bit is set anyway.//// This function may be called as the first function,// also the pinMode is set.//uint8_t DS1302_read(int address){uint8_t data;// set lowest bit (read bit) in addressbitSet( address, DS1302_READBIT);_DS1302_start();// the I/O-line is released for the data_DS1302_togglewrite( address, true);data = _DS1302_toggleread();_DS1302_stop();return (data);}// --------------------------------------------------------// DS1302_write//// This function writes a byte to the DS1302 (clock or ram).//// The address could be like "0x80" or "0x81",// the lowest bit is cleared anyway.//// This function may be called as the first function,// also the pinMode is set.//void DS1302_write( int address, uint8_t data){// clear lowest bit (read bit) in addressbitClear( address, DS1302_READBIT);_DS1302_start();// don"t release the I/O-line_DS1302_togglewrite( address, false);// don"t release the I/O-line_DS1302_togglewrite( data, false);_DS1302_stop();}// --------------------------------------------------------// _DS1302_start//// A helper function to setup the start condition.//// An "init" function is not used.// But now the pinMode is set every time.// That"s not a big deal, and it"s valid.// At startup, the pins of the Arduino are high impedance.// Since the DS1302 has pull-down resistors,// the signals are low (inactive) until the DS1302 is used.void _DS1302_start( void){digitalWrite( DS1302_CE_PIN, LOW); // default, not enabledpinMode( DS1302_CE_PIN, OUTPUT);digitalWrite( DS1302_SCLK_PIN, LOW); // default, clock lowpinMode( DS1302_SCLK_PIN, OUTPUT);pinMode( DS1302_IO_PIN, OUTPUT);digitalWrite( DS1302_CE_PIN, HIGH); // start the sessiondelayMicroseconds( 4); // tCC = 4us}// --------------------------------------------------------// _DS1302_stop//// A helper function to finish the communication.//void _DS1302_stop(void){// Set CE lowdigitalWrite( DS1302_CE_PIN, LOW);delayMicroseconds( 4); // tCWH = 4us}// --------------------------------------------------------// _DS1302_toggleread//// A helper function for reading a byte with bit toggle//// This function assumes that the SCLK is still high.//uint8_t _DS1302_toggleread( void){uint8_t i, data;data = 0;for( i = 0; i <= 7; i++){// Issue a clock pulse for the next databit.// If the "togglewrite" function was used before// this function, the SCLK is already high.digitalWrite( DS1302_SCLK_PIN, HIGH);delayMicroseconds( 1);// Clock down, data is ready after some time.digitalWrite( DS1302_SCLK_PIN, LOW);delayMicroseconds( 1); // tCL=1000ns, tCDD=800ns// read bit, and set it in place in "data" variablebitWrite( data, i, digitalRead( DS1302_IO_PIN));}return( data);}// --------------------------------------------------------// _DS1302_togglewrite//// A helper function for writing a byte with bit toggle//// The "release" parameter is for a read after this write.// It will release the I/O-line and will keep the SCLK high.//void _DS1302_togglewrite( uint8_t data, uint8_t release){int i;for( i = 0; i <= 7; i++){// set a bit of the data on the I/O-linedigitalWrite( DS1302_IO_PIN, bitRead(data, i));delayMicroseconds( 1); // tDC = 200ns// clock up, data is read by DS1302digitalWrite( DS1302_SCLK_PIN, HIGH);delayMicroseconds( 1); // tCH = 1000ns, tCDH = 800nsif( release && i == 7){// If this write is followed by a read,// the I/O-line should be released after// the last bit, before the clock line is made low.// This is according the datasheet.// I have seen other programs that don"t release// the I/O-line at this moment,// and that could cause a shortcut spike// on the I/O-line.pinMode( DS1302_IO_PIN, INPUT);// For Arduino 1.0.3, removing the pull-up is no longer needed.// Setting the pin as "INPUT" will already remove the pull-up.// digitalWrite (DS1302_IO, LOW); // remove any pull-up}else{digitalWrite( DS1302_SCLK_PIN, LOW);delayMicroseconds( 1); // tCL=1000ns, tCDD=800ns}}///////////////////////////// END CLOCK MODULE part 2}

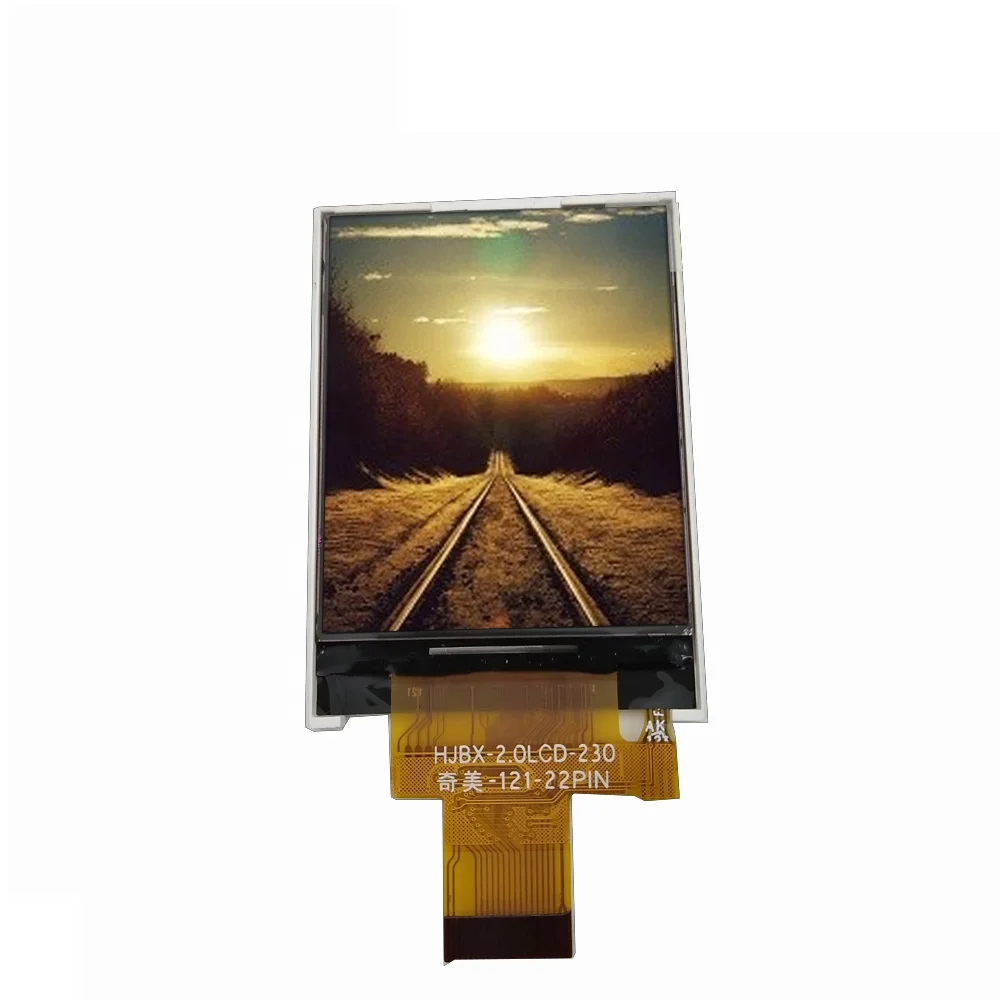

This 2.0”LCD display adopts T7789V driver chip and has 320*240 color pixels (RGB565). It uses IPS TFT display and can display 18-bit color(16-bit is basically used). The module performs excellently in displaying color bitmap. Besides, there is an onboard MicroSD card slot for displaying more pictures. There are two connection ways for this module: pin headers and GDI. Only one fpc cable is needed when working with main-cotnrollers with GDI, which greatly reduces the complexity of wiring.

The module has the advantages of high resolution, wide viewing angle and simple wiring, and can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The product is a Breakout module. It adopts SPI communication and has onboard GDI interface, which reduces the complexity of wiring and can easily display the contents read from SD card.

This is an example of commonly-used icons. 1. We use GIMP2 to convert these icons into codes for better display. 2. We provide some icons for you, Click here to find more"Click here to find more").

This 2.0”LCD display adopts T7789V driver chip and has 320*240 color pixels (RGB565). It uses IPS TFT display and can display 18-bit color(16-bit is basically used). The module performs excellently in displaying color bitmap. Besides, there is an onboard MicroSD card slot for displaying more pictures. There are two connection ways for this module: pin headers and GDI. Only one fpc cable is needed when working with main-cotnrollers with GDI, which greatly reduces the complexity of wiring.

The module has the advantages of high resolution, wide viewing angle and simple wiring, and can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The product is a Breakout module. It adopts SPI communication and has onboard GDI interface, which reduces the complexity of wiring and can easily display the contents read from SD card.

This is an example of commonly-used icons. 1. We use GIMP2 to convert these icons into codes for better display. 2. We provide some icons for you, Click here to find more"Click here to find more").

This ST7735S 1.8" TFT Display features a resolution of 128×160 and SPI (4-wire) communication. Integrated with an SD card slot, it allows to easily read full-color bitmaps from the SD card. The module provides users with two wiring methods: pin header wiring and GDI (General Display interface). You can directly use an FPC cable to connect the display to any controller with GDI interface like FireBeetle-M0. Plug and play, easy to wire. Besides, the display supports low refresh rate and offers good display effect and strong versatility. It can be used in applications like sensor monitoring and alarm, Arduino temperature monitor, fan controller, etc.

This product is a breakout module that features SPI communication mode and onboard GDI interface, which could reduce the complexity of wiring. It can easily display the read content from the SD card.

The BasicTest.ino code shows us the basic display functions of the screen: text display, number display, drawing lines, drawing rectangles and other demos.

A number of display devices like LEDs, 7-segments, character and graphic displays can be attached to microcontrollers to create an interface between the user and an electronic system for displaying data or controlling the system. Sometimes you may need to add colorful images or graphics to your project, that’s where the TFT color displays come in handy.

TFT LCD is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology to improve image qualities such as addressability and contrast. In this tutorial we are going to show how to interface a 1.44″ TFT color display based on the ST7735 driver. It has 128×128 color pixels and can display full 16-bit color.

This is the type of display am using but they come with various pin configurations. However all the displays will have the major pins stated below and should be connected to the Arduino board as follows:

This TFT display uses 3.3V but comes with an on board voltage regulator therefore the VCC can be connected to the Arduino 5V. However for best practice it’s better to use the 3.3V.

Most code Libraries for this TFT ST7735 display with Arduino are programmed with the SDA and SCL pins connected to Arduino pins 11 and 13 respectively. Make sure you don’t change that order otherwise the display may not work.

There are a number of libraries that have been developed to run the TFT ST7735 color display using Arduino but I found the Adafruit-ST7735-Librarythe best to use. Make sure you have this library installed in your IDE.

tft.fillRoundRect(x,y,w,h,r,t); function draws a filled Rectangle with r radius round corners in x and y location and w width and h height and t color.

There are many other functions and commands which you can use to program the TFT color display but the above are the commonest. You will meet many more with practice.

Before we can write our personal code we need to first test the display using the already made code examples from the installed library. This is done by going to File>Examples>Adafruit ST7735 and ST7789 Library. Then you can select any of the examples and upload it to the setup to see if the display works fine.In the diagram below I have shown how to access the graphics test code.

The purpose of this guide is to get your 0.96″ color LCD display successfully operating with your Arduino, so you can move forward and experiment and explore further types of operation with the display. This includes installing the Arduino library, making a succesful board connection and running a demonstration sketch.

Although you can use the display with an Arduino Uno or other boad with an ATmega328-series microcontroller – this isn’t recommended for especially large projects. The library eats up a fair amount of flash memory – around 60% in most cases.

(As the display uses the ST7735S controller IC, you may be tempted to use the default TFT library included with the Arduino IDE – however it isn’t that reliable. Instead, please follow the instructions below).

Please check that the library has been installed – to do this, select the Sketch > Include Libraryoption in the IDE and scroll down the long menu until you see “ER-TFTM0.96-1” as shown below:

The display uses the SPI data bus for communication, and is a 3.3V board. You can use it with an Arduino or other 5V board as the logic is tolerant of higher voltages.

The library used is based on the uTFT library by Henning Karlsen. You can find all the drawing and other commands in the user manual – so download the pdf and enjoy creating interesting displays.

TFT displays are full color LCDs providing bright, vivid colors with the ability to show quick animations, complex graphics, and custom fonts with different touchscreen options. Available in industry standard sizes and resolutions. These displays come as standard, premium MVA, sunlight readable, or IPS display types with a variety of interface options including HDMI, SPI and LVDS. Our line of TFT modules include a custom PCB that support HDMI interface, audio support or HMI solutions with on-board FTDI Embedded Video Engine (EVE2).

In Part 1, we were able to obtain and display values from KX022-1020 accelerometer on the TFT LCD panel. In Part 2, we’ll show how to control the TFT monitor while reading the contents of the program!

As before, we’ll be usingSainSmart ST7735RTFT monitor. It’s a compact LCD display that can be used both with Arduino and Raspberry Pi. The monitor has a built-in microSD card slot, so it’s possible to store and load images, in addition to reading and writing data. In this tutorial, we will only try to display values on the TFT monitor.

Once you made the change, compile the unzipped “TFT 18” directory with zip again, add it as a library in Arduino (or Arduino Create) Add Library, or place it under the “libraries” directory in Arduino’s installed directory and load the library.

for (uint16_t x=0; x < tft.width; x+=6) { tft.drawRect(tft.width/2 -x/2, tft.height/2 -x/2 , x, x, color); } } void testfillrects(uint16_t color1, uint16_t color2) { tft.fillScreen(BLACK); for (uint16_t x=tft.width-1; x > 6; x-=6) {

for(uint16_tx=0;x6;x-=6){

Next, let’s display the accelerometer values on the TFT monitor! In the case of the Sensor Evaluation Kit, basically, it’s not necessary to change the wiring on the TFT monitor side. All that is needed is to insert KX022-1020 accelerometer to the Sensor Shield.

for (uint16_t x=0; x < tft.width; x+=6) { tft.drawRect(tft.width/2 -x/2, tft.height/2 -x/2 , x, x, color); } } void testfillrects(uint16_t color1, uint16_t color2) { tft.fillScreen(BLACK); for (uint16_t x=tft.width-1; x > 6; x-=6) {

for(uint16_tx=0;x6;x-=6){

When it goes to the edge of the 120px display, the graph is cleared with drawrect. The numbers on the upper part are updated with drawrect for each frame in the same way.

This concludes the tutorial on how to display and graph accelerometer values using TFT LCD monitor! There are quite a few side projects we can consider developing. For example, we can combine this TFT monitor and Arduino Pro Mini to make a wristwatch featuring small games, etc. It is also possible to make a data logger using, for instance, different sensors from the Sensor Evaluation Kit.
