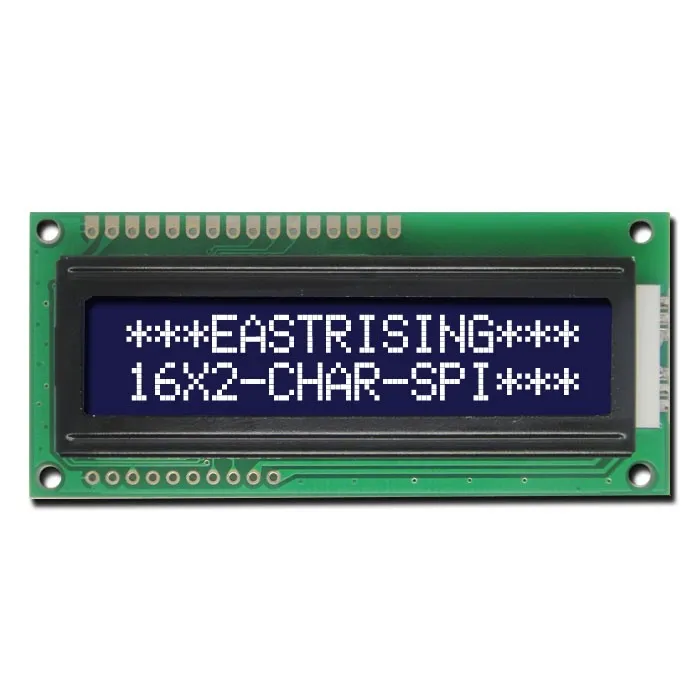

ERM1602SBS-6 is 16 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

Newhaven 16x2 character Liquid Crystal Display shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-0216K1Z-NSW-BBW-L display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.

Newhaven 16x2 character Liquid Crystal Display shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-0216K3Z-NSW-BBW-V3 display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.

The CFA533-***-KC series is a 16x2 I2C LCD with keypad. The I2C interface allows you to use just two lines (SDA & SCL) to have bi-directional communication with the I2C LCD. Other devices can also share those two I2C control lines with the LCD. Only 4 wires are needed to connect this I2C LCD: power, ground, SDA (I2C Serial DAta) and SCL (I2C Serial CLock).

The CFA533 can run on 3.3v to 5.0v directly, with no changes needed, so you do not need to do any level translation between your embedded processor and the I2C LCD. Simply power the CFA533 from the same supply as your processor and the I2C signal levels will match up.

Using only one address on your I2C bus, you can add all the elements that you need for your front panel. The CFA533 I2C LCD can also read up to 32 DS18B20 digital temperature sensors, giving you an easy way to integrate temperature sensing over the I2C bus. No additional firmware or pins are needed on the host system.

This CFA533-TFH variant features crisp dark letters against a white, backlit background. The keypad has a matching white LED backlight. Since the LCD is a backlit positive FSTN, the CFA533-TFH I2C LCD is readable in direct sunlight, as well as complete darkness.

Product Highlight with LDetek. Our smallest 16x2with a backlight white keypad! Only 23mm tall! RGB backlight to set the text colour on the fly! 3 dual color LEDs,Serial, I2C or TTL.

Typically this unit has 16 pinouts that requires a breadboard to interface with any microcontroller and a 10k potentiometer to adjust the contrast value to reduce the backlight and view the text.

This Blue LCD display module has a high-speed I2C serial bus. With the limited pin resources, your project may be out of resources using normal LCD shields. The LCD display is a 2x16 character STN white display with a blue LED backlight. With the I2C interface LCD display, you only need 2 lines (I²C) to display the information. If you already have I²C devices in your project, this LCD module actually costs no more resources. Fantastic for an Arduino-based project.
