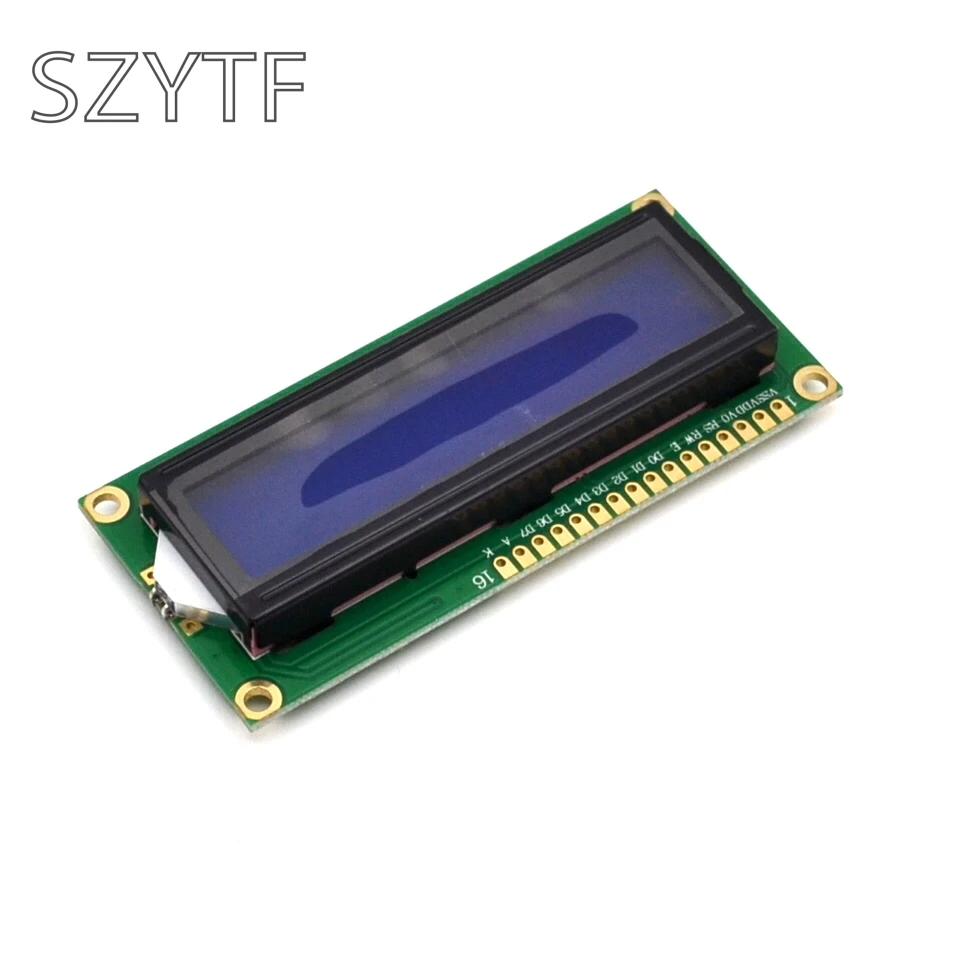

16x2 lcd module white text blue backlight made in china

Newhaven 16x2 character Liquid Crystal Display shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-0216K1Z-NSW-BBW-L display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.

Newhaven 16x2 character Liquid Crystal Display shows characters with bright white pixels on a black background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-0216K1Z-NSW-FBW-L display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.

ERMC1602SBS-2 is 16 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

This 2×16 character LCD Module with BLUE Backlight uses an I2C interface to communicate with the host microcontroller. This budget-conscious LCD is used on projects requiring the display of text, data, or ASCII characters of all types. Connect to Vcc, Gnd, SDA (serial data line), and SCL (serial clock line). This is a 5VDC device and will be found on the I2C bus at address 0x27 / 0x3F.

I just bought a 16x2 and I2C interface to it. Everything seems to be working fine (not sure if 4 or 8 bit?) but the only problem is refresh rate. When scrolling or fast changing text it is not visible because the "shadow" of the previous char. The only way to make it better is to set contrast with potentiometer to very low that text is actually black not white (it is negative display BLUE with White text).

Do you know what is the problem? I am seeing all of those youtube videos where they are even doing some nice animations with very good FPS but I am not able to display single text faster than ~800ms.

both are giving the same results. When I try scroll example it is even worse as I cannot read anything. There is this kind of shadow where the pixels were lit. As I wrote the only way to get rid of it is to set minimum contrast where text is black, but that should be the point of negative diplay right that text is white (on blue in this case)

The I2C interface is 4-bit. The eight bits of the interface chip are used for 4 data bits, Enable, Read/~write (not actually used), Register select and backlight. There is essentially no advantage in speed or otherwise, in attempting to use an 8-bit mode.

Since you know what you are going to write and what you have written, then it is simply not useful to either clear the display or write all blanks to it, simply (set the cursor,) write the new text and any further blanks required to cover the previous. This also applies to the common problem of leading zero suppression and fixed positioning of numbers.

Finally, the behaviour you observe with the brief "after-shadow" is in fact perfectly normal behaviour for this sort of LCDs (unlike video displays with few-millisecond response times). It is also temperature-dependent.

Nope I tried both and the result is the same. Maybe it is just crappy LCD or I2C interface, in the end it is from china. Although it is fine for temp readings with 1s refresh. I read something bad resistor in some of the diplays causing a lag where solution is to use busy flag.

Finally, the behaviour you observe with the brief "after-shadow" is in fact perfectly normal behaviour for this sort of LCDs (unlike video displays with few-millisecond response times). It is also temperature-dependent.

If you want to dim the backlight with a clean PWM signal, you would need to remove the connection of the backlight LED to the control chip, and replace it with a PWM signal from one of the Arduinos" pins.

You might need to use a transistor if the backlight needs a higher current and a resistor if the current needs to be limited (meaning if there is no resistor on the board of your display).

A basic misunderstanding is that proportional dimming of the backlight is necessary or appropriate. There are three modes in which you might want the backlight to operate; day at full brightness, night at reduced brightness, and off.

In any application, only two of these modes will generally be necessary. The backlight may be dimmed by substituting the jumper on the backpack with a resistor. A default minimum brightness may be set by a resistor connecting either pins 1 and 16, or 2 and 15, depending on the design of the backpack. These two controls may be used together if you never want the original maximum brightness.

And for the record, the drive voltage has nothing at all to do with the speed at which the HD44780 (equivalent) LCD driver is updated with new display data. It actually operates just fine - and equally fast - at 3.3 V as there are variants of the 1602 modules which operate at this voltage.

Certainly at a lower voltage, the LCD panel itself might be slow but in fact, if you lower the drive voltage (which is actually the contrast voltage) below about 4.2 V, you simply have no display at all. The variants of the 1602 modules which operate at 3.3 V incorporate a charge pump to bring the contrast voltage back up toward 4.8 V.

It might be the case that LCD panels in general which are designed to operate at lower voltages, are slower, but the working contrast voltage for any given panel, particularly those multiplexed such as the 1602 and similar displays, is within a strictly limited range.

WO1602I3 and WO1602I5 are two models of 16 characters by 2 lines of COG LCD P/N WO1602I with PCB board on module. WO1602I3 and WO1602I5 are built in with ST7032i IC; it supports I2C interface. The advantage of WO1602I3/WO1602I5 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options.

The supply voltage for logic (VDD) of WO1602I3 is 3.3V; as to the WO1602I5 is 5V, 1/16 duty circle, 1/5 bias. The module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO1602I3 and WO1602I5 are available in FSTN positive Transflective LCD and with White LED backlight; please contact us if you need different types of LCDs or LED combinations.

WO12864K and WO12864K1 models are monochrome COG graphic LCD modules made of 128x64 dot matrix format. WO12864K/WO12864K1 COG Module is built in with ST7565 IC, it supports 8-bit 6800, 8-bit 8080 parallel and 4-wire serial SPI interface, power supply voltage 3V, VOP 9.5V, 1/65 duty. The WO12864K item is adopted ST7565V IC which is built-in with negative voltage, as to the WO12864K1 item is adopted ST7565P IC which is built- in with positive voltage.

This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864K/K1 are available in STN Negative, Blue Transmissive LCD and with White LED backlight. Please contact us if you need different types of LCDs or LED combinations.

WO128128A2 model is a round COG LCD display WO128128A model with a PCB board on module. This Round STN COG module is built in with ST75161 IC; it supports 8080 parallel (default), 6800 parallel, 3-wire and 4-wire serial SPI, I2C interface, power supply voltage 3V, 1/136 driving duty, 1/12 BIAS. The advantage of WO128128A2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO128128A2 also have VDD 5V power supply voltage for optional.

The supply voltage for logic of WO128128A2 is 2.7V to 3.3V, typical value 3V. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO128128A2 is available in FSTN positive LCD type with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

WO240128B2 model is a COG LCD display WO240128B model with a PCB board on module, which is made of 240x128 dots. WO240128B2 is built in with ST7586S controller IC; it supports 6800 8-bit (default), 8080 8-bit parallel and serial SPI interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO240128B2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO240128B2 also have VDD 5V power supply voltage for optional.

This WO240128B2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO240128B2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

WO256128A2 model is a COG LCD display WO256128A model featured with a PCB board on module which is made of 256x128 dots, diagonal size 2.9 inch. WO256128A2 is built in with ST75256 controller IC, it supports 8080 8-bit parallel (default), 6800 8-bit and 4-wire serial SPI and I2C interface, power supply voltage 3.3V, 1/128 duty, 1/12 Bias. The advantage of WO256128A2 is having circuit layout on PCB board and with screw holes which make modules can be fixed on customers’ applications easily. Also, there are three kinds of connector pitch sizes of 2.54mm (default), 1.0mm and 0.5mm for options. WO256128A2 also have VDD 5V power supply voltage for optional.

WO256128A2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The WO256128A2 is available for FSTN positive Transflective with white LED backlight. Please contact us if you need different types of LCDs or LED combinations.

This is LCD 1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 White on Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast white text upon a blue background/backlight.

This is great blue backlight LCD display. It is fantastic for Arduino based project. This LCD1602 LCD Display is very easy to interface with Arduino or Other Microcontrollers.

This display overcomes the drawback of LCD 1602 Parallel LCD Display in which you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily in this product, an I2C adapter is directly soldered right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding.

If you already have the I2C adapter soldered onto the board like in this product, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

The values shown on the display can be either a simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing.

If you want to add some visual output to your Arduino projects, you’ll need a display. If you need only a little to display, the Standard LCD 16x2 Display is a quite good solution. RoboticsBD

This is Standard LCD 16x2 that provides a simple and cost-effective solution for adding a 16×2 Black on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display that has a very clear and high contrast black/white text upon a yellow/Blue background/backlight.

This is the great yellow/blue backlight LCD Display. It is fantastic for Arduino-based projects. This Standard LCD 16x2 with Yellow/Blue Backlight is very easy to interface with Arduino or Other Microcontrollers.

The values shown on the display can be either simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing. RoboticsBD

One thing to consider is you’ll waste about 8 Pins on your Arduino for the display to get working. Luckily there exists an I2C adapter that you can solder right onto the pins of the display. So all you need to connect are the I2C pins, which shows a good library and little of coding. We have the same LCD module with a pre-assembled I2C adapter, click on the name below to check it

Note: The I2C configuration simulates a PCF8574T chip that controls the LCD module. Normally, you wouldn"t have to worry about this as the LiquidCrystal_I2C library takes care of the communication with the chip.

#includeLiquidCrystallcd(12,11,10,9,8,7);voidsetup(){lcd.begin(16,2);// you can now interact with the LCD, e.g.:lcd.print("Hello World!");}voidloop(){// ...}

You can define custom characters using the createChar method of the LiquidCrsytal (or LiquidCrystal_I2C) library. The custom characters are the first 8 characters in the font, with indexes from 0 to 7. You can print them to the LCD

#includeLiquidCrystallcd(12,11,10,9,8,7);uint8_theart[8]={0b00000,0b01010,0b11111,0b11111,0b11111,0b01110,0b00100,0b00000,};voidsetup(){lcd.createChar(3,heart);lcd.begin(16,2);lcd.print(" I \x03 Arduino");}voidloop(){}
