This LCD Display Shield gives you a nicely mounted 1602 LCD Display snaps right on top of your Arduino UNO. With onboard buttons for easy navigation including up, down, left, right, select and reset, using your Arduino away from a computer was never easier. Use this shield to display values read in by your Arduino, display options for user inputs, choose between different programs you can run on your Arduino, etc. With a Power LED onboard and a nice blue backlit display, you"ll be able to use your Arduino"s LCD Display Shield day or night!

This shield is compatible with the "LiquidCrystal" library that is bundled with the Arduino software. Just edit the "LiquidCrystal" library"s default mapping from the LCD pins to Arduino pins to the ones for this specific shield by copying what"s shown below. Here is an example of the proper way to instantiate the LiquidCrystal class for this shield:

A wide variety of lcd display keypad options are available to you, such as metal, rubber and silicone.You can also choose from black, yellow lcd display keypad,As well as from plastic keypad, metal keyboard, and membrane switch. and whether lcd display keypad is home appliance, telecommunication equipment, or remote controller.

Holding the serial module with the I2C interface at the left hand end, there are 16 pins at the lower edge. The first of these is ground, and the second of these is +5v. Another option is to use the lower two pins on the I2C interface for power, but I found it more convenient to use the pins as described above.

I2C interface. On the serial module, the top pin is SCL (clock) and it goes to the Arduino A5. The second pin down is SDA (data) and it goes to the Arduino A4.

LCD print interface. There are 6 connections between the serial module and the LCD Keypad shield, all of them between pins with no labels. I will identify them on the LCD module by counting from Right to Left, with the first pin as 1. There are 2 blocks of 8, so they go from 1 to 16. I identify them on the I2C serial module by counting from Left to Right, there are also 16 of these. In addition I give each wire a label, which is the equivalent pin on the Arduino that is normally associated with that function, in the case of a direct connection without the serial module.

Keypad interface: This uses a single wire from the LCD module pin on the lower side labelled "A0", to pin A0 on the Arduino. At least that was pretty easy!

An LCD screen and keypad Arduino shield is a board that plugs directly on top of an Arduino development board and provides a 16 character by 2 line display and a 5 button keypad for input. This type of shield is commonly used to provide a user interface for Arduino projects.

To use an LCD screen and keypad Arduino shield, you will need to install a library for the shield and then use the functions provided by the library to communicate with the display and keypad. The library will provide functions for controlling the display, such as setting the cursor position, printing text, and clearing the screen, as well as functions for reading input from the keypad.

1602 LCD module read and write operations, the screen and cursor operations are programmed through the instructions to achieve. (Note: 1 is high, 0 is low)

This service allows us to provide our customers with a safe way to contact us via online forms. At the same time, the service prevents spam bots from compromising our services.

In order to unlock offers for extended payment options, in particular express checkout and payment in instalments, we require your consent to the data transfer and storage of third-party cookies of the payment provider PayPal. This allows us to also offer you express checkout and payment by instalments. Without your consent, only the technically necessary data transfer to PayPal will take place, but you will then not be able to use the express checkout or extended offers for payment by instalments on this site.

You have the right to revoke this contract or to return the goods within 14 (fourteen) days without giving reasons. The cancellation period is fourteen days from the day on which you or a third party named by you, who is not the carrier, has taken possession of the last goods. In order to exercise your right of withdrawal, you must inform us (company AZ-Delivery Vertriebs GmbH, Lärchenstraße 10, 94469 Deggendorf, telephone number: 0991/99927827 , e-mail address: info@az-delivery.com ) by means of a clear statement (e.g. a letter sent by post, fax or e-mail) about your decision to revoke this contract. You can use the attached model withdrawal form, but it is not mandatory. In order to comply with the withdrawal period, it is sufficient that you send the notification of the exercise of the right of withdrawal before the expiry of the withdrawal period.

If you withdraw from this contract, we have to repay all payments we have received from you, including the delivery costs (with the exception of the additional costs arising from the fact that you have chosen a different type of delivery than the cheapest standard delivery offered by us), immediately and at the latest within fourteen days from the day on which we received the notification of your cancellation of this contract. For this repayment we will use the same means of payment that you used for the original transaction, unless expressly agreed otherwise with you; in no case will you be charged fees for this repayment. We can refuse the refund until we have received the goods back or until you have provided proof that you have returned the goods, whichever is the earlier. You have received the goods immediately and in in any case, to be returned or handed over to us at the latest within fourteen days from the day on which you inform us of the revocation of this contract. The deadline is met if you send the goods before the expiry of the period of fourteen days. You bear the direct costs of returning the goods. You only have to pay for any loss in value of the goods if this loss in value is not limited to a check of the nature, properties and functionality of the goods necessary to deal with them.

Displaying information in electronic projects has always been the most compelling issue. There are various ways to display data. These screens can be so simple such as 7segments or LEDs, or they can be more fascinating such as LCDs. Using LCDs has always been one of the most popular ways to display information. LCDs are divided into two generic types: Characters and Graphics.

One of the most common, cheapest and simplest LCDs available is the character  LCD. This LCD consists of several rows and columns. Letters and numbers are written in places created by rows and columns. For example, LCD character 16*2 has 2 rows and 16 columns. So it can display 32 characters.

Working with these LCDs is very simple and they have full compatibility with all microcontrollers and processor boards. For easier use of these LCDs, its 16x2model, including four keys for making the menu, is made as a Shield which is also compatible with Arduino boards.

Initial configuration of the LCD by specifying the number of columns and rows. The first argument is the number of columns, and the second is the number of rows.

You can create a character in each block from your LCD. To do this, you should convert your desired character to an array of codes, then display it on LCD. To convert your character to codes you can use online websites like this. Design your character, then copy the generated array to your code.

This is another great IIC/I2C/TWI/SPI Serial Interface. As the pin resources of FOR Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card. However, with this I2C interface module, you will be able to realize data display via only 2 wires. If you already have I2C devices in your project, this LCD module actually costs no more resources at all. It is fantastic for Arduino based project.

Can display 2-lines X 16-characters. Operate with 3.3V DC Supply voltage, the backlight and contrast is adjusted by potentiometer come with 2 iic interface, which can be connected by dupont line or iic dedicated cable compatible for 1602 lcd

To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

To start a return, you can contact us atalex@friendlyarmtr.com. If your return is accepted, we’ll send you a return shipping label, as well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.

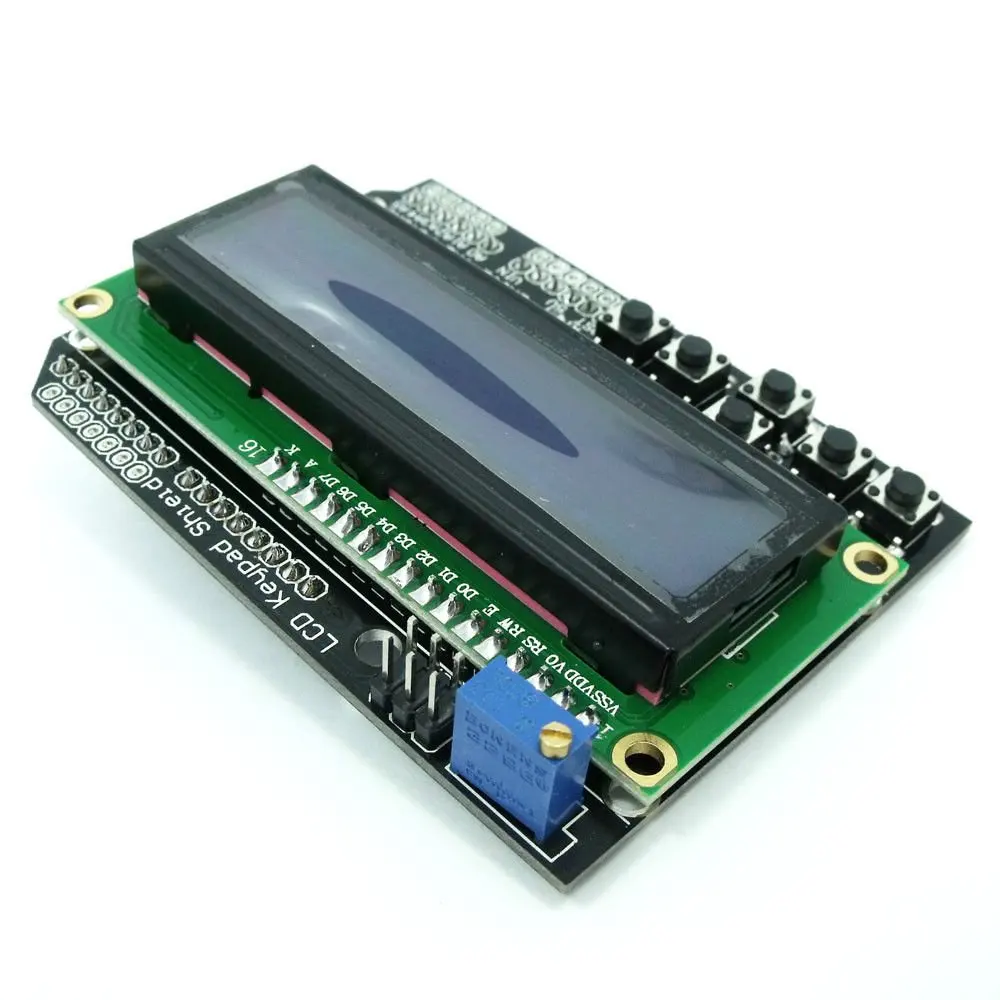

Blue 16 x 2 LCD display module shield featuring a keypad, adjustable contrast and backlight. The module sits on top of the Arduino UNO or Mega 2560 as a shield, or it can be connected using the headers.
