※ Price Increase NotificationThe TFT glass cell makers such as Tianma,Hanstar,BOE,Innolux has reduced or stopped the production of small and medium-sized tft glass cell from August-2020 due to the low profit and focus on the size of LCD TV,Tablet PC and Smart Phone .It results the glass cell price in the market is extremely high,and the same situation happens in IC industry.We deeply regret that rapidly rising costs for glass cell and controller IC necessitate our raising the price of tft display.We have made every attempt to avoid the increase, we could accept no profit from the beginning,but the price is going up frequently ,we"re now losing a lot of money. We have no choice if we want to survive. There is no certain answer for when the price would go back to the normal.We guess it will take at least 6 months until these glass cell and semiconductor manufacturing companies recover the production schedule. (Mar-03-2021)

ER-TFT032-2 is 240x320 dots 3.2 " color tft lcd module display with ILI9320 controller and optional 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 16-bit parallel interface. .FPC is soldering type,there is no need for zif connector.Lanscape mode is also available.

A wide variety of 3.2 inch tft lcd module display options are available to you, You can also choose from tft, ips and standard 3.2 inch tft lcd module display,

SainSmart 3.2" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller SSD1289, it"s a support 8/16bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is ADS7843 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

3.2"" TFT LCD module with 40 IO, it is more than a LCD module and colleagues also includes an SD card slot, whether with touch function. (Here we are with touch screen function module)

SainSmart 3.2" TFT LCD Display is a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller SSD1289, it"s a support 8/16bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is ADS7843 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

3.2"" TFT LCD module with 40 IO, it is more than a LCD module and colleagues also includes an SD card slot, whether with touch function. (Here we are with touch screen function module)

We have over two dozen TFT LCD display modules to choose from. All of them are full-color graphic displays. Unlike standard monochrome character displays, you can create complex images for imaginative user experiences. Thin and light, these are ideal for handheld devices, communications equipment, information displays, and test and measurement equipment.

Listed by the diagonal size of the active area (the usable area for lit pixels), our TFT display sizes range from 1.3 inches to 10.1 inches. Choose from six different interfaces, many of our TFT modules have more than one interface available. Arduino users should select modules with SPI for fast and easy communications to add color graphics to their projects.

Contrast ratio is the difference between a pixel that is lit or dark. Standard STN LCD displays typically have a 10:1 contrast ratio while TFT displays are 300:1 and up, so details stand out and text looks extra sharp. For standard STN displays, you must choose a display limited to a specific viewing angle (12, 3, 6 or 9 o"clock) while TFTs can have a viewing cone greater than 160 degrees.

To speed up your design time, we sell carrier boards and demonstration kits for selected modules. For outdoor use, be sure to look at our sunlight readable displays.

SainSmart 3.2" TFT LCD Displayis a LCD touch screen module. It has 40pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project.The Screen include a controller SSD1289, it"s a support 8/16bit data interface , easy to drive by many MCU like STM32 ,AVR and 8051. It is designed with a touch controller in it . The touch IC is ADS7843 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

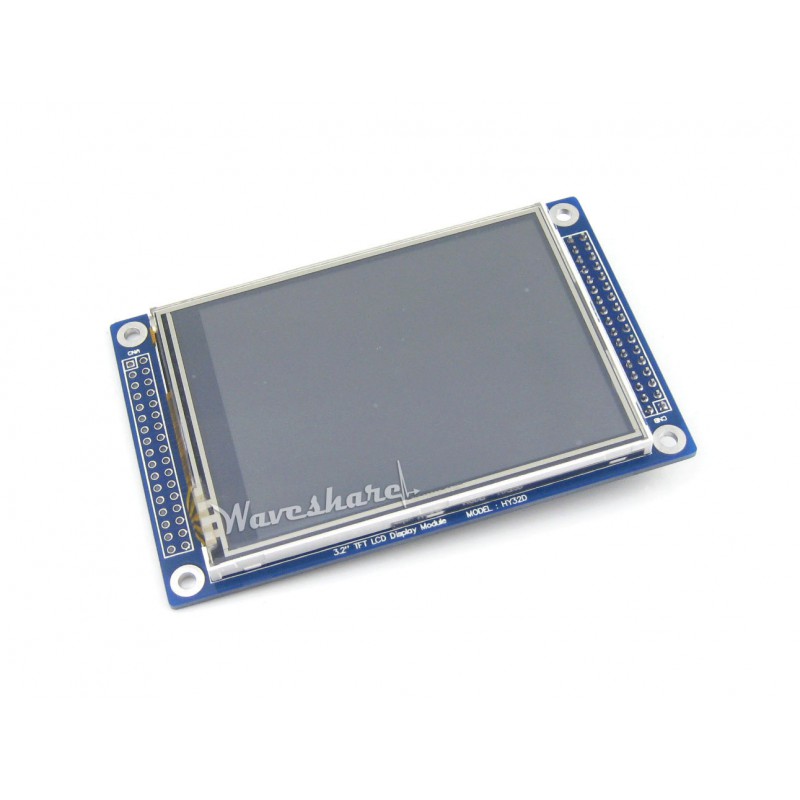

3.2-inch TFT Color LCD Module is a TFT LCD Screen Module, 40pins interface, not just a LCD break but include the Touch, SD card and Flash design. So it’s a powerful extension module for your project.

The LCD is 32044PA. It’s a 262K color, 400*240 (resolution), 3.2 inch Widescreen (16:9) TFT LCD screen.The LCD has a wide viewing angle, the contrast is also very suitable.

TFT 3.2" 400*240 With SD Touch Module is designed with a touch controller in it . The touch IC is XPT2046/HR2046, and touch interface is included in the 40 pins breakout.

Another useful extension in this module is the SD Card socket. It use the SPI mode to operate the SD card, the SPI interface include in the 40pins breakout.

There is a reserve extension design in this module, that’s the external flash. It’s leave the pad and the pins out for the SST25VF016B Flash. So when you need, you can easily add a external flash for your project.

TFT 3.2" 400*240 With SD Touch Module layout a 40 pins interface for your project, the interface include TFT pins、SD card pins、Touch screen pins and the Flash pins.

Resolution: 240(RGB) x 400Interface: CPU 18 bits/16 bits/8 bitsColor Depth: 262K/65KTechnology Type: a-SiPixel Pitch (mm): 0.174X0.174Pixel Configuration: R.G.B. Vertical StripeDisplay Mode: TM with Normally WhiteSurface Treatment(Up Polarizer): Clear Type(3H)Viewing Direction: 6 o’clockGray Scale Inversion Direction: 12 o’clockLCM (W x H x D) (mm): 47.60x80.90x2.6Active Area(mm): 41.76x69.60With /Without TSP: Without TSPWeight (g): TBDLED Numbers: 4 LEDsDriver IC: HX8352-AElectrical Characteristics

The pins named with “D/T_” are the Touch IC output pins; the pins named with “SD_” are SD pins; the pins named with “F_” are the SST25VF016B Flash IC pins; others are TFT pins.

It is compatible with 3.3/5V operation voltage level. TFT power is 2.8~3.3V and the module with PCB have 3V Regulated IC, so it can input 5V, but the data pins can not be more than 3.3V.
