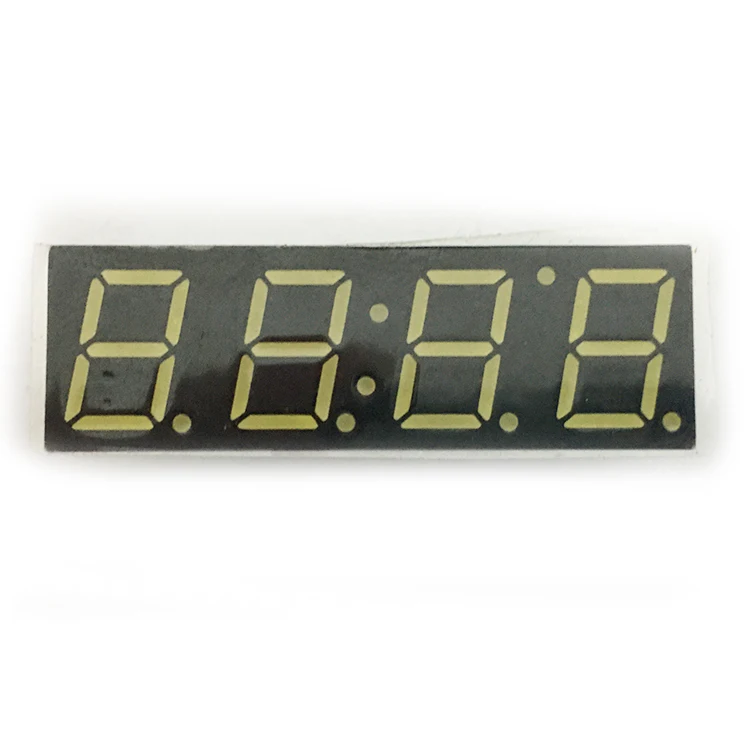

7 segment lcd displays free sample

We are based in Guangdong, China. Since 2003, we have sold to the domestic market (60.00%), North America (5.00%), Africa (5.00%), Middle East (5.00%), East Asia (5.00%), South America (3.00%), Southeast Asia (3.00%), Western Europe (3.00%), Eastern Europe (2.00%), Oceania (2.00%), Central America (2.00%), Northern Europe (2.00%), South Asia (2.00%), Southern Europe (00.00%). There are more than 700 people in our office.

4. Why should you buy from us instead of other suppliers? With more than ten years of production experience, we can design, develop and produce customized LCD, LCM, B/L and FPC. We currently produce TN, HTN, STN, FSTN, VA, lcd modules.

A 7-segment display is commonly used in electronic display devices for decimal numbers from 0 to 9 and in some cases, basic characters. The use of light-emitting diodes (LEDs) in seven-segment displays made it more popular, whereas of late liquid crystal displays (LCD) have also come into use.

A seven-segment display is made of seven different illuminating segments. These are arranged in a way to form numbers and characters by displaying different combinations of segments.

The binary information is displayed using these seven segments. LED is a P-N junction diode that emits energy in the form of light, different from a standard P-N junction diode which emits in the form of heat.

Whereas LCD uses liquid crystal properties for displaying and does not emit light directly. These LEDs or LCDs are used to display the required numeral or alphabet.

Seven-segment devices are generally made up of LEDs. These LEDs will glow when they are forward-biased. The intensity of the LEDs depends on the forward current.

So, a sufficient forward current has to be provided to these LEDs to glow with full intensity. This is provided by the driver and is applied to the seven segments.

Segment combinations can represent characters. A combination is generally identified by a series of 1 to 7 letters (from a to g) corresponding to the activated segments.

There exist also 9 segment displays (with an additional 2 segment diagonal), 14 segments (with 2 diagonals and a central vertical bar) or 16 segments (identical to the 14 segments but with the top and bottom segments cut in half).

dCode retains ownership of the "7-Segment Display" source code. Except explicit open source licence (indicated Creative Commons / free), the "7-Segment Display" algorithm, the applet or snippet (converter, solver, encryption / decryption, encoding / decoding, ciphering / deciphering, translator), or the "7-Segment Display" functions (calculate, convert, solve, decrypt / encrypt, decipher / cipher, decode / encode, translate) written in any informatic language (Python, Java, PHP, C#, Javascript, Matlab, etc.) and all data download, script, or API access for "7-Segment Display" are not public, same for offline use on PC, mobile, tablet, iPhone or Android app!

LED segment display is one of the commonly used display screens. By inputting the corresponding current to its different pins, it will light up, so as to display the number, date, temperature, and so on.

LED segment displays are composed of many SMD LEDs mounted on the circuit board and plastic shell to display fixed and simple numbers and other information patterns. The most common forms are the numbers 0 to 9, one or two decimal points, alphabet, marks, and symbols.

The shell is made of flame retardant PC plastic, with high strength, impact resistance, aging resistance, UV protection, dust prevention, and moisture resistance. LED segment displays have the advantages of low power consumption, low heat, impact resistance, and long serving time. With the help of a controller, it can realize the effects of running water, gradual change, jump, and chase, etc. It can be divided into common cathode and common anode according to the attribution. A wide range of colors are available: white, red, green, blue, orange, etc.

With the development of technology, it is supposed to be replaced by segment LCD display in some areas. If we compare it with segment LCD display, it is much cheaper and much brighter, suitable for industrial illumination and indication, but low class and much thicker.

Seven segment displays are used in common household appliances like microwave ovens, washing machines, and air conditioners. They’re a simple and effective way to display numerical information like sensor readings, time, or quantities. In this tutorial, we’ll see how to set up and program single digit and multi-digit seven segment displays on an Arduino.

Seven segment displays come in a wide variety of sizes and colors. Red, blue, and green are the easiest colors to find. Sizes range from small 0.56 inch displays up to large 4 inch and even 6.5 inch displays. Some displays have a single digit, and others have two or four.

Seven segment displays consist of 7 LEDs, called segments, arranged in the shape of an “8”. Most 7-segment displays actually have 8 segments, with a dot on the right side of the digit that serves as a decimal point. Each segment is named with a letter A to G, and DP for the decimal point:

In common cathode displays, all of the cathodes are connected to ground and individual segments are turned on and off by switching power to the anodes:

Single digit seven segment displays typically have 10 pins. Two pins connect to ground, and the other 8 connect to each of the segments. Here is a pin diagram of the popular 5161AS common cathode display:

Before you can connect your display to the Arduino, you need to know if it’s common anode or common cathode, and which pins connect to each segment. This information should be in the datasheet, but if you can’t find the datasheet or you don’t know your display’s part number, I’ll show you how to figure this out below…

Connect the ground (black) wire to any pin of the display. Then insert the positive (red) wire into each one of the other pins. If no segments light up, move the ground wire over to another pin and repeat the process. Do this until at least one segment lights up.

When the first segment lights up, leave the ground wire where it is, and connect the positive wire to each one of the other pins again. If a different segment lights up with each different pin, you have a common cathode display. The pin that’s connected to the ground wire is one of the common pins. There should be two of these.

If two different pins light up the same segment, you have a common anode display. The pin that’s connected to the positive wire is one of the common pins. Now if you connect the ground wire to each one of the other pins, you should see that a different segment lights up with each different pin.

Now draw a diagram showing the pins on your display. With the common pin connected to the ground wire (common cathode) or positive wire (common anode), probe each pin with the other wire. When a segment lights up, write down the segment name (A-G, or DP) next to the corresponding pin on your diagram.

We’ll use a library called SevSeg to control the display. The SevSeg library works with single digit and multi-digit seven segment displays. You can download the library’s ZIP file from GitHub or download it here:

In this program, we create a sevseg object on line 2. To use additional displays, you can create another object and call the relevant functions for that object. The display is initialized with the sevseg.begin() function on line 11. The other functions are explained below:

byte segmentPins[] = {6, 5, 2, 3, 4, 7, 8, 9} –This declares an array that defines which Arduino pins are connected to each segment of the display. The order is alphabetical (A, B, C, D, E, F, G, DP where DP is the decimal point). So in this case, Arduino pin 6 connects to segment A, pin 5 connects to segment B, pin 2 connects to segment C, and so on.

resistorsOnSegments = true– This needs to be set to true if your current limiting resistors are in series with the segment pins. If the resistors are in series with the digit pins, set this to false. Set this to true when using multi-digit displays.

This example consists of a push button and a single 7 segment display. Every time the push button is pressed and held, the display loops through numbers 0-9 rapidly. Once the button is released, the display continues to loop for a period of time almost equal to the time the button was pressed, and then displays a number along with the decimal point to indicate the new number.

So far we have only worked with single digit 7-segment displays. To display information such as the time or temperature, you will want to use a 2 or 4 digit display, or connect multiple single digit displays side by side.

In multi-digit displays, one segment pin (A, B, C, D, E, F, G, and DP) controls the same segment on all of the digits. Multi-digit displays also have separate common pins for each digit – these are the digit pins. You can turn a digit on or off by switching the digit pin.

Since multi-digit displays use digit pins, we also need to define which Arduino pins will connect to the digit pins. Using byte digitPins[] = {10, 11, 12, 13} on line 6 sets Arduino pin 10 as the first digit pin, Arduino pin 11 to the second digit pin, and so on.

Hopefully this article should be enough to get you started using seven segment displays. If you want to display readings from other sensors, the example program above can easily be modified to do that. If you have any questions or trouble setting up these circuits, feel free to leave a comment below.

In this tutorial, we will have a basic introduction to Seven Segment Displays or 7-Segment Displays. They are commonly used to display digits from 0 to 9 and also few alphabets (usually, A to F).

Seven segment display is the most common device used for displaying digits and alphabet. You can see the Seven Segment Display devices in TV shows counting down to ‘0’. Use of LEDs in seven segment displays made it more popular.

The binary information can be displayed in the form of decimal using this seven segment display. Its wide range of applications is in microwave ovens, calculators, washing machines, radios, digital clocks etc.

The seven segment displays are made up of either LEDs (Light emitting diode) or LCDs (Liquid crystal display). LED or light emitting diode is P-N junction diode which emits the energy in the form of light, differing from normal P-N junction diode which emits in the form of heat.

Liquid crystal displays (LCD) use the properties of liquid crystal for displaying. LCD will not emit the light directly . These LED’s or LCD are used to display the required numeral or alphabet. Single seven segment or number of segments arranged in an order meets our requirements.

The seven segment display dates back to century old. In the year 1908 F.W. Wood invented eight segment displays which displays the digit ‘4’ by using diagonal bar. After that in 1910 seven segment display is invented and is illuminated using incandescent bulbs .They are used in electric power plants but has gained no much reputation.

Generally seven segment displays are available in 10 pin package. The pin diagram of seven segment display is shown in the above figure. Seven segment display is an electronic circuit consisting of 10 pins.

Out of 10 pins 8 are LED pins and these are left freely. 2 pins in middle are common pins and these are internally shorted. Depending on either the common pin is cathode or anode seven segment displays can be either named as common cathode or common anode display respectively.

Here, the 7 LED’s called segments are assigned with   an alphabet from A to G. Forward biasing the particular segment or LED will emit the light energy thus illuminating a part of numeral. There is another segment assigned as H, used for displaying dot.

Bottom view of the seven segment display is shown below.  The bottom view of the segment shows 10 pins of the segment. These are cathode or anode pins of the LEDs present in the seven segment. Seven segment is illuminated using these pins.

Seven segment display works, by glowing the required respective LEDS in the numeral. The display is controlled using pins that are left freely. Forward biasing of these pins in a sequence will display the particular numeral or alphabet. Depending on the type of seven segment the segment pins are applied with logic high or logic zero and in the similar way to the common pins also.

For example to display numeral ‘1’ segments b and c are to be switched on and the remaining segments are required to be switched off. In order to display two digits two seven segments are used.

In order to display zero on this segment one should enable logic high on a, b, c, d, e and f segments and logic low on segment ‘g’. Thus, the above table provides data on seven segments for displaying numerals from 0-9.

As the name indicates cathode is the common pin for this type of seven segments and remaining 8 pins are left free. Here, logic low is applied to the common pin and logic high to the remaining pins.

Above truth table shows the data to be applied to the seven segments to display the digits. In order to display digit‘0’ on seven segment , segments a , b , c , d , e and f are applied with logic high and segment g is applied with logic low.

A seven segment display can be driven using resistors, transistors and IC’s. But mostly the driving is done by the integrated circuits because of their ease co-operation.

Seven segment devices are generally made up of LEDs. These LEDs will glow when they are forward biased. Intensity of the LEDs depends on forward current. So, sufficient forward current has to be provided to these LEDs to glow with full intensity. This is provided by the driver and is applied to the seven segments. The following methods are practised to drive the seven segments.

Driving a seven segment using resistor is the most common method. In this, generally we use the resistor as the driving element. Generally, LED requires 20 milli Amps of current. Current more than this value may damage the LED. To limit this current a resistor is used .This is called current limiting resistor. Circuit is as shown below.

Segment pins of the seven segment are connected using a resistor and a switch. The 8 switches are connected to the 8 current limiting resistors and they are connected to a to g segments of display. Let us see how this circuit drives the digital display.

To glow the segment ‘a’, close the switch ‘a’. The current passes through resistor and some drop occurs at current limiting resistor. Thus, the sufficient current passes to the LED. Suppose to display digit 7 switches a, b, c are closed. But the disadvantage here is, illuminating all the LEDs at a time reduces the current.

Another way of driving the seven segments is through transistor. In this, transistor is used for amplifying the input current. The collector of the transistor is connected to the common pin of the seven segment, emitter is connected to the ground and base is connected Vcc. The transistor connected to the common pin amplifies the current in the seven segment.

Another way of driving the seven segments is through integrated circuits. This is generally called as seven segment driver or decoder. The most frequently used decoder is 4511. This is a CMOS chip which converts 4 bit binary coded decimal to 8 bit seven segment data. CMOS seven segment decoder connected to the seven segments is shown below.

The above figure shows driving of a seven segment display using BCD to seven segment decoder. Here we have to give BCD data as input to display digits 0 to 9. For example, to display the digit 7 the input to be applied is 0111.

The decoder decodes the applied BCD input and sends the appropriate output to the segments. The decoder outputs are connected to the seven segment inputs through the resistors. These resistors are used to limit the current.

The applications of seven segments are mostly in digital calculators, electronic meters, digital clocks, odometers, digital clocks, clock radios, etc.

In this example, we"ll only use a single display. Realize, though, that you could add more displays (or other SPI devices) to the same SPI bus, each requiring only an additional SS pin per device.

This example works a lot like the serial version. The s7s.print() functions from the previous example are replaced by SPI transfers. Take note that each time an SPI.transfer() occurs, it"s blanketed by two digitalWrite()s to the SS pin. The SS pin must go LOW, to let the display know that usable data is incoming. Once SS goes back to HIGH, the display will know that data is no longer being sent to it.

This seven segment, 1x6 character Vacuum Fluorescent Display illuminates green characters on a black background. This VFD glass display delivers high contrast characters while offering a wide operating temperature range from -40 to 85 degrees Celsius to withstand more extreme temperatures. This 7 segment display operates at a voltage of 3.8 Vac and is RoHS compliant.

Seven segment LED displays are brighter, more attractive and provide a far viewing distance as well as a wider viewing angle as compared to LCD displays. The major drawback of using seven segment LEDs is they are resource-hungry. Time-division multiplexing is the most common technique of interfacing 7-segment LEDs to microcontrollers. With this technique, an 8-digit seven segment LED display with the decimal point requires at list 16 I/O pins of the microcontroller, which is quite a lot. Consequently, their use with low pin-count microcontrollers (such as PIC12F series) is not practically feasible. SPI7SEGDISP8.56 is our latest version of the MAX7219 based serial seven segment LED display module that will allow you to add 8 digits of seven segment LED displays to your project using only 3 I/O pins, and provides full control of all the digit segments including decimal points. You can even cascade two or more of these modules together without sacrificing any extra I/O pin.

2. LED displays included in this module emit red color. They are 0.56" modules. If you need yellow or green color LED displays, there is a separate listing for them. Go to our store to find the right one. It is mentioned in the product title.

A 10 digit, with thousand marks ("), digital point, the symbols M, E and (-). Intended to mimic traditional LCD displays found in common calculators from the eighties and after but with all the complexity of the backplanes, segments, duty cycles and polarity handled by a 92 segment LCD driver with I2C interface which memory maps a segment to a bit.

With a Microcontroller with lots of pins or multiplexer (28) and lots of patience, by unsoldering the PCB raw access to the multiplexed segments is possible.

I wanted to create an eighties looking calculator to learn about LCDs, matrix keyboards, fixed point math. I found a library that does the heavy lifting of transforming keypresses into display output and I couldn"t find an off the shelf LCD with:

The CD4511 is a BCD to 7-segment decoder. It means it takes a number in binary form as an input, then displays this number on a 7-segment display using its outputs.

A 7-segment display is a component with seven Light-Emitting Diodes (LED) arranged as shown below. By turning on different combinations of the LEDs, a number between 0 and 9 is displayed.

In this case, the input is Binary-Coded Decimal (BCD). For example, an input of 1001, which is 9 in decimal, would turn on the segments a, b, c, f, and g so that a “9” is displayed on the 7-segment display:

This means that when LE is LOW, the segment outputs (a to g) are determined by the data on D0 to D3. But when LE goes HIGH, the last data present on D0 to D3 is stored in the latches and the segment outputs stay unchanged.

To be able to use the BCD to 7-segment decoder in the chip, you need to first connect the VDD pin to the positive supply terminal and the GND pin to the negative supply terminal.

The BL (Blanking Test) pin turns off all segments when LOW. You can use it to control the brightness of the display with pulse-width modulation (PWM). Set to HIGH for normal operation.

Below is an example circuit where you set the input number using switches. The CD4511 controls the 7-segment display so that it turns on the correct segments for displaying the number.

This is a fun circuit to build as your first 7-segment display circuit. Later, you can modify the input of this circuit to instead be the output of a counter that counts seconds, to create a stopwatch.

Welcome to the Arduino 7 Segment display library which provides easy control of 7 segment LCD and LED displays using a minimum of 2 digital outputs! The library only works with parallel displays, where each segment on the display has a single corresponding pin to control it. For example, if your screen can display 8888 but has less than 7 + 7 + 7 + 7 = 28 pins on the back, then this library is probably not for you. Additionally, if your display has a serial or SPI interface then this is also not for you.

This library can also be used to control LEDs which are not part of a 7 segment display. However, if you want to do this, there is a much better library that implements a variety of features, including PWM for LED brightness, visit http://code.google.com/p/arduino-m5451-current-driver/

In order to control many LCD/LED segments using an Arduino (a typical 4 digit display has 32 segments) a display driver is required. These are integrated circuits which receive a serial input and only require a clock source, data, +5v and ground, with the AY0438 LCD driver requiring an additional Load input.

The supported display drivers are very basic in operation and simply remember the status of a data pin (high or low) every time the clock pin changes from high to low. The correct choice of driver will depend on whether you have an LED or LCD screen and how many outputs you require. It is also worth noting that you may cascade 2 AY0438 chips to give you control of up 64 LCD segments! The following display drivers are currently supported:

The AY0438 LCD driver can drive a standard 4 digit LCD screen perfectly. A typical 4 digit LCD display should be able to display 8.8.:8.8 - a digit, decimal point, a digit, decimal point and/or colon, digit, decimal point and a digit.

You will now need to connect your driver to your display. This is time consuming so you should find a datasheet for your device to save you time when wiring it up. It is important that you wire the digit segments in order from A to G. If your LCD/LED screen has a decimal point and colon in the same position (if 08:50 and 08.50 is possible) wire the decimal point first then the colon.

* If you have an LCD screen you will also need to connect the backplane and driver oscillators as below. The backplanes could be controlled using the arduino but I decided to keep thigs simple and avoid this.

LCD screens differ from their LED counterparts in that they require an alternating current. Supplying a direct current to an LCD screen will eventually cause electrochemical action which degrades the display, resulting in a loss of alignment along the edges of some of the characters. When using the LCD drivers you should always use a capacitor which briefly supplies the reverse current used by the driver chip. The driver chip does the rest and will oscillate the current.
