I don"t actually have a display at present. I purchased a 7in one some months ago. It had an LT7381 controller and was supplied with a Hunda LT7381 library for Arduino and some basic display design software. However, I couldn"t get the hardware to work despite it being described as Arduino compatible. As it turned out, it also didn"t display anything when used with the supplied USB adaptor and design software for the PC, so it may have been faulty anyway. I posted something at the time but the controller is quite new and there was not much feedback. I ended up sending it back and getting a refund although it still cost me to send it back to china.

The reason I posted was because the project is now at the stage where the LCD display really needs to be added and I intended to get advice before making another purchase. In the meantime I have been working on the project using a 20x4 display.

Thank you for that information. Since I am using an ESP8266, it sounds like I need to look for a board that uses SPI for the display. From what I can tell, it seems that some of the cheap ones from china only use SPI only for the SD card which further confuses things.

The LT7381 board referenced earlier was meant to work over SPI and that is how I tried to use it. I will make sure that whatever I get as its replacement can also be driven via SPI. I expect that the ESP8266 has insufficient pins for parallel?

I don"t posses an Arduino shield which is why I was trying to ascertain whether I need something like that. What is their purpose? A lot of photos show the display plugged into one and then into typically a Mega 2560. I don"t understand what the purpose of the shield is? Is it just a convenient way to provide a means of fitting the board to an Arduino with level shifting? SPI needs only 4 wires. Can"t these be connected directly to the ESP SPI pins?

This display can be mounted on an Arduino Mega or Due. It has a fairly high resolution of 320*480 pixels and is also quite large with 3.5 inch LCD size.

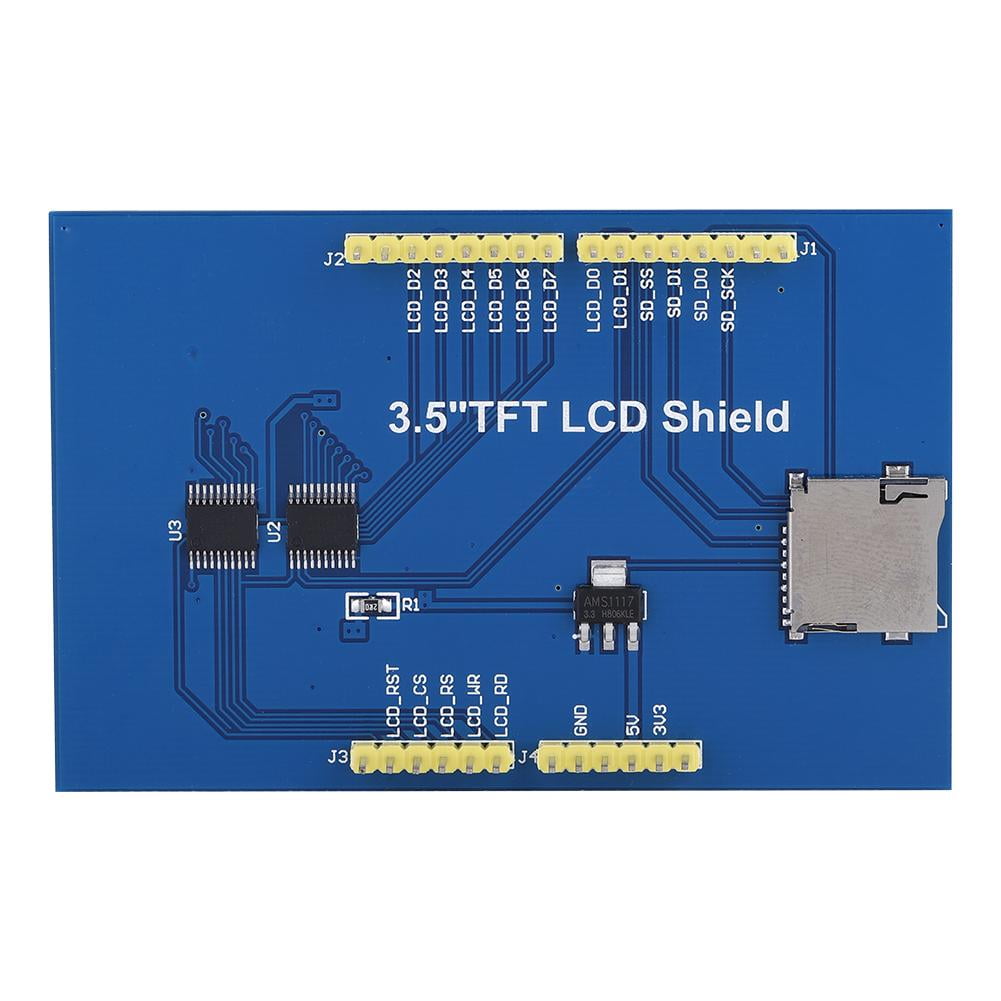

This TFT 3.5 Inch LCD display support 480x320 pixel resolutions. The display uses the ILI9481 graphics controller. The module includes the 5V-3.3V power conversion circuit and no additional level conversion circuitry is required. This Module can be inserted directly into the Arduino Mega2560 Board.

desertcart is the best online shopping platform where you can buy HiLetgo 3.5" TFT LCD Display ILI9486/ILI9488 480x320 36 Pins for Arduino Mega2560 from renowned brand(s). desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time.

desertcart ships the HiLetgo 3.5" TFT LCD Display ILI9486/ILI9488 480x320 36 Pins for Arduino Mega2560 to and more cities in Luxembourg. Get unlimited free shipping in 164+ countries with desertcart Plus membership. We can deliver the HiLetgo 3.5" TFT LCD Display ILI9486/ILI9488 480x320 36 Pins for Arduino Mega2560 speedily without the hassle of shipping, customs or duties.

desertcart buys HiLetgo 3.5" TFT LCD Display ILI9486/ILI9488 480x320 36 Pins for Arduino Mega2560 directly from the authorized agents and verifies the authenticity of all the products. We have a dedicated team who specialize in quality control and efficient delivery. We also provide a free 14 days return policy along with 24/7 customer support experience.

Yes, it is absolutely safe to buy HiLetgo 3.5" TFT LCD Display ILI9486/ILI9488 480x320 36 Pins for Arduino Mega2560 from desertcart, which is a 100% legitimate site operating in 164 countries. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers. Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies.

Displays are one of the best ways to provide feedback to users of a particular device or project and often the bigger the display, the better. For today’s tutorial, we will look on how to use the relatively big, low cost, ILI9481 based, 3.5″ Color TFT display with Arduino.

This 3.5″ color TFT display as mentioned above, is based on the ILI9481 TFT display driver. The module offers a resolution of 480×320 pixels and comes with an SD card slot through which an SD card loaded with graphics and UI can be attached to the display. The module is also pre-soldered with pins for easy mount (like a shield) on either of the Arduino Mega and Uno, which is nice since there are not many big TFT displays that work with the Arduino Uno.

The module is compatible with either of the Arduino Uno or the Arduino Mega, so feel free to choose between them or test with both. As usual, these components can be bought via the links attached to them.

One of the good things about this module is the ease with which it can be connected to either of the Arduino Mega or Uno. For this tutorial, we will use the Arduino Uno, since the module comes as a shield with pins soldered to match the Uno’s pinout. All we need to do is snap it onto the top of the Arduino Uno as shown in the image below, thus no wiring required.

This ease of using the module mentioned above is, however, one of the few downsides of the display. If we do not use the attached SD card slot, we will be left with 6 digital and one analog pin as the module use the majority of the Arduino pins. When we use the SD card part of the display, we will be left with just 2 digital and one analog pin which at times limits the kind of project in which we can use this display. This is one of the reasons while the compatibility of this display with the Arduino Mega is such a good news, as the “Mega” offers more digital and analog pins to work with, so when you need extra pins, and size is not an issue, use the Mega.

To easily write code to use this display, we will use the GFX and TFT LCD libraries from “Adafruit” which can be downloaded here. With the library installed we can easily navigate through the examples that come with it and upload them to our setup to see the display in action. By studying these examples, one could easily learn how to use this display. However, I have compiled some of the most important functions for the display of text and graphics into an Arduino sketch for the sake of this tutorial. The complete sketch is attached in a zip file under the download section of this tutorial.

As usual, we will do a quick run through of the code and we start by including the libraries which we will use for the project, in this case, the Adafruit GFX and TFT LCD libraries.

With this done, the Void Setup() function is next. We start the function by issuing atft.reset() command to reset the LCD to default configurations. Next, we specify the type of the LCD we are using via the LCD.begin function and set the rotation of the TFT as desired. We proceed to fill the screen with different colors and display different kind of text using diverse color (via the tft.SetTextColor() function) and font size (via the tft.setTextSize() function).

The Adafruit library helps reduce the amount of work one needs to do while developing the code for this display, leaving the quality of the user interface to the limitations of the creativity and imagination of the person writing the code.

That’s it for this tutorial guys, thanks for reading. If you made some cool projects based on this or you just want to ask questions about this tutorial, feel free to reach out via the comment section below.

If you don"t edit the header file for the driver type the examples still work, but the colors are wrong. I think it"s because this thing uses 5 bits for red and blue but 6 bits for green.
