0.96 tft display for sale

The 0.96" tft lcd is ideal small lcd display to replace the small oled display 0.96" monochrome, it is 256k colorful, as thinner as the oled screen, but higher resolution than 0.96" mono oled display, the small 0.96" tft lcd backlight is as lower power as OLED screen.This small lcd display only 0.96" in diagonal size, and with full color display, it is as thin as oled display, but with cost competitve than small color oled screen.

The 0.96" small lcd display could be used for wearable device,hand-held equipment, smart home control which requires smalllcd display in high quality and colorful image.such as smart bracelet for the sport and medical application. the 0.96" small lcd display could be used for smart home appliances as well, such as smart door lock, ketch devices, white goods, etc.,

SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.

With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.

This 0.96” TFT screen employs an edge-to-edge design and offers a glorious 160×80 HD 16-bit colour display, suitable for wearable projects, mobile devices and smart home projects.

Compatible with 3.3V to 5V, the display consumes less than 15mA in full-screen. It works well with controllers like Arduino UNO, ESP32, ESP8266, FireBeetle M0 and more.

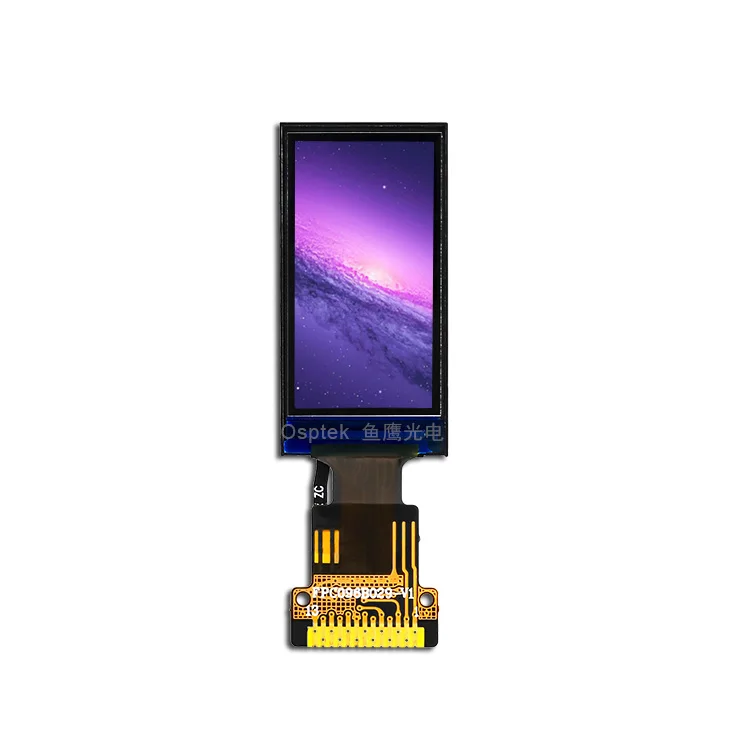

RFA300960A-AYW-DNN is a mini, 0.96-inch, IPS active matrix TFT LCD module with transmissive mode. The module dimension is 13.5x27.95 mm; active area 10.8 x 21.696 mm (0.96” diagonal). Its resolution is 80x160 pixels (width 80 pixels x height 160 pixels) and every pixel is made up of three vertical strips of Red, Green and Blue dots. The module features wide viewing angle thanks to the IPS panel which is one of the most popular techniques on the market now. This mini 0.96-inch TFT LCD display module has built-in IC ST7735S supporting SPI interface. The brightness is 500 cd/m2 with contrast ratio 800:1. LCM voltage ranges from 3V-3.6V, typical value is 3.3V. Operating temperature covers from -20~+70℃, storage temperature range is from -30~+80℃.

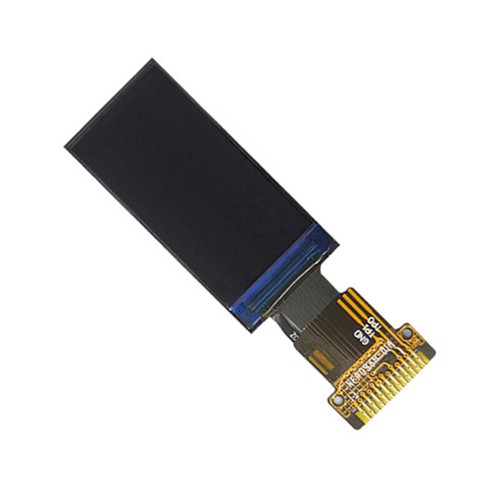

WF0096ATYAA3DNN0 is a 0.96 inch IPS Mini TFT LCD display module, resolution 80 x 160 pixels. This 0.96" TFT display is built-in with ST7735S controller IC, it supports 4-wire SPI interface, supply voltage (VCC) range is from 3.0V to 3.6V, with brightness 500 nits (typical value), contrast ratio 800.

This 0.96 inch Mini TFT LCD Display is portrait mode with IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having 2:1 aspect ratio. It is ideal for wearable devices, medical devices, etc. This module can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃.
