2.8 inch tft lcd shield touch display module for sale

ER-TFTM028-4 is 240x320 dots 2.8" color tft lcd module display with ILI9341 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in optional microSD card slot, 2.8" 4-wire resistive touch panel with controller XPT2046 and 2.8" capacitive touch panel with controller FT6206. It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.8"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection slot. This TFT display is big (2.8" diagonal) bright and colorful (RGB, 65K colors)! 320x240 pixels with individual pixel control. It has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

The shield is fully assembled, tested and ready to go. No wiring, no soldering! Simply plug it in and load the provided library - you"ll have it running! Works best with any standard Arduino interface like Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO etc. This shield has on board stand alone touch controller, controlled via SPI only a few pins are used.

Because UTFT uses software SPI, the speed is slower than using DmTftLibrary and it require exclusive access to the SPI pins. This also means UTFT can"t be used at the same time as UTouch or other Touch libraries.

I am trying to make a truly Universal Remote Control out of this mess. I just got the Arduino Uno & the Display and put it together and there are NO pins left to operate an IR LED.

Can this 2.8" elegoo display play video at all? I"m trying to make a unit that an older woman, in her 80"s can play a video on it, if I set it up correctly? This is for a really good cause, I desperately need help, this is super important. Helping elderly folks with modern technology is tough. But I really need it to be able to play a video off the SD card if possible. Any help would be super highly appreciated.ReplyUpvote

Hello,please post our code also ..the screen driver must be known and that info must be known in order to get these things to work correctly..you show your code and then the vid blurs..Someone needs to write a pdf teaching how ,what ,when and why concerning these screens I would gladly pay $10.00 and I am sure others would too.I have 3 different tftlcds only 1 works its for the mega and Bomer has a lib for it,I am really considering use of Nextion units from now on 4 pins easy programming but higher cost...also the small cell phone screens use spi mode and are real easy to set up and use

The program runs and nothing is displayed but a white screen. when I open the COM4 I see that when I hit the screen numbers appear to calibrate the screens position so it is registering but not showing up on the LCD. please help me before I pull all my hair out.1

I"m thinking I need an Arduino Mega to do what I want - a Universal Remote. Because after mounting the display there are NO pins left for anything else.0

Thank you for the instructable. I"v been trying to build a DIY smartphone but couldn"t get the code or libraries for the touch screen. Now i can finally build it. Thanks.0

I"m having issues getting this display to work on my Arduino 101 board with the libraries that are suggested - errors in compiling seem to indicate that the board type isn"t supported in the Adafruit_TFTLCD library. Here"s a representative error:

I finally got the touchscreen to work correct using your links to the libraries. Found out that this specific TFT display module uses pin 6 & 7 for touch sensor, instead of the standard 4 & 5.0

I never received a response on this, so went through the painful process of copying code from the video. It can be found here for others that might need it. Not that this has some minor changes, but is fully functional and I will continue to refine: https://github.com/siliconghost/Arduino_2.8in_TFT_wSD

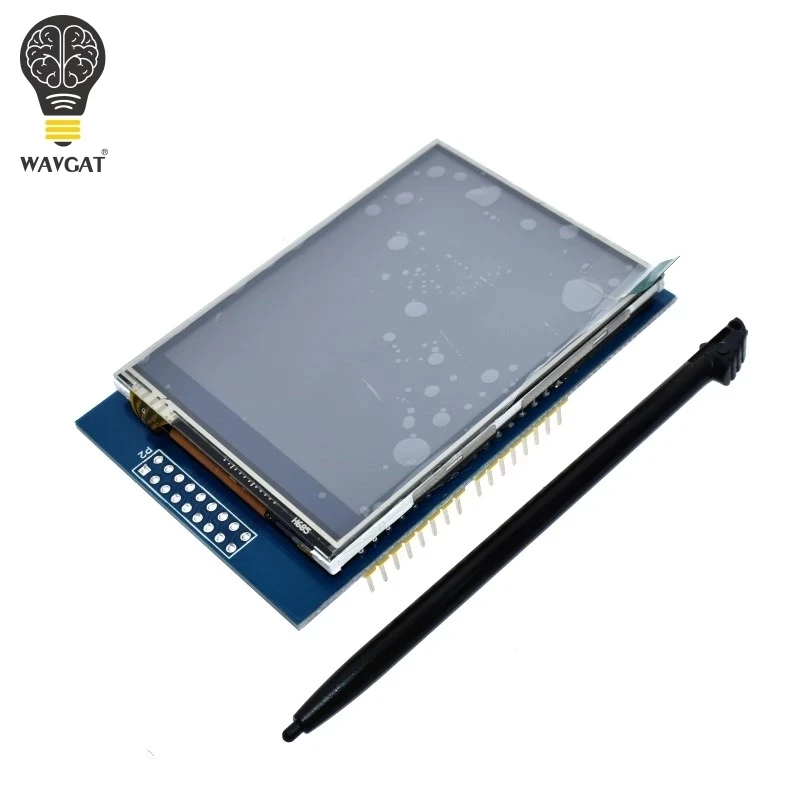

The 2.8 inch TFT LCD Touch Display is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board

So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

The Display comes with 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

- Arduino UNO R3 and its compatible board can use it directly to display characters, graphics and BMP format images. And touch controlling is available;

2.8 Inch TFT Shield Touch Display Module with sd card for Arduino and Pen is fully assembled, tested and ready to go. No wiring, no soldering. Works best with any classic (UNO/Duemilanove/Diecimila).

This TFT display is big (2.8 inches diagonal) bright (4 white-LED backlights) and colourful (18-bit 262,000 different shades)! 240 x 320 pixels with individual pixel control.

It has way more resolution than a black and white 128 x 64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
