interfacing 16x2 lcd display with pic microcontroller price

This is our sixth tutorial in our PIC Tutorial Series, in this tutorial we learn Interfacing of 16x2 LCD with PIC Microcontroller. In our previous tutorials we have learnt the basics of PIC using some LED blinking Programs and have also learnt How to use Timers in PIC Microcontroller. You can check here all the tutorials on Learning PIC Microcontrollers using MPLABX and XC8 compiler.

This tutorial will be an interesting one because we will learn How to Interface 16×2 LCD with PIC16F877A, check the detailed Video at the end this tutorial. Gone are the old days where we used LEDs for user indications. Let us see how we can make our projects look more cool and useful by using LCD displays. Also check our previous articles on Interfacing LCD with 8051, with Arduino, with Raspberry Pi, with AVR.

To make things easier we have made a small librarythat could make things easy while using this LCD with our PIC16F877A. The header file "MyLCD.h" is given here for download, which contains all the necessary function to drive the LCD using PIC MCU. Library code is well explained by comment lines but if you still have doubts reach us through the comment section. Also check this article for Basic LCD working and its Pinouts.

Now, there are two ways to add this code into your program. You can either copy all the above lines of code in MyLCD.h and paste them before the void main(). Or you can download the header file using the link and add them to the header file of your project (#include " MyLCD.h ";). This can be done by right clicking on the header file and selecting Add existing Item and browsing to this header file.

Here I have copied and pasted the header file code into my main C file. So if you are using our code, then you don’t need to download and add the header file into your program, just use the complete Code given at the end of this Tutorial. Also note that this library will only support PIC16F series PIC Microcontroller.

void Lcd_Start():This function should be the first function that has to be called to start working with our LCD. We should call this function only once to avoid lag in the program.

void Lcd_Set_Cursor(x pos, y pos):Once started, our LCD is ready to take commands, we can instruct the LCD to set its cursor in you preferred location by using this function.  Suppose if, we need out cursor at 5th character of 1st row. Then the function will be void Lcd_Set_Cursor(1, 5)

Each time the Lcd_Print_Char(char data)is called, its respective character values is sent to the data-lines of the LCD. These characters reach the HD44780U in form of bits. Now this IC relates the bits to the character to be displayed by using its ROM memory as shown the below table. You can find bits for all the characters in the datasheet of HD44780U LCD Controller.

Now, since we are satisfied with our header file let’s build the circuit and test the program. Also check complete header file given in the link given above.

The hardware for this project is very simple. We are going to reuse the same PIC module that we used last time and connect the LCD module to our PIC using jumper wires.

In this tutorial, we’ll discuss how Alphanumeric LCD works and how to interface a 16×2 LCD with a microcontroller. You’ll learn how LCD (Liquid Crystal Display) works internally and how to send data and commands to it with a microcontroller, specifically PIC MCUs. And you’ll also learn how to develop a simple LCD Driver for your upcoming projects.

There are 2 practical LABs associated with this tutorial and here is a brief animation indicating what you’ll be able to do after completing this tutorial.

We typically add a 16×2 Alphanumeric LCD to small embedded systems & projects to enhance the user experience and UI of the device/project. You can use it to display text messages to the user, number, etc. Other types of LCDs provide different features such as the number of columns and rows (characters) and maybe colored display, and also different interfaces (parallel, spi, i2c, etc).

For this tutorial, we’ll consider the 16×2 LCD with a 16-pin header interface. Assuming it has the standard Hitachi LCD driver HD44780 controller. We’ll see how it works internally and how to interface it with microcontrollers. This small IC on the backside of the LCD module controls the LCD itself and accepts user commands and data sent by the master MCU.

The LCD module consists of 16×2 character cells, and each one of them is 5×8 dots. Controlling all of this is a tedious task for our main microcontroller to do. However, it doesn’t have to do. As there is a specific function controller on the LCD itself controlling the display while reading in the user’s commands & data. Here, I’ll be considering the Hitachi HD44780 controller.

The HD44780U has two 8-bit registers, an instruction register (IR) and a data register (DR). The IR stores instruction codes, such as display clear and cursor shift, and address information for display data RAM (DDRAM) and character generator RAM (CGRAM). The IR can only be written from the MPU. The DR temporarily stores data to be written into DDRAM or CGRAM and temporarily stores data to be read from DDRAM or CGRAM. Data written into the DR from the MPU is automatically written into DDRAM or CGRAM by an internal operation.

Display data RAM (DDRAM) stores display data represented in 8-bit character codes. Its extended capacity is 80 × 8 bits, or 80 characters. The area in display data RAM (DDRAM) that is not used for display can be used as general data RAM. Therefore, whatever data you send to the DDRAM, it’ll get displayed on the LCD. As long as the characters count is below 32 (for 16×2 LCD), it’ll be visible. Otherwise, written characters are stored in the DDRAM but not visible.

The table down below shows you the standard ASCII equivalent characters for the LCD display stored in the CGROM. And you can also create your custom characters and symbols if you want to, as we’ll see in a future tutorial. Note the “A” character which has a binary code of (0100 0001)b this is equivalent to 65 (the ASCII value for A in the ASCII table).

The cursor/blink control circuit generates the cursor or character blinking. The cursor or the blinking will appear with the digit located at the display data RAM (DDRAM) address set in the address counter (AC).

There are two ways to interface the LCD diver (controller) IC. You can use the full bus width (8-Bits) for data or alternatively you can use a 4-Bit interface for a reduced pin count needed to control the LCD. Specifically low pin count MCUs need to operate in the 4-Bit mode.

At the beginning of your system’s firmware, you should do some initialization steps for the LCD display before it’s usable. These steps are listed by the manufacturer of the LCD Driver IC and let your LCD know how it’s going to operate afterward. Which interface mode you’ll be using (4 or 8 bits), which font and so on.

The LCD takes some time to process commands or data. Therefore, there must be a small delay before issuing a new command to the LCD. This delay could be chosen arbitrarily as long as it’s longer than the time required by the LCD itself as indicated in the datasheet. Alternatively, you can just read the busy flag bit to know whether the previous command was successfully processed or not.

When a data or a command is sent to the LCD, the BF or D7 bit of the LCD becomes 1 and as soon as the command is successfully processed, the BF becomes 0.

And here is another table for some commands examples that you can test yourself. We’ll implement a couple of them in the following practical LABs and the rest are left for you to experiment with.

First of all, we should define the IO pins which we’ll be using to interface the LCD. It’s a recommended practice to isolate the hardware drivers firmware from the application layer and for the sake of portability of your code. This step makes your code less dependent on the specific MCU chip you’re using in the current project.

if at any point you found out that a specific pin must be changed, it’ll be an easy task to change it without searching your code and replacing each and every single occurrence for that line of code.

We’ll be using the 4-Bit interface in these tutorials as it’s the most common and most wished for. Nobody wants to consume all of his microcontroller’s pins just to hook an LCD. In fact, there is an I2C interface for the LCD which we’ll be using in a future tutorial and its main feature is reducing the pin count used for LCD control.

All in all, what we need now is a routine to parse out half-a-byte of data and send these bits to the corresponding pins of the IO pins associated with LCD Data. Here is a simple implementation for such a routine.

As we’ve discussed earlier in this tutorial, sending a command to the LCD should start with selecting the command register. Then the command data is transferred to the LCD io data pins. Then we should clock or send enable signal pulse. This routine is followed in general settings, whether it’s a 4-Bit interface of an 8-Bit.

Now, it’s time to create the LCD initialization routine. This function is an exact implementation of the steps we’ve discussed earlier in this tutorial. The 4-Bit interface initialization steps are indicated in a previous flow chart and our task right now is to implement it in C.

Sending an 8-Bit character to the LCD followed by an enable pulse (clock) will display that character on the LCD. However, in our case of using a 4-Bit interface, this step will be divided into two consequent steps. First of which is parsing the 8-Bit character into a high_nibble and low_nibble. Then we’ll send the high4 bits first followed by an EN clock, then we’ll send the low4 bits followed by another EN clock. And that’s it!

To send a string to the LCD, we’ll need a loop to repeatedly send characters to the LCD until a buffer end is found, and typically it’s the NULL character “\0”. Here is the implementation of this routine.

As you’ve seen in the previous sections, the datasheet of the LCD driver IC includes all the command that it could handle. And we’re going to add a couple of them to our LCD Driver code. All the rest are left for you to experiment with. Some specific commands may help you in specific projects and it’s up to you to decide on which one you need to implement.

The commands I’m going to implement in this section are the most used ones in different projects. And will help you get more familiar with sending commands in 4-Bit mode. And there is no difference from what we’ve done so far.

The header file includes only the declarations of sub-routines with simple documentation indicating the functionality of each routine and what it takes and returns if it’s not void, etc. The LCD.h header file will be something like this

It’s now way more clean/clear. And it’s easier to debug or extend the functionality of your LCD driver module. Here is the compiled project, download it and customize it as you wish.

Open the MPLAB IDE and create a new project name it “LCD_16x2_LAB1”. If you have some issues doing so, you can always refer to the previous tutorial using the link below.

Open the MPLAB IDE and create a new project name it “LCD_16x2_LAB2”. If you have some issues doing so, you can always refer to the previous tutorial using the link below.

In this tutorial, we’ve implemented some of the most common LCD commands that you are most likely to use in your various projects. However, there still are some other commands that you can implement and test on your own. Just get the datasheet and start tinkering around and if you feel stuck at any point, just drop me a comment and I’ll be here to help you.

As we’ve discussed in a previous section, it’s a recommended practice to separate your device drivers layer from the application layer as much as possible. It helps in terms of portability and enhances code re-usability. Each device driver should have a header file .h and a source file .c and you can #include this library in whichever project you want. Reducing the time to port your project to another platform (microcontroller).

You can use the sprintf function from the standard library by including stdio.h. Now you can combine numbers (int, float, etc) with text in a single array “string” that you can print out on your LCD. We’ve done this in a previous lab for the LM35 sensor.

In this tutorial we will see How to Interface a 16×2 character LCD module with PIC 16F877A Microcontroller using MPLAB X IDE and MPLAB XC8 C Compiler. 16×2 Character LCD is a very basic and low cost LCD module which is commonly used in electronic products and projects. 16×2 means it contains 2 rows that can display 16 characters. Its other variants such as 16×1 and 16×4 are also available in the market. In these displays, each character is displayed using 5×8 or 5×10 dot matrix.

For controlling LCD using MPLAB XC8 compiler we need to know the hardware of LCD. These LCDs commonly uses HD44780 compliant controllers. So we need to learn HD44780 Dot Matrix LCD Controller Datasheet. Don’t worry we already developed an LCD library including commonly used functions, so you can use it without any hardware knowledge of LCD.

First two pins GND and VCC (VSS and VDD) are for providing power to LCD display. 3ed pin VEE is used to control the contrast of the LCD display. A 10KΩ preset whose fixed ends connected to VDD, VSS and variable end connected to VEE can be used to control contrast of the LCD. A microcontroller or microprocessor need to send 2 types of information for operating this LCD Module, Data Information and Command Information. Data Information is the ASCII value of the characters to be displayed in the LCD screen and Command Information determines other operations such as position to be displayed, clear screen, shift etc. Data and Command Information are send to LCD through same data lines (DB0 – DB7) which are multiplexed using RS (Register Select) pin of LCD. When RS is HIGH LCD treats DB0 – DB7 data pins information as Data to be displayed and when it is LOW LCD treats it as Command Information. Enable (E) input of the LCD is used to give Data Strobe. HIGH (5V) Voltage Level in the Enable (E) pin tells the LCD that DB0 – DB7 contains valid information. The input signal R/W (Read or Write) determines whether data is written to or read from the LCD. In normal cases we need only writing hence it is tied to GROUND in circuit shown below.

The interface between this LCD and Microcontroller can be 8 bit or 4 bit and the difference between them is in how the data or commands are send to LCD. In the 8 bit mode, 8 bit data and commands are send through the data lines DB0 – DB7 and data strobe is given through E input of the LCD. But 4 bit mode uses only 4 data lines. In this 8 bit data and commands are splitted into 2 parts (4 bits each) and are sent sequentially through data lines DB4 – DB7 with its own data strobe through E input. The idea of 4 bit communication is introduced to save pins of a microcontroller. You may think that 4 bit mode will be slower than 8 bit. But the speed difference is only minimal. As LCDs are slow speed devices, the tiny speed difference between these modes is not significant. Just remember that microcontroller is operating at high speed in the range of MHz and we are viewing LCD with our eyes. Due to Persistence of Vision of our eyes we will not even feel the speed difference.

Hope that you got rough idea about how this LCD Module works. Actually you need to read the datasheet of HD44780 LCD driver used in this LCD Module to write a MPLAB XC8 program for PIC. But we solved this problem by creating a header file lcd.h which includes all the commonly used functions using 4 bit mode. Just include it and enjoy.

Lcd_Set_Cursor(int row, int column) : This function is used to set row and column of the cursor on the LCD screen. By using this function we can change the position of the character or string displayed by following functions.

sprintf() can be used to write formatted string to a variable. It can be used with this LCD library to format displayed texts. This enables us to display integers and floating point numbers on the LCD very easily. You should include the header file stdio.h for using sprintf().

Unsigned Integer with decimal place inserted. Specify two numbers for n. The first is a total field width. The second is the desired number of decimal places.

In this tutorial, you will learn to interface anLCD with a pic microcontroller. It is very simple and easy to understand the project for beginners and is commonly used in several electronic products. LCD (Liquid Crystal Display)provides a user-friendly interface and can be very useful for debugging purposes. After completion of this tutorial, you will be able to display data on an LCD using MPLAB XC8 Compiler and Mikro C compiler. We will provide examples with two Compilers such as MPLAB XC8 Compiler and Mikro C for PIC.

The reason LCD is more popular than LED, Seven Segment displays. Because we can display characters, numbers and custom characters with ease ( Just by easily programming a module).

First of all, to interface LCD with a pic microcontroller, we used GPIO pins.  GPIO pins are general-purpose input-output pins. Because we send control and data signals to LCD through these I/O pins.  Therefore, you should know how to use digital input-output pins of the pic microcontroller. To know about GPIO pins programming, check these tutorials:

It can work in two modes, 4-bit and 8-bit. In this tutorial, we have used the 4-bit mode which uses only 4 data lines, thus saving pins of the microcontroller. So It is recommended to use LCD in four bits mode to save pins of the microcontroller for other applications.

As you can see in this diagram, if we use 8-bit mode interfacing, we will need to use 11 pins of pic microcontroller. On the other hand, if we use 4-bit mode, we need only 6 GPIO pins. Therefore, it is recommended to use 4-bit mode interfacing.  The only difference between  4-bit and 8-bit is that data transfer speed is faster for 8-bit mode. However, it doesn’t make any major difference.

A variable resistor is used to adjust the contrast of 5×8 dot pixels according to background light. Therefore, if you are not able to see anything on LCD after programming, the maximum changes are that you need to adjust contrast with the variable resistor. This contrast register makes adjust to the voltage applied on the VEE pin.

For MPLAB XC8 Compiler, we will use the PIC18F4550 microcontroller. For MikroC Pro for PIC, we will use the PIC16F877A microcontroller. In the case of MPLAB XC8, we will develop our own LCD library. Because the XC8 compiler does not provide built-in libraries. In the contrary, MikroC Pro provides libraries for all modules such as LCD, Keypad, ADC Module, UART module.

In this section, we will see how to write example code for 16×2 LCD interfacing with PIC18F4550 microcontroller. Although, you can use see code with other Pic microcontrollers also.

As we mentioned earlier, we can use the 8-bit mode and 4-bit mode interfacing. But due to the efficient use of MCU pins, we will be using 4-bit Mode. To interface LCD, we follow these steps:

In this circuit, we used the PORTB of PIC18F4550. But you can use any PORT. To do this, we need to change the pin assignment inside the code. I will show you how to assign pins for LCD in the next section.

These lines define which pins of the pic microcontroller should connect with LCD. For instance, in this example, we used the PORTD of PIC18F4550 microcontroller. Connect RD0-RD3 pins with D4-D7 pins of LCD respectively and other pins with RW, EN, RS and Power pins. But you can change PORT to other PORT of PIC microcontroller also by changing the PORT name with these commands.

LCDWriteNibble() function is used to write a nibble. Nibble is basically a half a byte. Because we are using LCD in four bits mode. Therefore, we need to send 8-bit commands/data in four bits chunks. This function writes the specified nibble to the LCD.

Because we will use 4-bit mode, data and commands transfer in 4-bits format. Even it requires at least 8-bit to display a character. To resolve this issue, we send data in a 4-bits format two times.

void LCDPutChar(char ch): Writes a character to LCD at current cursor position. This function displays the specified ASCII character at the current position on the LCD.

LCDGoto(char pos, char ln): This function positions the cursor at the specified line and column. Column and line at which the cursor should be positioned between 0-15 for pos (column) and 0-1 for ln(row).

In last section, we have seen how to display ASCII characters or string. But in almost all practical projects, we need to display, integer, float values. This code displays the counter value which increments from 0-9 after every one second. This is the main function of code only. Because the rest of the code is same as the previous program example.

In this section, we will see how to interface LCD with pic microcontroller and programming examples using MikroC for pic. MikroC pro has a built-in library.

We have used 16×2 LCD which means there are 2 rows and 16 characters in each row. So we can display a total of 32 characters at a time in two rows with 16 characters in each row.

This is the main command which prints our text on LCD. It also gives the privilege to specify the position of the text. In the horizontal direction, we count rows number and in a vertical direction, we count the column number. In above command,

However if your string is longer than the number of characters that could be displayed in a row from the starting position, the last characters will not be displayed. E.g. Lcd_Out (1, 6 “LCD Interface”);will display text in row 1 starting from column position 6 and will display only LCD Interfacethe rest of the characters will not be displayed as there is no room for them.

void Lcd_Out_Cp(char *text);will start printing the text from the current cursor position. For example after printing Lcd_Out (1, 1, “LCD”);if you write Lcd_Out_Cp(“Hello”);it will display “Hello”at a position from column position of 4 in row 1.

void Lcd_Chr(char row, char column, char out_char);allows only single characters to be displayed at specified positions. E.g. Lcd_Chr(2, 5, ‘A’); will print only A on column 5 row 2.

void Lcd_Chr_Cp(char out_char); allows to print only single character from current cursor position like after Lcd_Chr(2, 5, ‘A’);if your writeLcd_Chr_Cp(‘B’);it will be printed at row 2 column 6.

To interface LCD withPIC16F877A and display the text ‘LCD INTERFACE’ on it. LCDs come in different sizes and shapes. For this project, we have selected a 16×2 character, alphanumeric LCD. It contains 2 rows of 16 character.

When using PIC microcontroller, the mikroC compiler has a built-in LCD library that supports the commands to carry out LCD initialization. The library consists of a number of functions to control LCDs with 4-bit data interface.

The main program first clears the LCD screen and then displays “LCD INTERFACE” in the first row of LCD. The LCD pin directions are all set as outputs. The RS pin of LCD is set to 1, which indicates that the information received from DB4-DB7 is a valid text to be printed on LCD screen. The EN pin is also set to 1 which indicates that data is send to the LCD.

Programmed LCDs are vastly used for industrial as well as commercial applications. LCDs are used in UPSs or inverters, where voltage and current readings are displayed on the screen. Instructions to be followed are displayed on an LCD screen in airports, banks, hospitals, etc. If you still have any issue after reading this article, feel free to comment on this post with your issues.

Thearduino LCD Keypad shieldis developed for Arduino compatible boards, to provide a user-friendly interface that allows users to go through the menu, make selections etc. It consists of a 1602 white character blue backlight LCD. The keypad consists of 5 keys select, up, right, down and left. To save the digital IO pins, the keypad interface uses only one ADC channel. The key value is read through a 5-stage voltage divider.

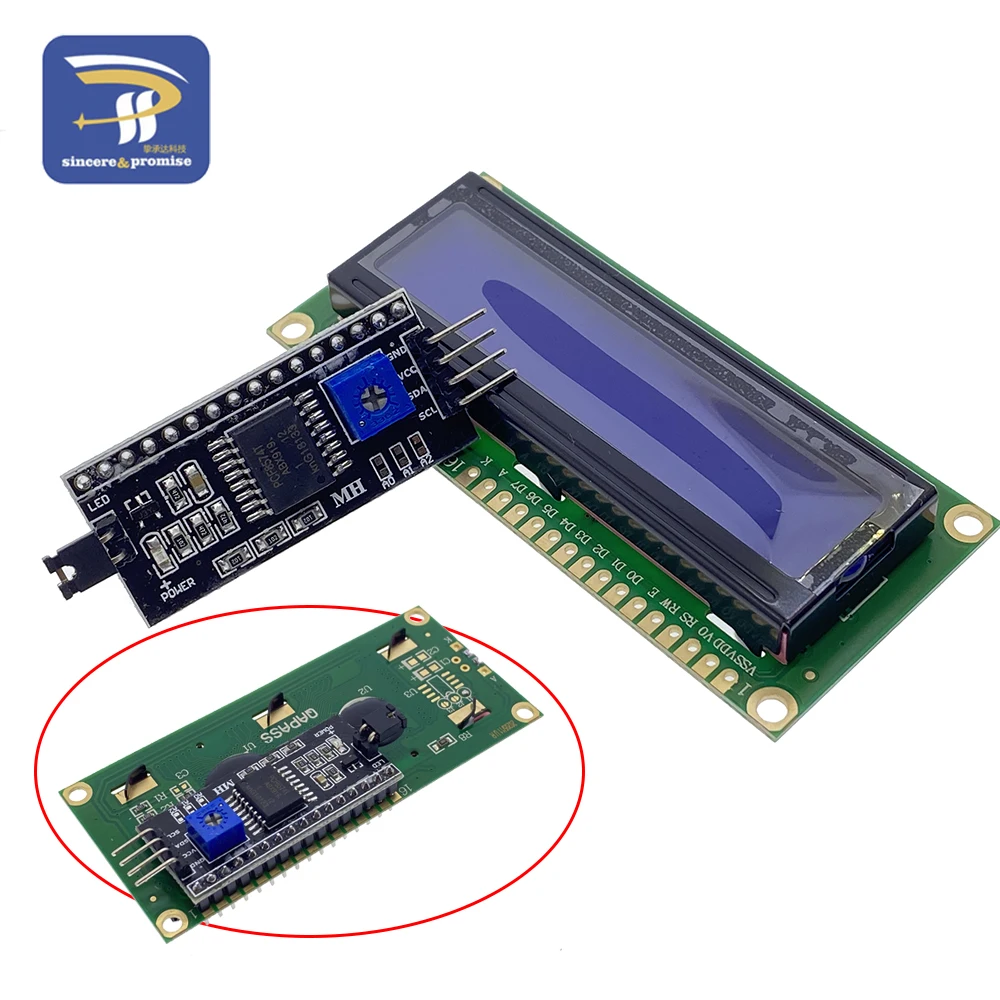

The 16x2 Alphanumeric LCD Display Module is equally popular among hobbyists and professionals for its affordable price and easy to use nature. As the name suggests the 16x2 Alphanumeric LCD can show 16 Columns and 2 Rows therefore a total of (16x2) 32 characters can be displayed. Each character can either be an alphabet or number or even a custom character. This particular LCD gas a green backlight, you can also get a Blue Backlight LCD to make your projects stand our and visually appealing, apart from the backlight color both the LCD have the same specifications hence they can share the same circuit and code. If your projects require more characters to be displayed you can check the 20x4 Graphical LCD which has 20 Columns and 4 Rows and hence can display up to 80 characters.

The 16x2 LCD pinout diagram is shown below. As you can see the module has (from right) two power pins Vss and Vcc to power the LCD. Typically Vss should be connected to ground and Vcc to 5V, but the LCD can also operate from voltage between 4.7V to 5.3V. Next, we have the control pins namely Contrast (VEE), Register Select (RS), Read/Write (R/W) and Enable (E). The Contrast pin is used to set the contrast (visibility) of the characters, normally it is connected to a 10k potentiometer so that the contrast can be adjusted. The Read/Write pin will be grounded in most cases because we will only be writing characters to the LCD and not read anything from it. The Register Select (RS) and Enable pin (E) pin are the control pins of the LCD and will be connected to the digital pins GPIO pins of the microcontroller. These pins are used to instruct the LCD where place a character when to clear it etc.

From DB0 to DB7 we have our eight Data Pins which are used to send information about the characters that have to be displayed on the LCD. The LCD can operate in two different modes, in the 4-bit Modeonly pins DB4 to DB7 will be used and the pins DB0 to DB3 will be left idle. In 8-bit Mode, all the eight-pin DB0 to DB7 will be used. Most commonly the 4-bit mode is preferred since it uses only 4 Data pins and thus reduces complexity and GPIO pin requirement on the microcontroller.Finally, we have the LED+ and LED- pins which are used to power the backlight LED inside our Display module. Normally the LED+ pin is connected to 5V power through a 100 ohm current limiting resistor and the LED- pin is connected to Ground.

This 8051 Microcontroller Programming Interfacing Board with ZIF Socket comes with 16x2 LCD Display and have on-board Atmel AT89S52 IC & RS232 IC. 8051 Microcontroller Interfacing Board has DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC. ZIF Socket Protect Your Microcontroller From Damage. | ABOUT 8051 PROGRAMMER: For How To Program 8051 AVR Microcontroller |How to install driver | Circuit Diagram-Connection|Driver For All Windows OS 64|32-bit (All in 1 RAR file) Download= https://bit.ly/progallinfo | AVR 8051/8052 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable.Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) ATmega 8/328, 16, 32 etc with the same Programmer.For Supported IC List: SEE Product Images.It is low cost USB based programmer.No need to take out Target Micro controller from the development Board.Programmer will work with variety of Atmel AVR & 8051 microcontroller.ItAllows You to Read/Write the Microcontroller Flash,EEPROM,Fuse Bit & Lock Bit.Support Windows OS(Xp to 10),Mac OS X & Linux. ATmega8 with USBasp Firmware Pre-loaded.SCK Option to Support Targets With Low Clock Speed(<1.5 MHz).5 KB/sec Maximum Write Speed. Programmer can Provide 5V supply for Target Microcontroller,so No Need of Any External Supply.Two Status LEDs|Green LED:Power Supply Indicator|RED LED :It is ON While Programmer is Busy.6 pin Polarized ISP Interface for Easy Connection.Supported Software: Progisp,AVRdude,Khazama AVR Programmer | ABOUT 8051 DEVELOPMENT BOARD: If You are Learning Microcontroller Programming & want to make Project based on 8051 microcontroller then This Board will help you.With this board you can Develop & Prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx etc) 40 pin microcontrollers. 1.5 Amp Bridge Rectifiers allow this board to be Powered with both AC & DC power supply adapters.It RS232 Serial port for flashing like P89V51RD2 (NXP) microcontrollers & also use for interfacing GSM module,GPS Module,RFID Module.There is 5V, 12V, GND Power bus which allow to Power external Peripherals module. FEATURES of 8051 Board:DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC. ZIF Socket Protect Your Microcontroller From Damage.RS232 Interface Circuit for Easy Communication with PC & other Serial Devices(GPS modules, GSM Modems, etc).High quality FR-4(1.6 mm) PCB.On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply .Recommended Input Voltage : 9-12V.Min-Max Input Voltage : 9-18V.On-Board 5 mm Power Plug-in DC Jack.On-Board 5V regulator (LM7805) circuit.On-Board Power ON - OFF switch.On-Board power indication RED LED.On-Board GREEN USER LED connected to P2.0 through jumper JP3.On-Board Input User Switch P3.3 through jumper JP2.On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.On-board Quartz Crystal 11.05892 MHz.Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin.External Pull-Up resistors for Port 0.On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.Four 3mm mounting hole for easy mounting.On-board Reset button.Dimensions: 12cm x 6.4cm. | ABOUT 16x2 LCD DISPLAY: This is 16 x 2 LCD Display with Yellow/Green Backlight ASCII Alphanumeric Character.16×2 LCD Display Support mostly All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc. About 16×2 LCD Display: 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Back light. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more it has JHD162A Compatible Pinout Diagram and Command Interface code is freely available. Finally You will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen.It also Includes LED back-light.Features of 16×2 Display LCD: Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.| LCD display module with Green/Yellow Backlight.| SIZE: 16×2 (2 Rows and 16 Characters per Row) | Can display 2-lines X 16-characters | Operate with 5V DC | Wide viewing angle and high contrast | Built-in industry standard HD44780 equivalent LCD controller | LCM type: Characters. | NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM. For Example Code of 8051 Microcontroller & Have any Queries; Please Contact Us mytechnocare.info@gmail.com or Visit Mytechnocare Website.| DOWNLOAD: For How to install driver |Circuit Diagram|Connection|Program 8051 AVR Microcontroller|Driver For All Windows OS 64-bit & 32-bit = https://bit.ly/progallinfo | Note:Design,color or Parts of the Product may vary as per the Availability.

Learn Lcd interfacing with 8051 development Board.8051 Project Kit Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip. USB asp Programmer can be used for both 8051-AVR IC (2in1) | 16 x 2 LCD Display has Yellow/Green Backlight

If you are learning LCD Interfacing with microcontroller programming and want to make a project based on 8051 microcontrollers then this board will help you. Using 16×2 LCD Interfacing with 8051 Development Board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. Because The board has 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. The board having an RS232 Serial port for flashing the P89V51RD2 (NXP) microcontroller and also it is used for interfacing GSM module, GPS module, RFID module. Furthermore, there is a 5V, 12V, GND power bus which allows to power external peripherals module.

16×2 LCD Display Support mostly All Digital Microcontrollers such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi, etc. Here it is Provided with onboard Atmel AT89S52 Microcontroller Project Board. So Users can learn 16×2 LCD interfacing with the 8051 Development Board.

First of all 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Backlight. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more, it has JHD162A Compatible Pin-out Diagram, so the Command Interface code is freely available. Finally, You will need 7 general I/O pins (If used in 4-bit Mode) to interface to this LCD screen. it also includes an LED backlight. Learn How To Interface 8051 Development Board with LCD 16×2 Display using 8051/AVR USB Programmer for Burn/Flash Hex File into Atmel AT89S52 Microcontroller. By 16×2 LCD interfacing with 8051 Development Board, the user can display Alphanumeric characters.
