Our pursuit and enterprise aim would be to "Always fulfill our buyer requirements". We carry on to acquire and layout excellent quality items for the two our old and new clients and realize a win-win prospect for our shoppers in addition as us for Lcd Panel And Controller, Touchscreen Display Module, Tft Mobile Color Monitor, As a result of our hard perform, we have always been around the forefront of clean technology merchandise innovation. We"ve been a eco-friendly partner you can rely on. Get hold of us today for additional data!

We emphasize progress and introduce new merchandise into the market each and every year for Factory Free sample Tft Color Display - 8.0 inch 800×600 / 1280×720 / 8.8 inch BOE Industrial TFT LCD Display – DISEN , The product will supply to all over the world, such as: Rome, Germany, Swaziland, As an experienced group we also accept customized order and make it same as your picture or sample specifying specification and customer design packing. The main goal of our company is to build up a satisfactory memory to all customers, and establish a long term win-win business relationship. Choose us, we always wait for your appearance!

As a TFT LCD manufacturer, we import mother glass from brands including BOE, INNOLUX, and HANSTAR, Century etc., then cut into small size in house, to assemble with in house produced LCD backlight by semi-automatic and fully-automatic equipment. Those processes contain COF(chip-on-glass), FOG(Flex on Glass) assembling, Backlight design and production, FPC design and production. So our experienced engineers have ability to custom the characters of the TFT LCD screen according to customer demands, LCD panel shape also can custom if you can pay glass mask fee, we can custom high brightness TFT LCD, Flex cable, Interface, with touch and control board are all available.

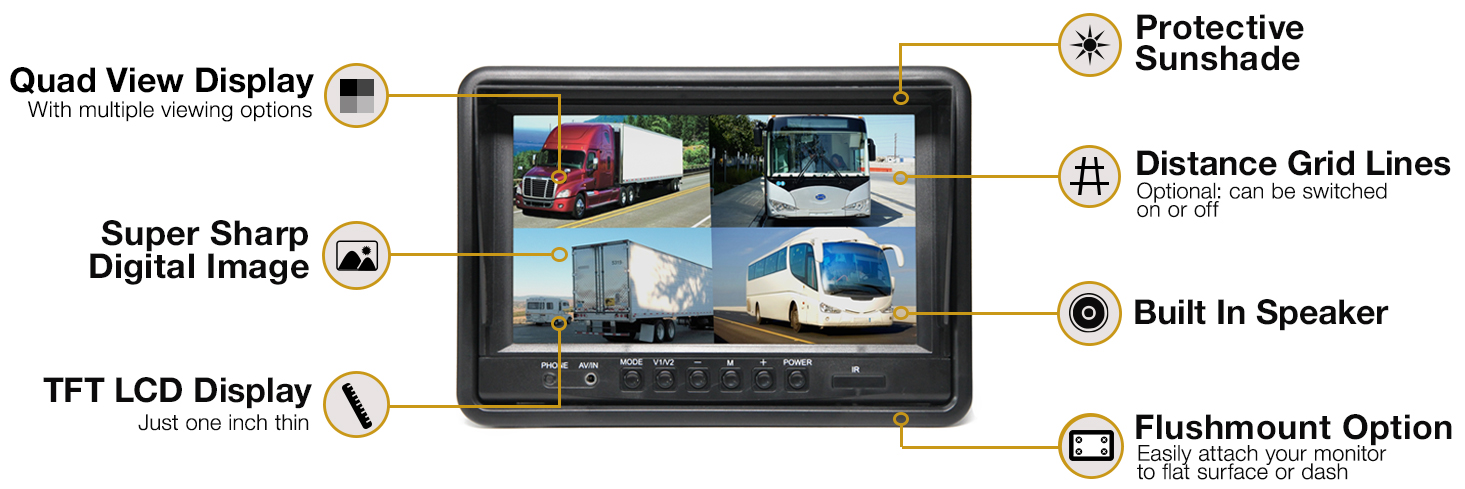

tft lcd color monitor free sample

Add some dazzle to your project with this 1.45" diagonal graphic TFT LCD display module. You"ll often see this display advertised as a 1.44" Color TFT but we rounded up instead. This small display packs 128x128 full-color pixels into one square inch of active display area. It is a great choice when you need color and sharp detail while using minimal front panel space. At less than 5 grams, the display adds very little weight to handheld or wearable devices.

While the SPI interface requires only a few lines to control this TFT LCD module, it is still possible to transfer data at a rate that supports 20 FPS (Frames Per Second) screen updates -- fast enough to play a full motion video.

tft lcd color monitor free sample

As an option, you can order this TFT pre-assembled onto a breakout/carrier board. The board allows easy prototyping through its 0.1" headers. You can also include the carrier board in your end product to simplify construction and assembly.

This kit consists of a CFAF320240F-035T a 320x240 3.5" Full Color TFT LCD module mounted on a carrier board (CFA-10074). The carrier board supports a current driver for the LED backlight of the display.

This TFT LCD display module is perfect for the designer who"s looking to have a graphic and audio processor already embedded in the display unit. Powered by an FTDI/BridgeTek FT810 Embedded Video Engine (EVE) graphics accelerator chip, simply send over a few commands via SPI or I2C and the EVE will put your stored image up on the display. Need to draw a line, create dials/knobs/buttons, or rotate an image? Send a handful of bytes and the EVE will take care of it.

tft lcd color monitor free sample

If you already know how to use these images.For viewing the images off-line (120 kB ZIP).All images, but with the color profiles stripped, in case you

tft lcd color monitor free sample

Hi guys, welcome to today’s tutorial. Today, we will look on how to use the 1.8″ ST7735 colored TFT display with Arduino. The past few tutorials have been focused on how to use the Nokia 5110 LCD display extensively but there will be a time when we will need to use a colored display or something bigger with additional features, that’s where the 1.8″ ST7735 TFT display comes in.

The ST7735 TFT display is a 1.8″ display with a resolution of 128×160 pixels and can display a wide range of colors ( full 18-bit color, 262,144 shades!). The display uses the SPI protocol for communication and has its own pixel-addressable frame buffer which means it can be used with all kinds of microcontroller and you only need 4 i/o pins. To complement the display, it also comes with an SD card slot on which colored bitmaps can be loaded and easily displayed on the screen.

Due to variation in display pin out from different manufacturers and for clarity, the pin connection between the Arduino and the TFT display is mapped out below:

We will use two libraries from Adafruit to help us easily communicate with the LCD. The libraries include the Adafruit GFX library which can be downloaded here and the Adafruit ST7735 Library which can be downloaded here.

We will use two example sketches to demonstrate the use of the ST7735 TFT display. The first example is the lightweight TFT Display text example sketch from the Adafruit TFT examples. It can be accessed by going to examples -> TFT -> Arduino -> TFTDisplaytext. This example displays the analog value of pin A0 on the display. It is one of the easiest examples that can be used to demonstrate the ability of this display.

The first thing, as usual, is to include the libraries to be used after which we declare the pins on the Arduino to which our LCD pins are connected to. We also make a slight change to the code setting reset pin as pin 8 and DC pin as pin 9 to match our schematics.

Next, we create an object of the library with the pins to which the LCD is connected on the Arduino as parameters. There are two options for this, feel free to choose the most preferred.

All the functions called under the void setup function, perform different functions, some draw lines, some, boxes and text with different font, color and size and they can all be edited to do what your project needs.

Uploading the code to the Arduino board brings a flash of different shapes and text with different colors on the display. I captured one and its shown in the image below.

tft lcd color monitor free sample

Established in 2010, Topfoison has devoted itself to the manufacturing and development of high-quality products for the Wearable device, Smart Watch, VR, Medical device, Industrial LCD display including Color LCD modules/OLED/LCD display/Round lcd screen/Round AMOLED/ Square transflective lcd screen/ IPS full wide display/ 1080p fhd AMOLED and 2K 1440p lcd. Topfoison focus on1.22-7.0 inch small size displays, all the products produced in our company enjoys the most advanced production craft and technology as well as the strictly ISO quality management system.

tft lcd color monitor free sample

With how fast technology changes, constantly learning and staying open-minded helps us stay on top of our game especially when we’re striving to be the best in our field. Brush up on your LCD knowledge with us!

tft lcd color monitor free sample

In this Arduino touch screen tutorial we will learn how to use TFT LCD Touch Screen with Arduino. You can watch the following video or read the written tutorial below.

The next example is controlling an RGB LED using these three RGB sliders. For example if we start to slide the blue slider, the LED will light up in blue and increase the light as we would go to the maximum value. So the sliders can move from 0 to 255 and with their combination we can set any color to the RGB LED, but just keep in mind that the LED cannot represent the colors that much accurate.

As an example I am using a 3.2” TFT Touch Screen in a combination with a TFT LCD Arduino Mega Shield. We need a shield because the TFT Touch screen works at 3.3V and the Arduino Mega outputs are 5 V. For the first example I have the HC-SR04 ultrasonic sensor, then for the second example an RGB LED with three resistors and a push button for the game example. Also I had to make a custom made pin header like this, by soldering pin headers and bend on of them so I could insert them in between the Arduino Board and the TFT Shield.

Here’s the circuit schematic. We will use the GND pin, the digital pins from 8 to 13, as well as the pin number 14. As the 5V pins are already used by the TFT Screen I will use the pin number 13 as VCC, by setting it right away high in the setup section of code.

I will use the UTFT and URTouch libraries made by Henning Karlsen. Here I would like to say thanks to him for the incredible work he has done. The libraries enable really easy use of the TFT Screens, and they work with many different TFT screens sizes, shields and controllers. You can download these libraries from his website, RinkyDinkElectronics.com and also find a lot of demo examples and detailed documentation of how to use them.

After we include the libraries we need to create UTFT and URTouch objects. The parameters of these objects depends on the model of the TFT Screen and Shield and these details can be also found in the documentation of the libraries.

So now I will explain how we can make the home screen of the program. With the setBackColor() function we need to set the background color of the text, black one in our case. Then we need to set the color to white, set the big font and using the print() function, we will print the string “Arduino TFT Tutorial” at the center of the screen and 10 pixels down the Y – Axis of the screen. Next we will set the color to red and draw the red line below the text. After that we need to set the color back to white, and print the two other strings, “by HowToMechatronics.com” using the small font and “Select Example” using the big font.

Next is the distance sensor button. First we need to set the color and then using the fillRoundRect() function we will draw the rounded rectangle. Then we will set the color back to white and using the drawRoundRect() function we will draw another rounded rectangle on top of the previous one, but this one will be without a fill so the overall appearance of the button looks like it has a frame. On top of the button we will print the text using the big font and the same background color as the fill of the button. The same procedure goes for the two other buttons.

Here’s that function which uses the ultrasonic sensor to calculate the distance and print the values with SevenSegNum font in green color, either in centimeters or inches. If you need more details how the ultrasonic sensor works you can check my particular tutorialfor that. Back in the loop section we can see what happens when we press the select unit buttons as well as the back button.

Ok next is the RGB LED Control example. If we press the second button, the drawLedControl() custom function will be called only once for drawing the graphic of that example and the setLedColor() custom function will be repeatedly called. In this function we use the touch screen to set the values of the 3 sliders from 0 to 255. With the if statements we confine the area of each slider and get the X value of the slider. So the values of the X coordinate of each slider are from 38 to 310 pixels and we need to map these values into values from 0 to 255 which will be used as a PWM signal for lighting up the LED. If you need more details how the RGB LED works you can check my particular tutorialfor that. The rest of the code in this custom function is for drawing the sliders. Back in the loop section we only have the back button which also turns off the LED when pressed.

tft lcd color monitor free sample

Calibration is a subject which comes up frequently wherever there is discussion of monitors. As you will hopefully realise from our reviews, there are two important things to consider when purchasing a new screen, and when you might be concerned about it’s ability to render colours accurately: 1) How does the screen perform at default colour settings?, and 2) how can it perform with correct calibration? There are several methods to calibrating your screen which we will discuss below in this article. However, it should be understood first of all that to get truly calibrated settings, and good colour accuracy, you are likely going to need to invest in a hardware calibration solution. This is why we discuss a monitors performance at default settings in our reviews and how the screen is preset in the factory before being shipped. Most users will not have access to hardware colorimeter/spectrophotometer devices, and they are generally not cheap. It’s important therefore to understand what kind of performance you can expect from your screen with basic software configuration.

Colour Depth – For the best colour reproduction you probably need a panel capable of a full 8-bit colour depth, or perhaps a modern 10-bit panel. An 8-bit module offers a true 16.7 million colour palette without the need for FRC technologies used in 6-bit panels. IPS and VA panels typically offer this, whereas TN Film panels do not. Modern 10-bit panels are becoming more widely used, and most use FRC to increase the colour depth from 8-bit (8-bit +FRC) giving rise to a colour depth of 1.07 billion colours. There are very few ‘true’ 10-bit modules available but there are some out there, usually at a very high cost. Some models offer further enhancements such as a extended internal Look Up Tables (LUT’s) where an even wider colour palette is available to choose from. These can help improve gradients and colour rendering capabilities and are often used in higher end professional grade monitors.

Colour Gamut. This describes the range of colours which the monitor can produce compared with that which the human eye can detect. You can read more about gamut here, but typically the more expensive screens feature enhanced gamut backlighting. As such, it is normally the models featuring IPS and VA panels which feature the wider gamuts. Modern LED backlighting is being more widely used as well, read more about that in this article.

Gamma– This describes the non-linear relationship between the pixel levels in your computer and the luminance of your monitor. Gamma affects middle tones; it has no effect on black or white. If gamma is set too high, middle tones appear too dark. Conversely, if it’s set too low, middle tones appear too light. We aim for a gamma level of 2.2 which is the default for computer monitors and is the standard for the Windows operating system and the Internet-standard sRGB color space. The farther you drag the video system from this optimal level, the more calibration artefacts such as shadow banding and posterization appear. Therefore, a gamma of 2.2 allows for the maximum range of colors your system can display.

Luminance – We aim for a luminance (often referred to as brightness as well) of 120 cd/m2, which is the recommended luminance for LCD displays in normal lighting conditions.

Colour Gamut – Represented by the CIE diagram (on the left of the report), this can’t be calibrated as such, it more gives an indication of how much of the human eye’s colour space the screen can cover in its reproducible shades. The larger the monitors gamut (represented by the triangle), the better really.

Black Depth – is the monitor luminance or print reflectance for value = pixel level = 0; i.e. it is the deepest black in the monitor. The lower the value recorded, the better. We aim for 0.0 cd/m2 (truly black), but in practice it doesn’t reach this low on modern LCD screens.

DeltaE / Colour Accuracy – We aim for the best colour accuracy possible, where the colour displayed by the monitor is as close as possible to the colour requested by the graphics card. On our DeltaE graphs (as shown above), the lower the bars are down the graph’s Y-axis, the better in terms of colour accuracy. For reference, LaCie describe the DeltaE readings as:

These are the settings we aim for when calibrating a monitor in our tests, and is what your calibration process should work towards, regardless of whether you are using software or hardware methods.

Commonly LCD monitors come set with a default 100% brightness which means that luminance is way above the desired 120 cd/m2 we aim for. This is frequently the main issue with LCD monitors, and is something which can be corrected to a comfortable level at least using software methods. Contrast can also be improved to a degree, and colour levels can be evened and at least appear to be at a nice setting. All these methods rely on the human eye, and so the individual preferences and ambient lighting conditions come into consideration here.

The first calibration utility is a simple gray scale consisting of 17 steps between white (255) and black (0). Adjust your monitor’s brightness and contrast controls so that the full range of the scale is visible. The darkest step visible (Step 16) should be just barely visible against the black background surrounding the scale.

The second calibration utility gives a bit more control. You should be able to adjust the monitor controls and, if possible, the system gamma from your GFX card settings, to be able to detect the small squares within all of the larger squares of the array.

Adjust your monitor’s colour levels. If your monitor is properly calibrated you will see distinct steps between all 21 steps of each color strip and the steps will be uniform in appearance.

Adjust your monitor’s colour levels again. If your monitor is properly calibrated you will see distinct steps between most of the 21 steps of each color strip and the steps will be uniform in appearance. Most monitors do not display the lightest end of the scale accurately so the last 2-3 lightest steps may look the same.

There is a very useful website here (http://www.lagom.nl/lcd-test/) which gives you various tests and methods for calibrating your screen. Well worth a look for some free “by eye” calibration.

There are many different software tools available, and in fact many manufacturers like to package their own software with the screen to allow calibration. For instance, Samsung package some of their screens with Natural Color Pro software which allows the user to calibrate their screen quickly and easily. Further software tools are available which might be worth taking a look at as listed below. There are also various test images available which can be handy for you to test, with the human eye, the colour levels you have arrived at.

Proper calibration of a monitor really requires you to use a hardware calibration device. These come in two varieties, with the more mainstream (and affordable) devices being colorimeters. You can also buy higher end spectrophotometers (such as the X-rite i1 Pro) which read the light differently, but the cost is probably prohibitive for most normal users. There are many different devices to choose from which vary greatly in price, performance and accompanying software packages. These devices are connected to your PC typically via USB, and feature a hardware module which you place over the screen. By running the software suite which comes with the device, the tool sits over a background which displays many different colours. These are then recorded by the device and used to establish how accurate the colours shown on the screen are compared with what is being requested by the graphics card. Once this difference is established, the device can be used to correct the difference as best as possible from the screen, and results in a calibrated profile being produced.

Hardware devices will typically run through the calibration process automatically once you have defined your target settings and been guided through some basic hardware adjustments using the OSD menu (brightness, contrast, RGB values). Apart from these changes, the majority of changes are implemented at a graphics card LUT (Look Up Table) level after that through the creation of the profile. Some higher end screens offer hardware level adjustments to the monitors LUT which can offer an even better level of accuracy. This is normally reserved for high end professional grade monitors.

The accuracy of these calibration devices obviously varies somewhat, and quite often you get what you pay for. Obviously the features and options of the software package come into play as well, and so cheaper devices typically offer limited calibration options and reporting functions, whereas high end devices are far more versatile. For professional grade calibration it is recommended to spend what is a considerable amount of money on a device which is well regarded. Manufacturers like Gretag and LaCie make a series of devices which are widely used on monitor review sites, and their higher end models feature extensive software options and provide detailed analysis and reporting of colour rendering.

If you want high end results, you are probably looking at spending in excess of £150 on a colorimeter, or >£800 if you want a spectrophotometer. The cost will vary depending on the software options taken with the device and anything else which might come in the package. There are of course cheaper options available which have proved popular. These are often more than adequate for most average users, and unless you’re really concerned with top notch accuracy for photo / graphics work, you probably don’t need much more. For example, the Spyder3 or Pantone Huey do a decent enough job of levelling colours and settings for most average users, and retails for around £60 in the UK. See our various reviews for more information about colorimeters, spectrophotometers and calibration software.

Profiles are commonly produced when calibrating a screen. They are preset saved settings for your particular graphics card / monitor combination and can be used to match different devices (e.g a monitor, printer, scanner, camera etc). These help ensure the settings remain consistent across all the devices, so that you don’t see different results on each one. Profiles are simply look-up tables that describe the properties of a color space. They define the most saturated colors available in a color space; i.e. the bluest blue or deepest black your monitor can produce. If you don’t have a profile, the trio of Red, Green, and Blue values (or CMYK) that make up a color have no particular meaning – you can say something is blue, but not exactly which shade of blue. Accurate profiles are the key to a color managed workflow. With accurate monitor and printer profiles, your prints will closely match what you see on your monitor. Without profiles, you need to rely on trial and error combined with guessing.

It should be noted that an ICC profile is produced based on your individual hardware components and set up. As such, it’s not possible to share ICC profiles with other users of the same monitor to achieve the exact same results. However, ICC profiles which are shared can often at least help improve settings and colour accuracy to a certain degree, and so are an easy method of attempting calibration without the need for a colorimeter. It certainly won’t hurt to try them if you can find an ICC profile has produced with a colorimeter and then has been shared by the user for your particular screen.

TFT Central has its own database of ICC profiles and monitor settings, which are taken from our own reviews and from reader submissions. You can view the entire ICC database here

Your display adaptor software should be set to 24 or 32 bit color (True Color). To see the setting, right-click on the Windows wallpaper (the background outside any open windows), then click on Properties > Settings.

tft lcd color monitor free sample

If you"re a graphic designer, video editor, or someone who watches videos on your computer, your computer monitor must be crisp and clear. Over time, a monitor can start to look dull, fuzzy, or too bright. Often, adjusting the monitor"s settings will help you get a better picture and improve your viewing experience.

Information in this article applies broadly to different types of PC monitors. Consult your device"s manual or the manufacturer"s website for further guidance.

Capabilities vary according to monitor type. For example, the maximum screen quality differs for CRT and LCD displays. There"s also a noticeable quality difference between IPS LCD and TFT LCD monitors.

Most monitors have manual adjustment settings. If you want a simple tweak, adjust the screen"s color and brightness settings using the monitor"s physical buttons. Some displays also have a menu button that presents more options on the screen. Laptops often have buttons on the keyboard for controlling brightness and contrast.

Macs and Windows PCs have built-in, free monitor-calibration tools that are a great first step to testing a monitor"s settings. For more advanced help, online monitor-calibration tools provide in-depth analysis and setting guidance.

The macOS built-in Display Calibrator Assistantadjusts a monitor so that the display images closely match the original versions. This is particularly important for graphic designers and anyone who works with images. Here"s how it works:

The number of adjustments in the calibration process varies depending on the type of display. Some displays have additional built-in color accuracy and calibration features. See your display"s documentation.

The Windows 10 Display Color Calibration utility adjusts different aspects of the display, including color, brightness, and saturation. Here"s how to use it:

If you use your monitor for professional purposes, you may want to take some extra measures to ensure perfect video and image quality. Free online monitor-testing tools such as Lagom and Eizo Monitor Test can help you tweak the settings using objective source material such as color diagrams and test patterns.

If you"re looking for more in-depth monitor calibration, there are paid professional monitor-testing programs, many of which offer a free trial version.

The Passmark MonitorTest software gives a full-screen view of various tests. It generates 35 test patterns and covers touchscreens and HDR while offering support for all available resolutions and color depths. MonitorTest works with all resolutions as well as multiple monitor setups. It also supports looped testing.

DisplayMate is another professional monitor-calibration tool that aims to improve the image and picture quality of mobile displays, computer and video monitors, projectors, and TVs.
