stack lcd display in stock

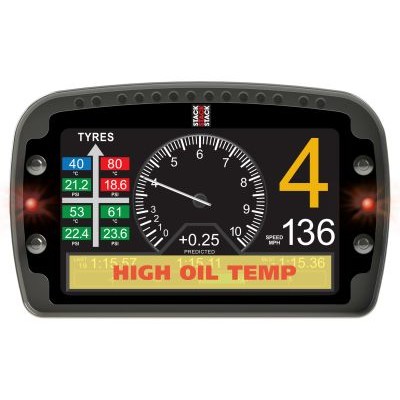

The Stack Colour LCD Motorsport Display is the next evolution of driver communication and data acquisition. The carbon composite housing is IP65 sealed against water and dust intrusion and will easily withstand 20 g of continuous vibration and 50 g of shock. Our 7" LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is configurable to your individual specifications. The system will accommodate two programmable data bus channels (I CAN and I serial) in conjunction with discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1,000 Hz and the internal memory allows for appropriate recording time. User definable warnings take advantage of super bright, multicolour LEDs placed around the perimeter of the chassis to alert the driver to critical on-screen information.

Display features perfectly rendered virtual analog needles, value display bands, digital value indicators for vehicle parameters and configurable full color text warning messages.

Our 7" LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens for extreme glare suppression.

The 7" TFT LCD display is user configurable for everything from tacho rev range to warning light signal and shift light points. Designed to be clearly visible in day or night the display is capable of showing you everything you need including: Revs, speed, pressures, temperatures, volts, lap times, predictive lap times and so much more via 10 sensor inputs and an inbuilt accelerometer. Setting up your Stack dash logger couldn"t be easier with the "drag and drop" PC software included.

A single AS connector allows installation to any vehicle and can easily be removed if required. The display unit is shock and vibration resistant and is sealed against water and dust to IP67 making it ideal for motorsport use.

The Stack LCD Motorsport Display is an extremely capable, modern and flexible driver communication and data acquisition solution. The carbon composite housing is IP65 sealed against water and dust intrusion and will comfortably withstand 20 g of continuous vibration and 50 g of shock. The 7” LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens provides extreme glare suppression and the display layout is fully user configurable. The system will accommodate four programmable data bus channels (2 CAN and 2 serial) in addition to discrete analogue sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1 kHz and the internal memory allows for practically infinite recording time. User definable warnings take advantage of super bright, multicolour LEDs placed around the perimeter of the chassis to alert the driver to critical onscreen information.

The 7” LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens for extreme glare suppression.

Unit LCD is a 1.14 inch color LCD expansion screen unit. It adopts ST7789V2 drive scheme, the resolution is 135*240, and it supports RGB666 display (262,144 colors). The internal integration of ESP32-PICO control core (built-in firmware, display development is more convenient), support through I2C (addr: 0x3E) communication interface for control and firmware upgrades. The back of the screen is integrated with a magnetic design, which can easily adsorb the metal surface for fixing. The LCD screen extension is suitable for embedding in various instruments or control devices that need to display simple content as a display panel.
