lcd panel 40 pin connector free sample

It`s troublesome for the abord developer to get a few connector samples. So Panox Display could provide free connectors if clients need them, following are some connectors model for corresponding displays,

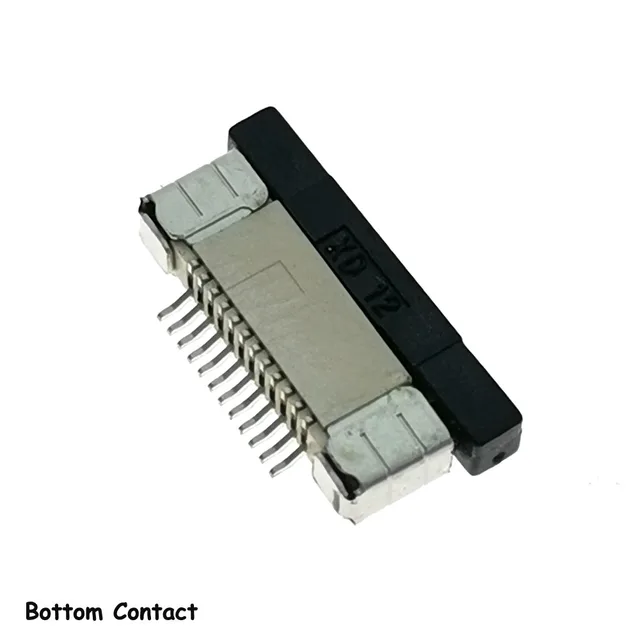

Typical 40 pin lcd connector have different features, including connector shells, pins and sockets, socket retainers, and seals. They also have different features, and they may be used for various applications. First, there are keyed connectors. They are only supposed to connect when they"re in the right position. This protects the pins from harm and prevents users from putting them in the wrong sockets. The other type of electrical connector is the locked connector. This one has a locking mechanism that prevents connections from shifting when shocked. The other type of 40 pin lcd connector is the hermetically sealed connector. This connector is designed to work underwater but up to a specific depth. Water-resistant connectors are also another type. These help in protecting electrical connections against water damage.

When it comes to buying 40 pin lcd connector, there are several factors that you need to consider, including performance and physical parameters. When it comes to performance parameters, choose one depending on the conditions in which it will be used. Such conditions include current, voltage, and operating temperature. Physical parameters are also an important consideration since they determine the design of electrical connections and the type of connections the connectors can be used for. Material is one of the important physical considerations. Most 40 pin lcd connector are covered with plastic. The wire conductors are made from brass, beryllium copper, phosphor bronze, and high copper alloy.

For wholesale 40 pin lcd connector, visit Alibaba.com. This online shopping platform has partnered with various Chinese wholesalers to offer you a wide range of connectors. You can visit the website at any time and place your order with a few clicks.

This breakout board is designed to work in conjunction with our TFT displays to give you a faster, more flexible development process. This development tool will jumpstart your workflow by providing an all-in-one solution to run your hardware application and act as an intermediate PCB. With a compact design that allows for easy placement in your application, breakout boards make it easier than ever to connect with any MCU and see your design in action. This particular breakout board has a 40-pin FFC connector, 2.54mm pitch, and is breadboard friendly. It has a configurable LED driver with PWM, a power LED indicator, and open-source hardware.

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Pins20 pins for external connectors on desktops, notebooks, graphics cards, monitors, etc. and 30/20 pins for internal connections between graphics engines and built-in flat panels.

This is the pinout for source-side connector, the sink-side connector pinout will have lanes 0–3 reversed in order; i.e., lane 3 will be on pin 1(n) and 3(p) while lane 0 will be on pin 10(n) and 12(p).

It is the first display interface to rely on packetized data transmission, a form of digital communication found in technologies such as Ethernet, USB, and PCI Express. It permits the use of internal and external display connections. Unlike legacy standards that transmit a clock signal with each output, its protocol is based on small data packets known as micro packets, which can embed the clock signal in the data stream, allowing higher resolution using fewer pins.

The interface uses an LVDS signal protocol that is not compatible with DVI or HDMI. However, dual-mode DisplayPort ports are designed to transmit a single-link DVI or HDMI protocol (TMDS) across the interface through the use of an external passive adapter, enabling compatibility mode and converting the signal from 3.3 to 5 volts. For analog VGA/YPbPr and dual-link DVI, a powered active adapter is required for compatibility and does not rely on dual mode. Active VGA adapters are powered directly by the DisplayPort connector, while active dual-link DVI adapters typically rely on an external power source such as USB.

DisplayPort version 1.2 was introduced on 7 January 2010.Gbit/s in High Bit Rate 2 (HBR2) mode, which allows increased resolutions, higher refresh rates, and greater color depth, such as 3840 × 2160 at 60Hz 10bpc RGB. Other improvements include multiple independent video streams (daisy-chain connection with multiple monitors) called Multi-Stream Transport, facilities for stereoscopic 3D, increased AUX channel bandwidth (from 1Mbit/s to 720Mbit/s), more color spaces including xvYCC, scRGB, and Adobe RGB 1998, and Global Time Code (GTC) for sub 1μs audio/video synchronisation. Also Apple Inc."s Mini DisplayPort connector, which is much smaller and designed for laptop computers and other small devices, is compatible with the new standard.

DisplayPort version 1.2a was released in January 2013Adaptive Sync.AMD"s CES 2014 on a Toshiba Satellite laptop by making use of the Panel-Self-Refresh (PSR) feature from the Embedded DisplayPort standard,

DisplayPort version 1.3 was approved on 15 September 2014.Gbit/s with the new HBR3 mode featuring 8.1Gbit/s per lane (up from 5.4Gbit/s with HBR2 in version 1.2), for a total data throughput of 25.92Gbit/s after factoring in 8b/10b encoding overhead. This bandwidth is enough for a 4K UHD display (3840 × 2160) at 120Hz with 24bit/px RGB color, a 5K display (5120 × 2880) at 60Hz with 30bit/px RGB color, or an 8K UHD display (7680 × 4320) at 30Hz with 24bit/px RGB color. Using Multi-Stream Transport (MST), a DisplayPort port can drive two 4K UHD (3840 × 2160) displays at 60Hz, or up to four WQXGA (2560 × 1600) displays at 60Hz with 24bit/px RGB color. The new standard includes mandatory Dual-mode for DVI and HDMI adapters, implementing the HDMI2.0 standard and HDCP2.2 content protection.Thunderbolt 3 connection standard was originally to include DisplayPort1.3 capability, but the final release ended up with only version 1.2. The VESA"s Adaptive Sync feature in DisplayPort version 1.3 remains an optional part of the specification.

According to a roadmap published by VESA in September 2016, a new version of DisplayPort was intended to be launched in "early 2017". It would have improved the link rate from 8.1 to 10.0Gbit/s, a 23% increase.Gbit/s to 40.0Gbit/s. However, no new version was released in 2017, likely delayed to make further improvements after the HDMI Forum announced in January 2017 that their next standard (HDMI2.1) would offer up to 48Gbit/s of bandwidth. According to a press release on 3 January 2018, "VESA is also currently engaged with its members in the development of the next DisplayPort standard generation, with plans to increase the data rate enabled by DisplayPort by two-fold and beyond. VESA plans to publish this update within the next 18 months."Hz without compression and was expected to be released in the first half of 2019.

When using only two lanes on the USB-C connector via DP Alt Mode to allow for simultaneous SuperSpeed USB data and video, DP 2.0 can enable such configurations as:

Not all DisplayPort cables are capable of functioning at the highest levels of bandwidth. Cables may be submitted to VESA for an optional certification at various bandwidth levels. VESA offers four levels of cable certification: Standard, DP8K, DP40, and DP80.: §4.1 These certify DisplayPort cables for proper operation at the following speeds:

It should also be noted that the use of Display Stream Compression (DSC), introduced in DisplayPort1.4, greatly reduces the bandwidth requirements for the cable. Formats which would normally be beyond the limits of DisplayPort1.4, such as 4K (3840×2160) at 144Hz 8bpc RGB/Y′CBCR 4:4:4 (31.4Gbit/s data rate when uncompressed), can only be implemented by using DSC. This would reduce the physical bandwidth requirements by 2–3×, placing it well within the capabilities of an HBR2-rated cable.

DisplayPort cables and ports may have either a "full-size" connector or a "mini" connector. These connectors differ only in physical shape—the capabilities of DisplayPort are the same regardless of which connector is used. Using a Mini DisplayPort connector does not affect performance or feature support of the connection.

The standard DisplayPort connector (now referred to as a "full-size" connector to distinguish it from the mini connector): §4.1.1 was the sole connector type introduced in DisplayPort1.0. It is a 20-pin single-orientation connector with a friction lock and an optional mechanical latch. The standard DisplayPort receptacle has dimensions of 16.10mm (width) × 4.76mm (height) × 8.88mm (depth).: §4.2.1.7, p201

12 pins for the main link – the main link consists of four shielded twisted pairs. Each pair requires 3 pins; one for each of the two wires, and a third for the shield.: §4.1.2, p183 (pins 1–12)

The Mini DisplayPort connector was developed by Apple for use in their computer products. It was first announced in October 2008 for use in the new MacBooks and Cinema Display. In 2009, VESA adopted it as an official standard, and in 2010 the specification was merged into the main DisplayPort standard with the release of DisplayPort1.2. Apple freely licenses the specification to VESA.

The Mini DisplayPort (mDP) connector is a 20-pin single-orientation connector with a friction lock. Unlike the full-size connector, it does not have an option for a mechanical latch. The mDP receptacle has dimensions of 7.50mm (width) × 4.60mm (height) × 4.99mm (depth).: §2.1.3.6, pp27–31 The mDP pin assignments are the same as the full-size DisplayPort connector.: §2.1.3

Pin 20 on the DisplayPort connector, called DP_PWR, provides 3.3V (±10%) DC power at up to 500mA (minimum power delivery of 1.5W).: §3.2 This power is available from all DisplayPort receptacles, on both source and display devices. DP_PWR is intended to provide power for adapters, amplified cables, and similar devices, so that a separate power cable is not necessary.

Standard DisplayPort cable connections do not use the DP_PWR pin. Connecting the DP_PWR pins of two devices directly together through a cable can create a short circuit which can potentially damage devices, since the DP_PWR pins on two devices are unlikely to have exactly the same voltage (especially with a ±10% tolerance).1.1 and later standards specify that passive DisplayPort-to-DisplayPort cables must leave pin 20 unconnected.: §3.2.2

However, in 2013 VESA announced that after investigating reports of malfunctioning DisplayPort devices, it had discovered that a large number of non-certified vendors were manufacturing their DisplayPort cables with the DP_PWR pin connected:

In addition, individual devices may have their own arbitrary limitations beyond transmission speed. For example, NVIDIA Kepler GK104 GPUs (such as the GeForce GTX 680 and 770) support "DisplayPort 1.2" with the HBR2 transmission mode, but are limited to 540Mpx/s, only 3⁄4 of the maximum possible with HBR2.

To support a particular format, the source and display devices must both support the required transmission mode, and the DisplayPort cable must also be capable of handling the required bandwidth of that transmission mode. (See: Cables and connectors)

Only a portion of DisplayPort"s bandwidth is used for carrying video data. DisplayPort versions 1.0–1.4a use 8b/10b encoding, which means that 80% of the bits transmitted across the link represent data, and the other 20% are used for encoding purposes. The maximum bandwidth of RBR, HBR, HBR2, and HBR3 (6.48, 10.8, 21.6, and 32.4Gbit/s) therefore transport video data at rates of 5.184, 8.64, 17.28, and 25.92Gbit/s. DisplayPort version 2.0 uses 128b/132b encoding, and therefore the maximum bandwidths of UHBR 10, 13.5, and 20 (40, 54, and 80Gbit/s) transport data at rates of 38.69, 52.22, and 77.37Gbit/s.

Only a portion of DisplayPort"s bandwidth is used for carrying video data. DisplayPort versions 1.0–1.4a use 8b/10b encoding, which means that 80% of the bits transmitted across the link represent data, and the other 20% are used for encoding purposes. The maximum bandwidth of RBR, HBR, HBR2, and HBR3 (6.48, 10.8, 21.6, and 32.4Gbit/s) therefore transport video data at rates of 5.184, 8.64, 17.28, and 25.92Gbit/s. DisplayPort version 2.0 uses 128b/132b encoding, and therefore the maximum bandwidths of UHBR 10, 13.5, and 20 (40, 54, and 80Gbit/s) transport data at rates of 38.69, 52.22, and 77.37Gbit/s.

Only a portion of DisplayPort"s bandwidth is used for carrying video data. DisplayPort versions 1.0–1.4a use 8b/10b encoding, which means that 80% of the bits transmitted across the link represent data, and the other 20% are used for encoding purposes. The maximum bandwidth of RBR, HBR, HBR2, and HBR3 (6.48, 10.8, 21.6, and 32.4Gbit/s) therefore transport video data at rates of 5.184, 8.64, 17.28, and 25.92Gbit/s. DisplayPort version 2.0 uses 128b/132b encoding, and therefore the maximum bandwidths of UHBR 10, 13.5, and 20 (40, 54, and 80Gbit/s) transport data at rates of 38.69, 52.22, and 77.37Gbit/s.

Only a portion of DisplayPort"s bandwidth is used for carrying video data. DisplayPort versions 1.0–1.4a use 8b/10b encoding, which means that 80% of the bits transmitted across the link represent data, and the other 20% are used for encoding purposes. The maximum bandwidth of RBR, HBR, HBR2, and HBR3 (6.48, 10.8, 21.6, and 32.4Gbit/s) therefore transport video data at rates of 5.184, 8.64, 17.28, and 25.92Gbit/s. DisplayPort version 2.0 uses 128b/132b encoding, and therefore the maximum bandwidths of UHBR 10, 13.5, and 20 (40, 54, and 80Gbit/s) transport data at rates of 38.69, 52.22, and 77.37Gbit/s.

In 2013, VESA released the Dual-Mode 1.1 standard, which added support for up to a 300MHz TMDS clock (9.00Gbit/s bandwidth), and is used in newer DisplayPort1.2 devices. This is slightly less than the 340MHz maximum of HDMI1.4, and is sufficient for up to 1920 × 1080 at 120Hz, 2560 × 1440 at 60Hz, or 3840 × 2160 at 30Hz. Older adapters, which were only capable of the 165MHz speed, were retroactively termed "Type1" adapters, with the new 300MHz adapters being called "Type2".

Limited adapter speed – Although the pinout and digital signal values transmitted by the DP port are identical to a native DVI/HDMI source, the signals are transmitted at DisplayPort"s native voltage (3.3V) instead of the 5V used by DVI and HDMI. As a result, dual-mode adapters must contain a level-shifter circuit which changes the voltage. The presence of this circuit places a limit on how quickly the adapter can operate, and therefore newer adapters are required for each higher speed added to the standard.

Single-link DVI only – Since DisplayPort dual-mode operates by using the pins of the DisplayPort connector to send DVI/HDMI signals, the 20-pin DisplayPort connector can only produce a single-link DVI signal (which uses 19 pins). A dual-link DVI signal uses 25 pins, and is therefore impossible to transmit natively from a DisplayPort connector through a passive adapter. Dual-link DVI signals can only be produced by converting from native DisplayPort output signals with an active conversion device.

HBR3 mode with 25.92Gbit/s of effective video bandwidth, using CVT-R2 timings, allows eight simultaneous 1080p displays (1920 × 1080) @ 60Hz, stereoscopic 4K UHD (3840 × 2160) @ 120Hz, or 5120 × 2880 @ 60Hz each using 24 bit RGB, and up to 8K UHD (7680 × 4320) @ 60Hz using 4:2:0 subsampling

Both HDMI and DisplayPort have published specification for transmitting their signal over the USB-C connector. For more details, see USB-C § Alternate Mode partner specifications and List of devices with video output over USB-C.

Mini DisplayPort (mDP) is a standard announced by Apple in the fourth quarter of 2008. Shortly after announcing Mini DisplayPort, Apple announced that it would license the connector technology with no fee. The following year, in early 2009, VESA announced that Mini DisplayPort would be included in the upcoming DisplayPort 1.2 specification.

Micro DisplayPort would have targeted systems that need ultra-compact connectors, such as phones, tablets and ultra-portable notebook computers. This standard would have been physically smaller than the currently available Mini DisplayPort connectors. The standard was expected to be released by Q2 2014.

Direct Drive Monitor (DDM) 1.0 standard was approved in December 2008. It allows for controller-less monitors where the display panel is directly driven by the DisplayPort signal, although the available resolutions and color depth are limited to two-lane operation.

Embedded DisplayPort (eDP) is a display panel interface standard for portable and embedded devices. It defines the signaling interface between graphics cards and integrated displays. The various revisions of eDP are based on existing DisplayPort standards. However, version numbers between the two standards are not interchangeable. For instance, eDP version 1.4 is based on DisplayPort 1.2, while eDP version 1.4a is based on DisplayPort 1.3. In practice, embedded DisplayPort has displaced LVDS as the predominant panel interface in modern laptops and modern smartphones.

eDP 1.0 was adopted in December 2008.Hz sequential color monitors, and a new display panel control protocol that works through the AUX channel.framebuffer memory in the display panel controller.

Internal DisplayPort (iDP) 1.0 was approved in April 2010. The iDP standard defines an internal link between a digital TV system on a chip controller and the display panel"s timing controller. It aims to replace currently used internal FPD-Link lanes with a DisplayPort connection.GHz clock and is nominally rated at 3.24Gbit/s per lane, with up to sixteen lanes in a bank, resulting in a six-fold decrease in wiring requirements over FPD-Link for a 1080p24 signal; other data rates are also possible. iDP was built with simplicity in mind so doesn"t have an AUX channel, content protection, or multiple streams; it does however have frame sequential and line interleaved stereo 3D.

SlimPort, a brand of Analogix products,Mobility DisplayPort, also known as MyDP, which is an industry standard for a mobile audio/video Interface, providing connectivity from mobile devices to external displays and HDTVs. SlimPort implements the transmission of video up to 4K-UltraHD and up to eight channels of audio over the micro-USB connector to an external converter accessory or display device. SlimPort products support seamless connectivity to DisplayPort, HDMI and VGA displays.Google"s Nexus 4 smartphone.LG G series also adopted SlimPort.

On 22 September 2014, VESA published the DisplayPort Alternate Mode on USB Type-C Connector Standard, a specification on how to send DisplayPort signals over the newly released USB-C connector. One, two or all four of the differential pairs that USB uses for the SuperSpeed bus can be configured dynamically to be used for DisplayPort lanes. In the first two cases, the connector still can carry a full SuperSpeed signal; in the latter case, at least a non-SuperSpeed signal is available. The DisplayPort AUX channel is also supported over the two sideband signals over the same connection; furthermore, USB Power Delivery according to the newly expanded USB-PD 2.0 specification is possible at the same time. This makes the Type-C connector a strict superset of the use-cases envisioned for DockPort, SlimPort, Mini and Micro DisplayPort.

Since its introduction in 2006, DisplayPort has gained popularity within the computer industry and is featured on many graphic cards, displays, and notebook computers. Dell was the first company to introduce a consumer product with a DisplayPort connector, the Dell UltraSharp 3008WFP, which was released in January 2008.AMD and Nvidia released products to support the technology. AMD included support in the Radeon HD 3000 series of graphics cards, while Nvidia first introduced support in the GeForce 9 series starting with the GeForce 9600 GT.

Nvidia revealed the GeForce GTX 1080, the world"s first graphics card with DisplayPort 1.4 support on 6 May 2016.Radeon RX 400 Series will support DisplayPort 1.3 HBR and HDR10, dropping the DVI connector(s) in the reference board design.

Dual-link DVI is limited in resolution and speed by the quality and therefore the bandwidth of the DVI cable, the quality of the transmitter, and the quality of the receiver; can only drive one monitor at a time; and cannot send audio data. HDMI 1.3 and 1.4 are limited to effectively 8.16Gbit/s or 340MHz (though actual devices are limited to 225–300MHzVGA connectors have no defined maximum resolution or speed, but their analog nature limits their bandwidth, though can provide long cabling only limited by appropriate shielding.

Afghanistan, Africa, American Samoa, Armenia, Azerbaijan Republic, Bangladesh, Bermuda, Bhutan, Brunei Darussalam, Cambodia, Central America and Caribbean, Cook Islands, Fiji, French Polynesia, Georgia, Gibraltar, Greenland, Guam, Guernsey, Hong Kong, India, Indonesia, Jersey, Kazakhstan, Kiribati, Kyrgyzstan, Laos, Macau, Macedonia, Malaysia, Maldives, Malta, Marshall Islands, Mexico, Micronesia, Middle East, Moldova, Mongolia, Montenegro, Nauru, Nepal, New Caledonia, New Zealand, Niue, Pakistan, Palau, Papua New Guinea, Philippines, Russian Federation, Saint Pierre and Miquelon, Solomon Islands, South America, South Korea, Sri Lanka, Svalbard and Jan Mayen, Taiwan, Tajikistan, Tonga, Turkmenistan, Tuvalu, Ukraine, Uzbekistan, Vanuatu, Vatican City State, Vietnam, Wallis and Futuna, Western Samoa

ER-TFTM070-5 is 800x480 dots 7" color tft lcd module display with RA8875 controller board,superior display quality and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 6800 8-bit,16-bit parallel,3-wire,4-wire,I2C serial spi interface.Built-in resistive touch panel controller,it"s optional for resistive touch panel,capacitive touch panel and its controller FT5206,font chip, flash chip and microsd card slot. We offer two types connection,one is pinheader and the another is ZIF connector with flat cable mounting on board by default and suggested.

If the motherboard is indeed dead, you can easily remove the connector that you want to salvage by using a product known as "Chip Quik". This is a low-temperature solder alloy that is specifically designed to contaminate the existing solder on the board so as to reduce the melt temperature to a very low value.
