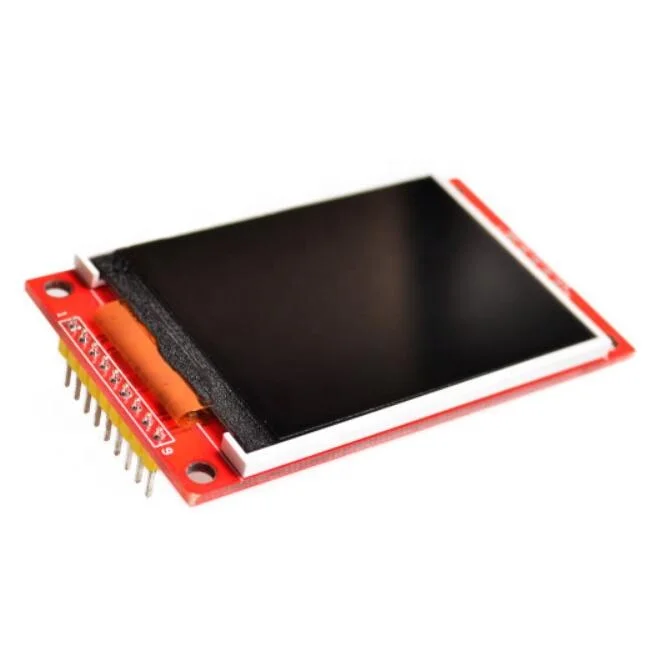

ER-TFT022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller,optional capacitive touch panel with controller FT6236U and resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

2.2 lcd module for sale

Specifications:Resolution: 240x320Driver IC: ILI9341Input Voltage: 5V/3.3VSize 2.2 inch, It has PCB backplane with power IC, SD card socketLED Numbers 4 LEDs, Driver IC: ILI9341, Color Depth 262K/65KModule Size:67mm(length)*40mm(width)*4mm(thickness), Active Area: 47.5mm(Length)x36.5mm(Width)How to use it?1. use 5v to led pin, 3.3v to vcc and 1k / 1.5k resistor voltage dividers to get it to work. 1k resistor in series from Arduino to tft logic pin, 1.5k from tft pin to ground.2.#define TFT_DC 9#define TFT_CS 10#define TFT_MOSI 11#define TFT_CLK 13#define TFT_RST 12#define TFT_MISO 83.// Use hardware SPI (on Uno, #13, #12, #11) and the above for CS/DC//ILI9341 tft = ILI9341(TFT_CS, TFT_DC);4.// If using the breakout, change pins as desiredILI9341 tft = ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RST, TFT_MISO).Serial monitor output:1-- ILI9341 Test!Display Power Mode: 0x94MADCTL Mode: 0x48Pixel Format:0x5ImageFormat: 0x80Self Diagnostic: 0xC0Benchmark Time (microseconds)2-- Screen fill 18159720Text 921664Lines 8537648Horiz/Vert Lines 1485756Rectangles (outline) 946520Rectangles (filled) 37689232Circles (filled) 5325780Circles (outline) 3725412Triangles (outline) 1944508Triangles (filled) 12525852Rounded rects (outline) 1782700Rounded rects (filled) 40989648

2.2 lcd module for sale

This 2.2" 18-bit color TFT LCD display breakout uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. The breakout has an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic and a microSD card holder so you can easily load full-color bitmaps from a FAT16/FAT32 formatted microSD card.

2.2 lcd module for sale

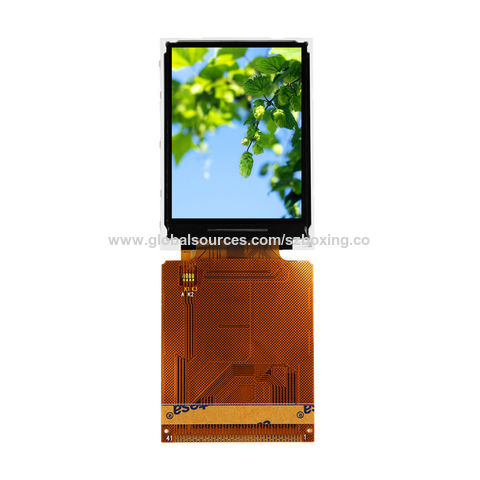

A full color 240xRGBx320 pixel TFT display module with 2.2" diagonal active area. Very small text and images look sharp on this graphic display, with its dense pixel pitch of 0.141 x 0.141 millimeters. The TFT"s 6:00 o" clock viewing direction works well for devices that must be easy to read above eye level without fading, such as signal analyzers or other benchtop laboratory equipment.

Buy with confidence. Our Logistics department is experienced at sending products anywhere in the world where permitted. This TFT display module has a limited 1-year warranty and free technical support.

2.2 lcd module for sale

ILI9341 is a 262144-color single-chip SOC driver for a TFT liquid crystal display with resolution of 240x320 dots (RGB), comprising a 720-channel source driver, a 320-channel gate driver, 172800 bytes GRAM for graphic display data of 240x320 dots (RGB), and power supply circuit.

ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD.

ILI9341 supports full color, 8-color display mode and sleep mode for precise power control by software and these features make the ILI9341 an ideal LCD driver for medium or small size portable products such as digital cellular phones, smart phone, MP3 and PMP where long battery life is a major concern.

2.2 lcd module for sale

The 2.2" display has 320x240 color pixels. Unlike the low-cost "Nokia 6110" and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ILI9341 or compatible) can display full 18-bit color (262,144 shades!). And the LCD will always come with the same driver chip so there are no worries that your code will not work from one to the other.

As of November 2022 - we"ve updated this TFT breakout with a EYESPI connector to make cabling easier with an 18-pin FPC. We also used Adafruit Pinguin to make a lovely silkscreen. The board is otherwise the same size, pinout, and functionality.

2.2 lcd module for sale

This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.

2.2 lcd module for sale

Structure diagram product picture Shanghai Top Display Optoelectronics (TDO) dedicates to be the leader in Display module, intelligent display program and 3D printing optical engine program, which focus on the professional application market including Industry, Medical, Military, Mapping, charging pile, 3D printing, etc. In addition, we have applied more than 20 patents, including 3 invention patents and 3 software copyright patents, 15 patents in these were authorized. TDO has made a lot of achievements: the Award of The third China Innovation and Entrepreneurship Competition, Shanghai SME Innovation Fund Project, Minghang Industry-University-Research Collaboration, Mihang Patent demonstration project, etc.
