This is a low-cost but powerful TFT display that makes your project look awesome! The display has 240 x 240 pixels resolution, and its size is only 1.3inch. This allows you to display a high-quality picture, to make your project really cool.

The module interface is SPI, to make the display small the CS pin is not breakout, but you can still drive it without connecting a CS pin, here is a library working library for this particular display, to make it working properly, you also need to install Adafruit’s GFX library.

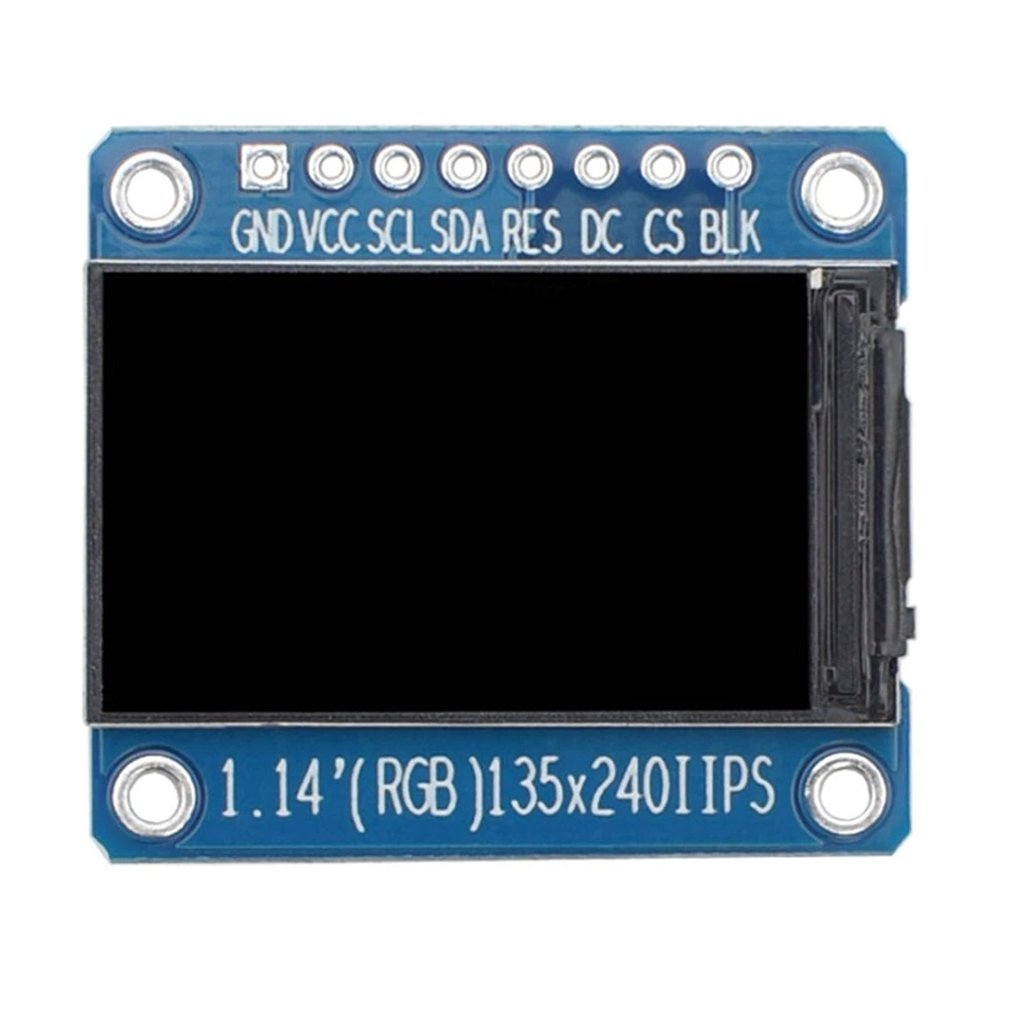

Our new high-density 1.14" TFT display says "hello" to you! It"s a lovely output device, with a high-density resolution of 240 x 135 pixels in a compact unit.

We"ve been looking for a screen like this for a long time - it only has a 1.5" diagonal but has a high density of 220 ppi, 240x240 pixels with a wide angle display. It looks a lot like our 1.44" 128x128 screen, but it has 4x more pixels and it looks great from any angle. We have seen displays of this calibre used in smart watches and small electronic devices, but they have always been a MIPI interface. Finally, we found one that is SPI compatible and has a user-friendly display driver, so it works with all microcontrollers or microcomputers!

This pretty little display card is the best way to add a small colorful and very bright screen to any project. As the display uses 4 SPI wires to communicate and has its own addressable frame buffer per pixel, it can be used with any type of microcontroller. Even a very small one with little memory and few pins available! The 1.54" screen has 240x240 16-bit color pixels and is an IPS screen, so the color is very beautiful up to 80 degrees relative to the axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and our Arduino library supports it well.

Our breakout has a soldered TFT display (it uses a delicate flexible circuit connector) as well as a 3.3V regulator with very low voltage drop and a 3/5V level adapter so you can use it with 3.3V or 5V power and logic. We also had some space, so we placed a microSD card holder so you could easily load color bitmaps from a microSD card formatted FAT16/FAT32. The microSD card is not included.

NMLCD-CI200-20-0166is a transflective type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit and a backlight unit. The panel size is 2.0 inch and the resolution is 240*320, the panel can display up to 262K colors.

Hot Tags: Small LCD Display 2.0 Inch TFT ST7789 20 Pins With 240x320 Resolution NMLCD-CI200-20-0166, China, suppliers, factory, wholesale, price list, free sample

In this guide we’re going to show you how you can use the 1.8 TFT display with the Arduino. You’ll learn how to wire the display, write text, draw shapes and display images on the screen.

The 1.8 TFT is a colorful display with 128 x 160 color pixels. The display can load images from an SD card – it has an SD card slot at the back. The following figure shows the screen front and back view.

This module uses SPI communication – see the wiring below . To control the display we’ll use the TFT library, which is already included with Arduino IDE 1.0.5 and later.

The TFT display communicates with the Arduino via SPI communication, so you need to include the SPI library on your code. We also use the TFT library to write and draw on the display.

In which “Hello, World!” is the text you want to display and the (x, y) coordinate is the location where you want to start display text on the screen.

The 1.8 TFT display can load images from the SD card. To read from the SD card you use the SD library, already included in the Arduino IDE software. Follow the next steps to display an image on the display:

Note: some people find issues with this display when trying to read from the SD card. We don’t know why that happens. In fact, we tested a couple of times and it worked well, and then, when we were about to record to show you the final result, the display didn’t recognized the SD card anymore – we’re not sure if it’s a problem with the SD card holder that doesn’t establish a proper connection with the SD card. However, we are sure these instructions work, because we’ve tested them.

In this guide we’ve shown you how to use the 1.8 TFT display with the Arduino: display text, draw shapes and display images. You can easily add a nice visual interface to your projects using this display.

Please download the code library from the link given before compiling and uploading the program: https://platformio.org/lib/show/12/Adafruit%20ST7735%20and%20ST7789%20Library

This code may seem slightly intimidating at first, due to its length and much newer functions, but once it is broken down, it isn"t so hard anymore. In the first three lines, we declare libraries for running this display, the graphics used, and for the interface used, which is the SPI interface. In the next three lines, the RST (Reset) and DC (Data/Command) pins are defined, which are connected to A8 (analog pin 8) and A9 (analog pin 9). In the next line, we initialize the Adafruit ST7789 library for use with this display and we follow that by defining the value of pi as a float variable in that next line. We will be using this float variable later on for graphics and calculations needed. The void setup section is now here where we first start by begining serial communication with a baud rate of 9600 bauds and printing a test message which is "Hello! ST7789 TFT Test!". In regards to the display, we address that our display module is of 240x240 resolution and we set the rotation of our display in the next line. If your display is flipped, remove tft.setRotation(2). From there, we print the text "Initialized" as our display is now correctly set up. After that, we count up the seconds from the startup with themillis() function and store it in an unsigned 16-bit integer, named time, for use later. We then fill up the TFT screen with a black colour. Since we already started the stopwatch which counts up, we can always reset the stopwatch back to zero by using subtracting the timefunction with the millis(). To end off this section, we set a delay for 500 milliseconds before moving on. This section onwards will only be for the animations, graphics and images displayed on the screen, and we start off by filling the screen with a black background and writing some text with a white colour before a 1-second delay. Proceeding that, we execute a print test which basically is already programmed to print out a set of text in different font colours and sizes. We end this test by setting a delay for 4 seconds. From this point, the rest of the code is responsible for printing out the different graphics, which can be composed of shapes, pixels and text. All the different graphics and its individual code are mentioned at the end of the code so I recommend really going through this program to learn all the commands, which can help you build your own demo code, even with your own personal images being displayed. This project is now done!
