tft lcd demo kit for sale

This is a TFT Seeeduino kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug a USB cord into power to see a functioning display.

The included TFT is a crisp 1.3", full color, 240x240 IPS display. The adapter board is designed specifically for this TFT display, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input.

Orient Display is proud to offer these product evaluation boards to our valued clients, LCD enthusiasts and hobbyists who want immediate assurance of product effectiveness for assessment or testing purposes. These test boards are distributed exclusively by Orient Display and will only work with our very Orient Display’s products.

Quickly put high-quality color displays into operation. Ideal for measured values and as a status display. EA DEMOPACK includes a small TFT display with 2.8" plus touch panel (PCAP).

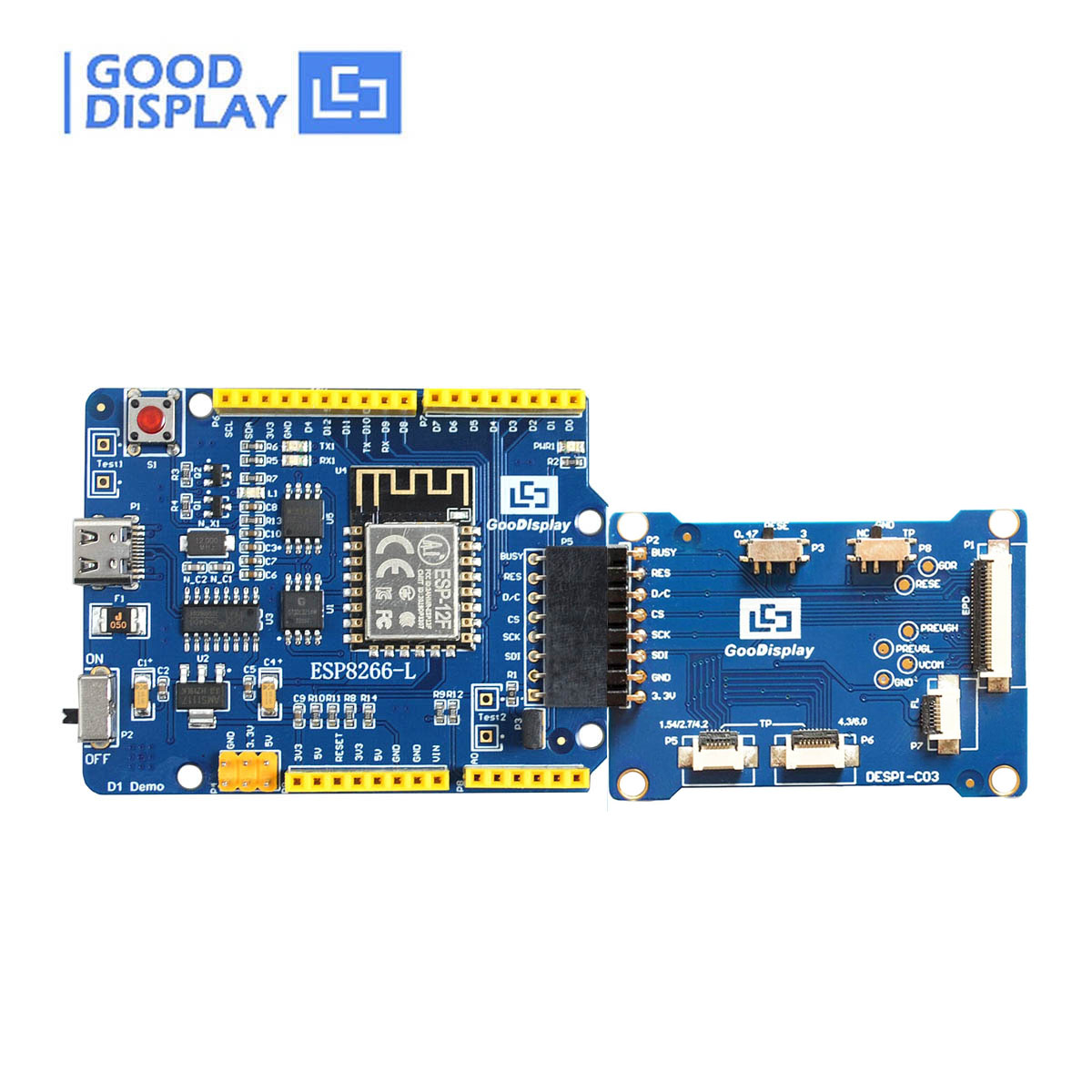

ESP8266(C02) for EPD development kit supports Arduino platform for development procedures. This development kit is mainly to assist customers to develop e-paper display projects faster and smoother. It supports driving Good Display"s black-white SPI E-paper Display and three-color (black, white and red/Yellow) Good Display ‘s SPI E-paper Display: 1.54"", 2.04"", 2.13"", 2.6"", 2.7"", 2.9"", 3.71"", 4.2"", 5.83"" and 7.5"".

The ESP8266(C02) for E-Paper Display development kit supports Wi-Fi, users need to develop by themselves. And it includes the motherboard ESP8266 for EPD and the adapter board DESPI-C02.

The NXP LCD Demo is a reference design for a low cost microcontroller and LCD solution. The two main NXP parts used in this design can be purchased for less than $1.50 in 1,000 unit quantities and only a few other external components are required. The Demo Board is controlled by a simple two-button user interface (MODE and SELECT). The Demo Board CD includes example code for several sample applications: an FM Radio display during a simulated channel scan, a 15 minute count down timer, a repeating pattern of 4 text lines and a scrolling message window. The user can edit this code and download to the reprogrammable Flash microcontroller via a 10-pin header included on the board using any external ICP style programmer. A small USB based ICP programmer that allows ICP programming of the P89LPC9103 and many other NXP microcontrollers from any PC with a USB port is also available from Future Designs, Inc.

Kyocera have introduced a new Universal Demo Kit (VIP Kit) which enables all currentKyocera TFT display modules to be operatedquickly and easily. The VIP Kit includes a converter which adaptsHDMI graphics data from a Raspberry Pi so that they can be viewed on a Kyocera display panel. There is no need to worry about resolution or format - everything can be displayed inreal time and at a high resolution.

The VIP kit includes the desired size of display from the Kyocera product range, a universal HDMI-to-LVDS converter and the appropriate cables and power packs. Designed to be connected directly to the Raspberry, the converter can also be connected to any HDMI port so that content can be viewed on the corresponding Kyocera display. Users can quickly and easily upload images and view them with the application, due to the kit being available as a plug-and-play version. An additional benefit to the VIP Kit is that it can be used anywhere without the need for an additional display. Graphics can also be easily altered and optimised on the display.

“Our new VIP Kit offers users from a variety of different sectors numerous additional options for the rapid implementation of demonstration models. In addition, it makes work on client presentations or at trade fair stands faster and a whole lot easier,” commented Manfred Sauer, Head of Sales & Marketing, Kyocera Display Europe GmbH.

The Kyocera VIP Kit has a single channel 24-bit HDMI-LVDS converter with a 15-MHz to 85-MHz pixel clock. Other features include VGA (640 x 480) to Full HD (1920 x 1080) resolution and users can select between Hsync, Vsync or Clock polarity. The power pack supplied provides the required voltage of 12 V/1.5 A; and the control unit for the backlight with up to a maximum of 600 mA integrated.
