The 1.8" TFT LCD SPI-bus display modules available from Adafruit and SainSmart are functionally equivalent, except that the SainSmart unit can be driven at a much faster SPI bus rate than the Adafruit (32 MHz vs. 4 MHz in my testing). Fabien Royer has shown that this is due to a slow level shifter in the Adafruit unit.

The board supports multiple different 1.8" panel pinouts including Adafruit and SainSmart, and sports mounting pads for three GPIO buttons. Very nice!

This video gives an overview of the 1.8" color LCD, where to purchase and how to wire it to your Arduino. A detailed description of the pin outs are included for both the "fast" and "slow" wiring method. Also, I compare the write speed for both methods which demonstrates the performance of each.

Adafruit_ST7735 is the library we need to pair with the graphics library for hardware specific functions of the ST7735 TFT Display/SD-Card controller.

Basically, besides the obvious backlight, we tell the controller first what we are talking to with the CS pins. CS(TFT) selects data to be for the Display, and CS(SD) to set data for the SD-Card. Data is written to the selected device through SDA (display) or MOSI (SD-Card). Data is read from the SD-Card through MISO.

So when using both display and SD-Card, and utilizing the Adafruit libraries with a SainSmart display, you will need to connect SDA to MOSI, and SCL to SCLK.

Note: Adafruit displays can have different colored tabs on the transparent label on your display. You might need to adapt your code if your display shows a little odd shift. I noticed that my SainSmart display (gree tab) behaves best with the code for the black tab – try them out to see which one works best for yours.

#define sclk 4 // SainSmart: SCL#define mosi 5 // SainSmart: SDA#define cs 6 // SainSmart: CS#define dc 7 // SainSmart: RS/DC#define rst 8 // SainSmart: RES

#define sclk 13 // SainSmart: SCL#define mosi 11 // SainSmart: SDA#define cs 10 // SainSmart: CS#define dc 9 // SainSmart: RS/DC#define rst 8 // SainSmart: RES

You can name your BMP file “parrot.bmp” or modify the Sketch to have the proper filename (in “spitftbitmap” line 70, and in “soft_spitftbitmap” line 74).

#define SD_CS 4 // Chip select line for SD card#define TFT_CS 10 // Chip select line for TFT display#define TFT_DC 9 // Data/command line for TFT#define TFT_RST 8 // Reset line for TFT (or connect to +5V)

#define SD_CS 4 // Chip select line for SD card#define TFT_CS 10 // Chip select line for TFT display#define TFT_DC 9 // Data/command line for TFT#define TFT_RST 8 // Reset line for TFT (or connect to +5V)

However, if your application needs your screen sideways, then you’d want to rotate the screen 90 degrees, effectively changing the display from a 128×160 pixel (WxH) screen to a 160×128 pixel display. Valid values are: 0 (0 degrees), 1 (90 degrees), 2 (180 degrees) and 3 (270 degrees).

tft.print("Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur adipiscing ante sed nibh tincidunt feugiat. Maecenas enim massa, fringilla sed malesuada et, malesuada sit amet turpis. Sed porttitor neque ut ante pretium vitae malesuada nunc bibendum. Nullam aliquet ultrices massa eu hendrerit. Ut sed nisi lorem. In vestibulum purus a tortor imperdiet posuere. ");

TFT displays are full color LCDs providing bright, vivid colors with the ability to show quick animations, complex graphics, and custom fonts with different touchscreen options. Available in industry standard sizes and resolutions. These displays come as standard, premium MVA, sunlight readable, or IPS display types with a variety of interface options including HDMI, SPI and LVDS. Our line of TFT modules include a custom PCB that support HDMI interface, audio support or HMI solutions with on-board FTDI Embedded Video Engine (EVE2).

In this guide we’re going to show you how you can use the 1.8 TFT display with the Arduino. You’ll learn how to wire the display, write text, draw shapes and display images on the screen.

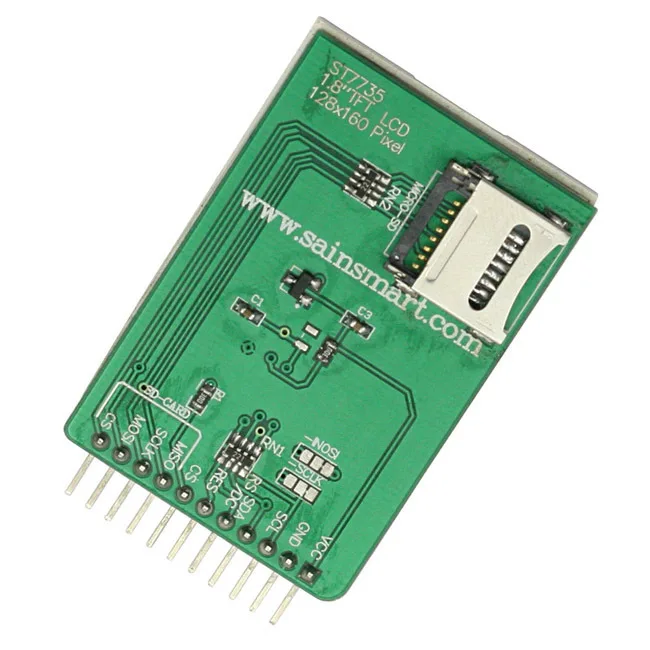

The 1.8 TFT is a colorful display with 128 x 160 color pixels. The display can load images from an SD card – it has an SD card slot at the back. The following figure shows the screen front and back view.

This module uses SPI communication – see the wiring below . To control the display we’ll use the TFT library, which is already included with Arduino IDE 1.0.5 and later.

The TFT display communicates with the Arduino via SPI communication, so you need to include the SPI library on your code. We also use the TFT library to write and draw on the display.

The 1.8 TFT display can load images from the SD card. To read from the SD card you use the SD library, already included in the Arduino IDE software. Follow the next steps to display an image on the display:

In this guide we’ve shown you how to use the 1.8 TFT display with the Arduino: display text, draw shapes and display images. You can easily add a nice visual interface to your projects using this display.

Where can I buy SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 online at the best price in the Honduras?

desertcart is the best online shopping platform where you can buy SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 from renowned brand(s). desertcart delivers the most unique and largest selection of products from across the world especially from the US, UK and India at best prices and the fastest delivery time.

desertcart ships the SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 to and more cities in Honduras. Get unlimited free shipping in 164+ countries with desertcart Plus membership. We can deliver the SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 speedily without the hassle of shipping, customs or duties.

desertcart buys SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 directly from the authorized agents and verifies the authenticity of all the products. We have a dedicated team who specialize in quality control and efficient delivery. We also provide a free 14 days return policy along with 24/7 customer support experience.

Yes, it is absolutely safe to buy SainSmart 1.8" TFT Color LCD Display Module with SPI Interface & MicroSD for Arduino UNO MEGA R3 from desertcart, which is a 100% legitimate site operating in 164 countries. Since 2014, desertcart has been delivering a wide range of products to customers and fulfilling their desires. You will find several positive reviews by desertcart customers on portals like Trustpilot, etc. The website uses an HTTPS system to safeguard all customers and protect financial details and transactions done online. The company uses the latest upgraded technologies and software systems to ensure a fair and safe shopping experience for all customers. Your details are highly secure and guarded by the company using encryption and other latest softwares and technologies.

The TFT isn’t ‘plug & play’ with the Raspberry, a patch has to be applied to the kernel to be able to interface via SPI with the ST7735R controller chip on the TFT. Once working, the display will act as a framebuffer device.

If you are planning on displaying the console on the TFT, then enabling these options in .config will allow you to change the font size and rotate the display later on.

If you build the st7735 driver pair as built-in, add these options to the end of the line in /boot/cmdline.txt. This will display the console on the TFT.

Reason: The hooks on the backight of ER-TFT032-3.1 is always complained by most customers for inconvenient assembly. So we cancel the hooks in the new version of ER-TFT032-3.2.That"s the only difference for these two versions.

ER-TFT032-3.2 is 240x320 dots 3.2" color tft lcd module display with ILI9341 controller and optional 4-wire resistive touch panel and 3.2 inch capactive touch panel with controller FT6236,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8/16-bit parallel,3/4-wire serial interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 3.2"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

Tags: Arduino Uno, Arduino,1.8" SPI TFT LCD, 128x160 module, SD card,ST7735R,ST7735S, Adafruit,Adafruit_ST7735, Adafruit_GFX,ST7735B, UTFT,flickering streaks ,мерцающие полосы, вертикальные горизонтальные помехи при обновлении картинки с SD карты,HY-1.8 SPI, S6D02A1,Adafruit_QDTech, KMR-1.8 SPI,TFT_ILI9163, Arduino Esplora,SainSmart

The 1.8" display has 128x160 color pixels. Unlike the low cost "Nokia 6110" and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R, ST7735S, ST7735B) can display full 18-bit color (262K shades). And the LCD will always come with the same driver chip so there"s no worries that your code will not work from one to the other.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as a ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card.

This color display uses SPI to receive image data. That means you need at least 4 pins - CLOCK, DATA IN, TFT CS and D/C. If you"d like to have SD card usage too, add another 2 pins - DATA OUT and card CS.

MISO(or SD_MISOorSDO) (Master In Slave Out) - this is the SPI Master In Slave Out pin, its used for the SD card. It isn"t used for the TFT display which is write-only

MOSI (or DIN or SD_MOSIorSDA) (Master Out Slave In) - this is the SPI Master Out Slave In pin, it is used to send data from the microcontroller to the SD card and/or TFT

TFT_CS (Chip Select or Slave Select) - the pin on each device that the master can use to enable and disable specific devices. This is the TFT SPI chip select pin

RST (or RESETorRES) - this is the TFT reset pin. Connect to ground to reset the TFT! Its best to have this pin controlled by the library so the display is reset cleanly, but you can also connect it to the Arduino Reset pin, which works for most cases.

You have got one of these really cheap 1.8" TFT SPI LCD module. Great value for the price. You have got it up and running in no time. Just one little problem... flickering streaks - horizontal, vertical or combined. You did a search on the Web and can"t find right answer. We will help you. It"s very easy.

What I did, is to insert resistive dividers into each signal from Atmel to TFT. It consists of one in series of 180 Ohm and one 330 Ohm parallel to the inputs to ground, for each input.

Insert resistive dividers into each signal from Arduino board to TFT display. It consists of one in series of 180 Ohm and one 330 Ohm parallel to the inputs to ground, for each input.

Convert your Arduino board and TFT display to 3.3V. Many ways to do that for Arduino. For example, on display board you have to put solder blob across JP1.

3.TFTBitmapLogo sketch. Displays your picture.The display can load images bigger or smaller than the display size (160 x 128 px), but for better results, edit your image size to 160 x 128 px.The image should be in .bmp format. To do that, you can use a photo editing software and save the image as.bmpformat. If you want to later use your own image, use an image editing tool and crop your image to no larger than 128 pixels high and 160 pixels wide. Save it as a 24-bit color BMP file - it must be 24-bit color format to work, even if it was originally a 16-bit color image - becaue of the way BMPs are stored and displayed!You can download example here.

6.spitftbitmap sketch. The display can load images bigger or smaller than the display size (160 x 128 px), but for better results, edit your image size to 160 x 128 px.The image should be in .bmp format. To do that, you can use a photo editing software and save the image as.bmpformat. If you want to later use your own image, use an image editing tool and crop your image to no larger than 160 pixels high and 128 pixels wide. Save it as a 24-bit color BMP file - it must be 24-bit color format to work, even if it was originally a 16-bit color image - becaue of the way BMPs are stored and displayed!You can download example here.

7. ST7735_SD sketch. Scrolls you pictures like Photo frame. The display can load images bigger or smaller than the display size (160 x 128 px), but for better results, edit your image size to 160 x 128 px.The image should be in .bmp format. To do that, you can use a photo editing software and save the image as.bmpformat. If you want to later use your own image, use an image editing tool and crop your image to no larger than 160 pixels high and 128 pixels wide. Save it as a 24-bit color BMP file - it must be 24-bit color format to work, even if it was originally a 16-bit color image - becaue of the way BMPs are stored and displayed! You can change the rotation of pictures to landscape or vertical. You can find examples of pictures used here.

11. TFT_graphicstest_small sketch for TFT_ILI9163 library. Supports ILI9163 chip. Do not forget to check the User_Setup.h file configuration in library folder.

TFT_ILI9163library. Download, unzip and add to libraries in our PC, for example C:\Users\toshiba\Documents\Arduino\libraries. This link you can find in Preferences of Adruino IDE program which installed in your PC. You can read about it here. Supports ILI9163 chip

TFT_S6D02A1ibrary. Download, unzip and add to libraries in our PC, for example C:\Users\toshiba\Documents\Arduino\libraries. This link you can find in Preferences of Adruino IDE program which installed in your PC. You can read about it here. Supports S6D02A1 chip.

UTFTlibrary. Download, unzip and add to libraries in our PC, for example C:\Users\toshiba\Documents\Arduino\libraries. This link you can find in Preferences of Adruino IDE program which installed in your PC. You can read about it here. SD card is not supported.
