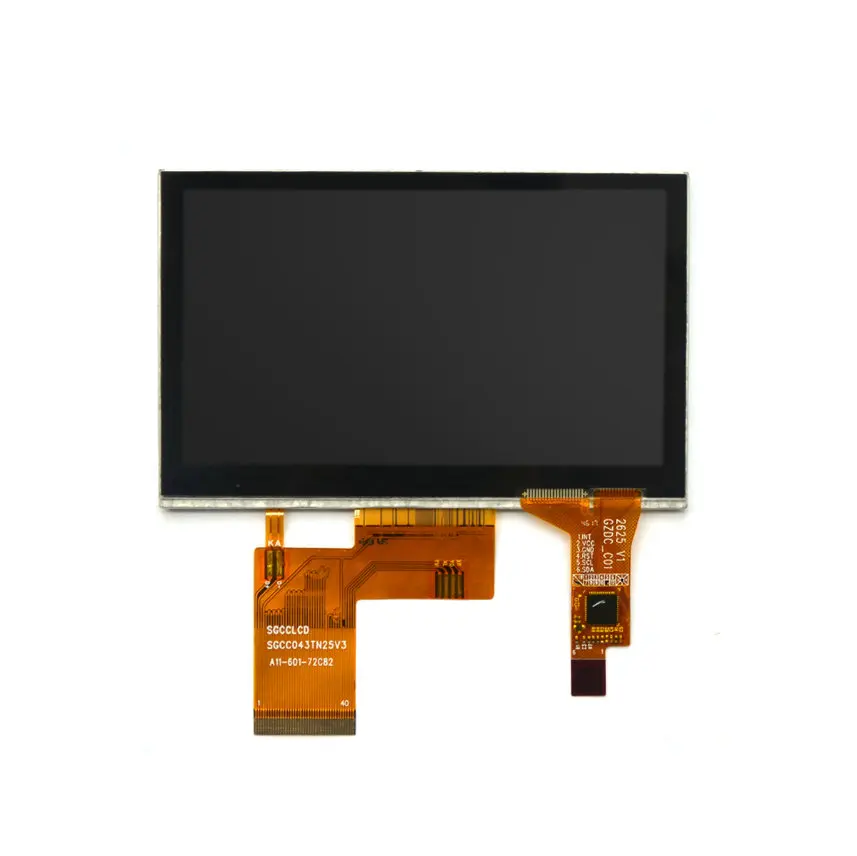

ER-TFT043A2-3 is 480x272 dots 4.3" color tft lcd module display with driver IC ST7282 and optional capacitive touch panel with controller and connector,optional 4-wire resistive touch panel with connector,superior display quality,wide view angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI .

It can be used in any embedded systems,car,mp4,gps,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports rgb interface. FPC with zif connector is easily to assemble or remove.Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 4.3"TFT Touch Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560,Uno and 8051 Microcontroller Development Board&Kit.

Lummax Electronics Co., Ltd. was establishedin May 2004. We are specialized in R&D, production and sales of LCD panel, LCD module, TFT LCD module, and resistive & capacitive touch panel products.

Maclight 4.3 inch tft lcd have the standard resolution with 480x272 pixels and 800x480 pixels, regular RGB interface with ST7282, OTA5108, HX8257A IC driver, and custom made MCU interface with SSD1963, RA8875 series interface for difference application.

Our 4.3 inch tft lcd have standard working temperature and wide working temperature 4.3" lcd that can up to -30~+80 °c, The 4.3" lcds have standard viewing angle TN TFT LCD type ( 6 o"clock and 12 o"clock) and IPS tft lcd with full viewing angle.

Our 4.3" tft touch screen could combine with resistive touch screen (RTP) and capacitive touch screen( CTP / PCAP), to the 4.3" PCAP, air-gap bonding and optical bonding to the CTP is welcome to us. to the 4.3 inch capacitive touch, we could custom make the CTP cover glass up to 3mm thickness cover glass and anti-finger print, anti-glare surface treatment.

Maclight 4.3 inch tft lcd display is also including 4.3" sunlight readable tft lcd display with 1000 nits high brightness tft lcd, that is suitable for outdoor application.

1. Sizes: please confirm the display area sizes for the project, the typical 4.3" tft lcd display active area is around 95.04*53.86 mm (4.3" diagonal).

2. Resolution: Would the display used in landscape or portrait type, 4.3" tft lcds have 480RGB*272 and 800RGB*480 in landscape type, and 480RGB*800 in portrait type. if we choose the IPS lcd with full viewing angle, we could use the 480RGB*272 and 800RGB*480 landscape lcd, and rotate 90 degree, then turn to portrait 4.3" tft lcd as well.

4. Viewing angle: would the 4.3" lcd be viewed from top viewing or bottom viewing, or would require full viewing angle? Maclight have full viewing angle IPS 4.3 lcd, and 12 o"clock (top), 6 o"clock (bottom) viewing angle for optional.

5. Working environments: if the lcd screen is used indoor, you could choose the standard brightness than lower than 400cd/m2, if used in outdoor, we suggest to choose the tft lcd brightness higher than 500cd/m2, that can be sunlight readable.

7. IC drivers: 4.3" TFT lcd have tradition IC driver ILI6480B, HX8257A, and new ST7282 IC drivers, that can fit the 4.3 lcds from tft lcd manufacturers Innolux, Tianma, BOE, Hannstar etc, because 4.3" lcd is digital RGB interface, the IC driver is not matter when choosing a new 4.3" lcd, or a replacement for other 4.3" lcd.

8. Interface: The typical 4.3" tft lcd module interface is RGB interface, we could make it with MCU interface, and HDMI interface, that is compliance for mainly driver boards in the market.

Please contact us for more 4.3" tft lcd products, we still have many 4.3" lcd not on this list below, and we support custom make 4.3" tft lcd as well.

If you are seeking 4.3" tft lcd, Maclight could provide the one stop 4.3" lcd solution for you, best technical support, 12 months warranty time and after sale services, high quality, competitive price, and stable supply, Welcome to contact us for more 4.3" tft lcd display module information.

WF43VTIAEDNN0 is a color TFT LCD with WQVGA 480x272 resolution, diagonal size 4.3 inch. This TFT model is built in with ST7282 driver IC. WF43VTIAEDNN0 supports 24-bit RGB interface; it’s available for Resistive Touch Screen (RTP) and Projected Capacitive Touch Screen (CTP) optional, as well as high brightness option for this model. WF43VTIAEDNN0 is an alternative item to replace WF43HTIAEDNNB which adopted CPT (Chunghwa Picture Tubes Ltd) TFT panel.
