40x2 lcd module factory

If you need to display a lot of information on your device, this extra wide LCD will do the job with an active area of 5.8-inches (147.50 millimeters). The 5x8 character matrix on this transmissive STN 40 x 2 LCD screen is good for typical office lighting and is easy to read in dark locations. One of our customers bought a display in the CFAH4002A series to use in an environmental control system for irrigation management.

Shenzhen HZY Photoelectric Technology is a company which specialized in LCD/LCD Modules and backlight kits.As a professional manufacturer,HZY designs and produces high-quality LCD and LCM. We produce TN,HTN,BTN(VA),STN,FSTN LCD and COB,COG LCM.In addition to standard LCD,we can design and produce various kinds of custom LCD and LCM for customer as well.

At present, the LCD high-tech achievements produced by the company can be widely used in household appliances, automobile instruments, wearable devices, communication equipment, medical equipment, financial POS machines, ETC electronic tags and other fields.

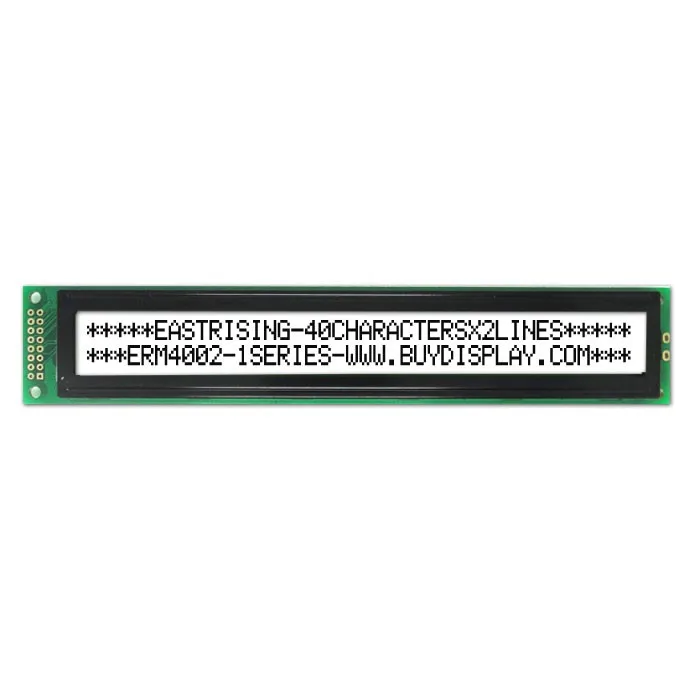

ERM4002FS-1 is 40 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the white color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

ERMC4002SBS-1 is 40 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It"s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for arduino.

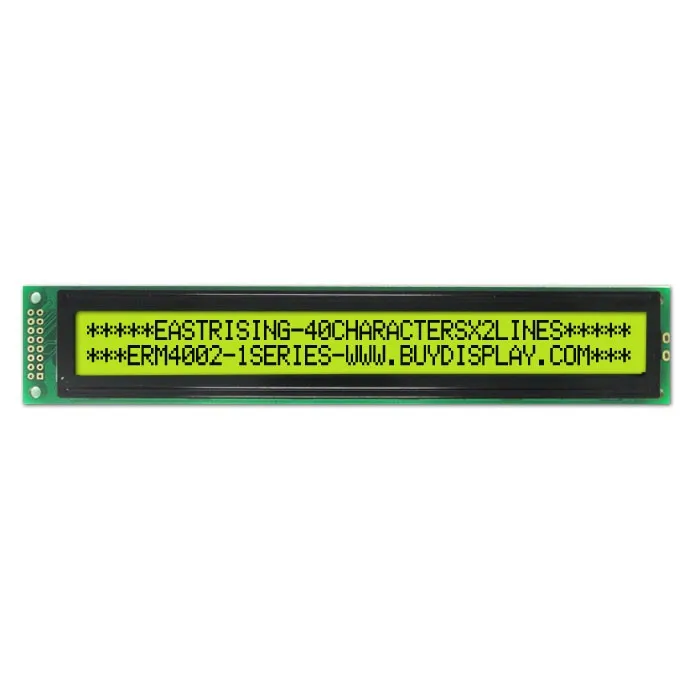

The 402A is our 40 character x 2 row chip on board (COB) alphanumeric displays. These classic LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product. Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.

Winstar WH4002A is 40 characters by 2 rows of 40x2 LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel and 5V or 3.3V power supply optional. This display LCD 40x2 model WH4002A is available for without backlight or with LED backlight options. This LCD display 40x2 is available in various LCD panel colors including gray, yellow/green and blue LCD options. This display LCD 40x2 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃, its built in character set supports English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) options.

We are one of professional leading manufacturers and suppliers of LCD display & LCD Modules.we manufacture all kinds of monochrom LCD including TN, STN, HTN,FSTN, color-STN and LCD Module in COG(Chip on Glass),COB(Chip on Board),COF(Chip On Flex/ Chip On Film), SMT(Surface Mount Technology),TAB(Tape Automated Bonding) type and TFT module under 7 inch. Further, we offer complete solutions such as design and product development for our customers (in OEM Design and Manufacturing).

RC4002A is 40 characters x 2 lines monochrome LCD display with module dimension 182.0 x 33.5 mm. Default interface of RC4002A display LCD 40x2 module is 6800 with built-in IC ST7066; if you require interface such as SPI or I2C, they’re available as well, but the IC will be replaced with RW1063.

Power supply of RC4002A 40x2 LCD display is 5V (3V is optional). Negative voltage version is available for 3V power supply. Raystar provides various LED backlight combinations for RC4002A module, such as yellow-green and white. You can choose module with LED backlight or without it.

LED backlight can be driven by PIN1, PIN2, PIN17, PIN18 or A and K. The RC4002A module offers a selection of fonts, including English/Japanese, Europe and Cyrillic (Russian). Feel free to send us inquiry if you’d like to know more information.
