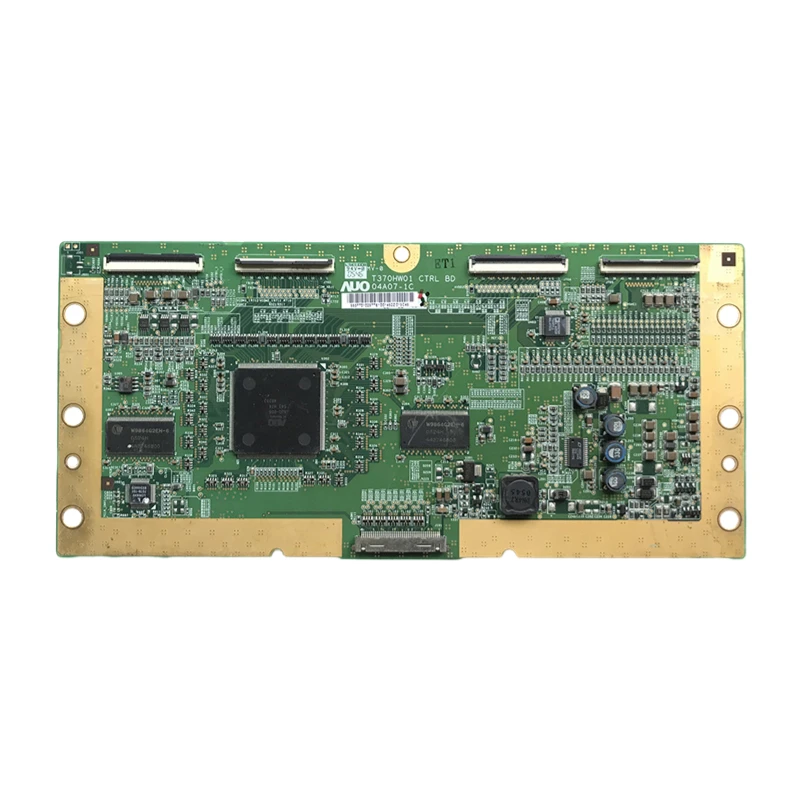

t370hw01 lcd panel free sample

Egy készüléknek betört az LCD kijelzője (illetve értelemszerűen az érintőpanelje) és találtam is ebay -on de nem tudom, hogy a kisebb verzió számút is meg merjem -e venni.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

1. General Description This specification applies to the 40.0 inch Color TFT-LCD Module T400HW02 V5. This LCD module has a TFT active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 40.0 inch. This module supports 1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 10-bit gray scale signal for each dot. The T400HW02 V5 has been designed to apply the 10-bit 2 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

Item Symbol Min Max Unit Condition s Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1 o Operating Temperature TOP 0 +50 [ C] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 o Storage Temperature TST -20 +60 [ C] Note 2 Storage Humidity HST 10 90 [%RH] Note 2 Panel Surface Temperature PST 65 [ oC] Note 3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

3. Electrical Specification The T400HW02 V5 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input, which powers the CCFL, is typically generated by an integrate power (I/P) system.

3.1 Electrical Characteristics Value Parameter Symbol Unit Note Min. Typ. Max LCD Power Supply Input Voltage V DD 10.8 12 13.2 V DC 1 Power Supply Input Current I DD -- 1.14 1.25 A 2 Power Consumption PC -- 13.68 15.0 Watt 2 Inrush Current I RUSH -- -- 4.5 A 3 Differential Input High Threshold VTH -- -- +100 mVDC 4 Voltage LVDS Differential Input Low Threshold VTL -100 -- -- mVDC 4 Interface Voltage

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

5. The performance of the Lamp in LCD panel, for example life time or brightness, is extremely influenced by the characteristics of balanced board and I/P board. All the parameters should be carefully designed as not to produce too much leakage current from high-voltage output. While you design or order the balance board, please make sure unwanted lighting caused by the mismatch of the lamp and the balanced board (no lighting, flicker, etc) never occurs. After confirmation, the LCD panel should be operated in the same condition as installed in your instrument 6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape. 7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 or less. At temperatures greater than 40, the wet bulb temperature must not exceed 39 . When operate at low temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

31 GND Ground 32 RE_CLK- LVDS Channel Even, Clock - 33 RE_CLK+ LVDS Channel Even, Clock + 34 GND Ground 35 RE_3- LVDS Channel Even, Signal 3- 36 RE_3+ LVDS Channel Even, Signal 3+ 37 NC No Connect (Reserved for 10-bit) 38 NC No Connect (Reserved for 10-bit) 39 GND Ground 40 SCL_TCON Please leave it open 41 SDA_TCON Please leave it open 42 NC Please leave it open B_INT(same as WP);EEPROM Write Protection 43 B_INT High(3.3V) for Writable, Low(GND) for Protection 44 Hsync_OUT H-Sync Output for Inverter/IPB 45 LVDS_SEL Open/High(3.3V) for NS, Low(GND) for JEIDA 46 SCL_FRC EEPROM Serial Clock for FRC 47 Reset_FRC Reset for FRC Chip 48 SDA_FRC EEPROM Serial Data for FRC 49 PVCC_SW Panel VCC Sequence Control Detection Pin to Check if System Board Connected 50 SYS_DET (GND if connected) 51 NC Please leave it open

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

(1) Apply the lamp voltage within the LCD operation range. When the back-light turns on before the LCD operation or the LCD turns off before the back-light turns off, the display may momentarily become abnormal screen.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

4. Optical Specification Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes in a dark environment at 25 °C. The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of φ and θ equal to 0°.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 2. When lamp current I H = 11mA. LWH=Lon5 where Lon5 is the luminance with all pixels displaying white at center 5 location.

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG4.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

5. Mechanical Characteristics The contents provide general mechanical characteristics for the model T400HW02 V5. In addition the figures in the next page are detailed mechanical drawing of the LCD.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

Specification Item Packing Remark Qty. Dimension Weight (kg) 1 Packing BOX 3pcs/box 1050(L)*280(W)*650(H) 38 2 Pallet 1 1140(L)*1060(W)*138(H) 16 3 Boxes per Pallet 8 boxes/pallet 4 Panels per Pallet 24pcs/pallet

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.com

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 4/30No Reproduction and Redistribution Allowed 1. General Description This specification applies to the 23.0 inch Color TFT-LCD Module T230XW01 V3. This LCD module has a TFT active matrix type liquid crystal panel 1366x768 pixels, and diagonal size of 23.0 inch. This module supports 1366x768 XGA-WIDE mode (Non-interlace). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit (6bit+FRC) gray scale signal for each dot. The T230XW01 V3 has been designed to apply the 8-bit 1 channel LVDS interface method. It is intended to support displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important. The T230XW01 V3 model is RoHS verified, which can be distinguished on panel label.

Item Symbol Min Max Unit Conditions Logic/LCD Drive Voltage Vcc -0.3 14 [Volt] Note 1 Input Voltage of Signal Vin -0.3 3.6 [Volt] Note 1 BLU Input Voltage VDDB 21 27 [Volt] Note 1 External Analog Dimming Control VDIM 0 5.5 [Volt] Note 1 Voltage BLU Brightness Control Voltage VBLON 0 7 [Volt] Note 1 External/Internal PWM Dimming PDIM 0 5.5 [Volt] Note 1 Control Voltage o Operating Temperature TOP 0 +50 [ C] Note 2 Operating Humidity HOP 10 90 [%RH] Note 2 o Storage Temperature TST -20 +60 [ C] Note 2 Storage Humidity HST 10 90 [%RH] Note 2

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 6/30No Reproduction and Redistribution Allowed 3. Electrical Specifications The T230XW01 V3 requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and liquid crystal. The second input power for the BLU, is to power inverter..

3-1 Electrical Characteristics Parameter Values Unit Notes Min Typ Max LCD: Power Supply Input Voltage Vcc 10.8 12.0 13.2 Vdc 1 Power Supply Input Current Icc - 0.27 0.4 A 2 Power Consumption Pc - 3.24 4.8 Watt 2 Inrush Current I RUSH - - 3 Apeak 3 Differential Input High VTH 100 mV Threshold Voltage 4 LVDS Differential Input Low VTL -100 mV Interface Threshold Voltage 4 Common Input VICM 1.1 1.25 1.4 V Voltage Input High Threshold VIH 2.4 3.3 Vdc CMOS Voltage (High) Interface Input Low Threshold VIL 0 0.7 Vdc Voltage (Low) Backlight Power Consumption PDDB 45.6 50.4 55.2 Watt 8 Total Power Consumption 54.03 59.52 Life Time 50,000 60,000 Hours 9

5. The performance of the Lamp in LCM, for example life time or brightness, is extremely influenced by the characteristics of the DC-AC Inverter. So all the parameters of an inverter should be carefully designed so as not to produce too much leakage current from high-voltage output of the inverter. When you design or order the inverter, please make sure unwanted lighting caused by the mismatch of the lamp and the inverter (no lighting, flicker, etc) never occurs. When you confirm it, the LCD Assembly should be operated in the same condition as installed in your instrument. 6. Do not attach a conducting tape to lamp connecting wire. If the lamp wire attach to conducting tape, TFT-LCD Module have a low luminance and the inverter has abnormal action because leakage current occurs between lamp wire and conducting tape. 7. The relative humidity must not exceed 80% non-condensing at temperatures of 40 ℃ or less. At temperatures greater than 40℃, the wet bulb temperature must not exceed 39 ℃. When operate at low temperatures, the brightness of CCFL will drop and the life time of CCFL will be reduced. 8. The measured data is without boost function 9. Lifetime is defined and judged when analog and PWM dimming are maximum values

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 8/30No Reproduction and Redistribution Allowed 3-2 Interface Connections LCD Panel Driving Signal Connector Type and Pin Assignment are as follows: Connector on Panel: FI-X30SSL-HF (Manufactured by JAE) or Equivalent Mating connector: FI-30C2L (Manufactured by JAE) or Equivalent

Note: 1. All GND (ground) pins should be connected together and should also be connected to the LCD’s metal frame. All Vcc (power input) pins should be connected together. 2. For Pin 10, 27 and 28, panel will not damage if negligently connect these pins to high or low.

２．Input specification CN1: JST_S14B-PH-SM4-TB or equivalent No Symbol Description Default 1 VDDB (Main Power) DC input 24.0 VDC 24V 2 VDDB (Main Power) DC input 24.0 VDC 24V 3 VDDB (Main Power) DC input 24.0 VDC 24V 4 VDDB (Main Power) DC input 24.0 VDC 24V 5 VDDB (Main Power) DC input 24.0 VDC 24V 6 GND Ground GND 7 GND Ground GND 8 GND Ground GND 9 GND Ground GND 10 GND Ground GND 11 VDIM (LCD Bright) GND (0V) 80% / Open (1.6V) 100% / High (3.3V) 100% 120%, Luminance 12 VBLON (Enable Pin) BL On-Off: Open/High (3.3V) for BL On as default On 13 PDIM External PWM (AC Signal Control Duty) 100% Open/High (3.3V, 100% Duty) for 100% Brightness 14 BLGND Ground and Current Return GND

Apply the lamp voltage within the LCD operating range. When the backlight turns on before the LCD operation or the LCD turns off before the backlight turns off, the display may momentarily become abnormal.

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 17/30No Reproduction and Redistribution Allowed 4. Optical Specifications Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 30 minutes in a dark environment at 25℃ . The values specified are at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θ equal to 0°. PR880 or equivalent

Brightness on the white (Lon3) Contrast ratio (CR)= Brightness on the black (Loff3) state 2. Surface luminance is luminance value at point 3 across the LCD surface 50cm from the surface with all pixels displaying white. From more information see FIG 4-2. When VDDB = 24V, IDDB = 2.54A. LWH=Lon3. Where Lon3 is the luminance with all pixels displaying white at center location point 3. 3. The variation in surface luminance, δWHITE is defined (center of Screen) as: δWHITE(9P)= Maximum(L on1, Lon2,…,Lon5)/ Minimum(Lon1, L on2,…Lon5) 4. Response time is the time required for the display to transition from white(Lon) to black(Loff) (Decay Time, Tr D=Toff ) and from black(Loff) to white(Lon) (Rise Time, Tr R=Ton ). The response st time interval is between the 10% and 90% of 1 frame amplitudes. For additional information see FIG 4-3. 5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface. For more information see FIG 4-5. 6. To be measured with a viewing cone of 1°by Topcon luminance meter ELDIM EZ Contrast 160D.

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 20/30No Reproduction and Redistribution Allowed 5. Mechanical Characteristics The contents provide general mechanical characteristics for the model T230XW01 V3. In addition the figures in the next page are detailed mechanical drawing of the LCD.

©Copyright AU Optronics, Inc.May, 2007 All Rights Reserved. T230XW01 V3 - Spec. Ver 3.5 27/30No Reproduction and Redistribution Allowed 9. PRECAUTIONS Please pay attention to the followings when you use this TFT LCD module.

1. Acoustical Noise RequirementMeasurement of all residual noises (e.g. back light, inverter, fans …) will be done in asilent reverberant room. If available, the electronic box is placed under the LCD.Measure the sound level frequency dependant on 8 points around the LCD. Theposition in height of the sound audiometer is the middle of the LCD. Measures this onfrequency span 25 Hz -20 kHz (gives an overview of the total spectrum) and measurethis on frequency span 25 Hz - 1500 Hz.

Performance parameter Class LCD size Requirement General audible noise. ALL ALL < 20 (dBA) Sound level.

Display  LCD Philips  LCD TV Logic  CRT JVC DT‐ LCD TV Logic  LCD TV Logic  LCD TV Logic  CRT  LCD TV Logic  LCD TV Logic  LCD TV Logic LCD TV Logic
