tft lcd 1000nits with ctp for sale

A1:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD,LCM,COB,COG modules more than 5 years in ShenZhen ! Our advanced full set equipments make sure good quality and competitive price!

A2: We will quote you best price according to your need, such as quantity and type, so please let us know the details, we will feedback to you with best price and lead time.

LCD enables the display to be thinner rather than the cathode ray tube. LCDs consume only less power than LED and gas displays; this is work on the principle of blocking light fairly than emitting it. TheLCD Display Moduleis used in various kinds of applications and is the most common module used in various devices and then circuits.

A TFT is employed in both direct and indirect capture as a ground for the picture receptor in medical radiography. Of course, all kinds of high-resolution and then and then high-quality electronic visual displays utilize theTFT Modulebased active matrix displays. It is perfect for more applications, including industrial control, coffee machine, automation, GPS, POS system, and so on. This technology may offer the full-colour RGB showcasing a range of colours and hues.

In order to buy the LCD module, you must pick the best manufacturer because they offer a greater and more high-quality product. The TFT LCD module gives greater benefits to the user the lower power consumption. The expert will offer greater items to the people.

Day by day, advanced smart technology is being developed widely, as the best now is the touch panel, making the user work with the device smoothly. This page will explain why you need to look for expert production touch panel Modules services.

Are you looking for high-qualityTFT LCD Modules? Then you can choose the expert production touch panel platform to get affordable and high-quality products. The expert supplier will be using all high quality materials for the product, bringing the product worth to first quality in the market.

It is familiar that each product will be passed through the test; this indicates that product quality is high worth the cost. The durability will be longer compared to the low quality of the touch panel. Before the product reaches the customer"s hand, it will ensure in the production platform itself that it is highly worth able. In addition, expertTFT LCD Panelservices even can work with the custom touch panel. These will help the business that is developing the production. They are a custom product in the market.

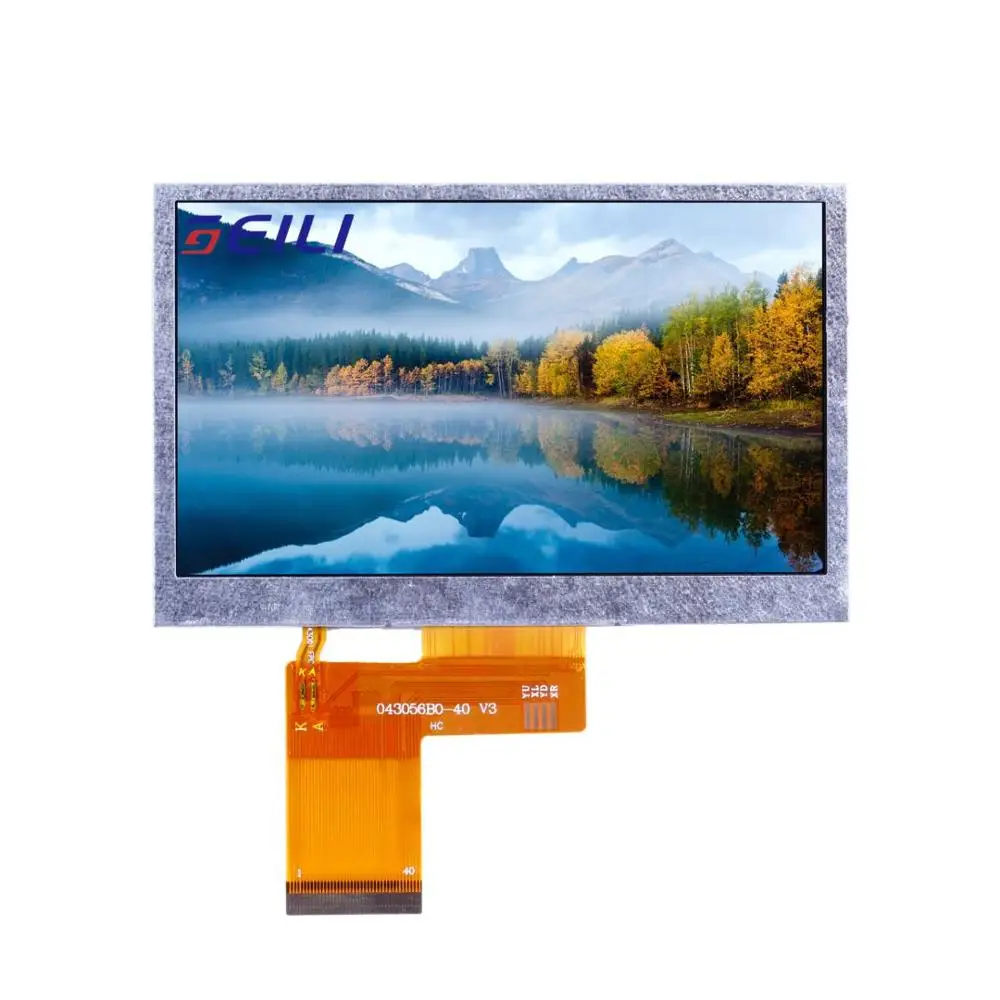

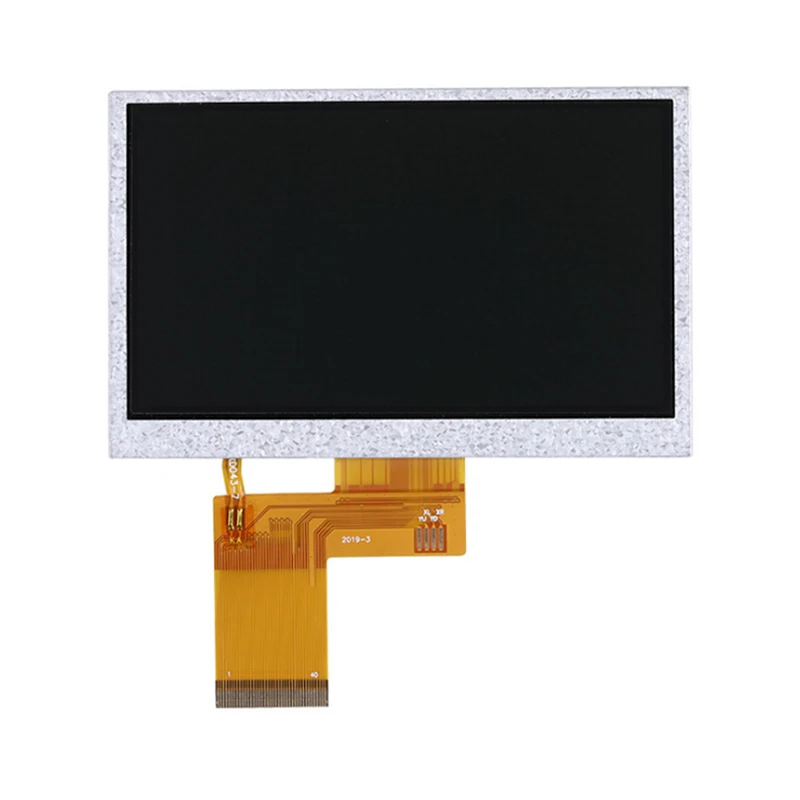

Maclight 4.3 inch tft lcd have the standard resolution with 480x272 pixels and 800x480 pixels, regular RGB interface with ST7282, OTA5108, HX8257A IC driver, and custom made MCU interface with SSD1963, RA8875 series interface for difference application.

Our 4.3 inch tft lcd have standard working temperature and wide working temperature 4.3" lcd that can up to -30~+80 °c, The 4.3" lcds have standard viewing angle TN TFT LCD type ( 6 o"clock and 12 o"clock) and IPS tft lcd with full viewing angle.

Our 4.3" tft touch screen could combine with resistive touch screen (RTP) and capacitive touch screen( CTP / PCAP), to the 4.3" PCAP, air-gap bonding and optical bonding to the CTP is welcome to us. to the 4.3 inch capacitive touch, we could custom make the CTP cover glass up to 3mm thickness cover glass and anti-finger print, anti-glare surface treatment.

Maclight 4.3 inch tft lcd display is also including 4.3" sunlight readable tft lcd display with 1000 nits high brightness tft lcd, that is suitable for outdoor application.

1. Sizes: please confirm the display area sizes for the project, the typical 4.3" tft lcd display active area is around 95.04*53.86 mm (4.3" diagonal).

2. Resolution: Would the display used in landscape or portrait type, 4.3" tft lcds have 480RGB*272 and 800RGB*480 in landscape type, and 480RGB*800 in portrait type. if we choose the IPS lcd with full viewing angle, we could use the 480RGB*272 and 800RGB*480 landscape lcd, and rotate 90 degree, then turn to portrait 4.3" tft lcd as well.

4. Viewing angle: would the 4.3" lcd be viewed from top viewing or bottom viewing, or would require full viewing angle? Maclight have full viewing angle IPS 4.3 lcd, and 12 o"clock (top), 6 o"clock (bottom) viewing angle for optional.

5. Working environments: if the lcd screen is used indoor, you could choose the standard brightness than lower than 400cd/m2, if used in outdoor, we suggest to choose the tft lcd brightness higher than 500cd/m2, that can be sunlight readable.

7. IC drivers: 4.3" TFT lcd have tradition IC driver ILI6480B, HX8257A, and new ST7282 IC drivers, that can fit the 4.3 lcds from tft lcd manufacturers Innolux, Tianma, BOE, Hannstar etc, because 4.3" lcd is digital RGB interface, the IC driver is not matter when choosing a new 4.3" lcd, or a replacement for other 4.3" lcd.

8. Interface: The typical 4.3" tft lcd module interface is RGB interface, we could make it with MCU interface, and HDMI interface, that is compliance for mainly driver boards in the market.

Please contact us for more 4.3" tft lcd products, we still have many 4.3" lcd not on this list below, and we support custom make 4.3" tft lcd as well.

If you are seeking 4.3" tft lcd, Maclight could provide the one stop 4.3" lcd solution for you, best technical support, 12 months warranty time and after sale services, high quality, competitive price, and stable supply, Welcome to contact us for more 4.3" tft lcd display module information.

TFT LED module display (Thin Film Transistor) is a thin film transistor type liquid crystal display, each pixel of it is driven by a thin film transistor integrated behind it. TFT LCD module display generally refers to the thin film liquid crystal display, but actually refers to the thin film transistor (matrix) that can actively control each independent pixel on the screen, which is also called active matrix TFT (active matrix TFT). The basic principle is very simple: the display screen is composed of many pixels that can emit light of any color, as long as each pixel is controlled to display the corresponding color the purpose will be achieved. The main components of a TFT screen include a backlight, light guide plate, diffusion film, prism film, an alignment film, liquid crystal material, thin film transistor, etc.

When the TFT LED module display is powered on, the backlight emits white light, which illuminates the entire screen through the light guide plate. The diffuser film softens the light. The prism mode ensures that the light can go in the correct direction, and then the polarizer filters out light in other directions. The TFT LED module display controls the voltage of the sub-pixels according to the needs, affects the degree of twist of the liquid crystal molecules, and controls the brightness of the light. When light passes through the liquid crystal and passes through the color filter, there is red, green, and blue light. The last layer of the polarizer only allows horizontally polarized light to pass through, and the TFT LED module displays the picture.

Team Source Display TFT LCD display model TST024QVSS-38 is a 2.4 inch color thin film transistor liquid crystal display, this lcd display was consists of LCD panel and backlight. The resolution of 2.4 inch transmissive tft lcd display is 240*320, and was built in ST7789V driver IC. This 2.4 inch LCD module is needs to be driven by a voltage of 2.8-3.3V, and the best viewing angle is at 6 o"clock. Outline size of this 2.4 inch LCD display is 42.72x60.26x2.52mm, and AA size is 36.72x48.96mm. Meanwhile, the 2.4 inch LCD display support to connect by MCU interface.

Team Source Display (TSD) is a professional LCD display manufacturer from China with ISO13485, IATF16949, ISO9001 and other certificates. We have been specialized in LCD display industry for more than 18 years.TSDmanufacturing 0.96-32 inch color TFT LCD display, capacitive & resistive touch screen, monochrome LCD/LCM including TN, HTN, FSTN, COB, COG and segment display etc. and also provide OEM & ODM service.

Our TFT liquid crystal displays are mainly used in communication equipment, consumer electronics, industrial applications, office automation, smart applications, automobiles, IT products, medical applications and other fields. Wherever there is a demand for LCD, our products can be used.
