uctronics 3.5 inch hdmi tft lcd display with touch screen factory

The UCTRONICS 3.5 Inch touch screen is the same size as the standard Raspberry Pi model B/B+, and well-mates with the Raspberry Pi boards. With a tiny size, vivid image, and responsive touchscreen, it is definitely ideal for portable devices and multimedia projects. It is a great replacement for a heavy and bulky HDMI monitor, keyboard, and mouse

Step1: Align the pin 1 of the edge connector between the LCD display and Raspberry pi board, connect the pin 1,2,3,4 then pin 19,20,21,22,23,24,25,26.

Attention: If you want to use the touch function, you need to download and install the driver manually refers to the instructions we provided. The driver includes the settings of the Raspbian OS resolution and touch screen support.

Attention: If you use this display without a Pi, the touch function is not available because the touch function of this display just supports the Raspbian system. Meanwhile, an extra HDMI cable also is required for the video transmission.

UCTRONICS U6111 is a 3.5” TFT LCD display with SPI interface and touchscreen support. It works with all standard Raspberry Pi models and supports operating systems like Raspbian, Ubuntu, Kali and RetroPie. Windows 10 IoT is NOT supported.

The UCTRONICS 3.5 Inch touch screen is the same size as the standard Raspberry Pi model B/B+, and well-mates with the Raspberry Pi boards. With a tiny size, vivid image, and responsive touchscreen, it is definitely ideal for portable devices and multimedia projects. It is a great replacement for a heavy and bulky HDMI monitor, keyboard, and mouse

Step1: Align the pin 1 of the edge connector between the LCD display and Raspberry pi board, connect the pin 1,2,3,4 then pin 19,20,21,22,23,24,25,26.

Attention: If you want to use the touch function, you need to download and install the driver manually refers to the instructions we provided. The driver includes the settings of the Raspbian OS resolution and touch screen support.

Attention: If you use this display without a Pi, the touch function is not available because the touch function of this display just supports the Raspbian system. Meanwhile, an extra HDMI cable also is required for the video transmission.

Visibility is... rough. The panel used appears to have originally been designed for a vertically oriented use, but it"s a TN display. The net result is that half the screen is brighter than the other when viewed dead-on from the center. Viewing angle is extremely biased towards one side of the screen.

There"s a tad bit of overscan on the side with the fatter border (I"m driving the screen at 800x600 at the moment), so adjust your Pi"s config to suit.

Also, seriously, don"t drive this higher than 800x600 if your use case lets you control the input resolution The screen is way too small and way too low resolution (480x320!) to be useful beyond that. UI elements and text are baaaaaarely usable at 800x600.

Overall, it"s easy, reasonably well designed, and the worst issues of the lot are the rather awkward viewing angles and the screen tearing.. It"s not very expensive, takes HDMI, and fits perfectly (like, it"s actually perfect) onto a Pi 2 or 3.

Step1: Align the pin 1 of the edge connector between the LCD display and Raspberry pi board, connect the pin 1, 2, 3, 4 then pin 19, 20, 21, 22, 23, 24, 25, 26.

Attention: If you want to use the touch function, you need to download and install the driver manually refers to the instructions we provided. The driver includes the settings of the Raspbian OS resolution and touch screen support.

The RPi LCD can be driven in two ways: Method 1. install driver to your Raspbian OS. Method 2. use the Ready-to-use image file of which LCD driver was pre-installed.

3) Connect the TF card to the Raspberry Pi, start the Raspberry Pi. The LCD will display after booting up, and then log in to the Raspberry Pi terminal,(You may need to connect a keyboard and HDMI LCD to Pi for driver installing, or log in remotely with SSH)

1. Executing apt-get upgrade will cause the LCD to fail to work properly. In this case, you need to edit the config.txt file in the SD card and delete this sentence: dtoverlay=ads7846.

This LCD can be calibrated through the xinput-calibrator program. Note: The Raspberry Pi must be connected to the network, or else the program won"t be successfully installed.

Download and install driver The driver includes the settings of the Raspbain OS resolution and touch screen support. The LCD driver has been alreadyModel：B0106 installed in the Micro SD card shipped with the bundle kit that includes a Micro SD card. Otherwise users have to install the1. Introduction driver manually with the following steps for a clean system.UCTRONICS 3.5" HDMI TFT LCD display module is designed for Raspberry Pi 2 /Pi 3 Model B / B+ and can also be used on Step1 Expand the Micro SD cardother hardware platforms which have HDMI display interface. The 3.5" screen is the same size as the standard Raspberry Pi sudo raspi-config then choose Advanced Operations -> Expand Filesystem and hit Yes. Then go to Finish and youmodel B/B+, and well mates with these Raspberry Pi boards. With its touch screen and split audio from the HDMI input, it is need to run sudo reboot to reboot your Raspberry Pi.ideal for portable devices and multimedia projects, and it is a replacement for a heavy and bulky HDMI monitor, keyboard Step2 Update your Raspberry Pi systemand mice. The highlight of this display module, it supports high frame rate videos playback compared to its SPI LCD sudo apt-get updatecounterpart. LCD screen backlight can be turned off by the tiny onboard button if needed. Step3 Download the driver package2. Specification sudo git clone https://github.com/UCTRONICS/UCTRONICS_LCD35_HDMI_RPI.git LCD Resolution: 480 x 320 pixels Support plug and play Step4 Come in the UCTRONICS_LCD35_HDMI_RPI Interface: HDMI & SPI Support touch screen cd UCTRONICS_LCD35_HDMI_RPI HDMI Input Resolution support: Support game and video Step5 Get run permissions 480x320 ~ 1920x1280 sudo chmod +x UCTRONICS_hdmi_backup Support audio split from HDMI Automatic driver installation script sudo chmod +x UCTRONICS_hdmi_install Dimension: 55.98 x 85.60 mm Well mate with Pi B+, Pi2 and Pi3 sudo chmod +x UCTRONICS_hdmi_restore3. Hardware installation Step6 Backup data

matchbox-keyboard -s 50 extended& Step8 To restart the system with the following command, you can see a virtual keyboard icon in the top left corner

Exec=toggle-matchbox-keyboard.sh Website: http://www.uctronics.com

Type=Application Email: support@uctronics.com

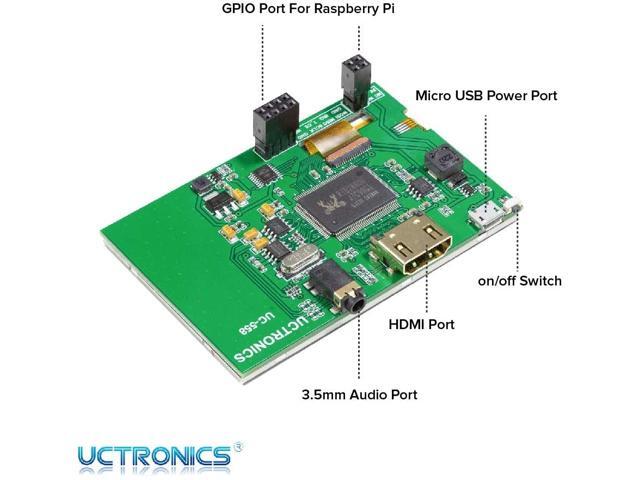

Video-Audio Joy: 480 x 320 display resolution (HDMI input resolution supports 480*320 to 1920*1280 any resolution); 3.5mm audio/headphone jack makes the display no longer silent. | Perfect for Raspberry Pi 4: Micro HDMI adapter included, hassle-free connection to Raspberry Pi 4; Also compatible with all other Model A&B series. | More Features: Supports HDMI audio split; Refreshes up to 60 frames per second; The backlight can be turned on/off | Plug & Play: Don’t need to reboot the Pi when connected and it doesn’t require any external power supply. | Portable Touchscreen: the overall dimension of this tiny screen is 3.38”×2.20” (86mm×56mm), and the included stylus, heatsinks, and HDMI adapters make this kit completed and convenient to use.

The 3.5 inch touch screen is the same size as the standard Raspberry Pi model B/B+, and well mates with the Raspberry Pi boards. With its touch screen and split audio from the HDMI input, it is ideal for portable devices and multimedia projects, and it is a replacement for a heavy and bulky HDMI monitor, keyboard and mice.

The on-board button near the micro USB connector can be used to turn the backlight on and off. Screen rotation is not supported  for this specific item.

1pcs 3.5 inch HDMI touch screen1pcs touch pen1pcs HDMI to HDMI converter3pcs heat sinks for Raspberry Pi board1pcs Micro HDMI to HDMI AdapterNote: The raspberry pi shown in the picture is not included!

Wide Compatibility: The case is designed to perfectly house Raspberry Pi 4 B, 3 B/B+ with a small touch screen. NOTE: Raspberry Pi motherboards are not included.

Features: 480 x 320 display resolution (HDMI input resolution supports 480*320 to 1920*1280); Refreshes up to 30 frames per second; 3.5mm audio/headphone jack; The backlight can be adjusted and turned on/off.

Effective Cooling Design: It comes with a copper heatsink for the CPU, the display board is mounted a 25mm×25mm brushless quiet fan, and cuts for air outlets, all of them cool your pi 4 effectively.

Plug & Play: Don"t need to reboot the Pi when connected, it doesn"t require any external power supply, and it displays with no need for the driver. Please note the touch function needs to install the driver.

Lightweight and Portable: the overall dimension of this tiny screen with enclosure is 3.66" ×2.48" ×1.18", and the delicate design and mini stylus make this kit completed and convenient to use.

If you want to use the touch function, you need to download and install the driver manually refers to the instructions we provided. The driver includes the settings of the Raspbian OS resolution and touch screen support.

Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.

Tutorial link: http://www.lcdwiki.com/MHS-3.5inch_RPi_DisplayProduct Advantage:1.The power interface is designed on the screen PCB board. It can be connected to the fan, which can cool the Raspberry Pi quickly with the heat sink

5.If you feel hard to install driver for screen, we offered the Pre-install Driver System in Tutorial to test screen working statues. 6.The Screen also Support Pi 3 B+, Pi 2. (The Case only suit for Pi 4).Notice:1. When the screen is connected, GPIO cannot be used. And Don"t have backlight ON/Off Key

2. Need to install the driver. Some customers often say that the system crashes or there is nothing on the screen after installation (If you are not familiar with the Raspberry Pi, We strongly recommended you that use the system with the driver installed)

In the previous article, I described the steps needed to install an LCD touchscreen on the Raspberry Pi. In this article, I will show you how to adjust the screen rotation of the LCD to landscape mode, and will show you how to calibrate the touchscreen pointer for optimal accuracy. Just follow the steps below to compete the process of setting up your Raspberry Pi LCD touchscreen:

1. First we need to change the setting for screen rotation in the /boot/cmdline.txt file. This setting is called fbtft_device.rotate=X. By default, this is set to X=0, which results in a portrait mode screen orientation. In order to switch the orientation to landscape mode, change fbtft_device.rotate=0 to fbtft_device.rotate=90. Enter sudo nano /boot/cmdline.txt at the command prompt. There should only be one line in this file. Go to the end of it and you will find the fbtft_device.rotate=X setting. Change the value from 0 to 90:

However, if you try to touch the screen now, you will find that the pointer movement does not correspond to your finger movement. This is because the LCD screen driver and the touchscreen controller driver have separate settings for screen rotation. We need to change the rotation of the touchscreen controller driver to match the rotation of the LCD screen driver.

2. You probably noticed that dragging your finger to the right moves the pointer up, not to the right. This indicates that the x and y axes of the touchscreen are swapped. To correct this, we need to swap the x axis for the y axis. This can be done by changing the swap_xy=X parameter in /etc/modules.

Now if you drag your finger around the screen, you will notice that the y axis (up and down) is correctly aligned with the motion of your finger. However, the x axis (left and right) is still inverted. To fix this, we need to install two more kernel modules, xinput and evtest. xinput is a Linux utility that will allow us to configure input device settings for the touchscreen controller, and evtest is an input device event monitor and query tool.

After the Pi finishes rebooting, you should notice that when you move your finger across the touch screen, the pointer should follow correctly in both axes. If you are using the Raspberry Pi 2 Model B, you will need to complete the calibration steps below before the pointer follows your finger correctly (and make sure that you have enabled startx to load automatically – see step 6 in this article).

You can rotate the screen 90 degrees (as we did in this tutorial) and the power connector will be at the bottom of the screen, but you can also rotate it 270 degrees so that the power connector is at the top of the screen. To do this, simply enter fbtft_device.rotate=270 in the /boot/cmdline.txt file. Then change the DISPLAY=:0 xinput --set-prop "ADS7846 Touchscreen" "Evdev Axis Inversion" 0 1 line in the /etc/X11/xinit/xinitrc file to DISPLAY=:0 xinput --set-prop "ADS7846 Touchscreen" "Evdev Axis Inversion" 1 0. All you need to do is switch the values of the 0 and 1 at the end of this line.

Now that we have our LCD touchscreen up and running, the final step in the installation is the calibration of touch control. This will make the pointer much more accurate and easier to use.

2. Now we need to install the calibration tool we will be using, xinput_calibrator; and other filters for controlling the touchscreen response. Install the tslib library by entering aptitude install libts-bin:

4. Now we can use ts_calibrate. Enter ts_calibrate at the command prompt (make sure you are still in root mode) to run the ts_calibrate program. The program will consecutively display five crosses on different parts of the screen, which you need to touch with as much precision as possible:

Drag the cross around the screen and observe how closely it follows your finger or stylus to test the accuracy of the calibration. Now press the “Draw” button to enter the drawing mode:

This is kind of a long process, but it is well worth it if you want to get the LCD touchscreen set up properly. So if you have any trouble setting this up or have anything to say, please leave a comment below. Also, if you found this article useful, please share it with your friends!
