Digital graphic touch screen overlays transform any large display into a state-of-the-art interactive touch screen and whiteboard. Touch Screen Overlays attach to the front of your existing LCD, TFT, or Plasma display monitor giving it instant touch interaction with your device transforming your display into a Human Machine Interface. Touch Screen Overlays can provide an excellent way to seal your display from dust, particulate contaminants, and moisture ingress up to IP67 with proper design.

In addition to our many product capabilities, at Dyna-Graphics, we provide fully customized touchscreen panel overlays for your interactive touchscreen needs. Our capacitive and resistive touch screen overlay systems allow for complete interactive capabilities with any type of Plasma, TFT, or LCD display monitor.

Contact us for more information regarding our resistive and capacitive touch screen overlay product options, or call us at 800-959-0108 and we will gladly assist you with your specific touchscreen panel overlay questions. Dyna-Graphics is your premier source for technologically advanced touch screen overlays.

There are a few key differences between capacitive and resistive touch screen technologies. A resistive touchscreen is comprised of several layers, out of which the flexible plastic and glass layers are the two most important electrically resistive layers. When a finger or stylus tip presses down on the outer surface, both the ITO films meet, which leads to an accurate measurement of the touch position.

In comparison, a capacitive touchscreen also consists of two spaced layers of glass, which are coated with conductor such as Indium Tin Oxide (ITO). The human body is then used as a conductor, so when a finger touches the glass of the capacitive surface, it changes the local electrostatic field, which creates the interaction. The system continuously monitors the movement of each tiny capacitor to locate the next area of touch.

Touch Screen overlays incorporate sophisticated optical imaging technology and a robust design to provide a durable touch solution perfect for high-traffic public applications. The hard coated plastic overlay preserves the displays optics and protects it from damage or abuse.  Touch Screen overlays are easy to install and use, making it easy to take your standard display screen and convert it to touch screen HMI capable. In addition, overlay tough technology is designed with a wealth of features to ensure long-lasting durability and functionality. Give us a call at 800-959-0108 to discuss your project requirements.

Dyna-Graphics has been designing, engineering, and manufacturing custom touch screen overlays for more than 20 years. Our touch screen overlays are durable and versatile enough for applications ranging from construction equipment interfaces to medical equipment overlays. Working from your designs, we will deliver touch screen digital graphic overlays that match your unique specifications. We provide the following touchscreen panel overlay options:

We can provide complete, built-to-spec touch screen assemblies to complement your custom touch screen panel overlays. Manufactured to match your design exact specifications, these touch screen assemblies include all the parts and components the module needs:

Dyna-Graphics utilizes hard coated lenses in all our custom touch screen overlays and panel displays. These lenses enhance incandescent, LED, fluorescent gas, and liquid crystal displays for superior visibility. Light sources can be exposed or totally sealed, as your application requires.

Capacitive and resistive touch screen overlay systems provide numerous advantages for a wide range of industries and applications. Our touch screen overlays are simple to operate and are ideal for applications that span various industries throughout the world. As a premium touchscreen panel overlay provider our capacitive and resistive touch screen overlay are regularly used within the following industries and applications.

Whatever your unique need may be, Dyna-Graphics can deliver the perfect custom touch screen overlay solution. Our products are designed and manufactured to meet customer specifications. Every product we produce is thoroughly tested to ensure reliable performance and long working life.

Contact Dyna-Graphics for more information regarding our custom resistive and capacitive touch screen overlay options that provides a simple and convenient conversion of your standard computer monitor into an overlay touch panel. Or request a quote  for further pricing details today. Dyna-Graphics is your trusted source for touchscreen panel overlay systems.

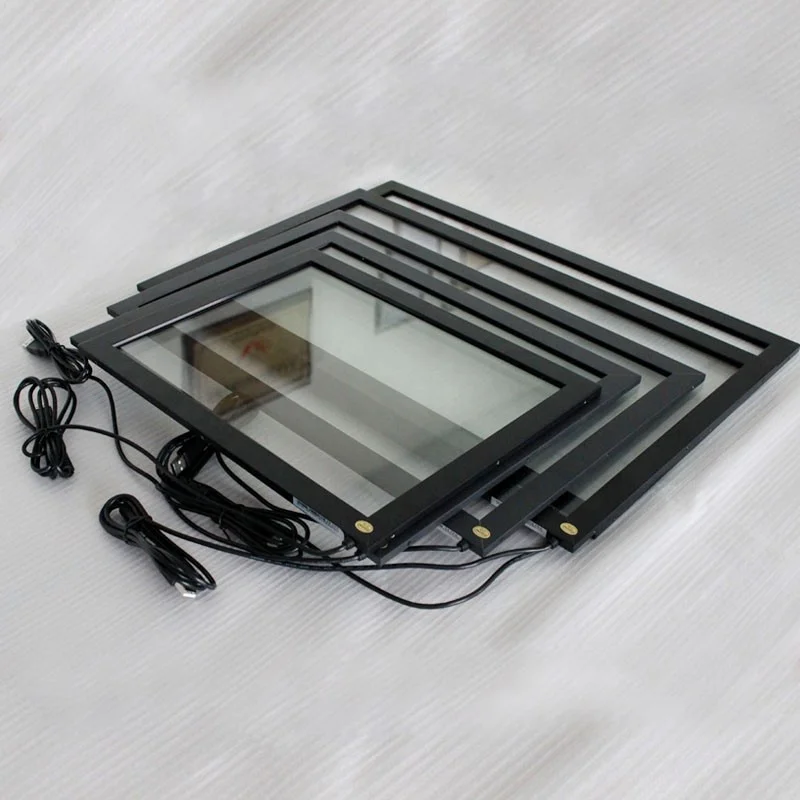

Our Touch Frames transform any LCD / LED Display into a Multi-Touch Screen using Infrared touch technology. These Touch Screen Overlays come as a simple to assemble kit which can be installed directly to the screen or alternatively, on a glass or acrylic panel in front of the display.

Our unique intouch Interactive Touch Screen Overlay kits offer a true multi-touch experience transforming any screen or surface into an interactive display. Whether it’s a new touch display installation, or retrofitting touch to an existing screen, video wall or table, an Interactive Touch Frame is the perfect choice.

Our standard sized Infrared touch overlays are lightweight and easy to install, with a USB Plug and Play functionality you can turn an existing display into a touch frame in no time. Touch Frames are compatible with LCD, LED or Projection displays and come as a retrofit kit, simply connecting the USB cable and touch functionality operates without the need for drivers.

We offer a wide range of IR touch frames with touch capabilities up to 32 touch points. Starting with standard sizing from 31.5”, our touch frame kits can be manufactured to fit custom aspect ratios, like 32:9 and can cater for large format applications providing touch solutions for displays up to 10m x 3m. We can provide made to measure solutions to fit existing display formats like LED modular systems, that require the same minimal, hassle free set up as our standard infrared touch overlays.

These touch screen overlays are shipped in smaller segments to keep shipping costs to a minimum and the segments are then simply assembled and installed on site connecting to your PC or Media Player via USB HID technology transforming your finger into the mouse!

Infrared touch technology works through creating a dense, uniform grid of invisible (to the naked eye) LED lights and sensors to detect interaction. These lights and sensors, embedded in the bezel of the touch frame itself are constantly working so that whenever a user touches the screen, a disturbance is registered, identifying the point of contact on the display.

The beauty of Infrared technology is that the user doesn’t actually have to make contact with the screen itself, as the touch is registered through breaking the pattern of light rather than having to make a physical connection with the screen.

IR touch overlays offer a high level of strength and durability for frequent use when compared to alternative interactive technologies. However, we can also offer a clear or anti-glare protective glass / plexiglas fascia that protects the display itself against wear and tear, to create a futureproof interactive display solution designed for longevity.

A touch frame is a retrofit solution that can turn any screen into a touch screen. Using IR (Infrared) touch technology, our interactive touch frames can be manufactured in a range of custom sizes up to 400″ and are compatible with any LED, LCD, or projection display.

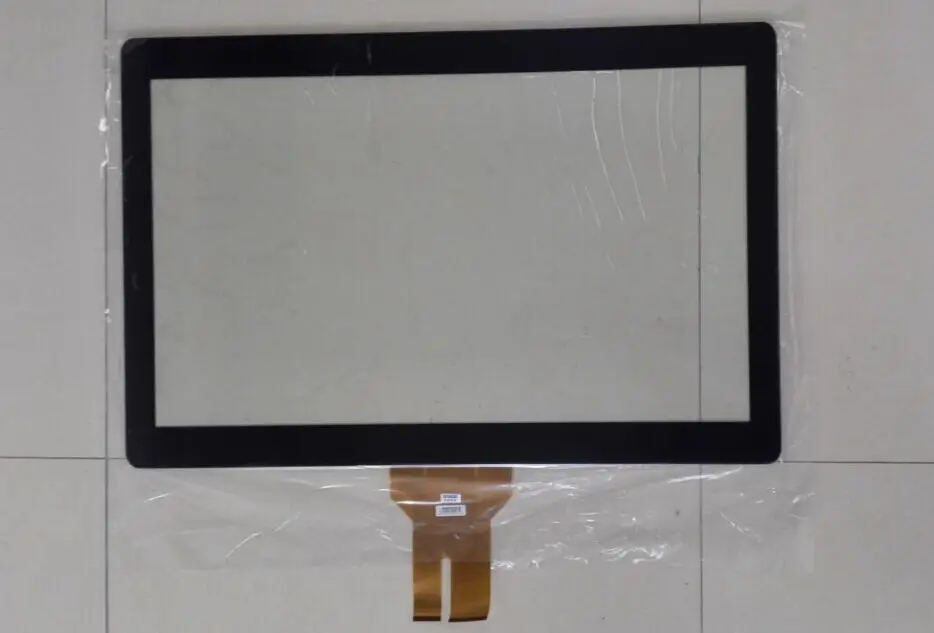

Our IR Touch Overlays come complete as a frame which fits around the screen transforming the display it an infrared touch screen whereas our capacitive touch overlays come complete as a toughened glass overlay which can be installed directly to the display or mounted in front.

IR touch frames are compatible with any screen technology including LCD, LED and projection displays, standard sizes can be installed in minutes and are ready to use simply by connecting the USB cable to your media source and it’s ready to use. Larger and custom-sized touch frames come complete with control software for simple calibration.

Interactive touch frames are a great way to update any existing display, offering a more cost-effective solution than buying an integrated touch screen. Popular applications of our infrared touch frames include training rooms, classrooms, retail displays, museums and even specialist gaming and leisure applications.

Yes, our Infrared Touch Overlays are easy to install, transforming any screen into a touch screen in minutes. Simply connect the USB cable and the touch overlay simply transforms your finger into the mouse.

We manufacture in Britain and ship worldwide – if you need further information, a pricing quote, or want to discuss ideas for using our Infrared Touch Overlays click the link below to contact us, email us via info@prodisplay.com or call us on +44 (0)1226 361 306.

With a resistive touch screen, full color, and a 6 o"clock viewing angle the display is a great way to offer a full user experience. For more information about the display, including its detailed datasheet, check out the 320x240 3.5" Touch Screen Color TFT page.

The EVE chip really makes this TFT module really shine. EVE (embedded video engine) is a cool new technology from FTDI/Bridgetek that simplifies the process of displaying videos and text in an embedded project. All display, touch sensing, backlight, and audio features are controlled by the FTDI FT810 EVE which appears to host the MCU as a memory-mapped SPI device. The host MCU sends commands and data over the SPI protocol. The module can support both SPI and Quad-SPI.
