CONRAC"S 6018 ID is a high resolution, multi-frequency, industrial grade TFT flat panel monitor supplied in metal cabinet or rackmount configurations. The cabinet version is supplied with a bracket for wall or ceiling mounting or for use as a desk stand. Advanced signal image processing techniques allow for operation on video signal sources ranging from CGA up to 1280 x 1024 (SXGA) workstation resolutions as well as CVBS and Y/C (S-Video). Modular construction, robust aluminum casing and special laminated anti-glare safety glass panel ensure reliable around the clock operation in demanding applications.

We are a market leader for the development and supply of special display solutions for mobile, military and marine applications. The product portfolio covers a wide range of rugged, specialised and customised LCD monitors, widescreen displays for ECDIS, RADAR, NAVIGATION and marine panel computers.

CONRAC GmbH – now renamed to DATA MODUL – CONRAC remaining as brand name, has always been a leader in providing innovative technology to the naval industry. Active in this industry, the company has at all times played a pioneering role in the display business. Thousands of installations worldwide speak for themselves.

Thanks to an advanced R&D department with unique expertise and a product management team with unbeatable global market knowledge, we always stay one step ahead. Committed to technologically advanced and cost-effective display solutions, special R&D teams create highly-engineered products of exceptional quality and reliability, using only the latest and most reliable technologies. Special developments like our cTEC features, guarantee trouble-free operation, prolong the product’s lifetime and reduce the cost of ownership.

CONRAC wide screen displays are the ideal solution for the display of electronic charts, tactical situation reports and automation control information. The displays are optionally available according to MIL-STD-167 (vibration), 810 (shock / temperature) and 461 (EMI) and withstand severe underwater explosions of up to 100g. The screen sizes offered range up to 55in, options available are touch screens and additional shock mounts.

The highly innovative wideECDIS series has been specially designed for a maritime environment, ECDIS, RADAR, navigation and ship control applications. The 16:10 wide screen format allows the user to dramatically increase the amount of information displayed which is important for compliance with the new radar standard. All marine grade displays are fully dimmable and compliant with the relevant standards.

Our modular concept ensures cost-effective solutions with very high quality standards, avoiding unnecessary over-engineering which contributes to a reduced cost of ownership. The displays can be customised to suit the user’s needs. Options for our ruggedised / customised marine grade displays include:Integrated controllers or industrial / marine grade / ruggedised PCs

Extended temperature range, climate control and display heating for operation under extreme temperatures and /or temperature variations and highest system availability

Our company philosophy is not to just offer state-of-the-art products, but to provide our customers with the best display or system solution for their projects.

CONRAC’s IP-TEC series of large-screen LCD / TFT displays has been specially designed for outdoor applications, as well as for indoor use with special requirements regarding the environmental conditions, e.g. where dust, moisture or immense variations in temperature are involved.

The main fields of application in airports are in baggage handling and loading areas, as well as car parks or other outside areas where a certain ruggedization of the displays is required. The displays are also ideal for railway, bus and subway

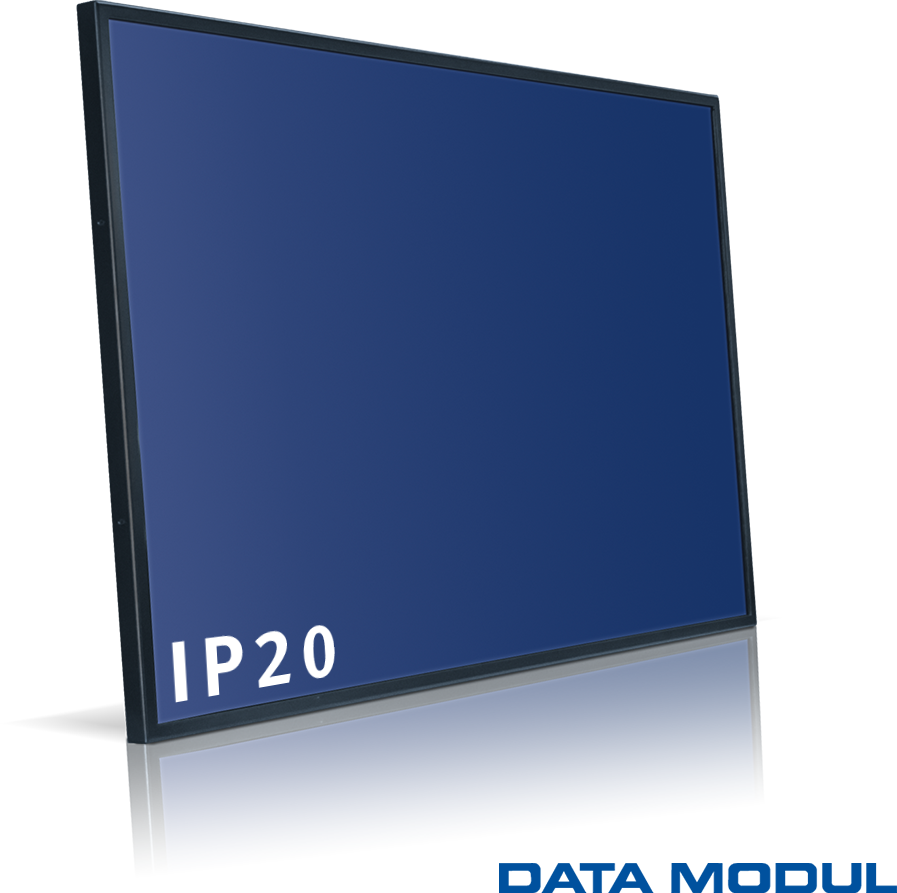

Similar to IP20 displays, customisation of IP54 displays is a major issue. All IP54 protected displays are based on a modular construction which allows various configurations. It is possible to combine a different number of integrated screens to

All displays can be supplied with or without an integrated controller which supports different software applications. The monitor-only versions can be connected to standard PC systems.

To offer maximum flexibility concerning the information to be displayed, the IP54 series can be used for operation in both landscape and portrait mode applications. All displays feature integrated display heating and ventilation, robust metal housing,

The IP54 series of displays uses the latest high-performance LCD / TFT displays. Screens are currently available in 32in, 40in, 46in and 57in. Conrac is also planning the launch of a series of IP65 protected units, with screen diagonals from 32in to

CONRAC’s range of highly engineered Marine Grade LCD/TFT Displays is specifically designed to withstand the harsh maritime environment. The SD-Series (Ship Display-Series) meets the

stringent demands of the international standards for Maritime Navigation and Radio Communications Equipment & Systems and ECDIS (Electronic Chart Display Information System).

Used for ECDIS, Radar, ARPA (Automatic Radar Plotting Aid) or ship control, the displays’ superior performance provides very clear and readable images regardless of the ambient light

With the highly innovative wideECDIS® series of MultiTask Monittors, CONRAC introduces an entirely new generation of wide screen Radar and ECDIS displays. The new 16:10 widescreen

format allows to dramatically increase the amount of information displayed which is important for compliance with the new Radar standard. The superior picture performance of the

wideECDIS® monitors is achieved with high performance full HD (High Definition) panels in combination with CONRAC’s latest state-of-the-art electronics.

During night-time operations in bridge and wheelhouse environments it is vital to optimise the display brightness to the ambient light conditions for night vision capability. CONRAC offers fully

The use of laminated safety glass with high efficiency anti-glare treatment does not only maximise security and protect the display but also enhances image contrast.

CONRAC‘s COS (Customised Operation System) allows adjustment of brightness alternatively using the traditional potentiometer control, hot keys or the integrated intelligent ALC (Ambient

Approved/built to meet IEC 62288 as well as IEC 61174 (ECDIS), EN 62388 (Radar), EN 60945 (Navigation), CONRAC Ship Displays are the ideal solution for the use in Integrated Bridge

The use for ECDIS, radar and navigation makes high demands on the displays in integrated bridge systems. Displays, being a critical aspect of safe and efficient operations, have to meet

suppliers, CONRAC has implemented vital functions into their Ship Display Series to guarantee superior performance, both, during day and night operation.

Dimming of standard TFT widescreen displays does result in uneven brightness performance. Especially during night operation this effect is distracting and unacceptable for navigation

mode. To avoid this negative effect, CONRAC implemented high contrast dimming functions, allowing dimming at the full contrast level guaranteeing outstanding picture performance during

CONRAC’s range of highly engineered Marine Grade LCD/TFT Displays is specifically designed to withstand the harsh maritime environment. The SD-Series (Ship Display-Series) meets the

stringent demands of the international standards for Maritime Navigation and Radio Communications Equipment & Systems and ECDIS (Electronic Chart Display Information System).

Used for ECDIS, Radar, ARPA (Automatic Radar Plotting Aid) or ship control, the displays‘ superior performance provides very clear and readable images regardless of the ambient light

During night-time operations in bridge and wheelhouse environments it is vital to optimise the display brightness to the ambient light conditions for night vision capability. CONRAC offers fully

The use of laminated safety glass with high efficiency anti-glare treatment does not only maximise security and protect the display but also enhances image contrast.

Approved to IEC 61174 (ECDIS), EN 60936-1 (Radar), EN 60945 (Navigation), CONRAC Ship Displays are the ideal solution for the use in Integrated Bridge Systems.

The use for ECDIS, radar and navigation makes high demands on the displays in integrated bridge systems. Displays, being a critical aspect of safe and efficient operations, have to meet

suppliers, CONRAC has implemented vital functions into their Ship Display Series to guarantee superior performance, both, during day and night operation.

mode. To avoid this negative effect, CONRAC implemented high contrast dimming functions, allowing dimming at the full contrast level guaranteeing outstanding picture performance during

CONRAC introduces a new IP 65 protected LCD/TFT display in “stretched” format, which has been specially designed for continuous use in strenuous environments.

The display features a diagonal of 38” (97cm) with an aspect ratio of 4:1 and a resolution of 1920 x 502 pixels. This equals so to speak the top half of a 42” display, thus providing the ideal format for use in applications with limited space where conventional displays cannot not be used. Examples are low passage ways, above or next to doors, in baggage handling systems, parking garages, at bus stops, etc.

With its high definition sunlight-readable display panel offering a brightness of 1000 cd/m² and a contrast ratio of 1200:1, the 6938 PD provides excellent readability.

The stretched displays are available with an integrated IPC (Industrial PC). Designed for 24/7 operation, this embedded solution offers an extremely reliable platform in networked applications. The high performance IPC is based on the latest low-power embedded technology. Remote monitor control allows monitoring and control of display settings such as stand-by, brightness and contrast. It also provides information such as temperature, maintenance status etc. Alternatively integrated controller boards or monitor-only versions can be supplied.

The display’s IP65-rated housing and safety glass panel with high efficiency anti-glare and contrast enhancing treatment provide anti-vandal protection as well as resistance to moisture and dust. For extreme temperatures, a display heating with internal climate control can be integrated.

CONRAC stands for innovation, experience, flexibility and quality. Founded in 1956, CONRAC has always provided innovative technology. Ever since the late 1960’s, CONRAC has been developing professional display solutions for the most demanding applications. Committed to technologically advanced, cost-effective and very reliable display solutions, CONRAC is market leader for the supply of special displays, e.g. for maritime, naval, mobile and medical applications, as well as for public displays and information systems for public areas.

Tens of thousands of public displays in over 200 airports worldwide as well as in many other transportation and digital signage installations speak for themselves. CONRAC’s headquarters, R&D and production are based in Weikersheim/Germany. A global network of subsidiaries and sales offices as well as sales and service partners in more than 60 countries make sure to be as close as possible to the custom

DATA MODUL has launched a variety of new products at Munich"s inter airport Europe held in October 2015. On the booth the entire range of CONRAC professional displays for all kinds of applications in public areas was showcased.

The most noticeable innovation was the prominently placed 55in real outdoor display. The new series of real outdoor displays comes with a lot of technical ingenuities. Even in Munich Expo"s modern bright halls, the display mounted in portrait format stood out from the crowd due to its truly impressive brightness. The difference between the already very crisp and clear image of the "standard" E-LED screens shown on the booth in direct comparison with the real outdoor display"s ultra-high brightness panel was quite astonishing.

This effect was not reached with just the 2.500 cd/m² TFT panel. A unique combination of a front glass with special features and optical bonding technology, plus the core know-how and competence of DATA MODUL, have enabled the development of a high brightness display solution that can be easily mounted in locations with direct sunlight without compromising the readability.

The front glass has been designed to enhance transmission of visible light with minimum reflection losses, as well as to provide protection against infrared and ultraviolet radiation. The TFT panel is directly bonded to the front glass using a high-quality optically matched adhesive. The direct optical bonding eliminates the air gap between front glass and panel, eliminating any internal reflection losses and achieving a significant increase in contrast and brightness. As well as enhanced optical performance, the optical bonding brings additional benefits including increased ruggedness, reduced sensitivity to humidity, dust and temperature fluctuations as well as high durability.

The greatest challenge in the development of real outdoor displays is the operating temperature of such devices, especially in combination with high brightness displays driven under full load. At present, most currently available devices have to dim the backlight to a certain level to reduce the inner temperature and keep the device in operation as soon as the sun shines directly on the device.

DATA MODUL announced that they solved this problem with their innovative integrated cooling technology, so that the real outdoor displays can be operated at environmental conditions of +50°C and direct sunlight without even dimming the backlight. This provides customers with completely new usage of display systems under extreme ambient conditions such as visual docking guidance displays or at rail, tram and bus stops. Additionally, the existing intelligent heating system of the Advanced Protected series was further developed and enables operating temperatures down to -30°C.

The entire unit is IP65 protected, thanks to watertight and fine dust resistant sealing. Avoidance of external elements like fans or filters makes the device maintenance free. The device is equipped with the well-established CONRAC display functions such as automatic brightness adjustment.

The real outdoor displays are scheduled to be ready for series production by the beginning of the third quarter of 2016. Later in the year a 46in version of the real outdoor display will be launched, just in time for Innotrans 2016 in Berlin in September. Engineering samples are available for demonstration purposes at Munich (headquarters) or Weikersheim (factory).

Since 1993 we offer LCDs and LCD system solutions. We are always up to date with the latest technology and are looking for the best products for our customers. Our TFT display range includes high-quality displays:

For more than 20 years, Conrac GmbH has been manufacturing approved CRT displays for high performance professional application in the medical, military and maritime industries. During this time, a great number of monitors have been manufactured which meet the requirements of MIL Spec, radar, IEC 60936, IEC 60945-3, IEC 61172 ECDIS, and GL approval, and are still in operation today. The same is currently happening with Conrac"s approved range of TFT LCD monitors.

Developed specifically for maritime applications, a range of TFT monitors has been developed and several more models are in the pipeline. Conrac, a Data Modul company, is unique in that all controller electronics for its monitors are developed and manufactured in-house, which translates to single-source accountability. Another key point: all of the company"s units also have a modular based platform, meaning that the interface boards, LVDS adapters, dimmable backlight inverters, and software in each of its TFT product line (15-in., 17-in., 18-in., 19-in., 23-in.) are used across the board, a trend that will continue with the company"s newly developed 30-in. and 40-in. TFT display. While all of this means a strong degree of reliability and compatibility for the end customer, it also give the manufacturer a strong advantage with OEM customers, as it is able to easily implement special requirements and changes from customers, giving it a high degree of flexibility. Data Modul, located in Islandia, NY, is the sales agent for Conrac GmbH. Conrac GmbH is located in Weikersheim, Germany, where it operates a 180,000-sq. ft. modern production facility which can produce 4,000 TFT and 8,000 plasma displays per month.
