192x64 lcd modules supplier

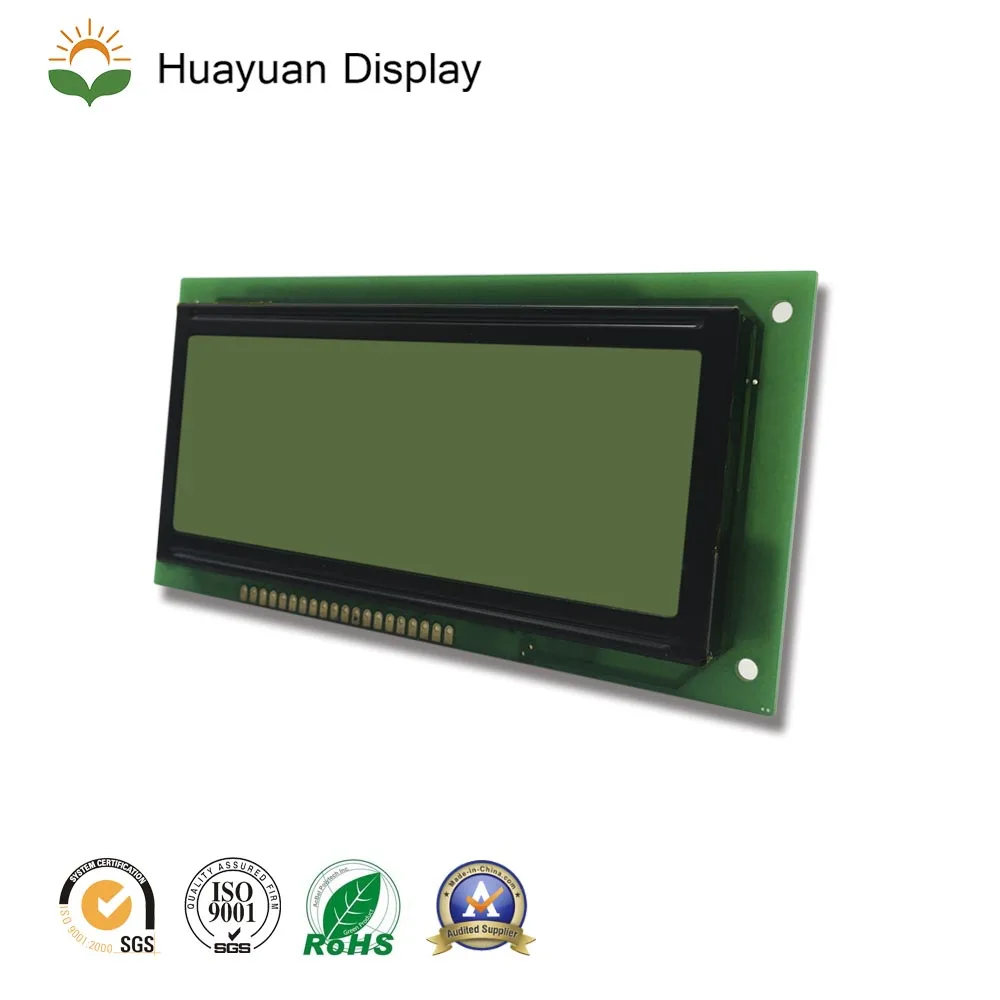

A 3.3″ monochrome, 192×64 dot matrix, COB (Chip on Board) Graphic LCD Module in STN Positive Yellow Green LCD Mode Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product has negative voltage and is assembled Chip On board with 1/64 Duty and a controller IC S6B0107, S6B0108 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.

Orient Display is a company that specializes inmanufacturing graphic LCD, graphic display modules and many more. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead LCD graphic displays manufacturer in flat panel industry and is listed as a public company in China stock market.. Now, Orient Display factory has 3 plants that can produce graphic LCD modules. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.Orient Display has extensive graphic LCD displays (liquid crystal display) standard product lines in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 160×32, 160×64, 160×160, 192×48, 192×64,202×32, 240×64, 240×160, 240×128, 282×128, 320×240 etc. The sizes range from 1.0” LCD to 5.2” LCD display.

Orient Display graphic LCD display modules includedifferent options of polarizer in reflective (saving power),transmissive (better contrast) or transflective (sunlight readable and battery powered) types.

Orient Display graphic LCD display modules have the selection of different display technologies from low-cost TN (twisted nematic), HTN (high performance twisted nematic), to higher end yellow green STN (super twisted nematic), blue STN, gray STN, FSTN (Film compensated STN), vertical alignment LCD to even higher quality wide viewing angle and automotive grade FFSTN, ASTN to meet different requirements.

Orient Display graphic LCD display modules also have different kinds for package technologies from traditional COB (Chip on Board), to TAB (Tape Automatic Bonding), to highly compacted COG ( Chip on Glass) and COF (Chip on Film).

Orient Display graphic LCD display modules have the options of different colors of backlight, yellow green, pure green blue, red, orange, amber and RGB (Red-Green-Blue) to make the monochrome LCDs more colorful.

Orient Display graphic LCD display modules have most available interface choices, I2C, SPI, parallel 6800, 8080, MCU etc. With our strong technical capability, some of our graphic LCD products are with Arduino shield which are more convenient for our customers.

Orient Display graphic LCD display modules have touch panel options. The 2.7” JAZZ 128×64 dot matrix graphic LCD display series has option of RTP (Resistive Touch Panel). Most of Orient Display graphic LCD displays can be custom made either with RTP or CTP (Capacitive Touch Panel).

Orient Display graphic LCD displays have been widely used in industry instrument, meters, machinery equipment, home appliances, white goods, smart home monitors, thermostats, automation, hand held medical devices, automotive, POS systems, audio/visual display systems, marine, aerospace, toys etc.

Established in the year of 2011, “Sambhav Electronic” are the leading Manufacturer, Importer And Exporterof an extensive Hybrid Stepper Motor, Power Relay, Smart TFT LCD Module, Pos Touch Screen Machine, Barcode Scanner, Portable Bluetooth Printer, Thermal POS Printer, Wireless Transceiver Module, Micro Controller, LCD Display, etc. We direct all our activities to cater the expectations of customers by providing them excellent quality products as per their gratification. Moreover, we follow moral business policies and crystal pure transparency in all our transactions to keep healthy relations with the customers.

So Far, we have served with various kinds of thermal printer and LCD Modules to more than 400 factories , With Years Management we have improved our Marketing and Sales Control, Nowadays we are one of the leading distributors around our country.

We believe we are your reliable partner for your LCD and Thermal printing solution needs, You can rely us on quality, cost effectiveness and profession, Contact us Today and experience the expertise will turn your ideals into fulfillment.

WG19264A is a monochrome graphic LCD 192x64 dot matrix display which is having the module dimension of 130x65 mm and AA size of 96x32 mm. This 4” LCD display is built in with NT7107, NT7108 IC; it communicates via 6800 8-bit parallel interface; 5V power supply and 3.3V negative voltage optional. This WG19264A module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

3.60” 240 x 128 Graphic Display The G-24012803T-VA is a 3.60” 240 x 128 Monochrome LCD Display with a module size of 94.1 x 58.5 x 3.0 and an active area of 81.57 x 40.93. The G-24012803T-VA 240 x 128 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with no backlighting and a reflective, transflective, or transmissive display. View Additional Details Generic Part G-24012803T-VA Display Format 240 x 128 Graphic Display Module Size 94.1 x 58.5 x 3.0 Diagonal 3.60 Active Area 81.57 x 40.93 Pixel Pitch 0.340 x 0.320 Backlight…

3.90” 128 x 128 Graphic Display The G-12812816C-VA is a 3.90” 128 x 128 Monochrome LCD Display with a module size of 92.0 x 106.0 x 15 and an active area of 70.35 x 70.35. The G-12812816C-VA 128 x 128 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with LED backlighting and a reflective, transflective, or transmissive display View Additional Details Generic Part G-12812816C-VA Display Format 128 x 128 Graphic Display Module Size 92.0 x 106.0 x 15 Diagonal 3.90 Active Area 70.35 x 70.35 Pixel Pitch 0.550 x 0.550 Backlight…

3.90” 240 x 160 Graphic Display The G-24016020G-VA is a 3.90” 240 x 160 Monochrome LCD Display with a module size of 101.0 x 74.5 x 2.0 and an active area of 81.58 x 54.38. The G-24016020G-VA 240 x 160 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with LED backlighting and a reflective, transflective, or transmissive display. View Additional Details Generic Part G-24016020G-VA Display Format 240 x 160 Graphic Display Module Size 101.0 x 74.5 x 2.0 Diagonal 3.90 Active Area 81.58 x 54.38 Pixel Pitch 0.340 x 0.340 Backlight…

192 x 64 4.0” Graphic Display The G-1926414C-VA is a 4.0” 192 x 64 Monochrome LCD Display with a module size of 130.0 x 65.0 x 13.5 and an active area of 97.87 x 32.59. The G-1926414C-VA 192 x 64 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with LED backlighting and a reflective, transflective, or transmissive display. View Additional Details Generic Part G-1926414C-VA Display Format 192 x 64 Graphic Display Module Size 130.0 x 65.0 x 13.5 Diagonal 4.0 Active Area 97.87 x 32.59 Pixel Pitch 0.510 x 0.510 Backlight…

4.0” 192 x 64 Graphic Display The G-1926420C-VA is a 4.0” 192 x 64 Monochrome LCD Display with a module size of 130.0 x 65.0 x 13.0 and an active area of 97.48 x 32.46. The G-1926420C-VA 192 x 64 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with LED backlighting and a reflective, transflective, or transmissive display. View Additional Details Generic Part G-1926420C-VA Display Format 192 x 64 Graphic Display Module Size 130.0 x 65.0 x 13.0 Diagonal 4.0 Active Area 97.48 x 32.46 Pixel Pitch 0.508 x 0.508 Backlight…

4.0” 320 x 240 Graphic Display G-32024005T-VA is a 4.0” 320 x 240 Monochrome LCD Display with a module size of 92.3 x 73.3 x 7.8 and an active area of 81.4 x 63.1. The G-32024005T-VA 320 x 240 display uses Super Twisted Nematic or Film Compensated Super Twisted Nematic glass with Electro Luminescent backlighting and a reflective, transflective, or transmissive display. View Additional Details Generic Part G-32024005T-VA Display Format 320 x 240 Graphic Display Module Size 92.3 x 73.3 x 7.8 Diagonal 4.0 Active Area 81.4 x 63.1 Pixel Pitch 0.240 x 0.238 Backlight…
