ntsc pal television tft display 2.5 diagonal to 5v in stock

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

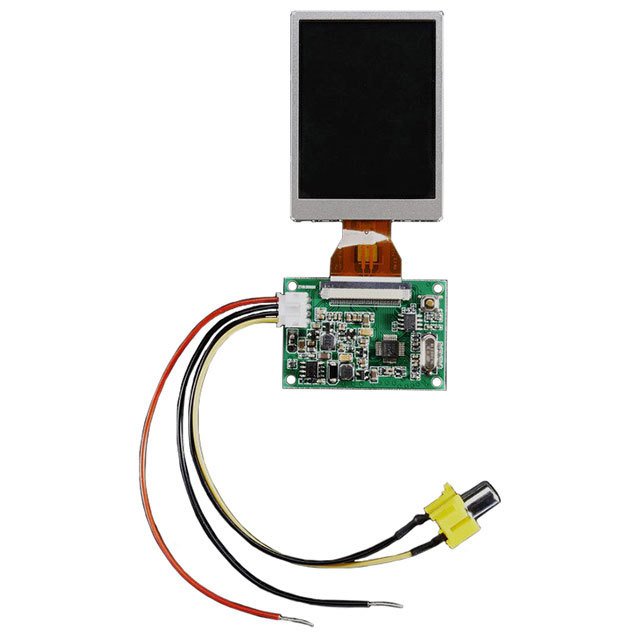

Yes, this is an adorable small television! The visible display measures only 2.5" (6.35cm) diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-12VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voila, a television display! There"s one little button to adjust the LED backlight brightness up and down. There is no other adjustment available but we found that the color and contrast look great right out of the box.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

If you received a display where the connector cable has red & black wires going to the composite plug then connect yellow to ground, and white wire to 6-12V, thanks!

Yes, this is an adorable small television! The visible display measures only 2.5" (6.35cm) diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-15VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voila, a television display! There"s one little button to adjust the LED backlight brightness up and down. There is no other adjustment available but we found that the color and contrast look great right out of the box.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

If you received a display where the connector cable has red & black wires going to the composite plug then connect yellow to ground, and white wire to 6-12V, thanks!

Yes, this is an adorable small television! The visible display measures only 2.5" (6.35cm) diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-15VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voilà, a television display! There"s one little button to adjust the LED backlight brightness up and down.  There is no other adjustment available but we found that the color and contrast look great right out of the box.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

If you received a display where the connector cable has red & black wires going to the composite plug then connect yellow to ground, and white wire to 6-12V, thanks!

Cookies are tiny data files stored in your web browser when you visit a website. At www.electromaker.io we use cookies to personalise your experience and help us identify and resolve errors.

The use of cookies and similar technologies have for some time been commonplace and cookies in particular are important in the provision of many online services. Using such technologies is not, therefore, prohibited by the Regulations but they do require that people are told about cookies and given the choice as to which of their online activities are monitored in this way. (Information Commissioners Office)

To make full use of www.electromaker.io, enjoy the personalised features and ensure the websites works to its full potential, your computer, tablet or mobile phone will need to accept cookies.

Our cookies don’t store sensitive information such as your name, address or payment details: they simply hold information about how you use our site so we can improve your experience and resolve any errors.

If you’d prefer to restrict, block or delete cookies from www.electromaker.io, or any other website, you can use your browser to do this. Each browser is different, so check the ‘Help’ menu of your particular browser (or your mobile phone’s handset manual) to learn how to change your cookie preferences.

Yes, this is an adorable small television! The visible display measures only 2.5" (6.35cm) diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-12VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voila, a television display! There"s one little�button to adjust the LED backlight brightness up and down. �There is no other adjustment available but we found that the color and contrast look great right out of the box.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

If you received a display where the connector cable has red & black wires going to the composite plug then connect yellow to ground, and white wire to 6-12V, thanks!

I have been searching the web for other examples of people doing a retropie build inside an original GBA case, and have only so far found a few (of which this is one), I am probably half way through mine now and hope to put together a guide / gallery showing progress at some point.

I am not nesseseraly recommending it, as getting it to fit was a pain, but I did manage it. I removed the SD card reader from the back, the entirety of the red PCB with the SD card pins and most of the side with the screen pins leaving only enough space to solder wires directly on to the traces. Even then I had to removed a lot of plastic from the case, it was always clear that removing the screen surround would be needed, but I also had to shave off a little extra from the button wells and the insulation plastic from the wires in order to get all the visible area showing, and it is still not centred (but I"m not sure a screen exists that would allow for that).

Yes, this is an adorable small television! The visible display measures only 4.3" (11cm) diagonal, the TFT comes with a NTSC/PAL driver board, enclosure and stand. The display is very easy to use - simply connect 12VDC to the 2.1mm center-positive DC jack (or use the cable and connect to the red and black wires), then connect a composite video source to one of the RCA cable. Voila, a television display! There"s three little buttons in the back that let you enter a menu system for adjusting brightness, color and contrast. The display has two composite plugs, AV1 and AV2. AV1 is the default and if AV2 goes "live" it replaces AV1.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

A power adapter is not included you will want one of our 9VDC 1 Amp or 12VDC 1 Amp adapters or provide one of your own. Even though the display specifies 12VDC we found it works from 5V to 12V DC without problems.

This website is using a security service to protect itself from online attacks. The action you just performed triggered the security solution. There are several actions that could trigger this block including submitting a certain word or phrase, a SQL command or malformed data.

Yes, this is an adorable miniature television! The visible display measures only 2.0" diagonal, the TFT comes with a NTSC/PAL driver board. The display is very easy to use - simply connect 6-15VDC to the red and black wires, then connect a composite video source to the yellow and black wire. Voila, a television display! There"s a little button to adjust the LED backlight brightness (5 levels) - there is no other adjustment available but we found that the color and contrast look great right out of the box.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

Please note, these miniature displays are very delicate and require care to avoid ripping the delicate flex connector. These are best used by electronics geeks who have experience and are comfortable working with delicate electronic components. WE CANNOT REPLACE DAMAGED DISPLAYS if you are not careful and rip the flex connector!

I"m playing around with the TV out library at the moment and wonder if it"s possible to "hack" a cheap tiny LCD or TFT (like this one: http://imall.iteadstudio.com/im120419001.html or something alike, but not bigger than 2,5") to take composite signals. Not that I don"t have enough composite displays anyway, but they"re far from portable (as usual for most TVs :)). Bonus points if it"s cheaper than 30$ :D.

While you might be able to provide a composite driver for such a LCD, but it is simpler to get one of the monitors made for car backup systems that can be powered by a 12v battery. Most of these are 3.5" or larger, but I did see these 2.5" monitors on ebay:

Note, since these units are made for cars, they tend to take 12v inputs. Over in the Raspberry Pi forums, they had this thread on how to convert it to 5v: Modifying a 3.5" car display for USB power. - Raspberry Pi Forums

In the past I bought a 3.5" JXD mp4 player that had a cell phone battery in it that took composite input (you have to hunt around for the few mp4 players that take video input). However, it looks like JXD is no longer making the cheap mp4 players, but there might be other brands that support video in.

Adafruit sells several small monitors (1.5", 2", 2.5") that take composite input: NTSC/PAL (Television) TFT Display - 1.5 Diagonal : ID 910 : $39.95 : Adafruit Industries, Unique & fun DIY electronics and kits. I will say from personal experience be careful how you wire it up, as I reduced mine to expensive paper weight when I plugged ground into the hot wire, and vice versa.

Yes, this is an adorable small television! The visible display measures only 7" (17.8cm) diagonal, the TFT comes with a NTSC/PAL driver board, enclosure and stand. The display is very easy to use - simply connect the included 12VDC adapter to the 2.1mm center-positive DC jack, then connect a composite video source to one of the RCA cable. Voila, a television display! There"s some little buttons on the front that let you enter a menu system for adjusting brightness, color and contrast. The display has two composite plugs, AV1 and AV2. AV1 is the default and if AV2 goes "live" it replaces AV1.

To demonstrate it, we took some photos with the display connected to a Raspberry Pi, but it will also work connected to any analog composite-video output such as a YBox or Propeller w/Video out. It will not work with a device that only outputs VGA, HDMI or any other digital video signal.

All CategoriesWholesale Workshop DIY KitsDIY Robotic KitsRaspberry PiRaspberry Pi BoardsRaspberry Pi AccessoriesRaspberry Pi Starter KitsDiy Robotic AccessoriesDIY Robotic Arm Kit and GripperRobot USB ProgrammersMechanzORobot PlatformsRobot ClampRobotic Books and Software Tool KitsRobot ChassisRobot ConvertersRobot Display DevicesRobot GearRobot Tyres and WheelRobot SensorsRobot Stud & SpacerRobot Track BeltRobot FanRobot and Project Fan or PropellerRemote Control AccessoriesHumanoid RobotWireless DevicesDistance LearningArduino Board & AccessoriesArduino AccessoriesArduino BoardsArduino BooksArduino Learning KITArduino ShieldQuadcopter and MulticopterBattery and ChargersBrushless MotorDIY Hexacopter KitDIY Quadcopter KitESCFlight ControllerFramesGPSMicro RC QuadcoptersOther AccessoriesPropellersRC CameraRemote ControlSensorsAccelerometersCameraCurrent SensorsDirection SensorsDistance SensorsFingerprint ModuleFlex/ForceGas SensorsGPS ModuleGrove SensorsGSM ModulesGyro SensorsIR And PIR SensorsLCDLEDLight/ImagingMagnetic/RPMOther SensorsRFID ModuleTemperature SensorsWeather SensorsController BoardsAVR Microcontroller Boards8051Banana PiBeagleBoneCubieBoardARMOdroid Development BoardPIC Development BoardRadxaWandBoardSBC / EMBEDDED OSWirelessBluetooth ModulesRF Module and AnteenaWIFI ModulesZIGBEE/XBEE ModulesMotor and Motor Driver Boards(BLDC) Brushless DC MotorsCenter Shaft DC Gear MotorsGeneral Purpose DC MotorsHigh Torque DC MotorJohnson Gear DC MotorsMotor Driver Controller BoardsPlastic Gear BO MotorsServo MotorSide Shaft Gear Motors For ArduinoSquare Gear Motors For ArduinoStepper Motors For ArduinoSubmersible DC Water PumpElectronics Components, IC"s and MicrocontrollersCapacitorsCeramic CapacitorElectrolytic CapacitorPolyester Film CapacitorSMD CapacitorConnecting HeadersConnectors & CablesCrystal OscillatorsDiodesFast Recovery DiodesGeneral Purpose DiodesGermanium DiodesSchottky Barrier DiodesSCR"s & TRIAC"sZener DiodesFusesBlade fusesCartridge Miniature FusesInductorsIntegrated Circuit (IC"s)74LS Series ICAnalog to Digital and Digital to Analog ConverterCD40 Series IC ListLinear SeriesMicrocontrollers ListIntegrated Circuit Base or SocketsLED And LDRMicrophone and SpeakersPiezo Electric BuzzersRelayResistances/ResistorsResistors - SMDThrough Hole ResistorsSwitches & SocketsTransformersTransistorsGeneral Purpose TransistorsMosfetPower TransistorsBattery & Battery Chargers9 Volt BatteriesBattery Chargers/Adaptors/EliminatorsBattery Holders and ConnectorsLiPo BatteryPencil CellsRechargeable Lead Acid BatteriesRechargeable Lithium Ion BatteriesSolar Cells/Solar PanelToolsBreadboardCopper Clad PCBGeneral Purpose Zero PCBGlue GunMeters and TestersNut Bolts, Screws and WashersOthersPCB Drill MachinesScrew Drivers, Pliers and NipperSoldering AccessoriesTapesEngineering/Diploma/School ProjectsEngineering/Diploma ProjectsSchool ProjectsMerchandise

This tutorial show you how to make your own portable rapsberry pi, with a screen, access to USB, Ethernet and HDMI ports open to access on the side of the case. This is by no means a good tutorial, it is simply a way of documenting how I built mine, in case your"e interested. With the exception of the case and the piece of wood, all of the components can be salvaged for other purposes if you so desire. Below are a couple pictures of it.

Take your random piece of wood and make sure it fits flat inside the case, and is covering the 2 screw mounts on the case shown in figure 2.1. Make sure it also covers most of the other side of the case as well. Once you have the wood ready, drill some holes and screw it into the case. Next, you need to fix the Pi to the wood. Make sure the edge of the Pi"s PCB (the green board thingy) is aligned with the edge of the wood, with the USB ports and Ethernet sticking out the top and power and the SD card slot facing towards the bottom, like in figure 2.2. Then, mark and drill some holes and use some more of your small screws to fix the pi to the piece of wood. In order to keep the pi off of the wood, use either some small washers, or if you"re ghetto like me (or just lazy!), fold some paper to the appropriate thickness, and drill some holes in it. (Yes, it actually does work! I couldn"t believe it myself either! See figure 2.3)

To prepare the screen, first remove the little stand using a screwdriver. Save it for later, just in case we need it again for another project. Then attach the 9V connector to the power connector included with the screen, using tape and glue, or using solder. Make sure the connection works, and won"t fall apart! It should look like figure 2.4

Now, using the wood and the pi as a guide, mark out holes for the Ethernet, USB and HDMI ports on the outside of the case, and cut away these sections of the case. If you don"t know how to do that, here"s how you cut away a panel shaped hole in the case. First, with your smallest drill bit, drill holes on the corners of the future gap. Then drill lots of little holes close together connecting the corners, to make sort of a pattern of holes around the edge of your panel. Then finally, place the drill through the holes at the corners and slowly move it around the edge of the panel while the bit is spinning. This should carve away at the places in between the holes you drilled, and should leave a jagged looking rectangular hole in the case. Then, file off the edges. NOTE THAT I HAVE NO IDEA WHAT I"M DOING AND IF YOU KNOW A BETTER METHOD OF MAKING THESE HOLES, PLEASE DO THAT INSTEAD! See figure 3.1 for how to do this.

Once those holes are drilled, drill 2 holes large enough for the connectors on the switch to fit through. Maybe make one of them a tinier bit bigger than it needs to be as well, for later. And finally, drill a rectangular shaped hole for a micro-USB connector. See figure 3.2 for this. You should now be able to screw the wood and pi into the case, to give you a result like in figure 3.3

With most of the parts ready, now it is time to wire everything. Figure 4.1 is a wiring Diagram, and can be used as a guide for which plugs in to what. Use the RCA coupler to connect the screen input to the pi. Try plugging everything in before we put it into the case, just to make sure it works. Then move on to the next step.

Poke the connectors from the switch through the holes in the left side of the case, and the micro USB power through the bottom. Place the battery pack inside the case like in figure 5.1 and affix all of the external components in their appropriate place, using the double sided Velcro. MAKE SURE THE SCREEN IS ORIENTED THE RIGHT WAY. (I didn"t mount it the wrong way the first time, only somebody that was a complete idiot would do that, hehehe...) Be sure to fix the battery pack in place as well if using one, as it is quite heavy, and movement inside the case could break something. Once it is all assemble like in figure 5.1, connect all the parts together like in Step 4, and gently place the lid on. Do up the screws and viola! A portable raspberry pi. If you want, use some Velcro to fix the keyboard to the top of the lid, but make sure it doesn"t block the screen. Feel free to Velcro a small bag containing the power gauge if you got one. See the Intro for a completed model. And if you successfully followed this tutorial, and made your own portable raspberry pi, you deserve the kitty in figure 5.2!

Use the button on the USB battery to turn on the pi, and unplug it to turn it off. Use the switch on the side to turn the screen on and off (saves battery power!) You can tell you need new screen batteries when teh screen flickers red and wavy. Have fun with your new portable pi, and check out my forum post!

As a quick thing to add, if you have some decent soldering skills, you can make the generic 4.3" screen TV run off of USB (5v) by removing the 5v regulator in it. End result: less batteries to carry.0

To those inquiring about the kitty, please head to your nearest RSPCA (or equivalent in your country/region) and ask about adopting a cat. As well as receiving a reward for your portable Pi, you are also doing a good thing for the animal you adopt. (Fees may apply...)0
