NHD-12864WG-FTFH-VZ# | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | White Backlight | FSTN (+) Positive Display | Built-in Negative voltage | Built-in RA6963 Controller | Discontinued EOL Product

Newhaven 128x64 graphic Liquid Crystal Display module shows dark pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-12864WG-FTFH-VZ# display includes a negative voltage and a built-in RA6963 Controller. It has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant. This display has been discontinued. Purchase now while stock is still available!

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

NHD-12864AZ-FL-YBW | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Yellow/Green Backlight | STN (+) Positive Yellow/Green Display | Non-Stocked

Newhaven 128x64 graphic Liquid Crystal Display module shows dark pixels on a bright yellow/green background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This NHD-12864AZ-FL-YBW display has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HDMI, USB, SPI, VGA and more into your display to achieve your design goals.

This is an extremely low-power 128x64 graphic LCD display module. It has an integrated white LED backlight that illuminates the display easily in low-light conditions. This display is perfectly suited for hand-held or any application requiring low-power or a very a thin display. It has an integrated controller and the FFC tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).

By continuing to use AliExpress you accept our use of cookies (view more on our Privacy Policy). You can adjust your Cookie Preferences at the bottom of this page.

By continuing to use AliExpress you accept our use of cookies (view more on our Privacy Policy). You can adjust your Cookie Preferences at the bottom of this page.

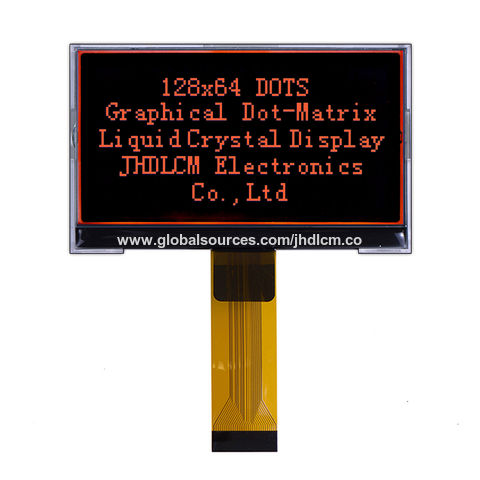

Our 64128KX has a viewing area of 50 x 25 mm and is the smallest of our standard 128 x 64 LCD modules. This LCD is suitable for a wide variety of applications and is available with several different backlight colors. The COG IC is the Sitronix ST7565R. This LCD has a FPCinterface.

The ST7565R is a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or 4-line SPI display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor. Because the chips in the ST7565R contain 65x132 bits of display data RAM and there is a 1-to-1 correspondence between the LCD panel pixels and the internal RAM bits, these chips enable displays with a high degree of freedom. The ST7565R chips contain 65 common output circuits and 132 segment output circuits, so that a single chip can drive a 65x132 dot display (capable of displaying 8 columns x 4 rows of a 16x16 dot kanji font).

The 64128N uses our 64128K LCD module which has a viewing area of 50 x 25 mm and the ST7565R COG IC. The backlight uses a single LED for low power consumption.The PCB allows for easy mounting and assembly.

The ST7565R is a single-chip dot matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or 4-line SPI display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a LCD drive signal independent of the microprocessor. Because the chips in the ST7565R contain 65x132 bits of display data RAM and there is a 1-to-1 correspondence between the LCD panel pixels and the internal RAM bits, these chips enable displays with a high degree of freedom. The ST7565R chips contain 65 common output circuits and 132 segment output circuits, so that a single chip can drive a 65x132 dot display (capable of displaying 8 columns x4 rows of a 16x16 dot kanji font).

A wide variety of 128x64 lcd module display options are available to you, You can also choose from original manufacturer, odm and agency 128x64 lcd module display,As well as from tft, ips, and standard.

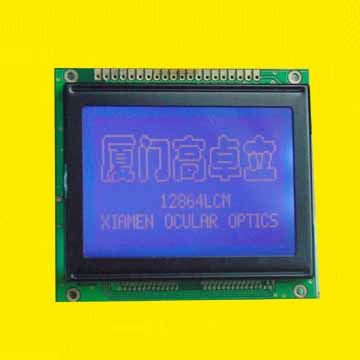

WG12864B is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. WG12864A model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. This WG12864B 128x64 LCD module is 5V power supply. If you need negative voltage 3.3V power supply, please choose WG12864BP1. This 12864 Graphic LCD module is available for without backlight or with LED backlight options. WG12864B is available in various LCD panel colors including gray, yellow/green and blue LCD options. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

RG12864B series is monochrome graphic LCD module 128x64 with built-in NT7107 / NT7108 controller IC. Resolution of this module is 128x64, and it supports 6800 interface. The default voltage is negative voltage 5V; if you have request for voltage 3.3V, please choose series RG12864B1. If you have request for Chinese fonts, please select series RG12864B2.

Orient Display is a company that specializes inmanufacturing graphic LCD, graphic display modules and many more. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead LCD graphic displays manufacturer in flat panel industry and is listed as a public company in China stock market.. Now, Orient Display factory has 3 plants that can produce graphic LCD modules. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.Orient Display has extensive graphic LCD displays (liquid crystal display) standard product lines in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 160×32, 160×64, 160×160, 192×48, 192×64,202×32, 240×64, 240×160, 240×128, 282×128, 320×240 etc. The sizes range from 1.0” LCD to 5.2” LCD display.

Orient Display graphic LCD display modules includedifferent options of polarizer in reflective (saving power),transmissive (better contrast) or transflective (sunlight readable and battery powered) types.

Orient Display graphic LCD display modules have the selection of different display technologies from low-cost TN (twisted nematic), HTN (high performance twisted nematic), to higher end yellow green STN (super twisted nematic), blue STN, gray STN, FSTN (Film compensated STN), vertical alignment LCD to even higher quality wide viewing angle and automotive grade FFSTN, ASTN to meet different requirements.

Orient Display graphic LCD display modules also have different kinds for package technologies from traditional COB (Chip on Board), to TAB (Tape Automatic Bonding), to highly compacted COG ( Chip on Glass) and COF (Chip on Film).

Orient Display graphic LCD display modules have the options of different colors of backlight, yellow green, pure green blue, red, orange, amber and RGB (Red-Green-Blue) to make the monochrome LCDs more colorful.

Orient Display graphic LCD display modules have most available interface choices, I2C, SPI, parallel 6800, 8080, MCU etc. With our strong technical capability, some of our graphic LCD products are with Arduino shield which are more convenient for our customers.

Orient Display graphic LCD display modules have touch panel options. The 2.7” JAZZ 128×64 dot matrix graphic LCD display series has option of RTP (Resistive Touch Panel). Most of Orient Display graphic LCD displays can be custom made either with RTP or CTP (Capacitive Touch Panel).

Orient Display graphic LCD displays have been widely used in industry instrument, meters, machinery equipment, home appliances, white goods, smart home monitors, thermostats, automation, hand held medical devices, automotive, POS systems, audio/visual display systems, marine, aerospace, toys etc.

Interfacing an LCD panel to the ATMega32 is extremely simple and in this project, I am using the SYB12864 module. This generic 128×64 LCD panel goes by many other names, as there is always a factory in China making them. Majority of them operate in the same way, however you should consult the documentation to compare and make sure. These LCD modules are panel mount types as they are usually used in industrial equipment, however you could also mount them onto a PCB as I have done. I found a bolt, nut, and washer kit from my local thrift store, which saved me a fortune!

This display is available from many shops online and the price varies considerably depending upon the shop. I managed to get the best deal on eBay from a Chinese seller. There are many factories manufacturing these and selling them directly through eBay and Amazon. I paid £10.00, which includes postage to UK from China! Many local suppliers wanted three times that amount, which is unrealistic as this component costs a $1 to make, but with all the intermediaries, the price becomes extremely prohibitive.

The RHS switch controls the power to the LCD panel. This acts as a hard reset for the LCD. Again, I had some spare switches and decided to use it, but it is not required. The preset controls the LCD brightness. This is very useful because you can get the brightness precisely correct for your particular light level.

The ISP cable shares the PB5 pin with the LCD interface; however, I had some spare switches and decided to use that to isolate the LCD interface. Therefore, the LHS switch isolates the ISP cable interface from the LCD. If you forget to isolate it then the data sent through the ISP interface also goes into the LCD display and you will see a very interesting pattern on the LCD. It reminded me of the old ZX81 TV pattern when loading data. It seems to work fine even then, so the switch was not required after all, but it is still there just in case.

Instead of using a ribbon cable, I had a spare piece of prototyping board and decided to solder that directly to the LCD board. It seems to work really well. I did not use a ribbon cable, as I would have had to strip and prepare dozens of wires before soldering them. This seemed like a simpler and better way.

Since this LCD module is the most expensive component in this build, I did not want the backlight to burn out within a few days. To prevent that from happening, I used two 4.7-ohm resistors connected in parallel with each other. A network such as this connected in series to the power rail will lower the circuit voltage from 5 V to 4.8 V. I hope that operating the LCD module at a minimum voltage will prevent any damage.

A jumper JP isolates PB5, which is also the MOSI pin when using the ISP cable. I was able to source some non-expensive slide switches, so I decided to use those instead of jumper JP. I also added a slide switch to control the power on pin 2 of the LCD.

The LCD data lines pin 7 to 14 occupies the complete port D of the ATmega32 microcontroller. The control lines of the LCD use the port B pins, and I decided not to use PB6 and PB7, as they are dedicated to MISO and SCK operation of the ISP.

The insulated wire links under the LCD module install first before soldering the LCD in place. I decided to place them under the LCD to save space and to make the build neater, and there is plenty of room for them there.
