1.54 inch tft lcd module for sale

Rjoytek provides one-stop LCD solution with many sizes and custom selective, including the interface, touchscreen, control board, software support and so on.

The 1.54inch LCD uses the PH2.0 8PIN interface, which can be connected to the Raspberry Pi according to the above table: (Please connect according to the pin definition table. The color of the wiring in the picture is for reference only, and the actual color shall prevail.)

The built-in controller used in this LCD is ST7789VW, which is an LCD controller with 240 x RGB x 320 pixels, while the pixels of this LCD itself is 135 (H)RGB x 240(V). There are two types of horizontal and vertical screens, so the internal RAM of the LCD is not fully used.

The LCD supports 12-bit, 16-bit, and 18-bit input color formats per pixel, namely RGB444, RGB565, and RGB666 three color formats, this routine uses RGB565 color format, which is also a commonly used RGB format

2. The module_init() function is automatically called in the INIT () initializer on the LCD, but the module_exit() function needs to be called by itself

Python has an image library PIL official library link, it do not need to write code from the logical layer like C, can directly call to the image library for image processing. The following will take 1.54inch LCD as an example, we provide a brief description for the demo.

This lovely little display breakout is the best way to add a small, colorful and very bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available! The 1.54" display has 240x240 16-bit full color pixels and is an IPS display, so the color looks great up to 80 degrees off axis in any direction. The TFT driver (ST7789) is very similar to the popular ST7735, and our Arduino library supports it well.

Our breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as a ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card. The microSD card is not included.

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution. The module employs the IPS screen, which performs excellently in the view angle (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI port), plug, and play. This product can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The 1.54” LCD module can be powered by 3.3V~5V, and the maximum power consumption is about 24Ma. It is compatible with multiple main-controllers like UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When working with M0, the GDI interface should be used, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

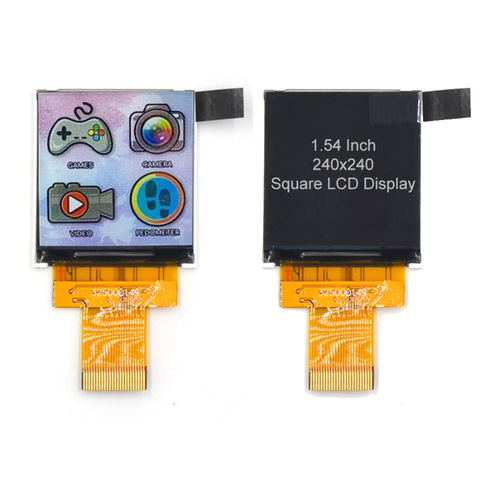

1.54 inch 240*240 IPS TFT lcd display for smartwatch. 1.54 inch 240*240 IPS TFT lcd display for smartwatch Title1 amelinlcd Visit my eBay store Hi,If you like what you see, browse my Store - opens in a new window or tab to find more items you may love. Store Categories Store home TFT LCD AMOLED LCD+TP LCD+Driver board LCD Module Quick Details Place of Origin: Guangdong, China (Mainland) Brand Name: AMELIN Model Number: AML015410 V1 Type: TFT Resolution: 240*240 Size: 1.54 Inch Interface: SPI Backlight: LED Colors: 16.7M Response Time(Tr+Tf):25ms(typ) Input voltage:3.3V Active area:27.72mm *27.72mm Module outline:31.52mm *33.72mm*1.8(D) 0.91 inch 80x160 small tft lcd with SPI In... US $8 < 1.39 inch 400x400 round MIPI DSI OLED lcd ... US $32 1.3 inch 240x240 round IPS SPI tft lcd di... US $15 5.5 inch 720*1280 resolution IPS OLED scre... US $32 HDMI to MIPI Interface driver board for 1.... US $142 1.54 inch 240*240 IPS TFT lcd display for ... US $10 6.0 inch 720*1280 TFT LCD screen with IPS ... US $25 10.1 inch 1024*600 resolution RGB Interface US $28 8 inch 800*480 TFT LCD display touch scree... US $35 7 inch 800*480 TFT LCD US $20 6.0 inch 720*1280 high resolution MIPI IPS... US $34 HDMI to MIPI Interface lcd driver board fo... US $135 1.54 inch 240x240 square ips tft lcd displ... US $13 General Description Item Contents LCD type TFT transmissive Viewing direction IPS Outline area(W*H) 31.52mm *33.72mm*1.8(D) Active area(W*H) 27.72mm *27.72mm Number of dots 240*RGB*240 Response Time(Tr+Tf) 25ms(typ) Colors 16.7M Interface type SPI Input voltage 3.3V Outline Drawing Pin Definition Payment Packaging and Shipping Plastic Tray+ Anti-Static Foam+ Paper Card+Vacuum Bag Lead time quantity lead time 1-20(pieces) Within one working day 21-100(pieces) Within two working days 101-500(pieces) Within three working days 501-1000(pieces) Within a week 1000-3000(pieces) Within two weeks 3000-5000(pieces) Within three weeks 5000+ Within four weeks
