tft lcd polarisation manufacturer

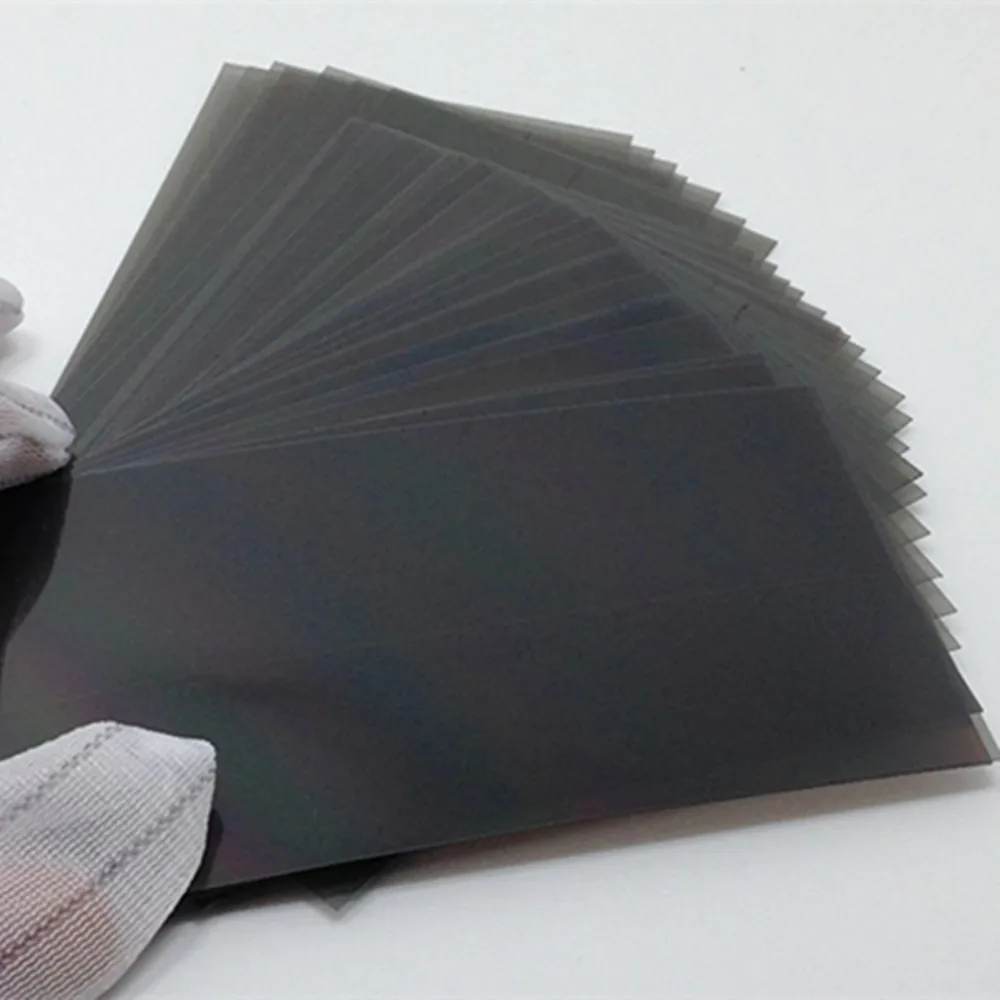

polarizability, transmittance and tone, and other indicators include uv resistance and transmittance, total reflectance and diffuse reflectance of semi-transmittance polarizer.In the general use of LCD products, the requirement of polarization and transmittance of the higher the better.The higher the polarizability and transmittance, the higher the display efficiency of LCD display device, and the lower the relative energy consumption.But for the conventional iodine dyeing polarizing products, polarizing and transmittance is a pair of contradictions, the higher the polarizing degree, transmittance will be lower, but also subject to the constraints of color, so the general type of polarizing products are between 90% - 99%, transmittance between 41% - 44%.Tonal indicators mainly to satisfy people"s visual habit, also requires polaroid product color deviation is smaller, to ensure the consistency of the end product appearance color LCD, it mainly by the polaroid products chromaticity coordinate parameters of L, a, b value and their control to identify the tolerance range, generally the scope of its control tolerance as small as possible.

The durability technical indexes of LCD polarizer include high temperature resistance, heat and humidity resistance, low temperature resistance and heat and cold impact resistance.High temperature resistance refers to the temperature resistance working condition of polarizer under constant baking temperature. At present, according to the technical level of polarizer, it is usually divided into general types: working temperature is 70℃×500HR;Medium endurance type: working temperature is 80℃×500HR;High endurance type: operating temperature above 90℃×500H these three grades.

Heat and humidity resistance technical index refers to the heat and humidity resistance performance of LCD polarizer under constant temperature and humidity conditions. It is usually divided into three technical grades, namely, general type: heat and humidity working condition: 40℃×90%RH×500HR;Medium endurance type: hot and humid working condition: 60℃×90%RH×500HR;High endurance type: hot and humid working conditions: 70℃×95%RH×500HR or above.

Due to constitute the basic materials of polarizing film containing PVA membrane and iodine and iodide are easy to hydrolysis of materials, and at the same time because the LCD polarizing piece by using pressure sensitive adhesive under high temperature and high humidity conditions also easy degradation, therefore, the durability of the LCD polarizing piece the most important technique index is resistant to high temperature and damp and hot, if resistance to heat and humid indexes through, other type durability index usually won"t be a problem.

including: pressure sensitive adhesive and glass substrate, pressure sensitive adhesive and peel film, polaroid protective film and peel film, and bonding durability of pressure sensitive adhesive.Pressure sensitive adhesive and glass substrate between the peeling force is also known as adhesive bonding strength, which is the most important bonding characteristics of LCD polaroid products.This technical index is usually measured by the standard of eiaj-ed-2521a of the specification of Japan electronics and machinery industry association. It is expressed in unit of g/25mm. Generally, the stripping force of pressure sensitive adhesive of LCD polarizing plate on glass substrate is stipulated to be above 500g/25mm, while the upper limit in actual use is generally below 1000g/25mm.There are practical examples that show that when the adhesive to the glass substrate peeling force of 500g/25mm or less, will occur in the glass screen surface after the polaroid adhesive automatic peeling and warping phenomenon.

The technical indicators of the appearance performance of the LCD polarizer mainly refer to the surface flatness of the polarizer products and the number of appearance defects. These technical indicators mainly affect the utilization ratio of the polarizer products in the patch.These technical indicators usually have relatively consistent technical provisions in the polarizing disc industry, usually for each polarizing disc product (500×1000 mm) less than 15 points less than 150 microns.

Because LCD polaroid product final inspection are using artificial visual inspection, therefore in the process of the batch production of polaroid, appearance owe point will have certain discrete distribution, the distribution of the every polaroid production enterprise is to use a certain internal control specifications and delivery specifications difference to ensure delivery of quality standards.It should be noted, however, that as 150ms is already near the minimum limit of visual resolution for the human eye, especially in industrial mass production where inspectors experience visual fatigue over long periods of time, the 150ms off-point inspection standard is reasonable and reliable.

The advantages of wearing Polarized Lens sunglasses are well documented, but there can sometimes be issues reading TFT displays with different viewing angles. TFT displays output light which is inherently polarized in one plane. If this plane is 90 degrees out of sync with the wearer’s sunglasses, this can make TFT displays all but unreadable, leaving the screen virtually black to the observer. This might be especially important where standard landscape displays are used in portrait mode.

Relec’s TFT modules are available with exceptionally high brightness levels of up to 1500cd/m2, making them suitable for both indoor and outdoor applications. When fitted with a ¼ wave retarder film, the display can be used in either portrait or landscape mode with polarized sunglasses.

A TFT LCD,  or a thin film transistor liquid crystal display, is one of the fastest growing forms of display technology today. The thin film transistor (TFT) is a type of semiconductor device used in display technology to enhance efficiency, compactness, and cost of the product. In conjunction with its semiconductor properties, the TFT LCD is an active matrix display, controlling pixels individually and actively rather than passively, furthering the benefits of this semiconductor device.

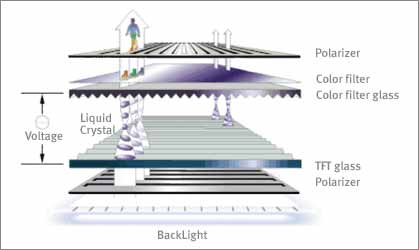

The TFT LCD is built with three key layers. Two sandwiching layers consist of glass substrates, though one includes TFTs while the other has an RGB, or red green blue, color filter. The layer between the glass layers is a liquid crystal layer.

The Architecture of a TFT Pixelbelow) from the other substrate layer of the device and control the amount of voltage applied to their respective sub-pixels. This layer also has pixel electrodes between the substrate and the liquid crystal layer. Electrodes are conductors that channel electricity into or out of something, in this case, pixels.

The outer sides of the glass substrates (closest to the surface or closest to the back) have filter layers called polarizers. These filters allow only certain beams of light to pass through if they are polarized in a specific manner, meaning that the geometric waves of the light are appropriate for the filter. If not polarized correctly, the light does not pass through the polarizer which creates an opaque LCD screen.

The twisted nematic effect is one of the cheapest options for LCD technology, and it also allows for fast pixel response time. There are still some limits, though; color reproduction quality may not be great, and viewing angles, or the direction at which the screen is looked at, are more limited.

The light that passes through the device is sourced from the backlight which can shine light from the back or the side of the display. Because the LCD does not produce its own light, it needs to use the backlight in the OLED) have come into use as well. Typically white, this light, if polarized correctly, will pass through the RGB color filter of the surface substrate layer, displaying the color signaled for by the TFT device.

Within an LCD, each pixel can be characterized by its three sub-pixels. These three sub-pixels create the RGB colorization of that overall pixel. These sub-pixels act as capacitors, or electrical storage units within a device, each with their own independent structural and functional layers as described earlier. With the three sub-pixels per pixel, colors of almost any kind can be mixed from the light passing through the filters and polarizer at different brightness based on the liquid crystal alignment.

A liquid crystal display (LCD) has liquid crystal material sandwiched between two sheets of glass. Without any voltage applied between transparent electrodes, liquid crystal molecules are aligned in parallel with the glass surface. When voltage is applied, they change their direction and they turn vertical to the glass surface. They vary in optical characteristics, depending on their orientation. Therefore, the quantity of light transmission can be controlled by combining the motion of liquid crystal molecules and the direction of polarization of two polarizing plates attached to the both outer sides of the glass sheets. LCDs utilize these characteristics to display images.

An LCD consists of many pixels. A pixel consists of three sub-pixels (Red/Green/Blue, RGB). In the case of Full-HD resolution, which is widely used for smartphones, there are more than six million (1,080 x 1,920 x 3 = 6,220,800) sub-pixels. To activate these millions of sub-pixels a TFT is required in each sub-pixel. TFT is an abbreviation for "Thin Film Transistor". A TFT is a kind of semiconductor device. It serves as a control valve to provide an appropriate voltage onto liquid crystals for individual sub-pixels. A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a color filter (RGB) and transparent counter electrodes. In addition, polarizers are placed on the outer side of each glass substrate and a backlight source on the back side. A change in voltage applied to liquid crystals changes the transmittance of the panel including the two polarizing plates, and thus changes the quantity of light that passes from the backlight to the front surface of the display. This principle allows the TFT LCD to produce full-color images.

A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display that uses thin-film-transistor technologyactive matrix LCD, in contrast to passive matrix LCDs or simple, direct-driven (i.e. with segments directly connected to electronics outside the LCD) LCDs with a few segments.

In February 1957, John Wallmark of RCA filed a patent for a thin film MOSFET. Paul K. Weimer, also of RCA implemented Wallmark"s ideas and developed the thin-film transistor (TFT) in 1962, a type of MOSFET distinct from the standard bulk MOSFET. It was made with thin films of cadmium selenide and cadmium sulfide. The idea of a TFT-based liquid-crystal display (LCD) was conceived by Bernard Lechner of RCA Laboratories in 1968. In 1971, Lechner, F. J. Marlowe, E. O. Nester and J. Tults demonstrated a 2-by-18 matrix display driven by a hybrid circuit using the dynamic scattering mode of LCDs.T. Peter Brody, J. A. Asars and G. D. Dixon at Westinghouse Research Laboratories developed a CdSe (cadmium selenide) TFT, which they used to demonstrate the first CdSe thin-film-transistor liquid-crystal display (TFT LCD).active-matrix liquid-crystal display (AM LCD) using CdSe TFTs in 1974, and then Brody coined the term "active matrix" in 1975.high-resolution and high-quality electronic visual display devices use TFT-based active matrix displays.

The circuit layout process of a TFT-LCD is very similar to that of semiconductor products. However, rather than fabricating the transistors from silicon, that is formed into a crystalline silicon wafer, they are made from a thin film of amorphous silicon that is deposited on a glass panel. The silicon layer for TFT-LCDs is typically deposited using the PECVD process.

Polycrystalline silicon is sometimes used in displays requiring higher TFT performance. Examples include small high-resolution displays such as those found in projectors or viewfinders. Amorphous silicon-based TFTs are by far the most common, due to their lower production cost, whereas polycrystalline silicon TFTs are more costly and much more difficult to produce.

The twisted nematic display is one of the oldest and frequently cheapest kind of LCD display technologies available. TN displays benefit from fast pixel response times and less smearing than other LCD display technology, but suffer from poor color reproduction and limited viewing angles, especially in the vertical direction. Colors will shift, potentially to the point of completely inverting, when viewed at an angle that is not perpendicular to the display. Modern, high end consumer products have developed methods to overcome the technology"s shortcomings, such as RTC (Response Time Compensation / Overdrive) technologies. Modern TN displays can look significantly better than older TN displays from decades earlier, but overall TN has inferior viewing angles and poor color in comparison to other technology.

The transmittance of a pixel of an LCD panel typically does not change linearly with the applied voltage,sRGB standard for computer monitors requires a specific nonlinear dependence of the amount of emitted light as a function of the RGB value.

Less expensive PVA panels often use dithering and FRC, whereas super-PVA (S-PVA) panels all use at least 8 bits per color component and do not use color simulation methods.BRAVIA LCD TVs offer 10-bit and xvYCC color support, for example, the Bravia X4500 series. S-PVA also offers fast response times using modern RTC technologies.

TFT dual-transistor pixel or cell technology is a reflective-display technology for use in very-low-power-consumption applications such as electronic shelf labels (ESL), digital watches, or metering. DTP involves adding a secondary transistor gate in the single TFT cell to maintain the display of a pixel during a period of 1s without loss of image or without degrading the TFT transistors over time. By slowing the refresh rate of the standard frequency from 60 Hz to 1 Hz, DTP claims to increase the power efficiency by multiple orders of magnitude.

Due to the very high cost of building TFT factories, there are few major OEM panel vendors for large display panels. The glass panel suppliers are as follows:

External consumer display devices like a TFT LCD feature one or more analog VGA, DVI, HDMI, or DisplayPort interface, with many featuring a selection of these interfaces. Inside external display devices there is a controller board that will convert the video signal using color mapping and image scaling usually employing the discrete cosine transform (DCT) in order to convert any video source like CVBS, VGA, DVI, HDMI, etc. into digital RGB at the native resolution of the display panel. In a laptop the graphics chip will directly produce a signal suitable for connection to the built-in TFT display. A control mechanism for the backlight is usually included on the same controller board.

The low level interface of STN, DSTN, or TFT display panels use either single ended TTL 5 V signal for older displays or TTL 3.3 V for slightly newer displays that transmits the pixel clock, horizontal sync, vertical sync, digital red, digital green, digital blue in parallel. Some models (for example the AT070TN92) also feature input/display enable, horizontal scan direction and vertical scan direction signals.

New and large (>15") TFT displays often use LVDS signaling that transmits the same contents as the parallel interface (Hsync, Vsync, RGB) but will put control and RGB bits into a number of serial transmission lines synchronized to a clock whose rate is equal to the pixel rate. LVDS transmits seven bits per clock per data line, with six bits being data and one bit used to signal if the other six bits need to be inverted in order to maintain DC balance. Low-cost TFT displays often have three data lines and therefore only directly support 18 bits per pixel. Upscale displays have four or five data lines to support 24 bits per pixel (truecolor) or 30 bits per pixel respectively. Panel manufacturers are slowly replacing LVDS with Internal DisplayPort and Embedded DisplayPort, which allow sixfold reduction of the number of differential pairs.

Kawamoto, H. (2012). "The Inventors of TFT Active-Matrix LCD Receive the 2011 IEEE Nishizawa Medal". Journal of Display Technology. 8 (1): 3–4. Bibcode:2012JDisT...8....3K. doi:10.1109/JDT.2011.2177740. ISSN 1551-319X.

K. H. Lee; H. Y. Kim; K. H. Park; S. J. Jang; I. C. Park & J. Y. Lee (June 2006). "A Novel Outdoor Readability of Portable TFT-LCD with AFFS Technology". SID Symposium Digest of Technical Papers. AIP. 37 (1): 1079–82. doi:10.1889/1.2433159. S2CID 129569963.

A liquid crystal display (LCD) has liquid crystal material sandwiched between two sheets of glass. Without any voltage applied between transparent electrodes, liquid crystal molecules are aligned in parallel with the glass surface. When voltage is applied, they change their direction and they turn vertical to the glass surface. They vary in optical characteristics, depending on their orientation. Therefore, the quantity of light transmission can be controlled by combining the motion of liquid crystal molecules and the direction of polarization of two polarizing plates attached to the both outer sides of the glass sheets. LCDs utilize these characteristics to display images.

An LCD consists of many pixels. A pixel consists of three sub-pixels (Red/Green/Blue, RGB). In the case of Full-HD resolution, which is widely used for smartphones, there are more than six million (1,080 x 1,920 x 3 = 6,220,800) sub-pixels. To activate these millions of sub-pixels a TFT is required in each sub-pixel. TFT is an abbreviation for "Thin Film Transistor". A TFT is a kind of semiconductor device. It serves as a control valve to provide an appropriate voltage onto liquid crystals for individual sub-pixels. A TFT LCD has a liquid crystal layer between a glass substrate formed with TFTs and transparent pixel electrodes and another glass substrate with a color filter (RGB) and transparent counter electrodes. In addition, polarizers are placed on the outer side of each glass substrate and a backlight source on the back side. A change in voltage applied to liquid crystals changes the transmittance of the panel including the two polarizing plates, and thus changes the quantity of light that passes from the backlight to the front surface of the display. This principle allows the TFT LCD to produce full-color images.

A TFT LCD,  or a thin film transistor liquid crystal display, is one of the fastest growing forms of display technology today. The thin film transistor (TFT) is a type of semiconductor device used in display technology to enhance efficiency, compactness, and cost of the product. In conjunction with its semiconductor properties, the TFT LCD is an active matrix display, controlling pixels individually and actively rather than passively, furthering the benefits of this semiconductor device.

The TFT LCD is built with three key layers. Two sandwiching layers consist of glass substrates, though one includes TFTs while the other has an RGB, or red green blue, color filter. The layer between the glass layers is a liquid crystal layer.

The Architecture of a TFT Pixelbelow) from the other substrate layer of the device and control the amount of voltage applied to their respective sub-pixels. This layer also has pixel electrodes between the substrate and the liquid crystal layer. Electrodes are conductors that channel electricity into or out of something, in this case, pixels.

The outer sides of the glass substrates (closest to the surface or closest to the back) have filter layers called polarizers. These filters allow only certain beams of light to pass through if they are polarized in a specific manner, meaning that the geometric waves of the light are appropriate for the filter. If not polarized correctly, the light does not pass through the polarizer which creates an opaque LCD screen.

The twisted nematic effect is one of the cheapest options for LCD technology, and it also allows for fast pixel response time. There are still some limits, though; color reproduction quality may not be great, and viewing angles, or the direction at which the screen is looked at, are more limited.

The light that passes through the device is sourced from the backlight which can shine light from the back or the side of the display. Because the LCD does not produce its own light, it needs to use the backlight in the OLED) have come into use as well. Typically white, this light, if polarized correctly, will pass through the RGB color filter of the surface substrate layer, displaying the color signaled for by the TFT device.

Within an LCD, each pixel can be characterized by its three sub-pixels. These three sub-pixels create the RGB colorization of that overall pixel. These sub-pixels act as capacitors, or electrical storage units within a device, each with their own independent structural and functional layers as described earlier. With the three sub-pixels per pixel, colors of almost any kind can be mixed from the light passing through the filters and polarizer at different brightness based on the liquid crystal alignment.

The global production volume of polarizers in 2021 is estimated to have attained 627.45 million square meters, 108.8% of that of previous year. By LCD type, those polarizers for thin-film-transistor liquid-crystal display i.e. TFT LCD, and for Active-Matrix Organic Light-Emitting Diode i.e. AMOLED are estimated to have occupied overwhelming 99.1% of the entire polarizer production volume.

The global production volume of polarizers for TFT LCD and for AMOLED grew prominently by 9.1% to 621.50 million square meters. Because special demand for displays caused by at-home spending stemming from self-quarantine in the COVID-19 calamity continued in 2021, almost all the polarizer manufacturers kept their full-scale production. Yet, tight supply in polarizers mainly for large display screens continued until the third quarter 2021.

Polarizers in this research refer to those polarizers for TFT (Thin Film Transistor)-LCD, AMOLED (Active-Matrix Organic Light-Emitting Diode) and for PM-VA (Passive Matrix Vertical Alignment) monitors, in addition to those for TN (Twisted Nematic)-LCD, and STN (Super Twisted Nematic)-LCD. The polarizer market size is calculated based on the production volume at manufacturers in 10,000 square meters.

The video you show is of a liquid crystal display (LCD) monitor, also known as "TFT". The "trick" depends on the specific design characteristics of these monitors (described below) and will not generally work with other types of displays such as LED and PLASMA displays.

All liquid crystal displays (LCD) operate on the principle of being able to "twist" polarized light as it passes through a "nematic" liquid crystal. The orientation of each liquid crystal in a display is governed by an electric field applied to a transparent electrode, through an array of thin-film transistors (TFT). The liquid crystal is normally "sandwiched" between two polarizing filters at 90 degrees to each other. Polarized light enters the back of the liquid crystal from the back-lit LED. When the nematic crystal is not energised, it "twists" the polarized light by 90 degrees so that it passes through the second polarizing filter. Wnen an electric field is applied to the liquid crystal, the light does not get twisted so gets blocked by the second polarizing filter.

For more detail on the internal workings, including a"tear down" of an LCD-TFT monitor see this video: http://www.engineerguy.com/videos/video-lcd.htm

By taking out the second polarizing filter and placing them on a pair of glasses, the display appears "invisible" (white) to the naked eye because ALL the from the LED backlight that passes through the first polarizing filter gets through the TFT section to the naked eye, regardless of it"s orientation (polarization) so the naked eye sees it as "white". It"s not until the second polarizing filter is applied to "filter" the light from specific pixels which have "twisted" their light (with respect to the other pixels) that we can distinguish between the pixels.

The advantages of wearing Polarized Lens sunglasses are well documented, but there can sometimes be issues reading TFT displays with different viewing angles. TFT displays output light which is inherently polarized in one plane. If this plane is 90 degrees out of sync with the wearer’s sunglasses, this can make TFT displays all but unreadable, leaving the screen virtually black to the observer. This might be especially important where standard landscape displays are used in portrait mode.

Relec’s TFT modules are available with exceptionally high brightness levels of up to 1500cd/m2, making them suitable for both indoor and outdoor applications. When fitted with a ¼ wave retarder film, the display can be used in either portrait or landscape mode with polarized sunglasses.
