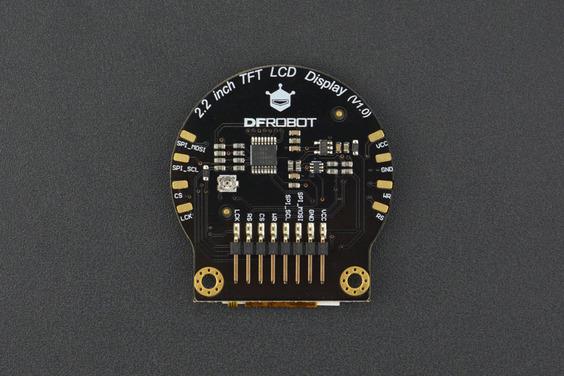

This is a 2.2” TFT LCD Display Module with an input voltage of 3.3V~5.5V, which is used to display colorful patterns and characters. The fastest screen refresh speed is about 256ms. The module is able to display multiple patterns in a cycle and realize dynamic display effect. At present, there are 19 common defined colors in the library, and users can also customize16-bit color codes. If we take the central point of the display as the origin of coordinates, the maximum absolute value of the positive and negative axis will be 64.

Note: the parameter “2.2 inches” is noted according to the Display Specification provided by the display manufacture, the real display area is about 1.26 inches (diameter: 32mm).

Module Size:67mm(length)*40mm(width)*4mm(thickness), Active Area: 47.5mm(Length)x36.5mm(Width)Package Included:1*2.2" 2.2 inch 4-Wire SPI TFT LCD Display ModuleHow to use it?1. use 5v to led pin, 3.3v to vcc and 1k / 1.5k resistor voltage dividers to get it to work. 1k resistor in series from Arduino to tft logic pin, 1.5k from tft pin to ground.

ER-TFT022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller,optional capacitive touch panel with controller FT6236U and resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

Spice up your Arduino project with a beautiful touchscreen display shield with built in microSD card connection. This TFT display is 2.2" diagonal and colorful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a optional Capacitive Touch Panel Controller FT6236 and resistive touch panel with controller XPT2046 attached by default.

This display shield has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. You can connect more sensors, buttons and LEDs.

This is a 2.2” TFT LCD Display Module with an input voltage of 3.3V~5.5V, which is used to display colorful patterns and characters. The fastest screen refresh speed is about 256ms. The module is able to display multiple patterns in a cycle and realize dynamic display effect. At present, there are 19 common defined colors in the library, and users can also customize16-bit color codes. If we take the central point of the display as the origin of coordinates, the maximum absolute value of the positive and negative axis will be 64.

Note: the parameter “2.2 inches” is noted according to theDisplay Specificationprovided by the display manufacture, the real display area is about 1.26 inches (diameter: 32mm).

This is a 2.2” TFT LCD Display Module with an input voltage of 3.3V~5.5V, which is used to display colorful patterns and characters. The fastest screen refresh speed is about 256ms. The module is able to display multiple patterns in a cycle and realize dynamic display effect. At present, there are 19 common defined colors in the library, and users can also customize16-bit color codes. If we take the central point of the display as the origin of coordinates, the maximum absolute value of the positive and negative axis will be 64.

Alluvodna strankaRaspberry PiEnclosures Boxes CasesLCD TFT OLED Display for RPiAccessories Cables Power SuppliesmicroSD Memory Card & AdapterRaspberry PI Single-board ComputerCamera for Raspberry PiShield & Board for Raspberry PiWiFi for Raspberry PiKeyboard & Touchpad for Raspberry PiRaspberry Pi Kit Pack bundleRELAY BOARDGSM/GPRS/3G/4G/LTE/WiMax/5G/GSM BOARDS FOR RASPBERRY PIRaspberry Pi 400 (Pi400 RPI400)Raspberry Pi Compute ModuleRaspberry Pi PicoRaspberry Pi Zeromicro:bitmicro:bit KITArduinoBREAKOUT BOARDS, Accessories & CablesArduino KitOriginal ARDUINO BoardsOriginal ARDUINO ShieldsARDUINO BoardsARDUINO ShieldsARDUINO Box EnclosuresESP32 ESP8266Development Tools8051 Development ToolsMicrochip AtmelBREAKOUT BOARDS & SHIELDSARM Development ToolsCypress PSoC DevelopmentProgrammersData LoggersSTMICROELECTRONICSWeb ServerAndroid MINI PC / Development Kit.NET Micro FrameworkFPGA ALTERA Intel Xilinx Lattice Microchip CPLD ASICSingle board Linux computerJTAG ToolsMAXQ2000System On ModulesFREESCALEParallax Basic Stamp PropellerBeagleBoard BeagleBoneCubieboard Cubietruckx86 Vortex86Banana PiODROIDFTDI Chip’s FT90x, ..OLIMEXOnion (Omega2)Základné doskyAI - Deep Learning - Neural NetworkJetson (NVIDIA)SparkFun MicroModBIOMETRIC MEDICAL E-Health Sensor EEG EKGEnclosures Boxes CasesWearable electronic / E-TextilesPrototyping SADY STAVEBNICECompilers & SoftwareSingle Board ComputerMotor DriverElectronic Components / Battery / Memory cardM5StackMeasuring instrumentsDigital OscilloscopesSpectrum AnalyzersWaveform GeneratorsDigital MultimetersPower SuppliersUniversal CountersLogic AnalyzersLCR MeterPower MeterHandheld Digital MultimeterNon-invasive AC Current SensorData loggerData AcquisitionImaging IR ThermometerDC ELECTRONIC LOADS - Elektronická záťažLCD TFT OLED e-paper0.9 - 5" LCD display5 - 8" LCD display8 - 16" LCD displaye-Paper / E-INKOLED / AMOLEDCOG, VFD, Character/Monochrome LCDDisplay AccessoriesIoT (THE INTERNET OF THINGS)SONOFFComplete Robots3D Printer, Bluetooth Printer, Thermal PrinterGaming System ArcadeVyberame / WE LOVE TRENDUnipiNUMATO

If you already have experience with the rectangular LCD modules, you will gain one more experience here: namely the round LCD module which is the size of a men"s wristwatch. DFRobot offers it with example-codes for ESP and Arduino as Fermion: 2.2 ”TFT SPI Interface LCD Display (Breakout).

A graphic could also be converted into hex values with a desktop program and displayed accordingly on the LCD. However, I am inexperienced in using the Chinese characters and have not tried the example program.

No! For about the price of a familiar 2x16 LCD, you get a high resolution TFT display. For as low as $4 (shipping included!), it"s possible to buy a small, sharp TFT screen that can be interfaced with an Arduino. Moreover, it can display not just text, but elaborate graphics. These have been manufactured in the tens of millions for cell phones and other gadgets and devices, and that is the reason they are so cheap now. This makes it feasible to reuse them to give our electronic projects colorful graphic displays.

There are quite a number of small cheap TFT displays available on eBay and elsewhere. But, how is it possible to determine which ones will work with an Arduino? And what then? Here is the procedure:ID the display. With luck, it will have identifying information printed on it. Otherwise, it may involve matching its appearance with a picture on Google images. Determine the display"s resolution and the driver chip.

Find out whether there is an Arduino driver available. Google is your friend here. Henning Karlsen"s UTFT library works with many displays. (http://www.rinkydinkelectronics.com/library.php?i...)

Load an example sketch into the Arduino IDE, and then upload it to the attached Arduino board with wired-up TFT display. With luck, you will see text and/or graphics.

We"ll begin with a simple one. The ILI9163 display has a resolution of 128 x 128 pixels. With 8 pins in a single row, it works fine with a standard Arduino UNO or with a Mega. The hardware hookup is simple -- only 8 connections total! The library put together by a smart fella, by the name of sumotoy, makes it possible to display text in multiple colors and to draw lines.

Note that these come in two varieties, red and black. The red ones may need a bit of tweaking to format the display correctly -- see the comments in the README.md file. The TFT_ILI9163C.h file might need to be edited.

It is 5-volt friendly, since there is a 74HC450 IC on the circuit board that functions as a level shifter. These can be obtained for just a few bucks on eBay and elsewhere, for example -- $3.56 delivered from China. It uses Henning Karlsen"s UTFT library, and it does a fine job with text and graphics. Note that due to the memory requirement of UTFT, this display will work with a standard UNO only with extensive tweaking -- it would be necessary to delete pretty much all the graphics in the sketch, and just stay with text.

on the far side of the display. It has 220x176 resolution (hires!) and will accept either 3.3 or 5 volts. It will work hooked up to an Uno, and with a few pin changes, also with a Mega. The 11-pin row is for activating the display itself, and the 5-pin row for the SD socket on its back.

This one is a 2.2" (diagonal) display with 176x220 resolution and parallel interface. It has a standard ("Intel 8080") parallel interface, and works in both 8-bit and 16-bit modes. It uses the S6D0164 driver in Henning Karlsen"s UTFT library, and because of the memory requirements of same, works only with an Arduino Mega or Due. It has an SD card slot on its back

This one is a bit of an oddball. It"s a clone of the more common HY-TFT240, and it has two rows of pins, set at right angles to one another. To enable the display in 8-bit mode, only the row of pins along the narrow edge is used. The other row is for the SD card socket on the back, and for 16-bit mode. To interface with an Arduino ( Mega or Due), it uses Henning Karlsen"s UTFT library, and the driver is ILI9325C. Its resolution is 320x240 (hires!) and it incorporates both a touch screen and an SD card slot.

Having determined that a particular TFT display will work with the Arduino, it"s time to think about a more permanent solution -- constructing hard-wired and soldered plug-in boards. To make things easier, start with a blank protoshield as a base, and add sockets for the TFT displays to plug into. Each socket row will have a corresponding row next to it, with each individual hole "twinned" to the adjacent hole in the adjoining row by solder bridges, making them accessible to jumpers to connect to appropriate Arduino pins. An alternative is hard-wiring the socket pins to the Arduino pins, which is neater but limits the versatility of the board.

In step 5, you mention that the TFT01 display can"t be used with the UTFT library on an Arduino Uno because of its memory requirements. It can - all you have to do is edit memorysaver.h and disable any display models you"re not using.

Not at all - it was your Instructable that got me going with the display to begin with! We all build off each other"s work, to the benefit of everyone.0

Tho I realize this is quickly becoming legacy hardware, these 8,16 bit parallel spi with 4 wire controller 3.2in Taft touch display 240x380. It has become very inexpensive with ally of back stock world wide so incorporating them into any project is easier then ever. Sorry to my question. I’m having difficulty finding wiring solution for this lcd. It is a sd1289 3.3 and 5v ,40 pin parallel 8,16 bit. I do not want to use a extra shield,hat or cape or adapter. But there’s a lot of conflicting info about required lvl shifters for this model any help or links to info would be great .. thank you. I hope I gave enough information to understand what I’m adoing

#1 you need a data sheet for the display and pinout and the i/o board attached to the cable.Than before you buy check for a driver for this chip Raydium/RM69071.if no driver lib are you able to write one and do you have the necessary tools to work on this scale to wire it up ..if you answer no than search for an arduino ready product.WCH0

Thanks for the wealth of knowledge! It is amazing at what is possible with items the average person can easily acquire. I hope to put some of your tips to use this winter as I would like to build sensors and other items for home automation and monitoring. Being able to have small displays around the house in addition to gathering and controlling things remotely will help the family see room conditions without going to the computer. The idea of a touchscreen control for cheap is mind blowing.

ILI9341 is a 262144-color single-chip SOC driver for a TFT liquid crystal display with resolution of 240x320 dots (RGB), comprising a 720-channel source driver, a 320-channel gate driver, 172800 bytes GRAM for graphic display data of 240x320 dots (RGB), and power supply circuit.

ILI9341 can operate with 1.65V ~ 3.3V I/O interface voltage and an incorporated voltage follower circuit to generate voltage levels for driving an LCD.

ILI9341 supports full color, 8-color display mode and sleep mode for precise power control by software and these features make the ILI9341 an ideal LCD driver for medium or small size portable products such as digital cellular phones, smart phone, MP3 and PMP where long battery life is a major concern.
