2.2 tft lcd display v1.0 quotation

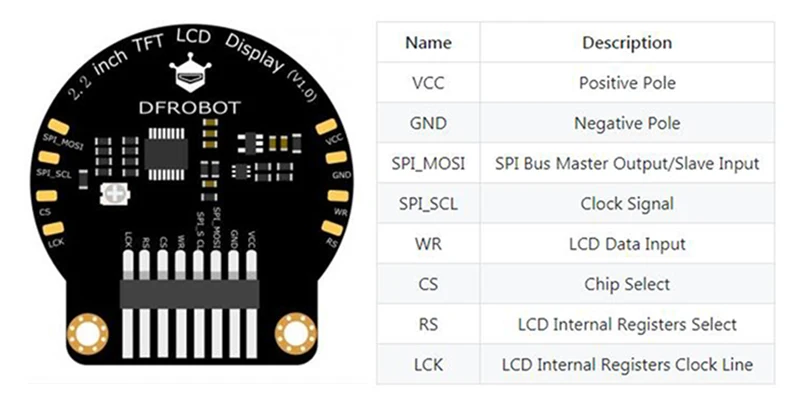

This is a 2.2” TFT LCD Display Module with an input voltage of 3.3V~5.5V, which is used to display colorful patterns and characters. The fastest screen refresh speed is about 256ms. The module is able to display multiple patterns in a cycle and realize dynamic display effect. At present, there are 19 common defined colors in the library, and users can also customize16-bit color codes. If we take the central point of the display as the origin of coordinates, the maximum absolute value of the positive and negative axis will be 64.

Note: the parameter “2.2 inches” is noted according to the Display Specification provided by the display manufacture, the real display area is about 1.26 inches (diameter: 32mm).

ER-TFT022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller,optional capacitive touch panel with controller FT6236U and resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 8-bit,9-bit,16-bit,18-bit parallel,3-wire,4-wire serial spi interface. FPC with zif connector is easily to assemble or remove.Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Shield with Libraries, Examples.Schematic Diagram for Arduino Due,Mega 2560 and Uno.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.

ER-TFTM022-1 is 240x320 dots 2.2" color tft lcd module display with ILI9341 controller board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.

It supports 8080 8-bit /9-bit/16-bit /18-bit parallel ,3-wire,4-wire serial spi interface.Built-in optional microSD card slot,touch panel controller and 2.2 inch 4-wire resistive touch panel. It"s optional for font chip, flash chip and microsd card. We offer two types connection,one is pin header and the another is ZIF connector with flat cable mounting on board by default and suggested. Lanscape mode is also available.

Of course, we wouldn"t just leave you with a datasheet and a "good luck!".Here is the link for 2.2"TFT Touch Shield with Libraries, EXxamples.Schematic Diagram for Arduino Due,Mega 2560 and Uno . For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and development kit at the bottom of this page.

If you already have experience with the rectangular LCD modules, you will gain one more experience here: namely the round LCD module which is the size of a men"s wristwatch. DFRobot offers it with example-codes for ESP and Arduino as Fermion: 2.2 ”TFT SPI Interface LCD Display (Breakout).

A graphic could also be converted into hex values with a desktop program and displayed accordingly on the LCD. However, I am inexperienced in using the Chinese characters and have not tried the example program.

The DT022BTFT uses the same connections as the DT022CTFT, with the exception of the backlight (which has connections shown in the Displaytech datasheet).

The provided display driver example code is designed to work with Microchip, however it is generic enough to work with other micro-controllers. The code includes display reset sequence, initialization and example PutPixel() function. Keep the default values for all registers in the ILI9341, unless changed by the example code provided.

Note that the WR pin becomes the D/CX signal in serial mode. CS is used to initiate a data transfer by pulling it low. At the end of the data transfer, pull the CS pin high to complete the transaction. The timing diagram indicates that you can pull the CS pin high in between the command byte and data bytes within a transfer, but it is unlikely needed if the display is the only device on the SPI bus. To keep things simple, we suggest to leave it low during the entire transaction.

The provided display driver example code is designed to work with Microchip, however it is generic enough to work with other micro-controllers. The code includes display reset sequence, initialization and example PutPixel() function. Keep the default values for all registers in the ILI9341, unless changed by the example code provided.

Note that the WR pin becomes the D/CX signal in serial mode. CS is used to initiate a data transfer by pulling it low. At the end of the data transfer, pull the CS pin high to complete the transaction. The timing diagram indicates that you can pull the CS pin high in between the command byte and data bytes within a transfer, but it is unlikely needed if the display is the only device on the SPI bus. To keep things simple, we suggest to leave it low during the entire transaction.

This application note describes the interfacing of Ampire AM-800480STMQW-TA1 display to BoraEVB and BoraXEVB. Main characteristics of this 7" TFT LCD panel are:

To interface the display a small adapter board is needed. It interfaces J22 connector on BoraEVB side and provides a 20-pin connector to directly attach display cable.

is also equipped with a linear regulator generating 2.5V. This voltage is used as power supply for the VDDIO_BANK13 rail. This voltage is required to implement LVDS differential pairs that drive display.

integrates a pad (denoted as TP1) that is used to connect 5V power supply generated by MOD2 PSU of BoraEVB. This additional power rails is required by display backlight circuitry.

In case of BoraXEVB, no adapter board is needed. LCD panel is directly connected to J26 connector where PL bank 13"s signals implementing LVDS interface are routed (see page 14 of the schematics). I/O voltage of bank 13 is set to 2.5V by configuring JP25 as shown in the following table.

To implement frame buffer, a portion of main SDRAM is used. This area is allocated at runtime by linux frame buffer driver. Even if LCD is 18 bpp, each pixel is represented by 32-bit word in memory. In fact each pixel is in RGB666 format, so for each colour only the six most significant bits of the frame buffer RGB888 are used to drive the display.

(*) This signal is used to control backlight. It is usually driven by a PWM signal whose duty cycle is proportional to backlight intensity. For the sake of simplicity, in this project this signal is driven by a GPIO, thus only two intensity levels are supported (0% and 100%). This is a CMOS 2.5V level signal. Make sure that voltage levels of this signal are compatible with LCD backlight input.

(*) This signal is used to control backlight. It is usually driven by a PWM signal whose duty cycle is proportional to backlight intensity. For the sake of simplicity, in this project this signal is driven by a GPIO, thus only two intensity levels are supported (0% and 100%). This is a CMOS 2.5V level signal. Make sure that voltage levels of this signal are compatible with LCD backlight input.
