3.2 lcd module for sale

※ Price Increase NotificationThe TFT glass cell makers such as Tianma,Hanstar,BOE,Innolux has reduced or stopped the production of small and medium-sized tft glass cell from August-2020 due to the low profit and focus on the size of LCD TV,Tablet PC and Smart Phone .It results the glass cell price in the market is extremely high,and the same situation happens in IC industry.We deeply regret that rapidly rising costs for glass cell and controller IC necessitate our raising the price of tft display.We have made every attempt to avoid the increase, we could accept no profit from the beginning,but the price is going up frequently ,we"re now losing a lot of money. We have no choice if we want to survive. There is no certain answer for when the price would go back to the normal.We guess it will take at least 6 months until these glass cell and semiconductor manufacturing companies recover the production schedule. (Mar-03-2021)

ER-TFT032-2 is 240x320 dots 3.2 " color tft lcd module display with ILI9320 controller and optional 4-wire resistive touch panel,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI.It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image.It supports 8080 16-bit parallel interface. .FPC is soldering type,there is no need for zif connector.Lanscape mode is also available.

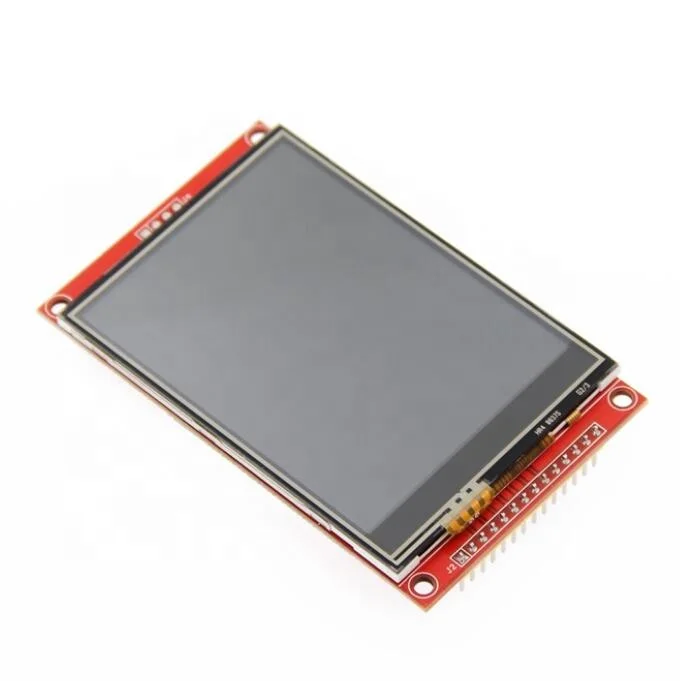

Features:3.2 inch color screen, support 65K color display, and the display is colorful 320X240 HD resolution, with touch function(optional) Using Serial Peripheral Interface serial bus, it only needs a few IO to lighten the display card cage for easy expansion of experiments Provides a rich sample program Military technology standard, long - term stable work Provide underlying driver technical supportSpecification:Size: 3.2 inch

3 CS LCD Chip Selection 4 RESET LCD reset 5 DC LCD Bus command/data selection 6 SDI(MOSI) LCD SPI Displays bus data input 7 SCK LCD SPI Displays bus clock signal 8 LED LCD Backlight control (high level lighting) 9 SDO(MISO) LCD SPI Displays bus data output 10 T_CLK Touch panel SPI bus clock signal 11 T_CS Touch panel SPI busChip Selection 12 T_DIN Touch panel SPI bus data input

It has 40 pins interface and SD card and Flash reader design. It is a powerful and mutilfunctional module for your project. The Screen include a controller ILI9341, it"s a support 8/16 bit data interface , easy to drive by many MCU like arduino families? STM32, AVR and 8051. It is designed with a touch controller in it . The touch IC is XPT2046 , and touch interface is included in the 40 pins breakout. It is the version of product only with touch screen and touch controller.

262K color320*2403.2 inchWide viewing angleILI9341 : 320 TFT Driver X 240 RGBIntegrated Power, Gate and Source Driver With RAMXPT2046-WIRE TOUCH,WIRE TOUCH, UP TO 125kHz CONVERSION RATE, SERIAL INTERFACEVoltage type : 5v or 3v voltage input voltage?input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.Note: the factory TFT module, are the 5 v power supply. By default.Carrying on board SD holder, its work to SPI mode.By the use of Stylus we can write anything on Display.

Cheap LCD Modules, Buy Quality Electronic Components & Supplies Directly from China Suppliers:3.2, 3.5, 5.0, 7.0 inch HDMI Compatible GPIO TFT LCD Module Display Monitor Screen…

This kit consists of a CFAF240320A-032T TFT LCD module mounted on a carrier board. The carrier board supports a current driver for the LED backlight of the display. It is also available under Additional Options on the website page for CFAF240320A-032T.
